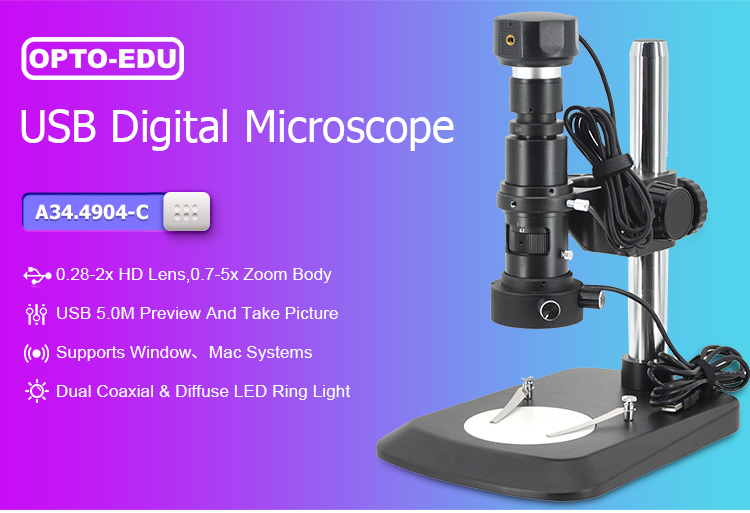

A34.4904-C Portable Digital Microscope / Dual Coaxial LED Digital Usb Microscope

    Buy cheap A34.4904-C Portable Digital Microscope / Dual Coaxial LED Digital Usb Microscope from wholesalers

    Buy cheap A34.4904-C Portable Digital Microscope / Dual Coaxial LED Digital Usb Microscope from wholesalers
    • Buy cheap A34.4904-C Portable Digital Microscope / Dual Coaxial LED Digital Usb Microscope from wholesalers
    • Buy cheap A34.4904-C Portable Digital Microscope / Dual Coaxial LED Digital Usb Microscope from wholesalers
    • Buy cheap A34.4904-C Portable Digital Microscope / Dual Coaxial LED Digital Usb Microscope from wholesalers
    • Buy cheap A34.4904-C Portable Digital Microscope / Dual Coaxial LED Digital Usb Microscope from wholesalers

    A34.4904-C Portable Digital Microscope / Dual Coaxial LED Digital Usb Microscope

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A34.4904 - C
    Certification : CE, Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    A34.4904-C Portable Digital Microscope / Dual Coaxial LED Digital Usb Microscope

    A34.4904-C USB Digital Microscope
    Hardware Configuration
    Image SensorColorful
    Expose ModeRolling Shutter
    Maximum Resolution2592 x 1944 (5,038,848 pixels)
    Sensor Optical Format1/2.5“ (5.70mm(H) x 4.28mm(V), Diagonal 7.13mm)
    Pixel Size2.2μm*2.2μm
    Dynamic Range70.1dB
    ADC12-bit, 8-Bit R.G.B to PC
    SNR(Signal Noise Ratio)38.1dB
    Spectral Characteristics380-650nm
    Binning Modes1 x 1, 2 x 2
    Exposure CapabilityReal-time auto, Single auto, Manual Adjustment
    White BalanceReal-time auto, Single auto, Manual Adjustment
    Software InterfaceDirectShow
    Preview Modes10FPS@2592x1944
    15FPS@1920x1080,1600x1200
    40FPS@1280x960, 1280x720, 1024x768, 800x600, 640x480
    Record FormatSnapshot
    Picture Format:JPG,BMP,PNG,TIFF,PDF
    Resolution:2592x1944, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480
    Record
    Video Format:MJPG format AVI file
    Resolution:1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480
    Optical Parameters
    Lens Optical Magnification0.28X~2X
    Lens Optical Resolution(um)16.78 (When in 0.7)
    11.18 (When in 1)
    8.39 (When in 2)
    6.10 (When in 3)
    4.79 (When in 4)
    4.79 (When in 5)
    Working distance(mm)88.5
    Depth of field(mm)5 (When in 0.7)
    3.2 (When in 1)
    0.9 (When in 2)
    0.47 (When in 3)
    0.34 (When in 4)
    0.27 (When in 5)
    Observation range (mm)20.4 x 15.3~2.86 x 2.15 Continuous Adjustment (L x D)
    Comprehensive resolution (when display on 21 inch 16:9 screen)17~121.5 Continuous zoom,68~486 Continuous zoom(this data is based on preview resolution is 640x480 with decompression zoom and the picture is display to adapt to screen)17.0 (When in 0.7)
    23.0 (When in 1)
    47.1 (When in 2)
    72.2 (When in 3)
    96.5 (When in 4)
    121.5(When in 5)
    Focusing hand wheel height range(mm)230
    Focusing bracket adjustment range(mm)50
    Software Environment
    Operation SystemMicrosoft®Windows®XP/7/8/8.1/10(32&64bit)
    Computer ConfigurationCPU: Equal Or More Than The Second Generation Intel Core 2.8GHz
    Memory: 2G Or More
    USB Port: USB 2.0 High Speed Port Or Compatible Port
    Displayer: Suggest 17 Inches Or Larger
    Operating Environment
    Operating temperature0℃~40℃
    Storage temperature-20℃~60℃
    Operating Humidity30~60%RH
    Storage Humidity10~80%RH
    Charge InterfaceDirect-current 5V. Power Supply By USB Interface
