    Opto-Edu A14.2603 Inverted Optical Microscope Trinocular Phase Contrast

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A14.2603
    Certification : CE, Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    Opto-Edu A14.2603 Inverted Optical Microscope Trinocular Phase Contrast

    OPTO-EDU A14.2603 Trinocular Phase Contrast Inverted Biological Microscope


    A14.2603 Inverted Biological Microscope is a kind of microscope whose objective is under the stage. The special design is for observing and operating specimen more convenient, especially for specimen of height. It’s stage is mechanical stage, size 210x241mm, the round slide size is dia.118mm, with attachable mechanical stage for 96 holes plate, moving range 128x80mm. The illumination is transmit light, Koehler illumination halogen 6V30W.



    Parameter

    A14.2603 Inverted Microscope Specification
    HeadSeidentopf Trinocular Head, Inclined 45°, Interpupillary Distance 48~76mm
    Light Split (Both) 100:0 and 80:20
    EyepieceWF10x/22mm, Diopter Adjustable
    NosepieceLarge Diameter Quintuple
    ObjectiveLWD Infinity Plan Objective
    LPL10x/0.25 WD=8.3mm
    LPL20x/0.40 WD=7.2mm
    LPL40x/0.60 WD=3.4mm
    LWD Infinity Plan Phase Contrast Objective
    20x/0.40 WD=7.2mm
    Focus SystemLow Position, Coaxial Coarse & Fine Focusing System, Coarse Stroke 42mm /Rotation, Fine Stroke 0.2mm /Rotation, Minimum Reading 2μm
    StageMechanical Stage Size 210x241mm, Round Slide Size Dia.118mm, With Attachable Mechanical Stage For 96 Holes Plate, Moving Range 128x80mm, With Culture Dish Holder 54mm, Knob Can Be Changed By Left Or Right

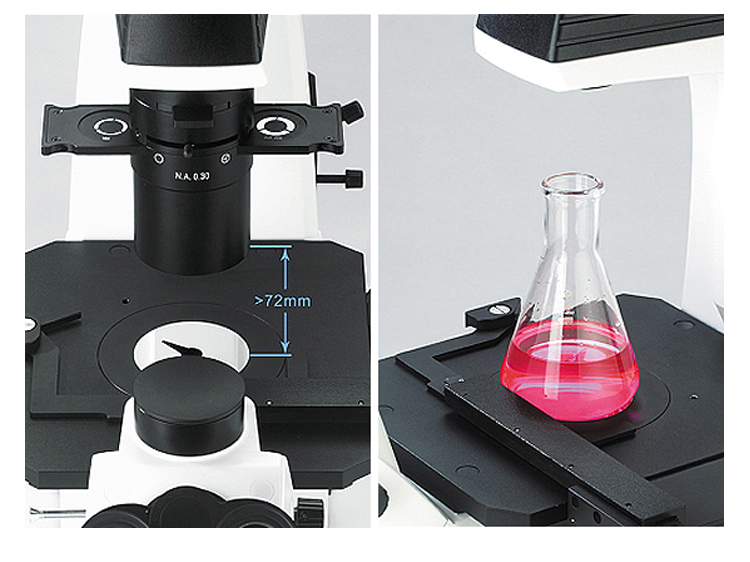

    CondenserLong Working Distance, N.A.0.3, Working Distance 72mm (With Condenser), 195mm (Without Condenser For Extra High Culture Dish), Quickly Detachable
    Phase ContrastPhase Contrast Annular Plate For 20x/40x
    FilterBlue, Green
    Light SourceTransmit Light, Halogen 6V30W, Koehler Illumination
    Power SupplyWide Range Voltage 110~240V

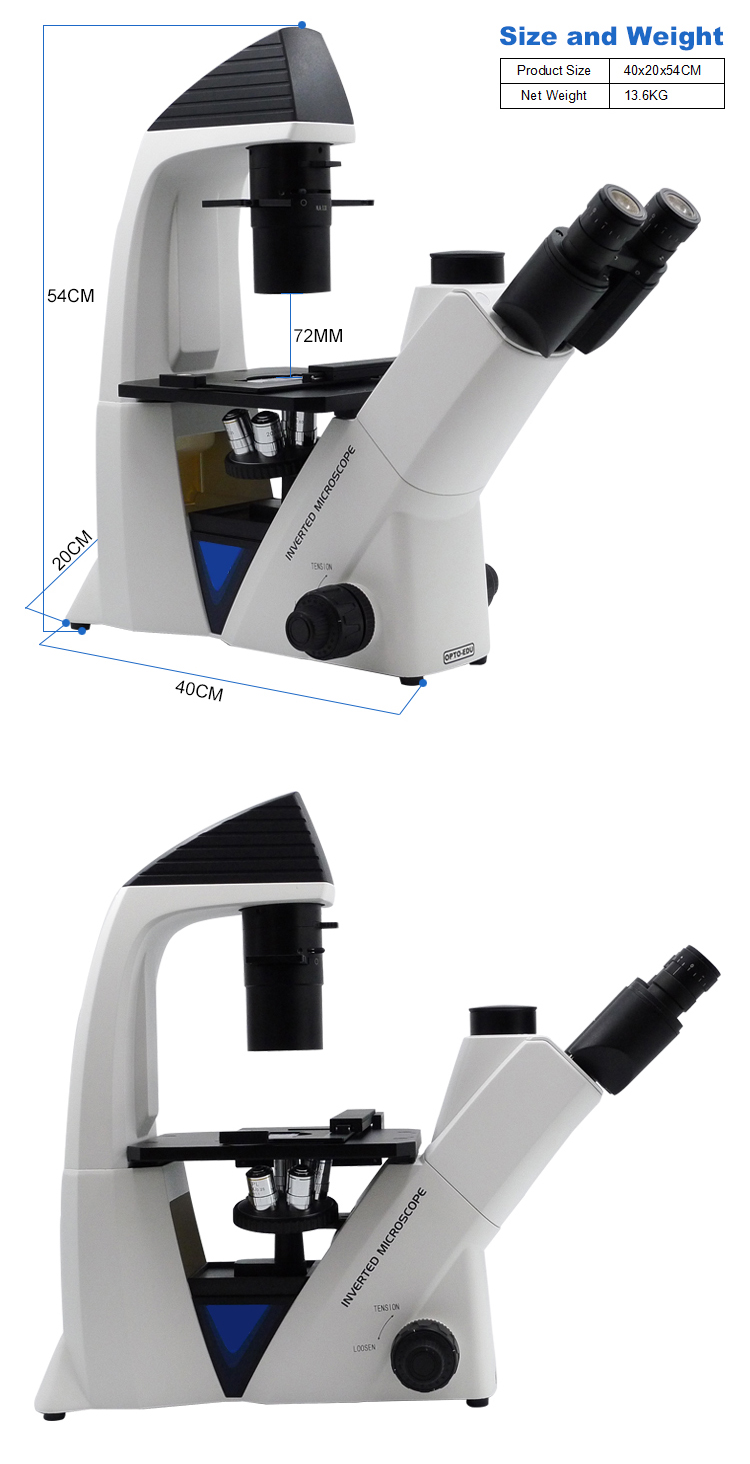

    Product Display

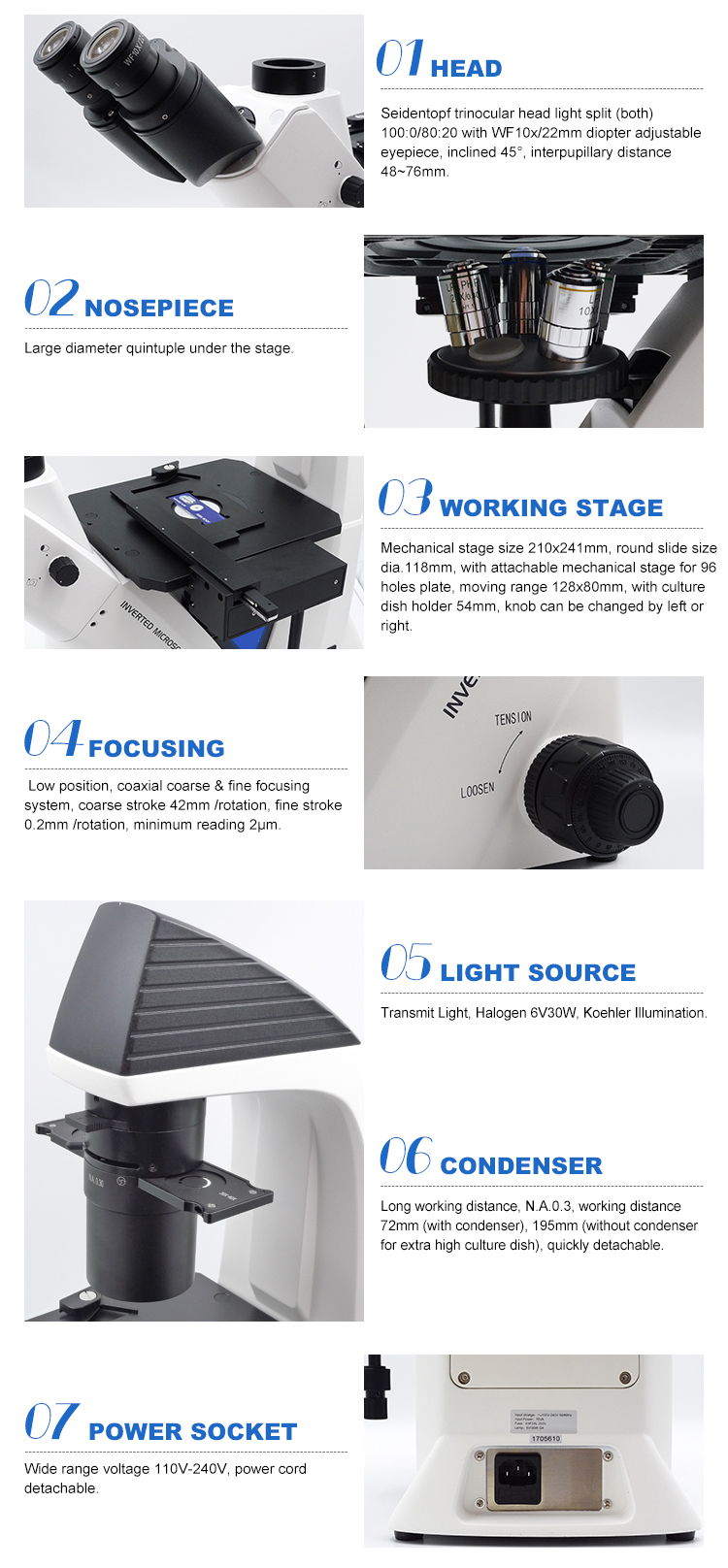

    Product Details



    Related Products


    Product Application

    Inverted microscope is particularly suitable for living cells and tissues, fluids, sediments and other microscopic research. It is the ideal instrument for biology, cytology, oncology, genetics, immunology and other research work. Inverted microscope is widely used in scientific research, universities, medical, epidemic prevention and agriculture and animal husbandry and other departments.



    Packaging & Shipping


    Company Information


    OPTO-EDU, as one of the most professional manufacturer and supplier of microscope in China, our sub-brand CNOPTEC series high end biological, laboratory, polarizing, metallurgical, fluorescene microscopes, CNCOMPARISON series forensic microscope, A63 series SEM microscope, and .49 series digital camera, LCD camera are very popular in the world market.
