OPTO-EDU A12.2603-B Laboratory Biological Microscope, Binocular, Infinity Plan, Quintuple

Ask Lasest Price
Brand Name :	CNOEC, OPTO-EDU
Certification :	CE, Rohs
Model Number :	A12.2603-B
Price :	FOB $1~1000, Depend on Order Quantity
Delivery Time :	5~20 Days
Payment Terms :	T/T, West Union, Paypal
Supply Ability :	5000 pcs/ Month

Add to Cart

Product Details
Company Profile

OPTO-EDU A12.2603-B Laboratory Biological Microscope, Binocular, Infinity Plan, Quintuple

Laboratory Biological Microscope, Binocular, Infinity Plan, Quintuple

Best Lab Microscope With Modular Structure Design To Upgrade Easily Even After Order

Large Size Head With Eyepiece Tube Dia.30mm 360 Degree Rotatable.

Super Wide Field SWF10x/22mm Eyepiece Dia.30mm Diopter Adjustable

Rackless Large Mechanical Stag 182x140mm/77x52m With Double Slide Holder

Swing Out Condenser N.A. 0.9/0.13 + High Brightness 6V30W Halogen Koehler Illumination

Items	A12.2603 Laboratory Biological Microscope Specification	-B	-T	Cata. No.

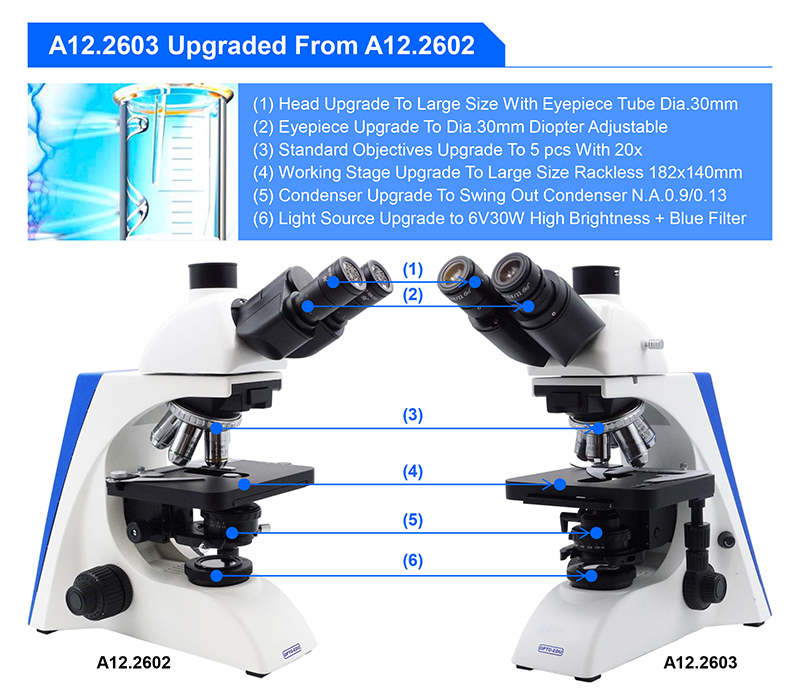

A12.2603 Upgarde From A12.2602	--Head Upgrade To Large Size With Eyepiece Tube Dia.30mm --Eyepiece Upgrade To Dia.30mm Diopter Adjustable --Standard Objectives Upgrade To 5 pcs With 20x --Working Stage Upgrade To Large Size Rackless 182x140mm --Condenser Abbe N.A.1.25 Upgrade To Swing Out Condenser N.A.0.9/0.13 --Light Source Upgrade to 6V30W High Brightness + Blue Filter
Head	Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm, Eyepiece Tube Dia.30mm	●	○	A53.2623-B
Head	Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm, Light Split Switch E100:P0/E20:P80, Eyepiece Tube Dia.30mm	○	●	A53.2623-T
Eyepiece	WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable	●●	●●	A51.2621-1022
Nosepiece	Quintuple	●	●	A54.2610-N01
Infinity Plan Objective	PLAN 2.5X/0.07,W.D.=8.47mm	○	○	A52.2606-2.5
	PLAN 4X/0.10,W.D.=12.10mm	●	●	A52.2606-4
	PLAN 10X/0.25,,W.D.=4.64mm	●	●	A52.2606-10
	PLAN 20X/0.40(S),W.D.=2.41mm	●	●	A52.2606-20
	PLAN 40X/0.66(S),W.D.=0.65mm	●	●	A52.2606-40
	PLAN 60X/0.80(S),W.D.=0.33mm	○	○	A52.2606-60
	PLAN 100X/1.25(S,Oil),W.D.=0.12mm	●	●	A52.2606-100
	PLAN 100X/1.15(S,Water),W.D.=0.19mm	○	○	A52.2606-100W
Working Stage	Rackless (Integrated) Mechanical Stage, Size 182×140mm, Travel Range 77×52mm, Double Slide Holder	●	●	A54.2601-S10
Working Stage	Mechanical Stage Size 175 mm×145mm, Travel 76mmX52mm, Scale: 0.1mm, Double Slide Holder	○	○	A54.2601-S01
Focusing	Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 22mm, Fine Focusing Div. 0.002mm	●	●
Condenser	Swing-out Condenser,N.A.0.9/0.13,Iris Diaphragm	●	●	A56.2614-07a
Illumination	6V30W Halogen Koehler Illumination, With Field Diaphragm Power Supply Wide Voltage 100V~240V	●	●	A56.2613-6V30W
Illumination	3W LED Koehler Illumination, Field Diaphragm Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use	○	○	A56.2651-3W
Field Diaphragm	For Kohler Illumnation	●	●	A56.2615-BK
Power	ECO, Auto Power Off System. Power Off Automatically Upon User Leaving 10 Minutes, Power On Automatically Upon User Approaching Detected, This Function Can Be Shut Down Manually	○	○	A56.2660
Filter	Dia.45mm, Blue	●	●	A56.2616-45B
	Dia.45mm, Green	○	○	A56.2616-45G
	Dia.45mm, Yellow	○	○	A56.2616-45A
Dark Field	Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective	○	○	A5D.2610-BK
Dark Field	Dark Field Condenser, Immersion, N.A.1.3, For 100x Objective			A5D.2610-BKW
Polarizing	Analyzer + Polarizer Set	○	○	A5P.2601-BK
Phase Contrast	Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	A5C.2602-10
	Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	A5C.2602-20
	Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	A5C.2602-40
	Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	A5C.2602-100
	Turret Phase Contrast Attachment Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter	○	○	A5C.2603-BK
Fluorescence	Upgrade to A16.2604-T2 Fluorescence Microscope With A5F.2601-2: B,G China Fluorescent Set 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. 6 Holes Disc Fluorescent Unit Ultraviolet Protection Barrier Centering Objective China 100W Mercury Lamp 2 pcs		○	A5F.2601-2
	Upgrade to A16.2604-T4 Fluorescence Microscope With A5F.2601-4: B,G,U,UV China Fluorescent Set 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. 6 Holes Disc Fluorescent Unit Ultraviolet Protection Barrier Centering Objective China 100W Mercury Lamp 2 pcs		○	A5F.2601-4
	Upgrade to A16.2604-LT2 Fluorescence Microscope With A5F.2602-2: B,G China Fluorescent Set 6 Holes Disc Fluorescent Unit 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier		○	A5F.2602-2
	Upgrade to A16.2604-LT4 Fluorescence Microscope With A5F.2602-4: B,G,U,UV China Fluorescent Set 6 Holes Disc Fluorescent Unit 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier		○	A5F.2602-4
Adapter	C-Mount 0.5x, Focus Adjustable	○	○	A55.2601-05
	C-Mount 0.75x, Focus Adjustable	○	○	A55.2601-75
	C-Mount 1.0x, Focus Adjustable	○	○	A55.2601-10
	Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm	○	○	A55.2610
Package	Carton Size 520×475×285mm, 1 Unit/Ctn
Weight	Gross Weight: 12 kgs, Net Weight: 10 kgs
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories
