    Halogen Lamp Biological Microscope Binocular / Trinocular Microscopes A11.0302

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A11.0302
    Certification : CE, Rohs
    Price : Negotiation
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    Halogen Lamp Biological Microscope Binocular / Trinocular Microscopes A11.0302

    Halogen Lamp Biological Microscope Binocular / Trinocular Microscopes A11.0302


    A11.0302 Student Microscope,

    --Achromatic Objectives
    --WF10x/18mm Wide Field Eyepiece

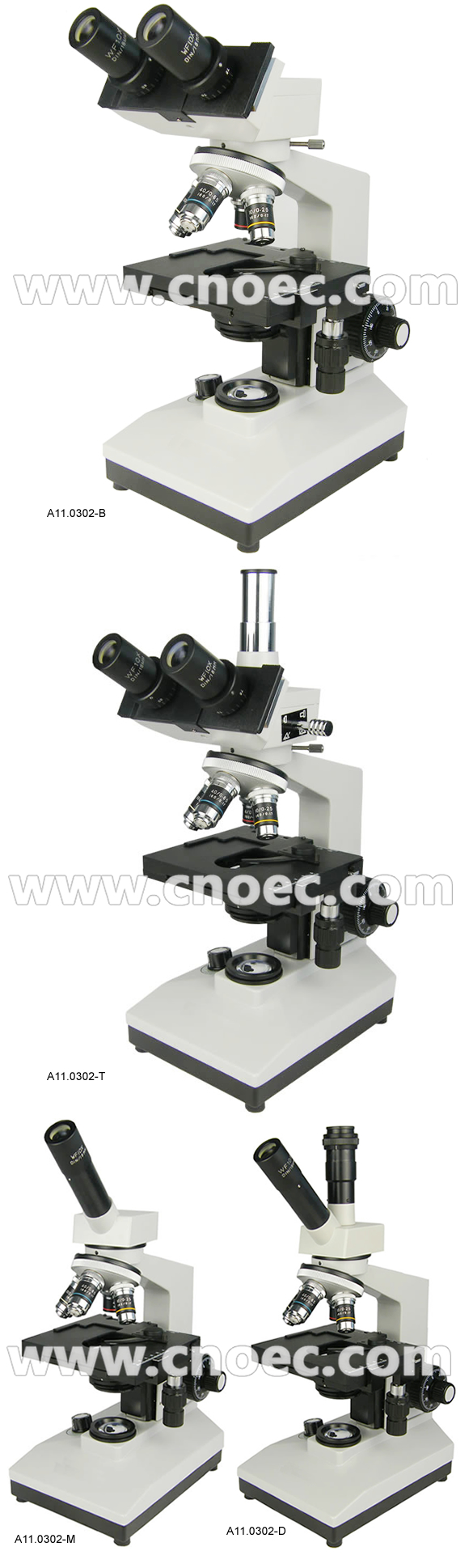

    --Monocular, Binocular, Trinocular Head Optional

    --Mechanical stage


    Specification
    A11.0302 Biological Microscope
    M
    D
    B
    T
    Head
    Monocular head, inclined 45°, rotatable 360°
    Dual Viewing head, inclined 45°, rotatable 360°
    Binocular head,inclined 30°, interpupillary distance 55-75mm
    Trinocular head, inclined 30°, interpupillary distance 55-75mm
    Eyepiece

    WF10x/18mm

    NosepieceQuadruple nosepiece
    ObjectiveAchromatic Objective 4x/NA 0.1
    Achromatic Objective 10x/NA 0.25
    Achromatic Objective 40x(s)/NA 0.65
    Achromatic Objective 100x(s,oil)/NA.1.25
    StageMechanical stage size 140x120mm, moving range 70x40mm, minimum vernier division 0.1mm
    FocusingCoaxial coarse & fine focusing knob, coarse focusing range 10mm, fine focusing division 0.002mm
    CondenserN.A.1.25 Abbe condenser, up/down range 15mm
    Light Source6V 20W Halogen lamp, brightness adjustable
    Optional Accessory
    Item No.
    EyepieceWF16x
    A51.0131-16
    WF20xA51.0131-20
    ObjectiveAchromatic 20x (S)A52.0301-20
    Achromatic 60x (S)A52.0301-60
    Plan 4xA52.0303-04
    Plan 10xA52.0303-10
    Plan 20x(S)A52.0303-20
    Plan 40x(S)A52.0303-40
    Plan 60x(S)A52.0303-60
    Plan 100x(O,S)A52.0303-100
    CondenserDark field condenser, dry
    A57.0310-01
    Dark field condenser, immersionA57.0310-02


    Quality Halogen Lamp Biological Microscope Binocular / Trinocular Microscopes A11.0302 for sale
