Binocular Head 640X Inverted Optical Microscope A14.0301 With 12V 50W Halogen Lamp

    Buy cheap Binocular Head 640X Inverted Optical Microscope A14.0301 With 12V 50W Halogen Lamp from wholesalers

    Buy cheap Binocular Head 640X Inverted Optical Microscope A14.0301 With 12V 50W Halogen Lamp from wholesalers
    • Buy cheap Binocular Head 640X Inverted Optical Microscope A14.0301 With 12V 50W Halogen Lamp from wholesalers
    • Buy cheap Binocular Head 640X Inverted Optical Microscope A14.0301 With 12V 50W Halogen Lamp from wholesalers

    Binocular Head 640X Inverted Optical Microscope A14.0301 With 12V 50W Halogen Lamp

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A14.0301
    Certification : CE, Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    Binocular Head 640X Inverted Optical Microscope A14.0301 With 12V 50W Halogen Lamp

    640X Inverted Optical Microscope Binocular Head with 12V 50W Halogen Lamp A14.0301



    --Supply long working distance and high N.A. objectives to get the flat and clear image
    --Well designed body structure, steady and reliable and better aseismatic performance
    --Low position coaxial coarse and find adjustment, ergonomic design
    --Critical Illumination, with long working distance condenser, has capacity to use revolution bottle and suit for many sample containers.


    Specification

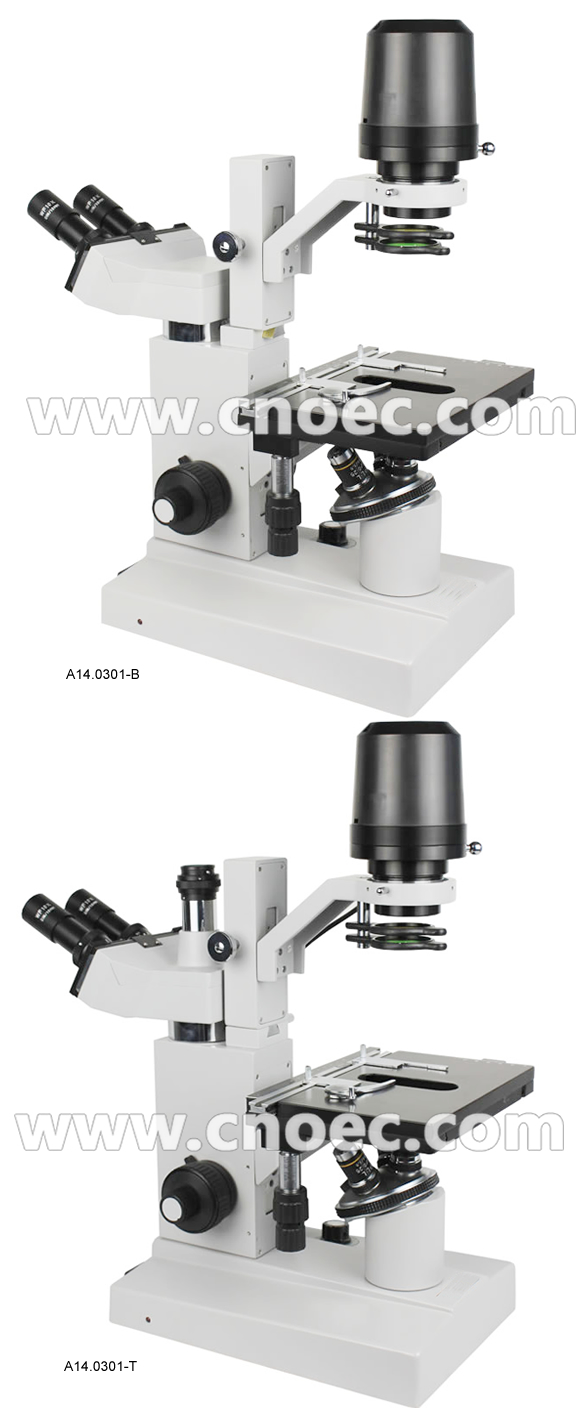

    A14.0301 Metallurgical Microscope
    B
    T
    Head
    Binocular Head, inclined 30°, interpupillary distance 55-75mm
    Trinocular Head, inclined 30°, interpupillary distance 55-75mm
    Eyepiece

    WF10x/18mm

    WF16x/11mm
    NosepieceQuadruple nosepiece
    ObjectiveLong Working Distance Plan Achromatic 4x/0.1, W.D.=17.4mm
    Long Working Distance Plan Achromatic 10x/0.25, W.D.=8.0mm
    Long Working Distance Plan Achromatic 20x/0.40, W.D.=5.0mm
    Long Working Distance Plan Achromatic 40x/0.6(S), W.D.=3.0mm
    Auxiliary objective 1.25x
    Thickness in the bottom of culuture ware 1.5mm
    StageMechanical stage size 190x145mm, moving range 75x50mm, minimum vernier division 0.1mm
    CondenserN.A.1.25 Abbe condenser, up/down range 15mm
    FocusingCoaxial coarse & fine focusing knob, coarse focusing range 30mm, fine focusing division 0.002mm
    FilterYellow filter Φ43mm, Green filter Φ43mm
    Light Source12V 50W Halogen lamp, brightness adjustable
    Optional Accessories
    Item No.
    AdapterCCD adapterA55.0302
    Photo adapterA55.0301
    Digital camera adapterA55.0303
