    OPTO-EDU LED Infinity Trinocular Inverted Optical Microscope OPTO-EDU A14.0901

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A14.0901
    Certification : CE|Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    OPTO-EDU LED Infinity Trinocular Inverted Optical Microscope OPTO-EDU A14.0901

    A14.0901 Inverted MicroscopeAB
    Optical SystemInfinity Color Corrected Optical System
    HeadBinocular Head
    Trinocular Head, Light Split Switch E100:P0/E80:P20
    Gemel Viewing Head, 45 Degree Inclined, Interpupillary Distance 54-75mm, One eyepiece tube with ±5 Diopter Adjustment,
    EyepiecePL10x/22mm, High Eyepoint, Wide Field
    PL15x/16mm, High Eyepoint, Wide Field
    NosepieceReversed Revolving Quintuple Nosepiece

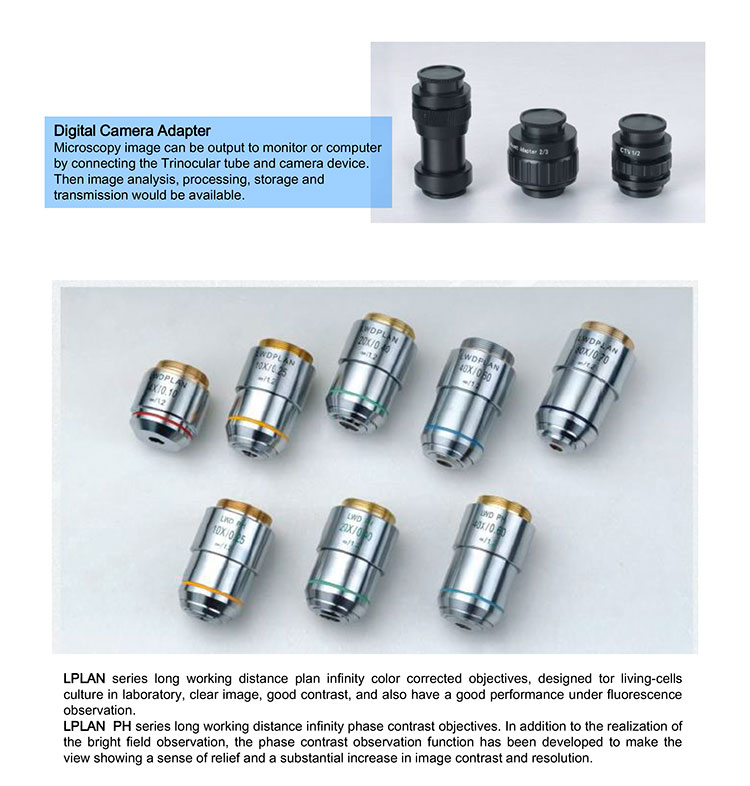

    ObjectiveLong Working Distance Infinity Plan Achromatic ObjectivesLWDPL 4x/0.10, W.D.=22mm
    LWDPL 10x/0.25, W.D.=7.94mm
    LWDPL 20x/0.40, W.D.=7.66mm
    LWDPL 40x/0.60, W.D.=3.72mm
    LWD Infinity Plan Phase Contrast ObjectivesLWDPL 10x/0.25, W.D.=7.94mm
    LWDPL 20x/0.40, W.D.=7.66mm
    LWDPL 40x/0.60, W.D.=3.71mm
    StageFixed Stage Size 250*160mm, Slider Clips
    Glass Plate
    Metal Plate
    Petri Dish Holder, Dia.35mm
    Movable Ruler, Travel Range 120x78mm
    Extension Plate
    FocusingCoaxial Coarse & Fine Focusing System, Working Distance Of Every Circle: 38mm/Coarse Focus, 0.2mm/ Fine Focus, Minimal Read 0.002mm/,With Tension Adjustment, With Safty Stop
    CondenserN.A.0.3 Kohler Illumination Condenser, with Phase Adjustable Slide Plate, Long Working Distance 72mm. The Whole Set Can Be Rotated Down
    N.A.0.5 condenser for option, dismountable
    Phase ContrastPhase Contrast Plug-board for 10x-40x, Center Adjustable
    Centering Telescope Dia. 30mm
    FilterDia.45mm Green Interference Filter
    Dia.45mm Color Temperature Change Filter
    Dia.45mm Infrared Eliminate Filter
    Dia.45mm Rubidium Glass Filter
    LightCritical Illumination, With Iris Aperture, Halogen 6V30W, Pre-centered, Intensity Adjustable
    Photo AdapterPhoto Tube(with PK adaptor), 3.2x Lens
    Video Adapter0.5x/0.67x C Mount Adaptor
    PowerWide Voltage 90-240V

    SeriesMagnificationN.A.W.D.F.N.Cover Glass ThicknessImmersionSpring
    Lplan Series(PH)Lplan4x0.122221.2//
    Lplan10x0.257.94221.2//
    Lplan PH10x0.257.94221.2//
    Lplan20x0.47.66221.2//
    Lplan PH20x0.47.66221.2//
    Lplan40x0.63.71221.2//
    Lplan PH40x0.63.71221.2//
