Opto Edu A63.7088 Schottky Field Emission Gun Scanning Electron Microscope SE+CCD 1x~2000000x

    Buy cheap Opto Edu A63.7088 Schottky Field Emission Gun Scanning Electron Microscope SE+CCD 1x~2000000x from wholesalers

    Buy cheap Opto Edu A63.7088 Schottky Field Emission Gun Scanning Electron Microscope SE+CCD 1x~2000000x from wholesalers
    • Buy cheap Opto Edu A63.7088 Schottky Field Emission Gun Scanning Electron Microscope SE+CCD 1x~2000000x from wholesalers
    • Buy cheap Opto Edu A63.7088 Schottky Field Emission Gun Scanning Electron Microscope SE+CCD 1x~2000000x from wholesalers
    • Buy cheap Opto Edu A63.7088 Schottky Field Emission Gun Scanning Electron Microscope SE+CCD 1x~2000000x from wholesalers
    • Buy cheap Opto Edu A63.7088 Schottky Field Emission Gun Scanning Electron Microscope SE+CCD 1x~2000000x from wholesalers
    • Buy cheap Opto Edu A63.7088 Schottky Field Emission Gun Scanning Electron Microscope SE+CCD 1x~2000000x from wholesalers

    Opto Edu A63.7088 Schottky Field Emission Gun Scanning Electron Microscope SE+CCD 1x~2000000x

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A63.7088
    Certification : CE, Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    Opto Edu A63.7088 Schottky Field Emission Gun Scanning Electron Microscope SE+CCD 1x~2000000x

    Schottky Field Emission Gun Scanning Electron Microscope, SE+CCD, 1x~2000000x

    • 1x~2000000x With Detector SEx2+BSE+CCD, Extention Port For EDS, EBSD, CL
    • Schottky Field Emission Gun Voltage 0.02~30kV, Resolution 1nm@15KV(SE), 1.5nm@1KV(SE)
    • 5 Axes Auto Stage X=125, Y=125, Z=50, R=360°, T=-5°~+70° Specimen Room Ф330xH260mm
    • Vaccum Pumps: 1 Ion +1 Turbo Molecular+ 1 Mechanical, Including Computer, Windows & Software, Control Panel
    • Composite Lens With Electrostatic Lens + Magnetic Lens Worry Free Imaging of Magnetic Samples
    Opto Edu A63.7088 Schottky Field Emission Gun Scanning Electron Microscope SE+CCD 1x~2000000x
    Opto Edu A63.7088 Schottky Field Emission Gun Scanning Electron Microscope SE+CCD 1x~2000000x
    Opto Edu A63.7088 Schottky Field Emission Gun Scanning Electron Microscope SE+CCD 1x~2000000x
    Opto Edu A63.7088 Schottky Field Emission Gun Scanning Electron Microscope SE+CCD 1x~2000000x
    A63.7088
    Resolution1.0nm@30KV(SE), 1.5nm@1KV(SE)
    Magnification1x~2000000x
    Electron GunSchottky Field Emission Gun
    VoltageAccelerating Voltage 0.02~30KV
    Electron Beam1pA~20nA
    Vacuum System1 Sputter Ion Pump, 1 Turbo Molecular Pump, 1 Mechanical Pump
    DetectorSE in Lens, SE in Sample Room, BSE, CCD
    Extend PortExtend Ports On Sample Room For BSE, EDS, EBSD, CL etc.
    Specimen Stage5 Axes Auto Stage, Travel Range: X=125mm, Y=125mm, Z=50mm, R=360°, T=-5°~+70°
    Max SpecimenSpecimen Room Dia.330mm, Height 260mm
    Image SystemReal Still Image Max Resolution 256x256~16k~16k Pixels
    Computer & SoftwarePC Work Station Windows System, With Professional Image Analysis Software To Fully Control Whole SEM Microscope Operation, Mouse, Keyboard
    Control PanelIncluded
    Dimension & WeightMain Body 1900x1100x1800mm, Total Weight 800Kg

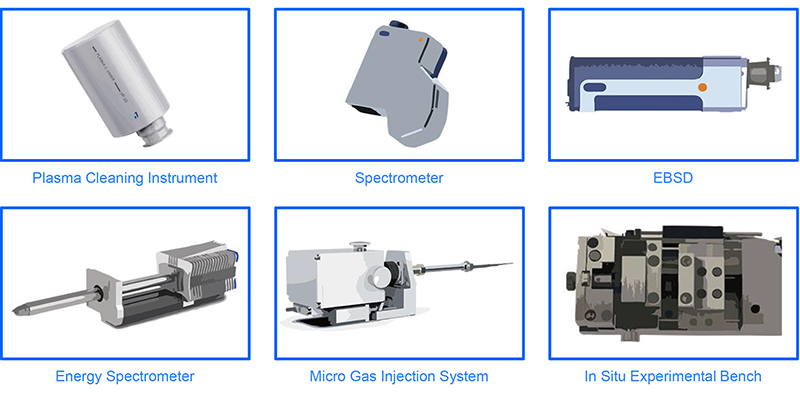

    Optional Accessories
    A50.7091Ion Beam Cleaner
    A50.7092Field Emission Gun Lamp
    Opto Edu A63.7088 Schottky Field Emission Gun Scanning Electron Microscope SE+CCD 1x~2000000x

    Superior Electron-optics Design

    Thermal field emission electron gun, stable beam, high imaging resolution

    Full tube acceleration technology ensures high imaging performance of electron beam at low acceleration voltage

    Composite lens design of electrostatic lens and magnetic lens, the objective lens has no magnetic leakage, and the imaging of magnetic samples is worry-free

    Opto Edu A63.7088 Schottky Field Emission Gun Scanning Electron Microscope SE+CCD 1x~2000000x

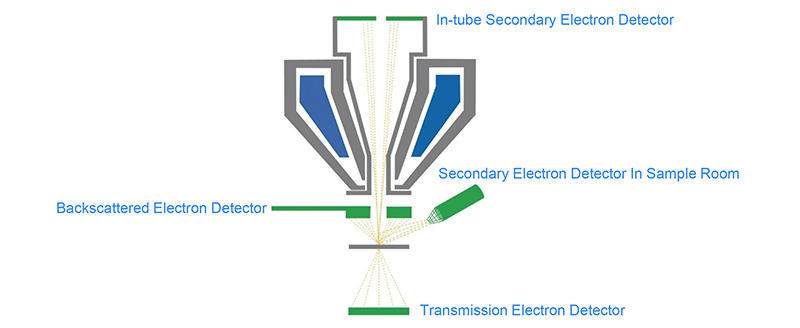

    Comprehensive Signal Collection System

    Can simultaneously collect signals from two types of secondary electrons, backscattered electrons and transmitted electrons.

    The sample morphology and composition contrast are displayed simultaneously to reveal the sample's microscopic morphology and composition information to the greatest extent.

    Opto Edu A63.7088 Schottky Field Emission Gun Scanning Electron Microscope SE+CCD 1x~2000000x
    Opto Edu A63.7088 Schottky Field Emission Gun Scanning Electron Microscope SE+CCD 1x~2000000x
    Opto Edu A63.7088 Schottky Field Emission Gun Scanning Electron Microscope SE+CCD 1x~2000000x
    Opto Edu A63.7088 Schottky Field Emission Gun Scanning Electron Microscope SE+CCD 1x~2000000x
    Opto Edu A63.7088 Schottky Field Emission Gun Scanning Electron Microscope SE+CCD 1x~2000000x
    Opto Edu A63.7088 Schottky Field Emission Gun Scanning Electron Microscope SE+CCD 1x~2000000x
    Opto Edu A63.7088 Schottky Field Emission Gun Scanning Electron Microscope SE+CCD 1x~2000000x
