    Opto Edu A14.2607 Inverted Scope Transmit Light Semi APO Binocular LED

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A14.2607
    Certification : CE, Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    Opto Edu A14.2607 Inverted Scope Transmit Light Semi APO Binocular LED

    ItemA14.2607 Inverted Biological Microscope Specification Order NO.
    EyepieceWF10X/20mm, High Eyepoint, Dia.23.2mm●●A51.2602-1020
    Centering Telescope 10x, Dia.23.2mmA5C.2610
    LWD Infinity Plan FL Semi-APO ObjectivesL Plan FL 4x/0.11 W.D.=12.1mmA5F.2635-4
    L Plan FL 10x/0.25 W.D.=10.3mmA5F.2635-10
    L Plan FL 20x/0.45 W.D.=5.8mmA5F.2635-20
    L Plan FL 40x/0.65 W.D.=5.1mmA5F.2635-40
    LWD Infinity Plan
    FL Semi-APO
    BF+PH
    Objectives
    For Both Bright Field & Phase Contrast View
    L Plan FL PHP 4x/0.10 W.D.=9.2mmA5C.2635-04
    L Plan FL PHP 10×/0.25 W.D.=10.3mmA5C.2635-10
    L Plan FL PHP 20x/0.45 W.D.=5.8mmA5C.2635-20
    L Plan FL PHP 40x/0.65 W.D.=5.1mmA5C.2635-40
    Phase Contrast Slide10xA5C.2611-B10
    20x/40x, For Both 20x And 40xA5C.2611-B2040
    HeadSiedentopf Binocular Head, Butterfly Eyepiece Tube 360° Rotated, Inclined 45°, IPD: 48-75mm, Light Distribution: E80:P20 (E:Eyepiece, P:Photo)
    NosepieceQuadplexA54.2610-N03
    StageMechanical Stage, Size 180x155mm,
    Moving Range 75×40mm, Scale 0.1mm,
    Round Hole Size Dia.110mm
    A54.2600-01
    Fixed Stage, Size 180×203mm,
    Round Hole Size Dia.110mm
    A54.2600-02
    Glass Plate, External Diameter Dia.110mm, Inside Diameter Dia.30mmA54.2600-03
    Metal Plate, External Diameter Dia.110mm, Inside Diameter Dia.25mmA54.2600-04
    CondenserLong Working Distance, N.A.0.32, Working Distance 48mm, With Slide Hole For Phase Contrast SlideA56.2614-D3
    FocusingCoaxial Coarse And Fine Focusing Unit, Coarse Stroke: 10mm, Fine Stroke Per Rotation: 0.2mm, Fine Division 2 μm.
    Illumination5W LED Warm Lamp, Input Voltage 100V~240VA56.2612-5WP
    FilterGreen, Dia.21mm, With Filter Slider, or Put on Phase Contrast SlideA56.2616-21G
    Blue /Yellow /Grey, Dia.21mmA56.2616-21B/A/N
    C-mountBackward Photo Port, With Built-in C-Mount 0.65x
    Packing Size515x480x315mm, Gross Weight 9kgs, Net Weight 7kgs
    Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.

    Opto Edu A14.2607 Inverted Scope Transmit Light Semi APO Binocular LED
    Opto Edu A14.2607 Inverted Scope Transmit Light Semi APO Binocular LED
    Opto Edu A14.2607 Inverted Scope Transmit Light Semi APO Binocular LED
    Opto Edu A14.2607 Inverted Scope Transmit Light Semi APO Binocular LED
    Butterfly Binocular Head
    Butterfly Head With Eyepiece Tube 360°Rotatable, Inclined 45°, IPD: 48-75mm,
    Light Distribution: E80:P20, 80% For Eyepiece, 20% For Photo Camera Tube.
    Opto Edu A14.2607 Inverted Scope Transmit Light Semi APO Binocular LED

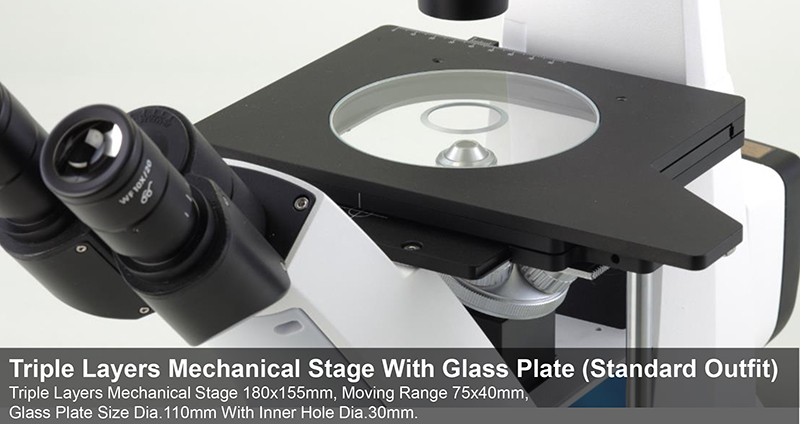

    Triple Layers Mechanical Stage With Glass Plate (Standard Outfit)
    Triple Layers Mechanical Stage 180x155mm, Moving Range 75x40mm,
    Glass Plate Size Dia.110mm With Inner Hole Dia.30mm.
    Opto Edu A14.2607 Inverted Scope Transmit Light Semi APO Binocular LED
    Opto Edu A14.2607 Inverted Scope Transmit Light Semi APO Binocular LED
    LWD Condenser
    Long Working Distance Condenser N.A.0.32, W.D.48mm. With Hole For Phase Contrast Slide
    Opto Edu A14.2607 Inverted Scope Transmit Light Semi APO Binocular LED

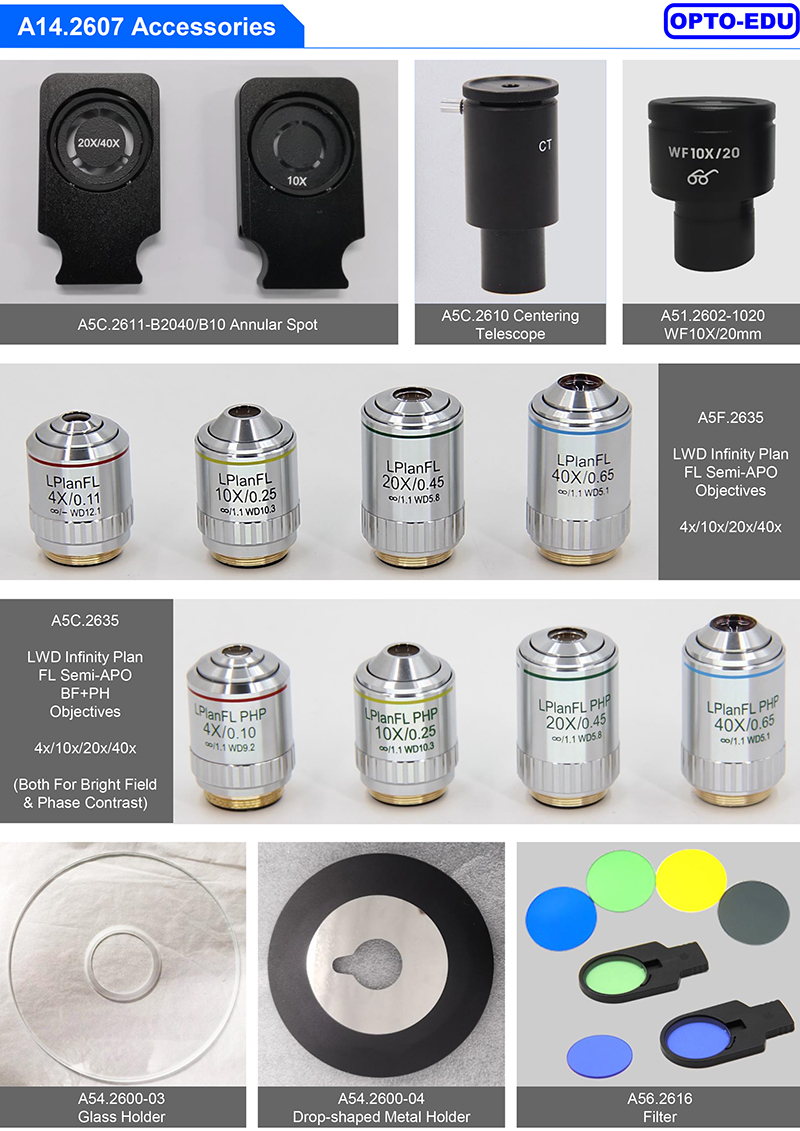

    Objectives In Standard Outfit
    LWD Infinity Plan FL Semi-APO Objectives 10x,40x
    LWD Infinity Plan FL Semi-APO Phase Contrast Objectives 20x
    Opto Edu A14.2607 Inverted Scope Transmit Light Semi APO Binocular LED
    Photo Tube With C-Mount 0.65x
    Photo Tube With Built-in 0.65x C-Mount In Back of Microscope Body, Which Has No Interfere With User’s Operation & Work.
    Opto Edu A14.2607 Inverted Scope Transmit Light Semi APO Binocular LED
    5W LED Warm Lamp
    Powered By 5-12V Safety Low Voltage Charger
    Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use.
    Opto Edu A14.2607 Inverted Scope Transmit Light Semi APO Binocular LED
    Opto Edu A14.2607 Inverted Scope Transmit Light Semi APO Binocular LED
    Opto Edu A14.2607 Inverted Scope Transmit Light Semi APO Binocular LED
    Opto Edu A14.2607 Inverted Scope Transmit Light Semi APO Binocular LED
    Opto Edu A14.2607 Inverted Scope Transmit Light Semi APO Binocular LED
    Opto Edu A14.2607 Inverted Scope Transmit Light Semi APO Binocular LED
    Opto Edu A14.2607 Inverted Scope Transmit Light Semi APO Binocular LED
