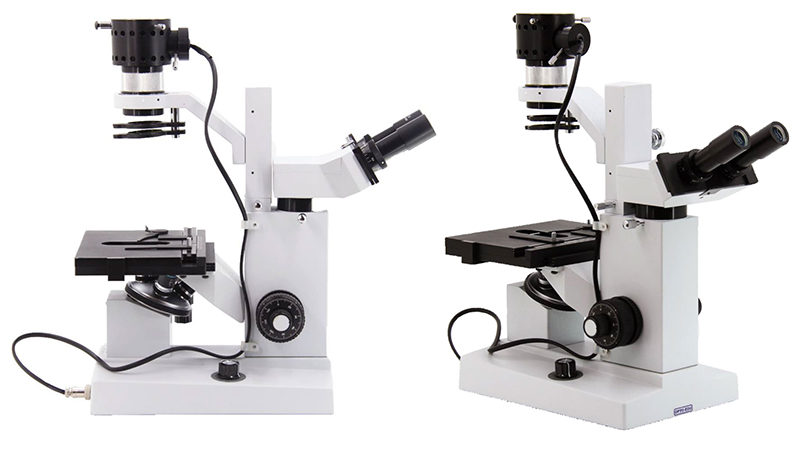

    Opto Edu A14.0301 Inverted Optical Microscope Binocular 400x Abbe Condenser 12V 50W

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A14.0301
    Certification : CE, Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    Opto Edu A14.0301 Inverted Optical Microscope Binocular 400x Abbe Condenser 12V 50W

    SpecificationA14.0301 Inverted MicroscopeBT
    HeadBinocular Head, inclined 30°, interpupillary distance 55-75mm
    Trinocular Head, inclined 30°, interpupillary distance 55-75mm
    EyepieceWF10x/18mm
    WF16x/11mm
    NosepieceQuadruple nosepiece
    ObjectiveLong Working Distance Plan Achromatic 4x/0.1, W.D.=17.4mm
    Long Working Distance Plan Achromatic 10x/0.25, W.D.=8.0mm
    Long Working Distance Plan Achromatic 25x/0.40, W.D.=5.0mm
    Long Working Distance Plan Achromatic 40x/0.6(S), W.D.=3.0mm
    Auxiliary objective 1.25x
    Thickness in the bottom of culuture ware 1.5mm
    StageMechanical stage size 190x145mm, moving range 75x50mm, minimum vernier division 0.1mm
    CondenserN.A.1.25 Abbe condenser, up/down range 15mm
    FocusingCoaxial coarse & fine focusing knob, coarse focusing range 30mm, fine focusing division 0.002mm
    FilterYellow filter Φ43mm, Green filter Φ43mm

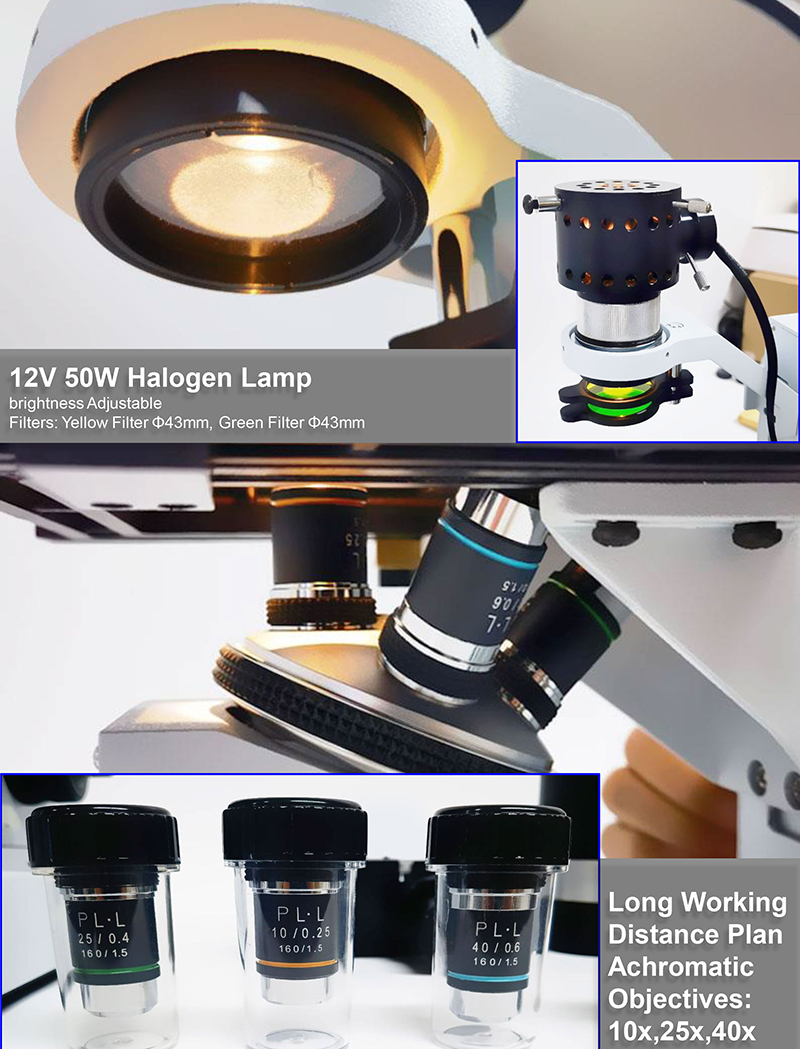

    Light Source12V 50W Halogen lamp, brightness adjustable
    Optional AccessoriesItem No.
    AdapterCCD adapterA55.0302
    Photo adapterA55.0301
    Digital camera adapterA55.0303
