    OPTO EDU A13.3601 Binocular Metallurgical Microscope Transmit And Reflect Light

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A13.3601
    Certification : CE,
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

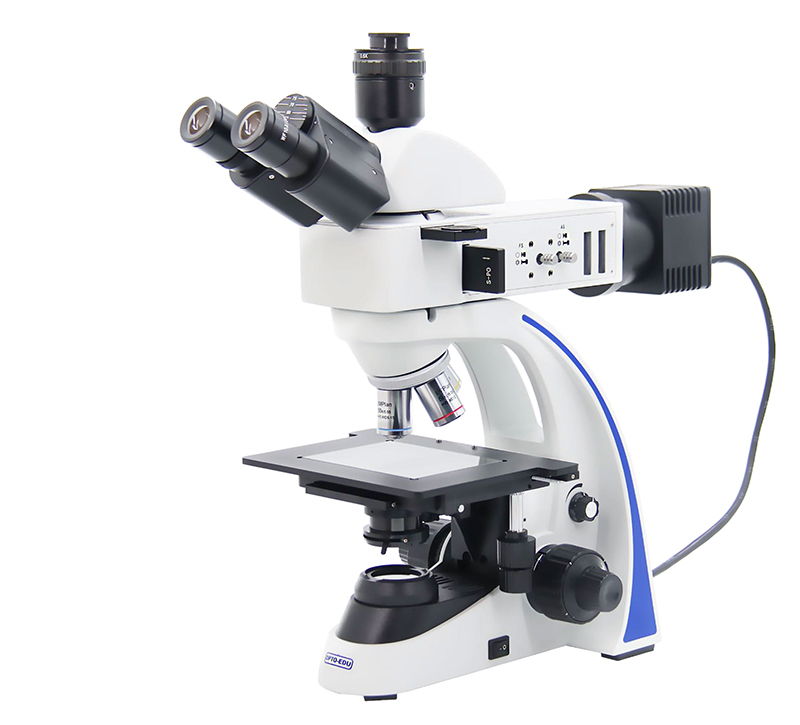

    OPTO EDU A13.3601 Binocular Metallurgical Microscope Transmit And Reflect Light

    A13.3601 Metallurgical Microscope, Transmit & Reflect Light-B-TCata. No.
    Optical SystemInfinity Color Corrected Optical System
    Viewing HeadGemel Binocular Head, 30° Inclined, Interpupillary Distance: 54mm~75mm, Left Diopter ±5 Adjustable
    Gemel Trinocular Head, 30° Inclined, Interpupillary Distance: 54mm~75mm, Left Diopter ±5 Adjustable,
    Splitting Ratio R:T=50:50, With 0.5x Focusing C-mount

    EyepieceHigh Eye-point Wide Field Eyepiece WF10x/20mm
    Infinity Large Working Distance Plan Achromatic Metallurgical Objective5x N.A. 0.15 W.D.12A5D.3633-5
    10x N.A. 0.3 W.D.16A5D.3633-10
    20x N.A. 0.4 W.D.12A5D.3633-20
    50x N.A. 0.55 W.D.9.15A5D.3633-50
    100x N.A. 0.8 W.D.2.1A5D.3633-100
    NosepieceInward Quadruple
    FrameTransmitted & Reflected Frame With Glass Plate, Coaxial Focus System With Tension Adjustment And Up-limited Device, Coarse Range: 23mm, Fine Precision: 0.002mm.

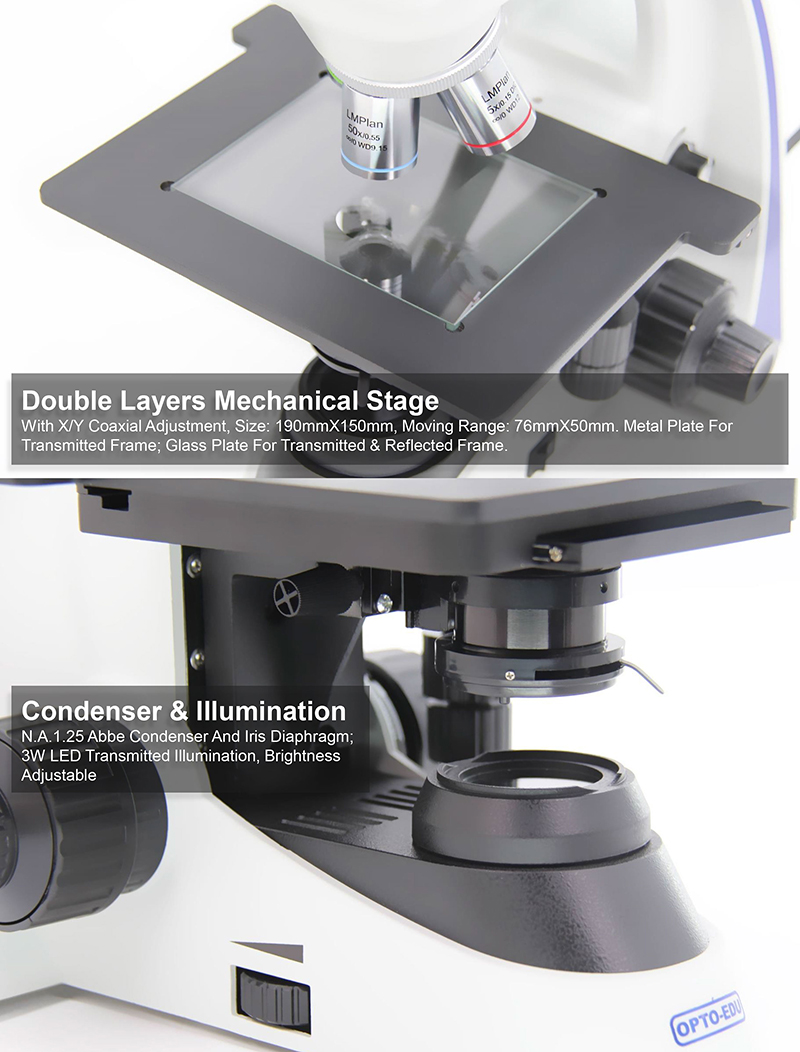

    Working StageDouble Layer Mechanical Stage With X/Y Coaxial Adjustment, Size: 190mmX150mm, Moving Range: 76mmX50mm, Metal Plate For Transmitted Frame; Glass Plate For Transmitted & Reflected Frame.
    Reflected IlluminationReflected Lamp-house With Single 5W LED, Warm White Color. Koehler Illuminator With Center Adjustable Field And Aperture Diaphragm. External Wide-range Adapter, Input Voltage 100V-240V_AC50/60Hz, Output Voltage DC12V2A.
    Transmitted IlluminationSingle 3W LED, White Color, With N.A.1.25 Abbe Condenser For Transmitted Light, With Center Preset Aperture Iris Diaphragm.
    PolarizingPolariser And Analyzer. Analyzer Is Adjustable With 360° Rotation.
    C-Mount0.35x, Focus AdjustableA55.3623-35
    0.5x, Focus AdjustableA55.3623-05
    1.0x, Focus AdjustableA55.3623-10
