| A36.1502 9 LCD Digital Stereo Microscope, 5.0M |

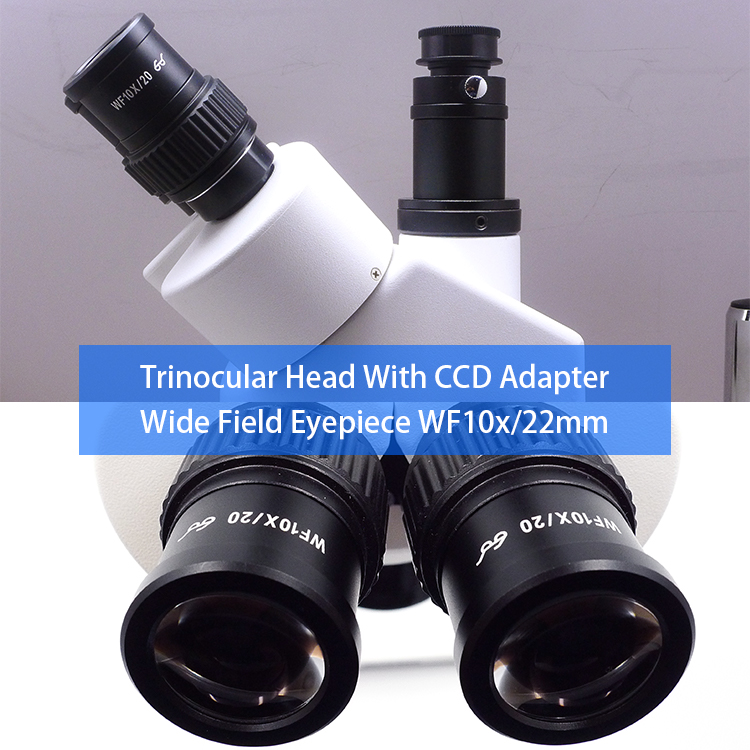

| Head | Trinocular Head, Both Eye Tube Diopter Adjustable
Light Split Switch E100:P0/E0:P100
With Eyepiece Adapter + 1.0x C-Mount |
| Eyepiece | WF10x/20mm, Both With Eye-cup |
| Zoom Lens | 0.7~4.5x |
| Zoom Ratio | 1:6.5 |
| Magnification | 7x-45x, Up To 3.5x-180x With Optional Eyepieces And Auxiliary Lens |
| W.D. | Working Distance100mm, With Standard 1.0x Lens |
| F.O.V | Field Of View 1~95.2mm |

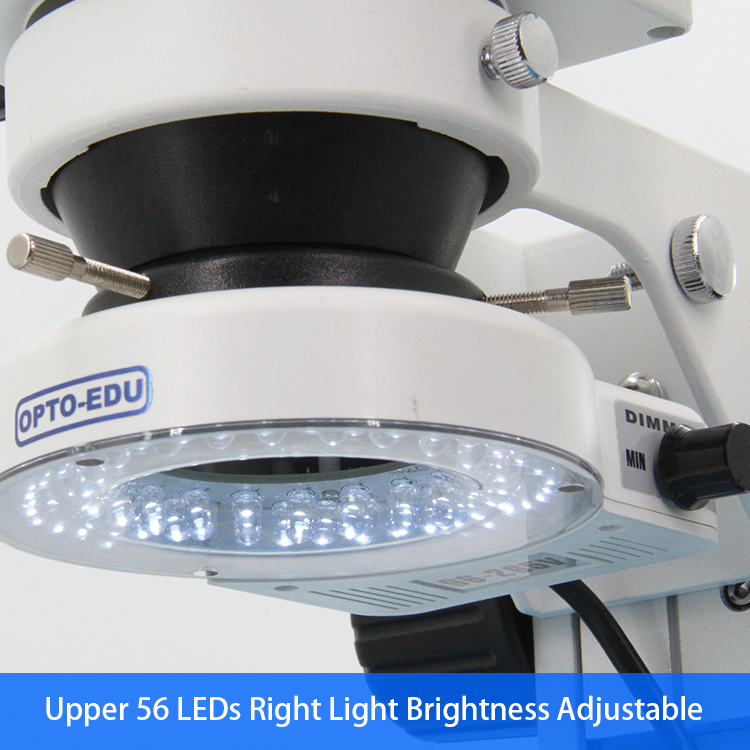

| Light Source | Upper 56 LEDs Right Light Brightness Adjustable | A56.2103-A |

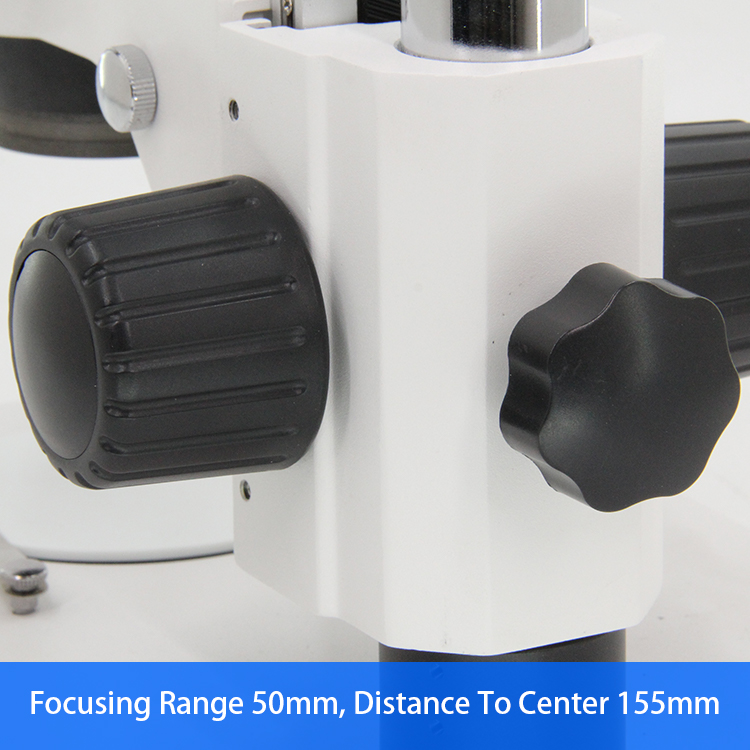

| Stand | B1 Pole Stand, Size 220*255mm, Pole Height 240mm, Dia.32mm |

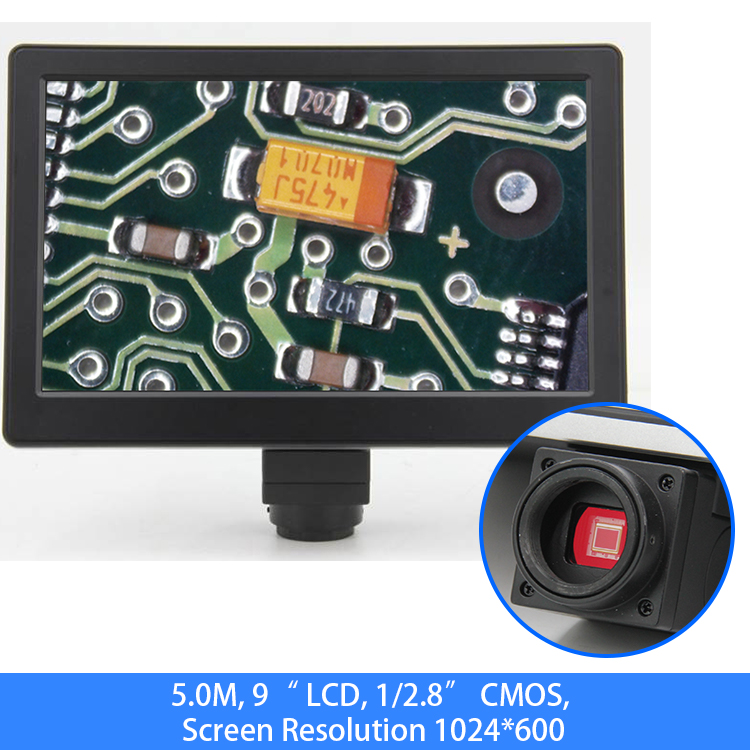

| A59.3509 9" LCD Digital Camera, USB+Mouse Measure, 5.0M |
| Sensor | 1/2.8" Sony Star Light Level CMOS Sensor |
| Resolution | 5.0M CMOS |
| LCD Screen | 9" LCD, Resolution 1024x600 High Clearance Screen |
| Output | USB 2.0 Type-A, TF Card |
| Pixel Size | 2.0x2.0um |
| Power Supply | DC 12V/2A Power Adapter, Input 100-240V AC |
| Function | Photo, Video, Meaure, Compare |
| USB 2.0 To Win 7, Win10 System, Software S-Eye Included |
| Brightness, Contrast, Exposure, White Balance Adjustable |
| 10x Digital Zoom, 4 Split/ 2 Split Windows Image Compae |
| Storage To TF Card |
| Cross Line With Scale, Calibrated |
| Net Line 8 Kinds, Width & Color Adjustable |
| Size / Weight | Product Size 225x52x175mm, Net Weight 0.7Kg |
| Standard Package | LCD Camera, USB 2.0 Cable, Mouse, DC12V Power Adapter |
USB Mouse Measure
Operation | 1. Insert the mouse into the camera Type-A USB 2.0 port, connect
12V power supply to camera.
2. Turn on the power switch, when the camera is running, the LED
light turns blue
3. Move the mouse to the top left corner of the screen to call up
the MAIN MENU, including icon :
Take Photo, Record Video, Preview, Measure, Setting.
4. Move the mouse to the middle position at the bottom of the
screen to call up the QUICK MENU, including icon:
Zoom In, Zoom Out, Up/Dow Mirror, Left/Right Mirror, Black/White,
HDR, Freeze, Net, Font, 2 Split, 4 Split
5. Click the MEASURE icon to pop up the measure window, which support over 20 kinds of
measurement graphics.
6. Click the EDIT button and fill in the name to of new ruler to CALIBRATE. Move the mouse to the corresponding standard scale in the image
display window and draw a standard length scale line. Then fill in
the length column and click SAVE to complete the calibration
setting. If you want to add more ruler, just repeat above steps.
7.Click mm/PX to open or close the screen scale. |
Windows Measure
Operation | 8. If the USB port is directly connected to the computer, the
screen and the computer can be displayed synchronously (the USB
cable must be connected to the computer before the device is
powered on)
9. S-EYE Measure Software: Length: Straight Line Length, Broken
Line Length, Curve Length, Parallel Line Distance, Point Line
Distance, Line Length Geometry: Radius Circle, Two-point Circle,
Three-point Circle, Concentric Circle, Radius Circle, Two-point
Circle, Three-point Circle Geometric Area:Polygon, Square Remark:
Point Coordinates, Crosshairs, Coordinate Systems, Text Notes | |
| Optional Accessories | Cata.No. |
| Eyepiece | WF15x/15mm, High-eyepoint | A51.1520-15 |
| WF20x/10mm, High-eyepoint | A51.1520-20 |
| Auxiliary Lens | 0.5x,W.D. 177mm | A52.1520-05 |
| 0.75x,W.D. 120mm | A52.1520-75 |
| 2.0x,W.D. 30mm | A52.1520-20 |
| Light Source | Upper 56 LEDs Right Light Brightness Adjustable | A56.2103-A |
| Digital Camera | HDMI+USB+TF Digital Camera, 38.0M, USB Measure | A59.4231 |
| 7" LCD Digital Camera, AV Output | A59.5107 |
| 9" LCD Digital Camera, AV Output | A59.5109 |
| CCD Adapter | Eyepiece Adapter + 0.5x C-Mount | A55.1520-05 |
