12.5" LCD HDMI USB Digital Microscope 6x - 39.4x 2.0M Real Time Auto

Ask Lasest Price
Brand Name :	CNOEC, OPTO-EDU
Model Number :	A36.4971
Certification :	CE, Rohs
Price :	FOB $1~1000, Depend on Order Quantity
Payment Terms :	T/T, West Union, Paypal
Supply Ability :	5000 pcs/ Month
Delivery Time :	5~20 Days

Add to Cart

Product Details
Company Profile

12.5" LCD HDMI USB Digital Microscope 6x - 39.4x 2.0M Real Time Auto

Features

A34.4970, A36.4970, A36.4971 Series HDMI+USB LCD Digital Microscope, is newly developed in 2021 for industry inspection, mobile repair and etc. work.

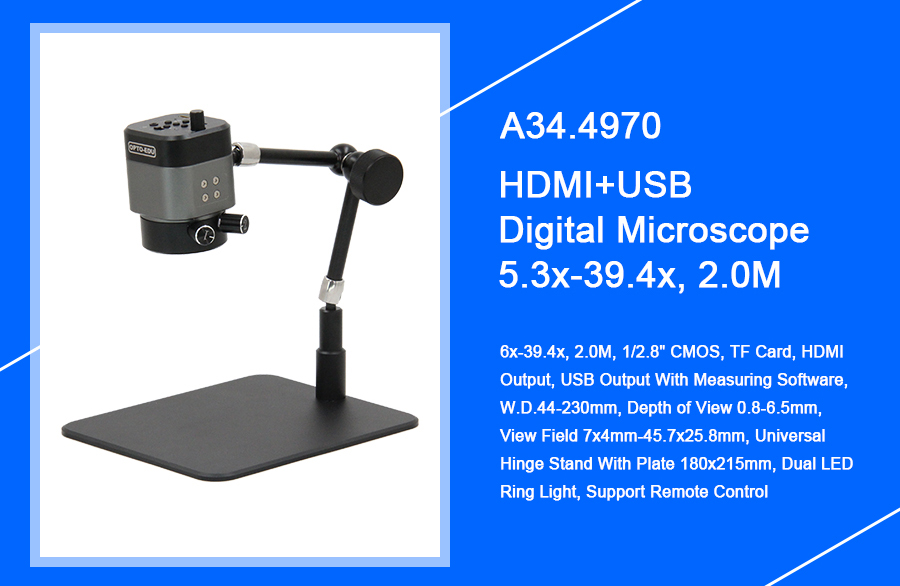

A34.4970
--Professional Multi-Function Image Processing Software Support Measure Function On Computer
--Unique Design Back Focus Knob On Camera Extends Working Distance To 44 ~ 230mm.
--360° Universal Hinge Bracket Design Supports Arbitrary Hovering, Flexible To View Any Angle
--Comprehensive Magnification 5.3x~ 39.4x (Based on Actual Measurement On 12.5" LCD Display)
--Dual LED Ring Light With Independent Control Switch Both Brightness Adjustable
--One Power Cord For All Microscope & LCD Makes Desk Clean And Clear.
--Full Metal High Quality Body With Light Weight & Compact Size To Save Desk Space
--Control Panel & Remote Control Support Photo, Record, Digital Zoom In/Out, Menu Setting

A36.4970
--12.5 " Full HD 1080P Display LCD Screen, Plug & Play Design Show Live Image Automatically.
--Professional Multi-Function Image Processing Software Support Measure Function On Computer
--Unique Design Back Focus Knob On Camera Extends Working Distance To 44 ~ 230mm.
--360° Universal Hinge Bracket Design Supports Arbitrary Hovering, Flexible To View Any Angle
--Comprehensive Magnification 3.6x~ 39.4x (Based on Actual Measurement On 12.5" LCD Display)
--Dual LED Ring Light With Independent Control Switch Both Brightness Adjustable
--One Power Cord For All Microscope & LCD Makes Desk Clean And Clear.
--Full Metal High Quality Body With Light Weight & Compact Size To Save Desk Space
--Control Panel & Remote Control Support Photo, Record, Digital Zoom In/Out, Menu Setting

A36.4971
--12.5 " Full HD 1080P Display LCD Screen, Plug & Play Design Show Live Image Automatically.
--Professional Multi-Function Image Processing Software Support Measure Function On Computer
--Unique Design Back Focus Knob On Camera Extends Working Distance To 44 ~ 230mm.
--Stainless Pole Stand With Metal Holder, Assure Vertical 180° And Move Up/Down Easily
--Comprehensive Magnification 6.0x~ 39.4x (Based on Actual Measurement On 12.5" LCD Display)
--Dual LED Ring Light With Independent Control Switch Both Brightness Adjustable
--One Power Cord For All Microscope & LCD Makes Desk Clean And Clear.
--Full Metal High Quality Body With Light Weight & Compact Size To Save Desk Space
--Control Panel & Remote Control Support Photo, Record, Digital Zoom In/Out, Menu Setting

12.5" LCD HDMI USB Digital Microscope 6x - 39.4x 2.0M Real Time Auto

Features	A34.4970, A36.4970, A36.4971 Series HDMI+USB LCD Digital Microscope, is newly developed in 2021 for industry inspection, mobile repair and etc. work. A34.4970 --Professional Multi-Function Image Processing Software Support Measure Function On Computer --Unique Design Back Focus Knob On Camera Extends Working Distance To 44 ~ 230mm. --360° Universal Hinge Bracket Design Supports Arbitrary Hovering, Flexible To View Any Angle --Comprehensive Magnification 5.3x~ 39.4x (Based on Actual Measurement On 12.5" LCD Display) --Dual LED Ring Light With Independent Control Switch Both Brightness Adjustable --One Power Cord For All Microscope & LCD Makes Desk Clean And Clear. --Full Metal High Quality Body With Light Weight & Compact Size To Save Desk Space --Control Panel & Remote Control Support Photo, Record, Digital Zoom In/Out, Menu Setting A36.4970 --12.5 " Full HD 1080P Display LCD Screen, Plug & Play Design Show Live Image Automatically. --Professional Multi-Function Image Processing Software Support Measure Function On Computer --Unique Design Back Focus Knob On Camera Extends Working Distance To 44 ~ 230mm. --360° Universal Hinge Bracket Design Supports Arbitrary Hovering, Flexible To View Any Angle --Comprehensive Magnification 3.6x~ 39.4x (Based on Actual Measurement On 12.5" LCD Display) --Dual LED Ring Light With Independent Control Switch Both Brightness Adjustable --One Power Cord For All Microscope & LCD Makes Desk Clean And Clear. --Full Metal High Quality Body With Light Weight & Compact Size To Save Desk Space --Control Panel & Remote Control Support Photo, Record, Digital Zoom In/Out, Menu Setting A36.4971 --12.5 " Full HD 1080P Display LCD Screen, Plug & Play Design Show Live Image Automatically. --Professional Multi-Function Image Processing Software Support Measure Function On Computer --Unique Design Back Focus Knob On Camera Extends Working Distance To 44 ~ 230mm. --Stainless Pole Stand With Metal Holder, Assure Vertical 180° And Move Up/Down Easily --Comprehensive Magnification 6.0x~ 39.4x (Based on Actual Measurement On 12.5" LCD Display) --Dual LED Ring Light With Independent Control Switch Both Brightness Adjustable --One Power Cord For All Microscope & LCD Makes Desk Clean And Clear. --Full Metal High Quality Body With Light Weight & Compact Size To Save Desk Space --Control Panel & Remote Control Support Photo, Record, Digital Zoom In/Out, Menu Setting
A34.4970, A36.4970 HDMI +USB LCD Digital Microscope		A34.4970	A36.4970	A36.4971
Data Outpu	5G WIFI Output	-	-	-
	HDMI Output	●	●	●
	USB Output	●	●	●
Manification	5.3x-39.4x, On 12.5" LCD Monitor	●
	3.6x-39.4x, On 12.5" LCD Monitor		●
	6.0x-39.4x, On 12.5" LCD Monitor			●
Resolution	2.0M	●	●	●
Sensor	SONY CMOS IMX291	●	●	●
Max Pixels	1920x1080 (2,073,600 Pixels)	●	●	●
Sensor Size	1/2.8'' (6.058mm(H) x 4.415mm(V))	●	●	●
Pixel Size	2.9μm x 2.9μm	●	●	●
Dynamic Range	128dB	●	●	●
SNR	30dB	●	●	●
Spectral Response	380~650nm	●	●	●
Exposure	Real-time Auto, Single Auto, Manual Adjustment	●	●	●
White Balance	Real-time Automatic, Single Automatic, Manual R/G/B Adjustment	●	●	●
HDM Port	Output Image Max 1920x1080P, 60fps, Auto-adaptive Display	●	●	●
USB Type C Port	Support 2 Modes: Power In, Or USB Image Output To Computer	●	●	●
Storage	TF Card, Max Support 128G	●	●	●
Remote Control	Support Photo, Record, Digital Zoom In/Out, Menu Setting	○	○	○
Record Format	Photo 1920x1080 Format JPG Video: 1920X1080P, 60fps1920X1080P30,1280x720P120,1280x720P60 Format MOV	●	●	●
Power By	DC 5V 900mA, By USB Port	●
Power By	DC 12V 3A, By Adapter Connected To LCD Screen		●	●
Working Distance	44mm~230mm	●	●	●
Depth of View	0.8mm~6.5mm	●	●	●
Field of View	7mmx4mm (At The Highest Magnification 39.4x) to 45.7mmx25.8mm (At The Lowest Magnification 6x)	●	●	●
Focus	Extra Back Focus Knob, Focus To Clear Image Quickly And Easily In Large Range, Extend Working Distance To 44mm~230mm
Light Source	Dual LED Ring Light Built-in, Vertical Illumination And Diffuse Illumination Independent Switch, Both Brightness Adjustable
LCD Screen	Size: 12.5" Full HD 1080p Display Type: a-Si TFT-LCD/IPS/Fog Screen Number of Pixels: 1920x1080 Display Color: 16.7M Panel Brightness: 300 nits Contrast: 800:1 Viewing Angle: Horzontal/Vertical 170° Adjustable	-	●	●
Stand	360° Universal Hinge Bracket Design, Supports Arbitrary Hovering, Flexible And Easy To View Object From Any Angle	●	●
	Stainless Pole Stand With Metal Holder, Assure Vertical 180° And Move Up/Down Easily			●
	Metal Plate Size 180x215mm, Large Size For Mobile Repair Work	●	●	●
Note:"●"In Table Is Standard Outfits,"○" Is Optional Accessories "-" Is Unavailable

12.5" LCD HDMI USB Digital Microscope 6x - 39.4x 2.0M Real Time Auto

Opto-Edu New Arrival 2021!
A34.4970, A36.4970, A36.4971 Series All-in-One Designed Digital HDMI+USB LCD Microscope!

● 12.5" Full HD 1080P Display LCD Screen, Plug & Play Design Show Live Image Automatically.
● Professional Multi-Function Image Processing Software With Measure Function On Computer
● Unique Design Back Focus Knob On Camera Extends Working Distance To 44~230mm
● Stainless Pole Stand With Metal Holder, Assure Vertical 180° And Move Up/Down Easily
● Real Magnification 3.6x~ 39.4x (Based on Actual Measurement On 12.5" LCD Display)

These newly designed digital microscope

come with BACK FOCUS knob,

which can focus quickly and enlarged working distance up to 44-230mm,

combined DUAL LED RING LIGHT,

to supply oblique & coaxial light for

different observation requirements.

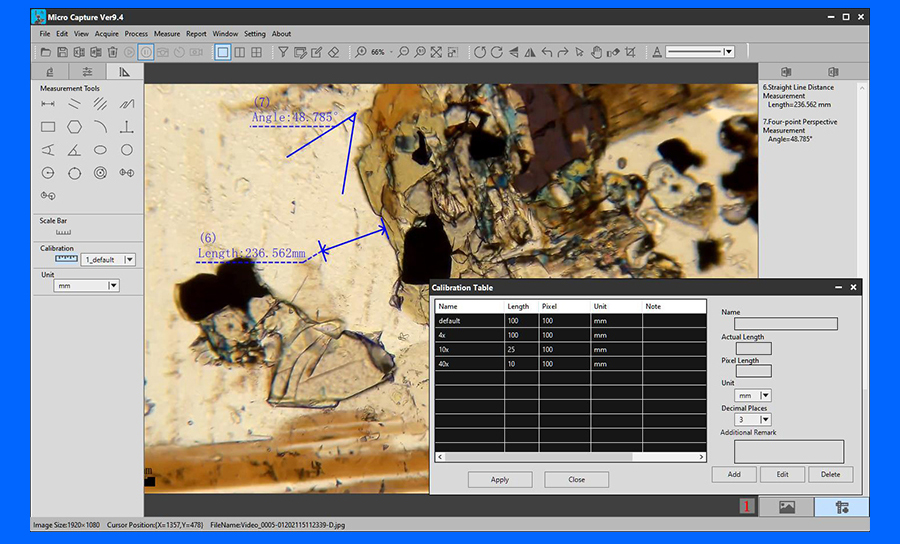

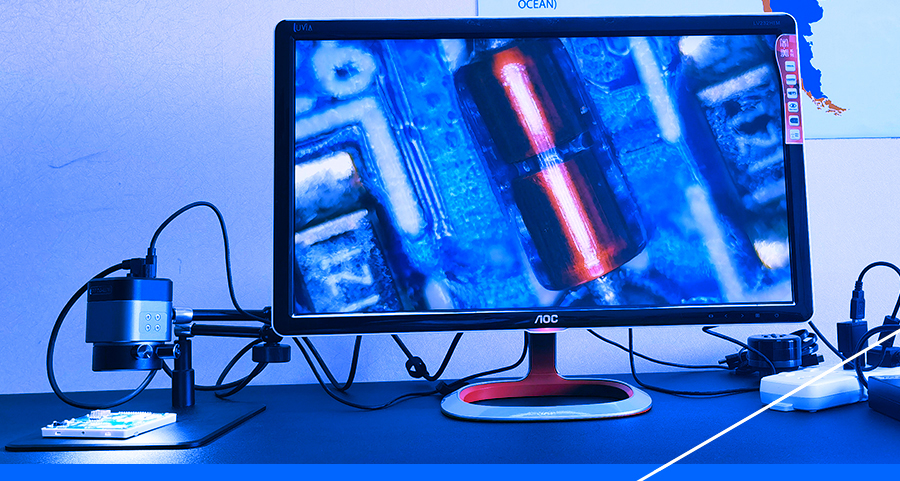

A34.4970 camera is compact size mini microscope, with HDMI + USB port, can show image directly on your monitor which has HDMI port; or export the image to USB port of computer, to work with professional software for measuring, image stitching, depth of field combine function.

12.5" LCD HDMI USB Digital Microscope 6x - 39.4x 2.0M Real Time Auto

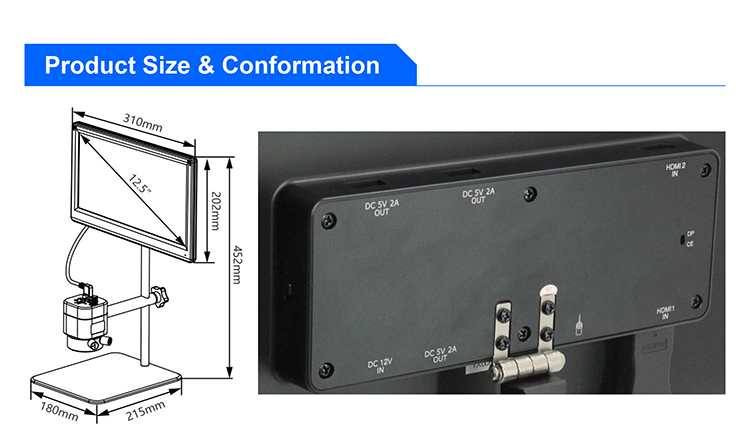

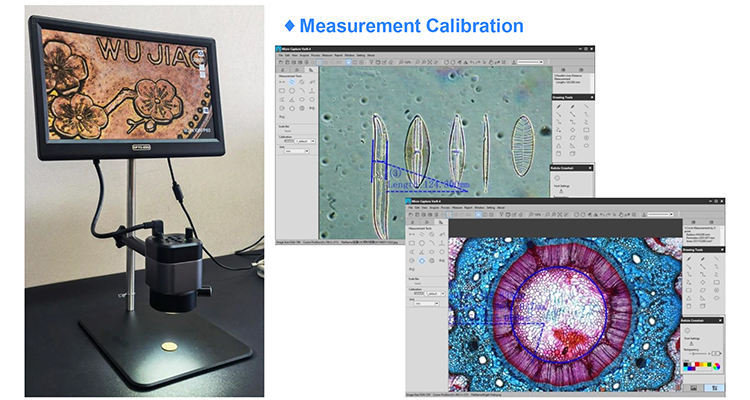

A36.4970 & A36.4971 combined high quality 12.5” LCD screen, all-in-one design makes it more convenient for your work. Just plug the power, the image will show on screen directly, no need to adjust too much.

12.5" LCD HDMI USB Digital Microscope 6x - 39.4x 2.0M Real Time Auto

A36.4970 with universal angle adjustable joint holder to move camera easily, can view the object from any angle as you like.

A36.4971 use the stainless steel pole and camera holder to assure the light path strictly along with vertical line, is more suitable for production line to inspect some components in large number quickly, but no need to view multi-angles.

This series digital camera has very high quality 2.0M CMOS sensor and high speed 30fps image transport, can show the image in real color by switching between Halogen/LED modes, and Biological/Stereo modes.

12.5" LCD HDMI USB Digital Microscope 6x - 39.4x 2.0M Real Time Auto

It also support remote wire control to make sure camera keep still when taking a picture or video. There is TF card slot on the camera, support up to 32G TF card to store the captured image & video.

Have a look on the work video, and contact us now for more information!

12.5" LCD HDMI USB Digital Microscope 6x - 39.4x 2.0M Real Time Auto
