| Features | A34.4970, A36.4970, A36.4971 Series HDMI+USB LCD Digital Microscope, is newly developed in 2021 for industry inspection, mobile repair and etc. work.
A34.4970

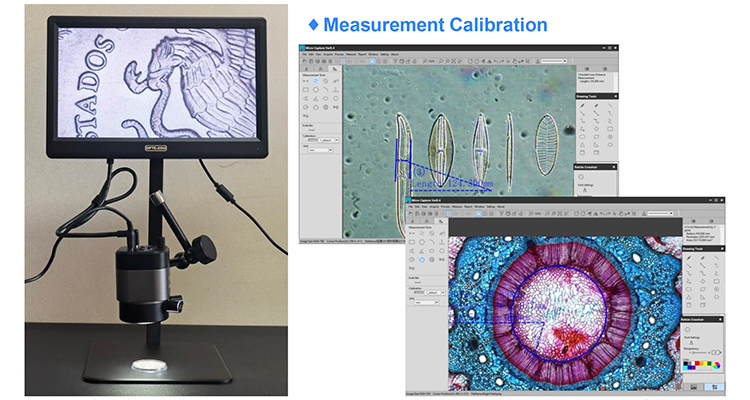

--Professional Multi-Function Image Processing Software Support Measure Function On Computer
--Unique Design Back Focus Knob On Camera Extends Working Distance To 44 ~ 230mm.
--360° Universal Hinge Bracket Design Supports Arbitrary Hovering, Flexible To View Any Angle
--Comprehensive Magnification 5.3x~ 39.4x (Based on Actual Measurement On 12.5" LCD Display)
--Dual LED Ring Light With Independent Control Switch Both Brightness Adjustable
--One Power Cord For All Microscope & LCD Makes Desk Clean And Clear.
--Full Metal High Quality Body With Light Weight & Compact Size To Save Desk Space

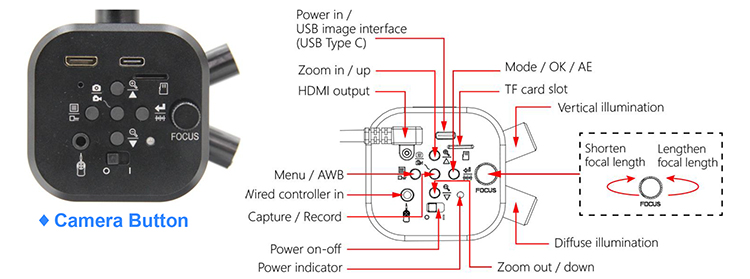

--Control Panel & Remote Control Support Photo, Record, Digital Zoom In/Out, Menu Setting

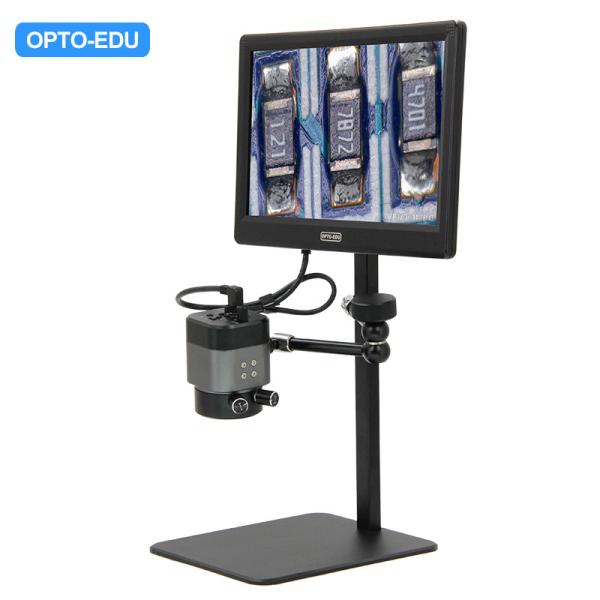

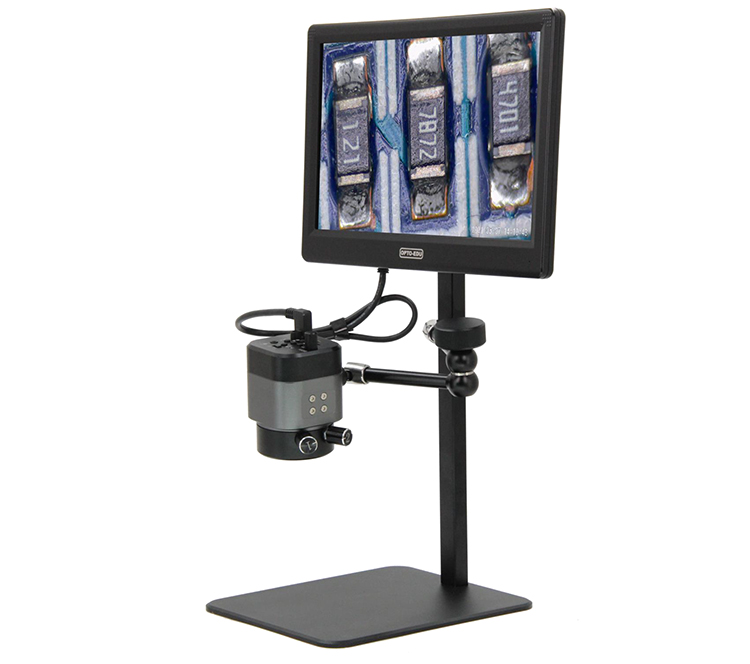

A36.4970
--12.5 " Full HD 1080P Display LCD Screen, Plug & Play Design Show Live Image Automatically.
--Professional Multi-Function Image Processing Software Support Measure Function On Computer
--Unique Design Back Focus Knob On Camera Extends Working Distance To 44 ~ 230mm.
--360° Universal Hinge Bracket Design Supports Arbitrary Hovering, Flexible To View Any Angle
--Comprehensive Magnification 3.6x~ 39.4x (Based on Actual Measurement On 12.5" LCD Display)
--Dual LED Ring Light With Independent Control Switch Both Brightness Adjustable
--One Power Cord For All Microscope & LCD Makes Desk Clean And Clear.
--Full Metal High Quality Body With Light Weight & Compact Size To Save Desk Space
--Control Panel & Remote Control Support Photo, Record, Digital Zoom In/Out, Menu Setting
A36.4971
--12.5 " Full HD 1080P Display LCD Screen, Plug & Play Design Show Live Image Automatically.
--Professional Multi-Function Image Processing Software Support Measure Function On Computer
--Unique Design Back Focus Knob On Camera Extends Working Distance To 44 ~ 230mm.
--Stainless Pole Stand With Metal Holder, Assure Vertical 180° And Move Up/Down Easily
--Comprehensive Magnification 6.0x~ 39.4x (Based on Actual Measurement On 12.5" LCD Display)
--Dual LED Ring Light With Independent Control Switch Both Brightness Adjustable
--One Power Cord For All Microscope & LCD Makes Desk Clean And Clear.
--Full Metal High Quality Body With Light Weight & Compact Size To Save Desk Space
--Control Panel & Remote Control Support Photo, Record, Digital Zoom In/Out, Menu Setting |
| A34.4970, A36.4970 HDMI +USB LCD Digital Microscope | A34.4970 | A36.4970 | A36.4971 |
| Data Outpu | 5G WIFI Output | - | - | - |
| HDMI Output | ● | ● | ● |
| USB Output | ● | ● | ● |
| Manification | 5.3x-39.4x, On 12.5" LCD Monitor | ● | | |
| 3.6x-39.4x, On 12.5" LCD Monitor | | ● | |
| 6.0x-39.4x, On 12.5" LCD Monitor | | | ● |
| Resolution | 2.0M | ● | ● | ● |
| Sensor | SONY CMOS IMX291 | ● | ● | ● |
| Max Pixels | 1920x1080 (2,073,600 Pixels) | ● | ● | ● |
| Sensor Size | 1/2.8'' (6.058mm(H) x 4.415mm(V)) | ● | ● | ● |
| Pixel Size | 2.9μm x 2.9μm | ● | ● | ● |
| Dynamic Range | 128dB | ● | ● | ● |
| SNR | 30dB | ● | ● | ● |
| Spectral Response | 380~650nm | ● | ● | ● |
| Exposure | Real-time Auto, Single Auto, Manual Adjustment | ● | ● | ● |
| White Balance | Real-time Automatic, Single Automatic, Manual R/G/B Adjustment | ● | ● | ● |
| HDM Port | Output Image Max 1920x1080P, 60fps, Auto-adaptive Display | ● | ● | ● |
| USB Type C Port | Support 2 Modes: Power In, Or USB Image Output To Computer | ● | ● | ● |
| Storage | TF Card, Max Support 128G | ● | ● | ● |
| Remote Control | Support Photo, Record, Digital Zoom In/Out, Menu Setting | ○ | ○ | ○ |
| Record Format | Photo
1920x1080
Format JPG
Video:
1920X1080P, 60fps1920X1080P30,1280x720P120,1280x720P60
Format MOV | ● | ● | ● |
| Power By | DC 5V 900mA, By USB Port | ● | | |
| DC 12V 3A, By Adapter Connected To LCD Screen | | ● | ● |
| Working Distance | 44mm~230mm | ● | ● | ● |
| Depth of View | 0.8mm~6.5mm | ● | ● | ● |
| Field of View | 7mmx4mm (At The Highest Magnification 39.4x) to
45.7mmx25.8mm (At The Lowest Magnification 6x) | ● | ● | ● |
| Focus | Extra Back Focus Knob, Focus To Clear Image Quickly And Easily In Large Range, Extend Working Distance To 44mm~230mm | | | |

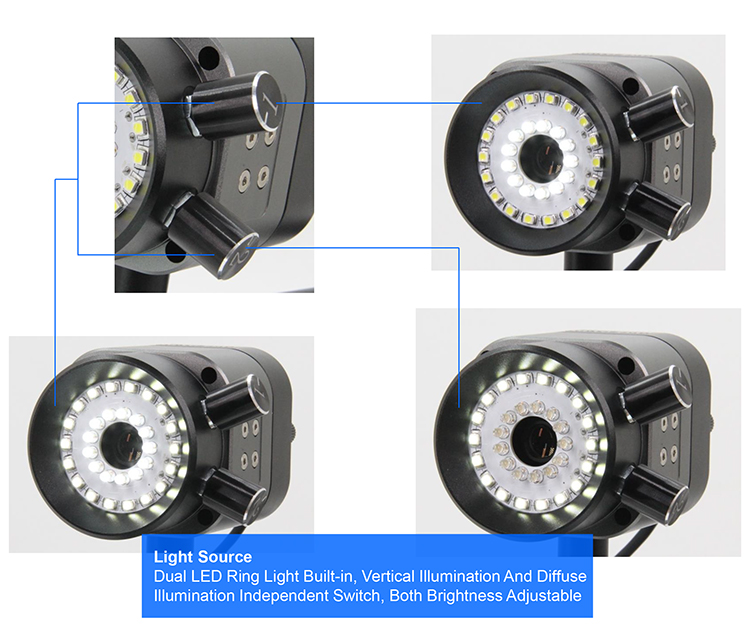

| Light Source | Dual LED Ring Light Built-in, Vertical Illumination And Diffuse Illumination Independent Switch, Both Brightness Adjustable | | | |
| LCD Screen | Size: 12.5" Full HD 1080p Display
Type: a-Si TFT-LCD/IPS/Fog Screen
Number of Pixels: 1920x1080
Display Color: 16.7M
Panel Brightness: 300 nits
Contrast: 800:1
Viewing Angle: Horzontal/Vertical 170° Adjustable | - | ● | ● |
| Stand | 360° Universal Hinge Bracket Design, Supports Arbitrary Hovering, Flexible And Easy To View Object From Any Angle | ● | ● | |
| Stainless Pole Stand With Metal Holder, Assure Vertical 180° And Move Up/Down Easily | | | ● |

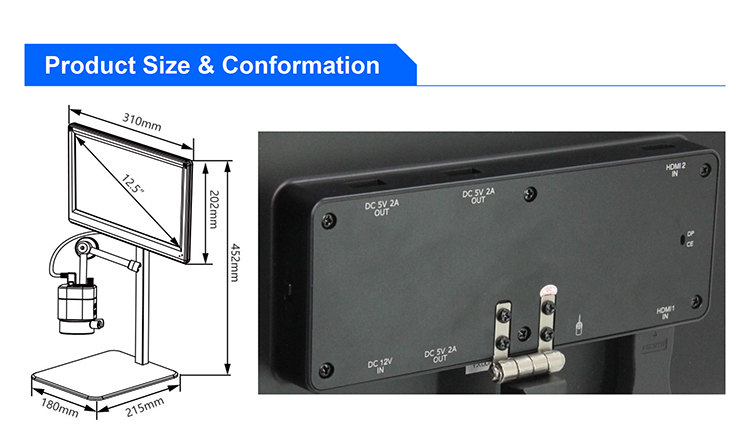

| Metal Plate Size 180x215mm, Large Size For Mobile Repair Work | ● | ● | ● |
| Note:"●"In Table Is Standard Outfits,"○" Is Optional Accessories "-" Is Unavailable |
