| A12.1095 is newly designed Full Auto Morotrized Research Level
Scientific Laboratory Microscope, equipped with electric platform,
auto focus, electric objective conversion, touch screen controller
and powerful imaging software; Through the precise connection
between the parts, the functions of microscope observation, image
acquisition and image processing are realized, and the repetitive
operation is reduced. In addition, it can restore the microscope
settings and parameter settings of the last operation, and improve
the stability and accuracy of microscope imaging. Microscope
operation can be so fast and efficient. | | | | |
| Full Auto Motorized Research Level Scientific Laboratory Microscope | A12.1091 | A12.1093 | A12.1095 | Cata.No. |
| Optical System | NIS60 Infinity Optical System | ● | ● | ● | |
| Observation Method | Bright Field | ● | ● | ● | |
| Dark Field | ○ | ○ | ○ | |
| Polarizing | ○ | ○ | ○ | |
| Phase Contrast | ○ | ○ | ○ | |
| Flourescent | ○ | ○ | ○ | |
| DIC | ○ | ○ | ○ | |
| Main Body | A12.1091-H Manual Body + Halogen Illumination. | ● | | | A54.1090-BH |

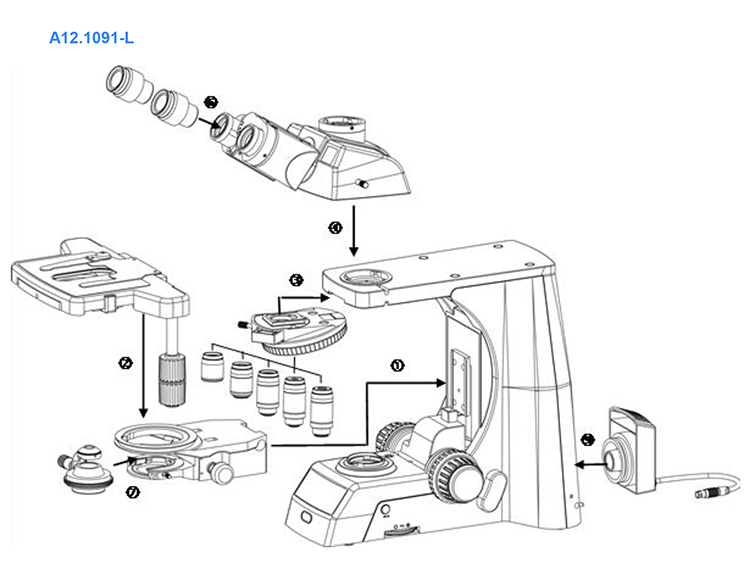

| A12.1091-L Manual Body + LED Illumination. | ● | | | A54.1090-BL |

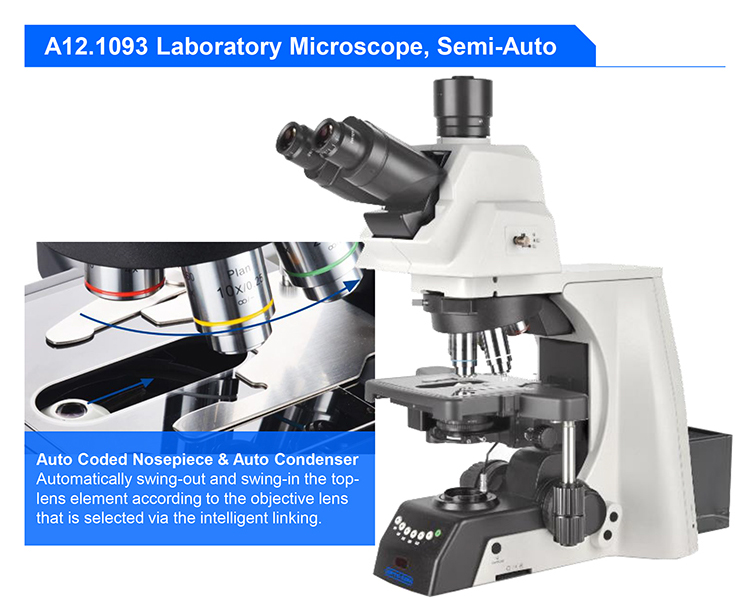

A12.1093-H Semi-Auto Body + Halogen Illumination.
Auto Nosepiece + Auto Condenser + Auto Brightness Adjust | | ● | | A54.1090-ATH |

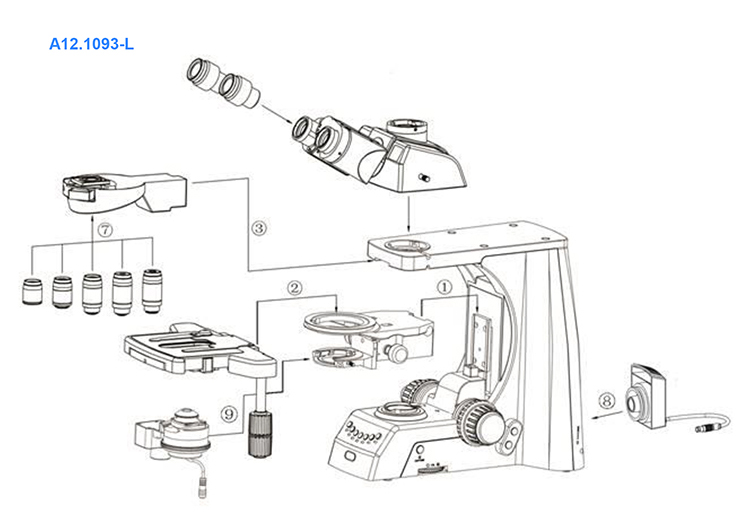

A12.1093-L Semi-Auto Body + LED Illumination.
Auto Nosepiece + Auto Condenser + Auto Brightness Adjust | | ● | | A54.1090-ATL |
A12.1095 Full Auto Body + LED Illumination.
Auto Nosepiece + Auto Brightness + Auto X/Y/Z Stage+ Touch LCD
Screen | | | ● | |
| Head | Seidentopf Binocular Head, Inclined 30°,
Interpupillary Distance 47-78mm | ○ | ○ | ○ | A53.1090-B |
Seidentopf Trinocular Head, Inclined 30°,
Interpupillary Distance 47-78mm,
3 Level Light Split Switch E100:P0/E20:P80/E0:P100 | ● | ○ | ● | A53.1090-T |

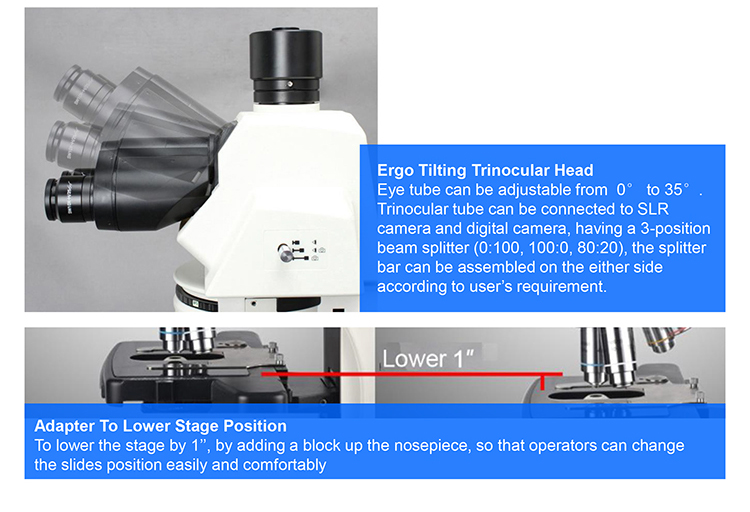

Ergo Tilting Trinocular Head, Inclination 0°~35°,
Interpupillary Distance 47-78mm,
3 Level Light Split Switch E100:P0/E20:P80/E0:P100 | ○ | ● | ○ | A53.1090-TT |

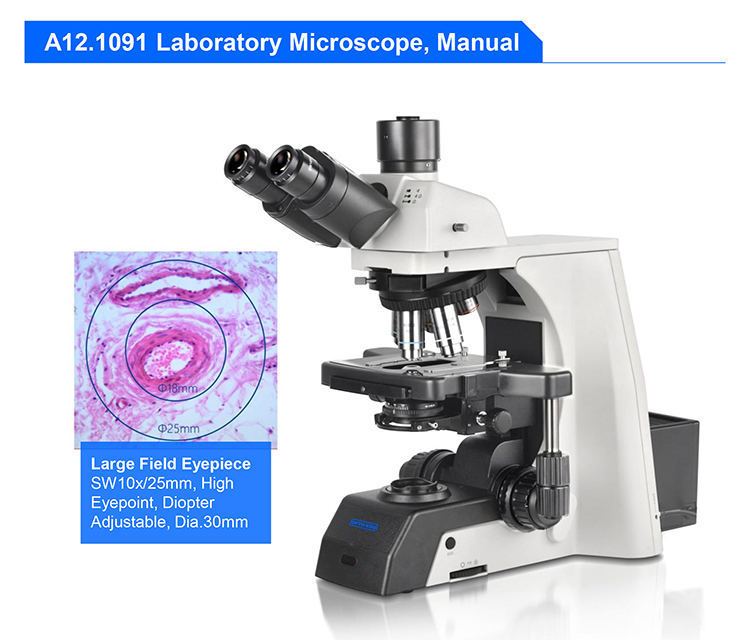

| Eyepiece | SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ●● | ●● | ●● | A51.1090-1025 |
| SW10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ○ | ○ | ○ | A51.1090-1022 |
| EW12.5x/16mm, High Eyepoint | ○ | ○ | ○ | A51.1090-12516 |
| WF15x/16mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ○ | ○ | ○ | A51.1090-1516 |
| WF20x/12mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ○ | ○ | ○ | A51.1090-2012 |
| Nosepiece | Manual Nosepiece, Quintuple, Backward, Center Adjustable | ○ | ○ | ○ | A54.1091-5M |
| Manual Nosepiece, Sextuple, Backward | ● | | | A54.1091-6M |
| Coded Nosepiece, Sextuple, Backward, For Auto Brightness Adjust | ○ | | | A54.1091-6C |
Auto Coded Nosepiece, Sextuple, Backward,
Motorized Switch Objectives, Controled By:
1. Shortcut Button On Right Side Of Base, Can Switch 2 Preseted
Objectives Quickly
2. Remote Control Pad In Front Of Base, Press Each Button To Switch
Objectives And Adjust The Light Intensity Automatically. 2 Buttons
Can Be Self-Defined For Most Commonly Used Objecives, Press Green
Button Can Swap Between Them | ○ | ● | ● | A54.1091-6A |
| With Slot For Polarizing Compensator Slider Or DIC Slider | ● | ● | ● | |
| Protect Cover For Nosepiece Holes | ● | ● | ● | A54.1091-C |

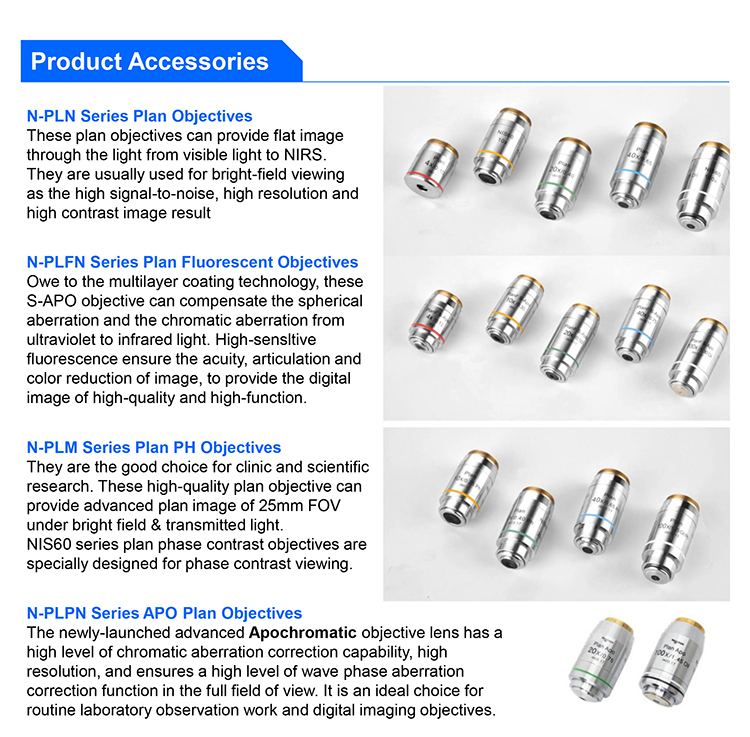

NIS60
N-PLN
Infinity Plan Objective | 2x/0.06, W.D.7.5mm, Cover Glass 0.17mm | ○ | ○ | ○ | A52.1090-2 |
| 4x/0.10, W.D.30mm, Cover Glass 0.17mm | ● | ● | ● | A52.1090-4 |
| 10x/0.25, W.D.10.2mm, Cover Glass 0.17mm | ● | ● | ● | A52.1090-10 |
| 20x/0.40, W.D.12mm, Cover Glass 0.17mm | ● | ● | ● | A52.1090-20 |
| 40x/0.65, W.D.0.7mm, Cover Glass 0.17mm | ● | ● | ● | A52.1090-40 |
| 50x/0.95(Oil, W.D.0.19mm, Cover Glass 0.17mm | ○ | ○ | ○ | A52.1090-50 |
| 60x/0.8, W.D.0.3mm, Cover Glass 0.17mm | ○ | ○ | ○ | A52.1090-60 |
| 100x/1.25(Oil), W.D.0.2mm, Cover Glass 0.17mm | ● | ● | ● | A52.1090-100 |
| NIS60 APO Infinity Plan | 20x/0.75, W.D.1.1mm, Cover Glass 0.17mm | ○ | ○ | ○ | A52.1091-20 |
| 100x/1.45(Oil), W.D.0.13mm, Cover Glass 0.17mm | ○ | ○ | ○ | A52.1091-100 |

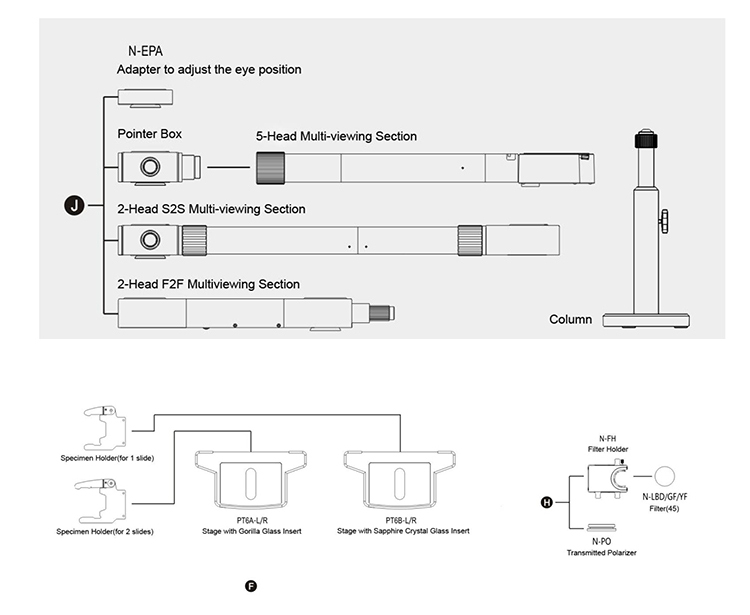

| Working Stage | Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size
190x152mm, Moving Range 78x32mm, Double Slide Holder, With Gorilla
Glass Insert, Left Handle | ○ | | ○ | A54.1092-GL |
| Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size
190x152mm, Moving Range 78x32mm, Double Slide Holder, With Gorilla
Glass Insert, Right Handle | ● | | ○ | A54.1092-GR |
| Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size
190x152mm, Moving Range 78x32mm, Double Slide Holder, With Sapphire
Glass Insert, Left Handle | | ○ | ○ | A54.1092-SL |
| Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size
190x152mm, Moving Range 78x32mm, Double Slide Holder, With Sapphire
Glass Insert, Right Handle | | ● | ○ | A54.1092-SR |
| Low Position Control Knob, Height Adjustable Up/Down 18mm, Convex
Point Guide Mechanism For Easily Put Slide By One Hand, With
Tension Adjustable Ring, With Safety Stop Screw | ● | ● | - | |
Full-Auto X/Y/Z Motorized Control Working Stage, Including Control
Joy Stick,
--Travel Range X:125mm, Y:75mmm,
--Minimum Step 0.1um
--Re-Position Accurate +/-1.5um
--Max Speed 25mm/s
--Size: 275x239x44.5mm
--Soft Stop, Mechanical Stop, Opto-Electro Switch Stop
--Z Axis Re-Position Accurate: Average +/-1.5um, Near Focus
+/-0.1um
--Z Axis Max Speed 10r/s
--3D Control Stick, 4 Speeds
--Connection By USB2.0 & RS232
--Communication Speed 9600 bits | ○ | ○ | ● | A54.1095-A |
| Z Axis Upgrade With Optical Grating Ruler | ○ | ○ | ○ | A54.1095-B |

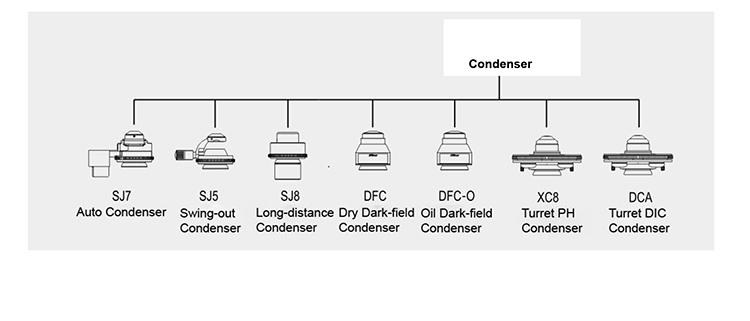

| Condenser | Swing-Out Condenser NA0.9/0.25 | ● | | | A56.1091-S |
| Auto Swing-Out Condenser NA0.9/0.25 | | ● | - | A56.1091-A |
| Focusing | Coaxial Coarse & Fine Focusing, Fine Division 0.001mm, Focusing
Range 35mm, Coarse Stroke 37.7mm, Fine Stroke 0.1mm, Can Exchange
Hand Wheel Between Left/Righ | ● | ● | ● | |
| Light Source | Transmit Kohler Illumination, Brightness Adjustable,
12V100W Halogen, External Lamp House
For A12.1091-H, A12.1093-H | ● | ● | | A56.1090-12V100W |
Transmit Kohler Illumination, Brightness Adjustable,
3W S-LED, Built-in Main Body
For A12.1091-L, A12.1093-L | | | ● | A56.1090-3WLED |
| ECO Function Support Auto Power Off After 30 Mins From Operator
Leave To Save Energy | ● | ● | ● | A56.1090-ECO |
Auto Brightness Adjust, Brightness For Each Objective Can Be
Memorized And Restored When Objective Is Selected
(To Upgrade A12.1091 to Auto Brightness Adjust, Must Upgrade Its
Nosepiece To A54.1091-6C Coded Nosepiece At Same Time) | ○ | ● | ● | A56.1090-AB |
| Filter For Transmit Light | Filter Holder On Base, Can Hold 3 Filters | ● | ● | ● | A56.1092-H |
| Filter LBD | ● | ● | ● | A56.1092-LBD |
| Filter Green | ● | ● | ● | A56.1092-G |
| Filter Yellow | ● | ● | ● | A56.1092-Y |
| Filter ND6 | ● | ● | ● | A56.1092-ND6 |
| Filter ND25 | ● | ● | ● | A56.1092-ND25 |
| Adapter | Eyepiece Adapter Dia.23.2mm | ○ | ○ | ○ | A55.1090-E |
| C-Mount 1.0x | ○ | ○ | ○ | A55.1090-1.0x |
| C-Mount 0.5x | ○ | ○ | ○ | A55.1090-0.5x |
| Software | NOMIS Basic Image Processiing Software | ○ | ○ | ○ | A30.1090 |

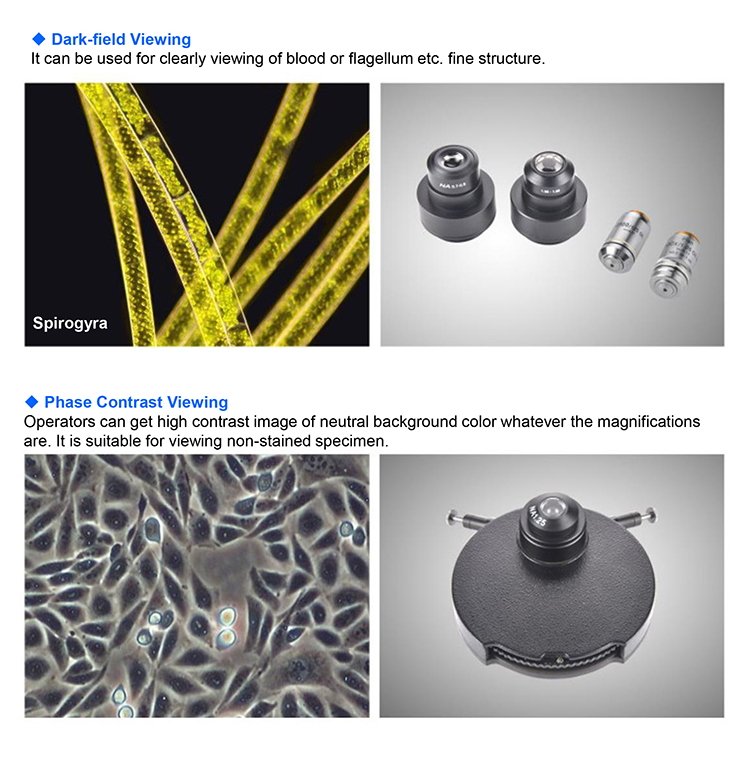

| Dark Field | Dark Field Condenser, N.A. 0.7~0.9, Dry | ○ | ○ | ○ | A5D.1090-D |
| Dark Field Condenser, N.A. 1.25~1.36, Immersion | ○ | ○ | ○ | A5D.1090-I |
Dark Field Objective, Infinity Plan 100X,
For Immersion Dark Field Observation | ○ | ○ | ○ | A5D.1030-3 |
Dark Field Objective, Infinity Plan 100X, With Iris Diaphragm,
For Immersion Dark Field Observation | ○ | ○ | ○ | A5D.1030-4 |
| Polarizing | Polarizer For Transmit Light Source, Swing-Out, On Collector | ○ | ○ | ○ | A5P.1091-BP |
| Analyzer For Transmit Light, Slide With Quartz Wedge Compensator | ○ | ○ | ○ | A5P.1091-BA |
| Upgrade To A15.1091 Professional Polarizing Microscope | ○ | | ○ | A15.1091 |
| Phase Contrast | Turret Phase Contrast Condenser, Center Adjustable | ○ | ○ | ○ | A5C.1090 |
| Centering Telescope 10x | ○ | ○ | ○ | A5C.1092 |
| Infinity Plan Phase Contrast Objective N-PLN PH 10x/0.25 | ○ | ○ | ○ | A5C.1091-10 |
| Infinity Plan Phase Contrast Objective N-PLN PH 20x/0.40 | ○ | ○ | ○ | A5C.1091-20 |
| Infinity Plan Phase Contrast Objective N-PLN PH 40x/0.65 | ○ | ○ | ○ | A5C.1091-40 |
| Infinity Plan Phase Contrast Objective N-PLN PH 100x/1.25(Oil) | ○ | ○ | ○ | A5C.1091-100 |
| DIC | Polarizer For Transmit Light Source | ○ | ○ | ○ | A5P.1090-TP |
| Turret DIC Condenser | ○ | ○ | ○ | A5C.1095 |
| DIC Slide 10x, Used With Semi-APO Fluorescent Objective | ○ | ○ | ○ | A5C.1095-10 |
| DIC Slide 20x/40x, Used With Semi-APO Fluorescent Objective | ○ | ○ | ○ | A5C.1095-2040 |
| DIC Slide 100x, Used With Semi-APO Fluorescent Objective | ○ | ○ | ○ | A5C.1095-100 |
| DIC Slide With Analyzer 10x-20x | ○ | ○ | ○ | A5C.1095-1020P |
| DIC Slide With Analyzer 40x-100x | ○ | ○ | ○ | A5C.1095-40100P |
NIS60 N-PLFN
Semi-APO
Fluorescent
Objective
For DIC | 4x/0.13, W.D.16.5, Cover Glass 0.17mm | ○ | ○ | ○ | A5F.1091-4 |
| 10x/0.3, W.D.8.1, Cover Glass 0.17mm | ○ | ○ | ○ | A5F.1091-10 |
| 20x/0.5, W.D.2.1, Cover Glass 0.17mm | ○ | ○ | ○ | A5F.1091-20 |
| 40x/0.75, W.D.0.7, Cover Glass 0.17mm | ○ | ○ | ○ | A5F.1091-40 |
| 100x/1.3, W.D.0.15, Cover Glass 0.17mm, Oil | ○ | ○ | ○ | A5F.1091-100 |

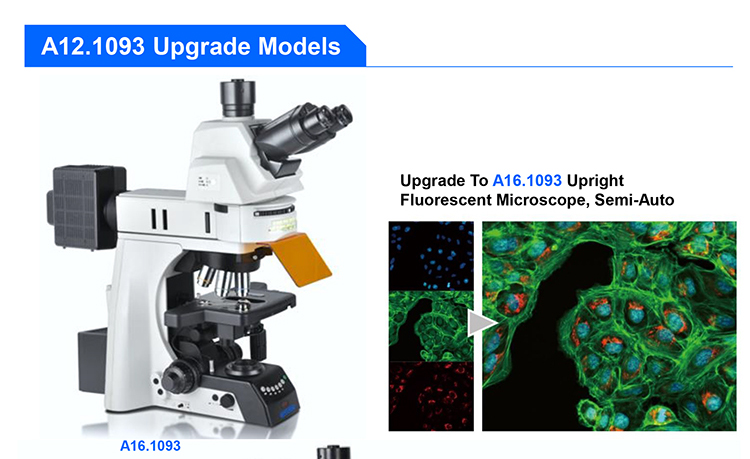

| Fluorescent | Upgrade To A16.1093, A16.1095 Fluorescent Microscope | - | ○ | ○ | A16.1093, A16.1095 |
| Other Accessories | Working Stage Holder Bracket | ● | ● | ● | A54.1096 |
| Adapter To Adjust Eye Position | ○ | ○ | ○ | A54.1096-A1 |
| Adapter To Lower The Stage Position 1" | ○ | ○ | ○ | A54.1096-A2 |
| Immersion Oil | ● | ● | ● | A50.1090-01 |
| Allen Wrench | ● | ● | ● | A50.1090-02 |
| Power Cord | ● | ● | ● | A50.1090-03 |
| Short Eye Cover, For Eyepiece | ○ | ○ | ○ | A50.1090-04 |
| Long Eye Cover, For Eyepiece | ○ | ○ | ○ | A50.1090-05 |
| Eyepiece Micrometer, Cross | ○ | ○ | ○ | A50.1090-06 |
| Adapter Ring To Install Eyepiece Micrometer | ○ | ○ | ○ | A50.1090-07 |
| USB Cable | ○ | ○ | ○ | A50.1090-08 |
| Note:"●"In Table Is Standard Outfits,"○" Is Optional Accessories
"-" Is Unavailable |
