Easy to Use

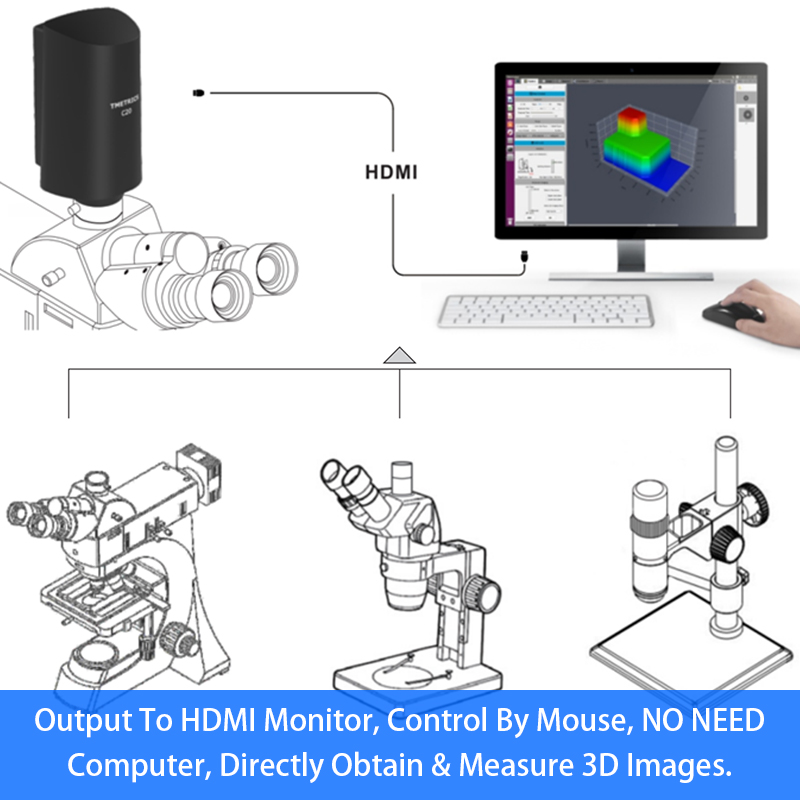

Output to HDMI monitor, control by mouse, NO NEED computer, directly obtain & measure 3D images.

Wide Usage
Standard C Mount, can be used with different microscopes such as metallurgical, stereo, mono tube, etc

Auto-Focus Measurement
Under the 10X objective lens, the accuracy of 2D and 3D measurement can reach 2 micrometers.

A58.3520 microscopic 3D imaging camera has the characteristics of high integration and flexible application,
no other modification is required, it can be directly used with a microscope. The operation is simple, all functions can be completed
by the mouse. Performance guarantee for integrated linkage: The built-in intelligent heterogeneous computer host can directly perform
a large number of calculations instead of a computer, with fast operation speed and stable operation; Real-time ultra-depth of field
and 3D modeling algorithm can help the microscopy system to realize the three-dimensional observation and measurement analysis
of the whole body; automatic edge recognition algorithmIt can also further improve the efficiency of microscopic observation and batch work.

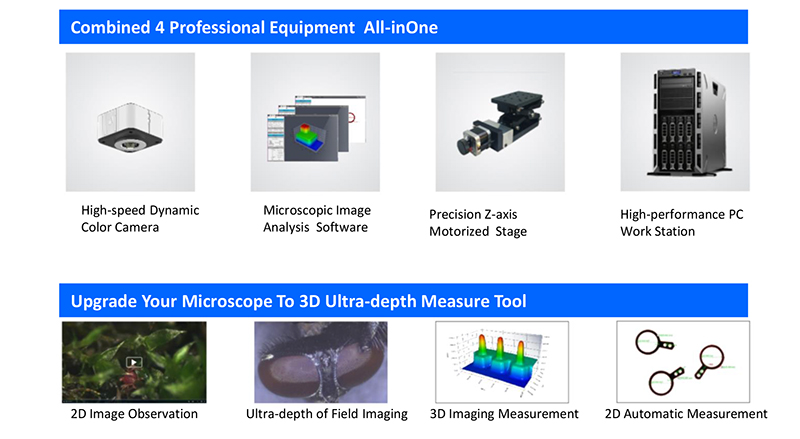

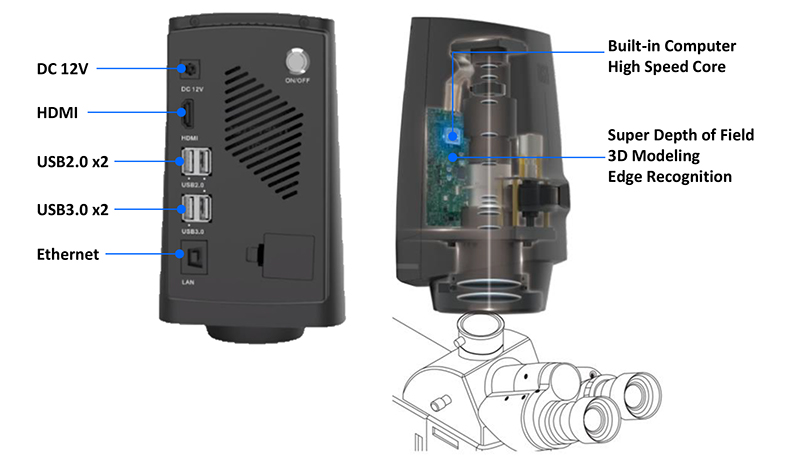

Intellegent Built-in Computer With Software & Friendly User Interface

Ultra-depth observation, observe all feature points on the same plane
Open the software “Shooting-Advanced Imaging -EDF & 3D" function module, click to confirm the upper and lower
focal position to be observed in the image, click "EDF", A59.3820 can automatically Expand Depth of Field,
obtain a full-frame in-focus screen, and observe all the feature points on the same picture

Real-time Extend Depth of Field (EDF) To Avoid Blurry, False Image Phenomenon
Based on the three-dimensional system carried on different platformsWhen the depth of field is expanded, it is easy to
produce a degree deviationThe amount, rotation, and focus are unevenelephant. A59.3820 intelligent computing linkage performance canTo
help solve the above problems, with a microscopeLens, you can also get a clear and correct full frameFocus screen.

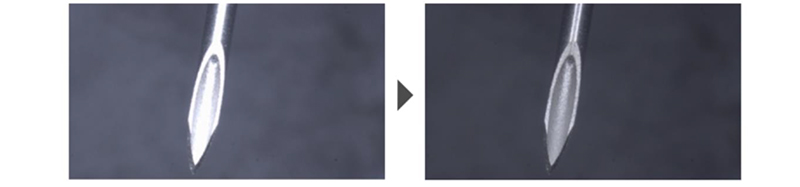

Real-time Wide Dynamic Range (WDR) Effectively Eliminating Strong Reflection Light
The strong reflection light from the surface is easy to cause details loss of information and affects judgment. A59.3820 WDR mode
calculates multiple differentLuminance map data, able to create exposurePerfect images with clear light and dark details

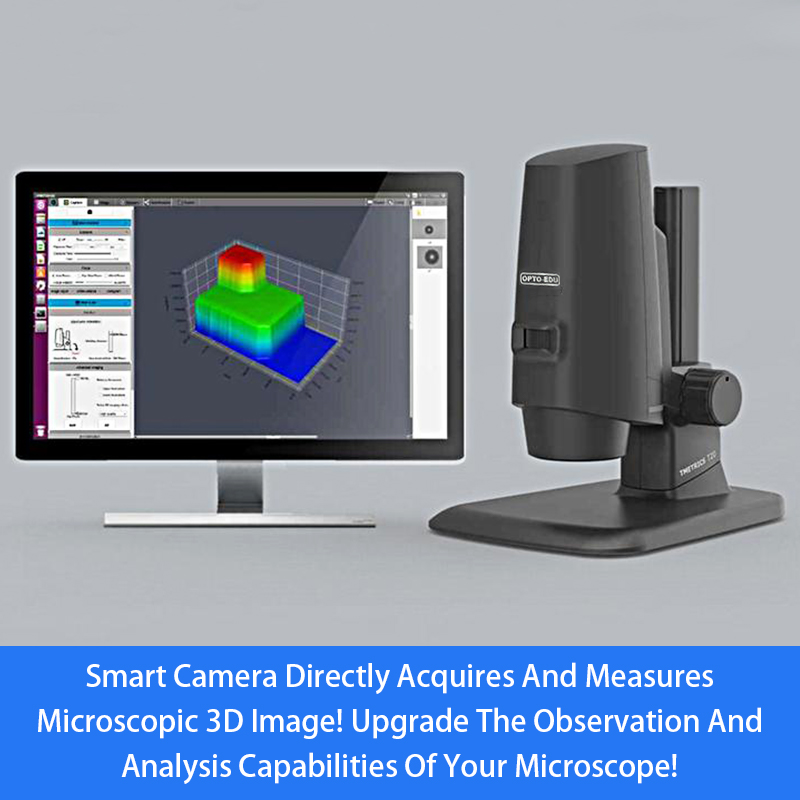

Sample Cases Upgrade Observation And Analysis Capabilities of Your Microscope
Open the software “Shooting-Advanced Imaging-EDF & 3D" function module, click to confirm the upper and lower focal position to be
observed in the image, click "3D", A59.3820 can automatically complete the creation of 3D models, supports
two display modes, real or false color, and can be rotated 360 degrees for observation.
