A12.0806 OPTO EDU Heating Stage Biological Microscope 195 Plan Achromatic Objective

    Buy cheap A12.0806 OPTO EDU Heating Stage Biological Microscope 195 Plan Achromatic Objective from wholesalers

    Buy cheap A12.0806 OPTO EDU Heating Stage Biological Microscope 195 Plan Achromatic Objective from wholesalers
    • Buy cheap A12.0806 OPTO EDU Heating Stage Biological Microscope 195 Plan Achromatic Objective from wholesalers
    • Buy cheap A12.0806 OPTO EDU Heating Stage Biological Microscope 195 Plan Achromatic Objective from wholesalers

    A12.0806 OPTO EDU Heating Stage Biological Microscope 195 Plan Achromatic Objective

    Ask Lasest Price
    Brand Name : CNOEC
    Model Number : A12.0806
    Certification : CE
    Price : $1-$1000
    Payment Terms : T/T,West Union and Paypal
    Supply Ability : 10000
    Delivery Time : 1month
    • Product Details
    • Company Profile

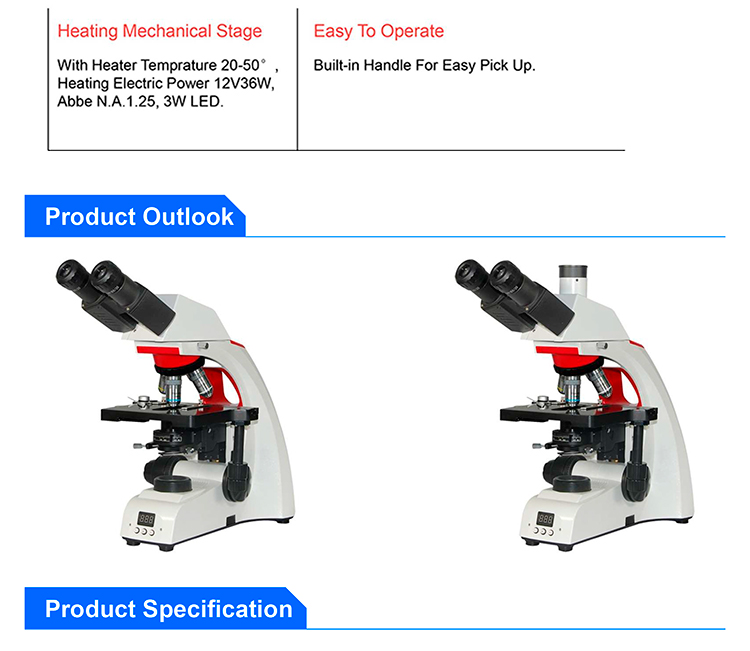

    A12.0806 OPTO EDU Heating Stage Biological Microscope 195 Plan Achromatic Objective


    Binocular & Trinocular, WF10x/20mm, WF16x/15, Quarduple, Plan 4x10x40x100x, Mechanical Stage 160x142/76x52mm, With Heater Temprature 20-50°, Heating Electric Power 12V36W, Abbe N.A.1.25, 3W LED

    A12.0806 Heating Stage Biological Microscope SpecificationPBPT
    HeadCompensation Binocular Head, 30° Inclined, Interpupillary Distance 48-75mm
    Compensation Trinocular Head, 30° Inclined, Interpupillary Distance 48-75mm
    EyepieceWF10X/20mm
    WF16X/15mm
    195 Plan Achromatic ObjectivePlan 4x
    Plan 10x
    Plan 40x (s)
    Plan 100x (S, Oil)
    Nosepiece4 Holes Revolving Nosepiece, Inward
    Focusing SystemCoaxial Coarse & Fine Focusing Knob, Adjustable, Coarse Focusing Range 22mm, Fine Focusing Graduation 0.002mm
    StageDouble Layer Mechanical Stage, Size: 160x142mm
    Moving Range: 76x52mm
    Can Hold 2 Slides
    Temperature Control Range: Room Temperature 20℃-50℃
    Temperature Control Accuracy: ﹤±1℃
    Heating Power: 12V
    Power: 36W
    CondenserAbbe Condenser N.A.=1.25, Iris Diaphragm, Center Adjustable, With Height Adjust Knob
    PowerSwitch Power, Wide Voltage AC90-240V
    Light SourceBottom Light, LED 3W/1A, Stepless Adjustable Light, No Screen Flashing
    Dimming SystemDigital Circuits, Precision Stepless Adjustable Light, No Screen Flash
    PackingFoam + Carton
    Adapter0.5x C-Mount
    0.65x C-Mount
    1x C-Mount
    Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
