    OPTO-EDU A21.1610 2d 3d Digital Video Microscope Manual Rotate 0.6-5.0x 1080p Zoom

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A21.1610
    Certification : CE,
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

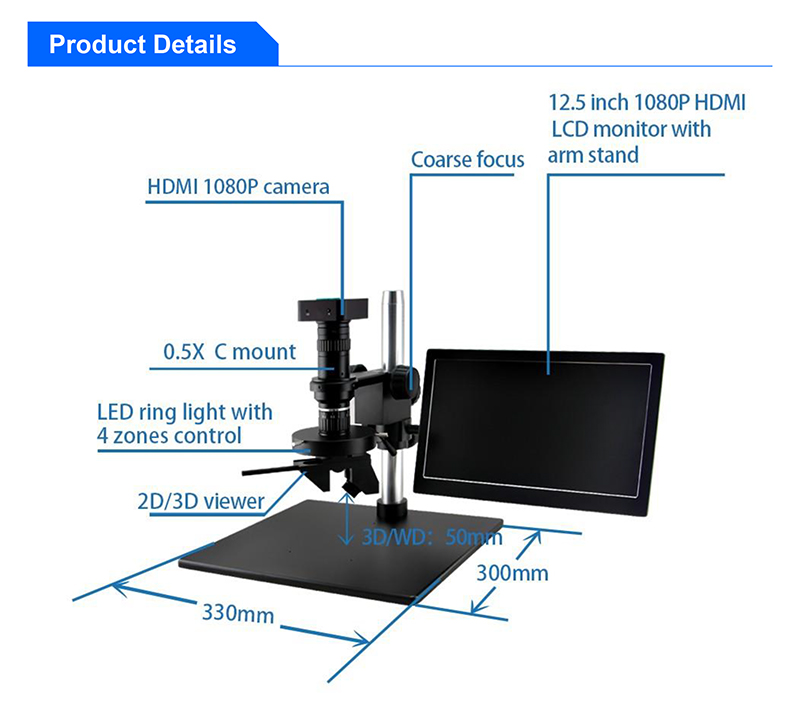

    OPTO-EDU A21.1610 2d 3d Digital Video Microscope Manual Rotate 0.6-5.0x 1080p Zoom


    • 2D & 3D Rotate Zoom Observation Switch Quickly & Easily By Manual
    • 3D 360° Observe Each Side of Object With Large Depth of Field In Real Time Dynamic Image
    • 1080p HDMI Digital Camera Support Photo & Video Capture To U Disk
    • 12.5" LCD Monitor IPS Screen 16.7M Color Display Resolution 1920x1080p
    • Widely Used For SMT, PCB, BGA Surface Board Assembly Industry
    • A21.1610 2D/3D Manual Rotate Zoom Video Microscope
      Lens ParameterOptical Magnification0.6-5.0X
      Total Magnification11-95X Base Of 12.5"Monitor
      Working Distance86mm
      Ratio1:8.3
      Field Of View24*13.5-2.88*1.62mm
      Lens MountStandard C mount
      2D/3D viewerSupport 2D/3D Observing
      360 °Rotation, 45 °Objective Viewing Angle
      Camera ParameterImage Sensor1/2” SONY CMOS
      Max Magnification1920 x 1080
      Pixel Size3.75μm x 3.75μm
      White BalanceManual And Auto
      Brightness ControlManual And Auto
      Memory FunctionTake Photo Or Video To U Disk
      OutputHDMI TYPE
      Monitor ParameterSize12.5”
      TypeIPS
      Resolution1920*1080
      Color Display16.7M
      Brightness300 cd/m² (Typ.)
      Contrast1000:1 (Typ.)
      Power SupplyDC:12V 2A
      InputHDMI And VGA
      Light Source ParameterLight Control4 Zones Control. Brightness Adjust
      Light colorWhite
      Quantity Of LED208PCS LED
      Intensity15000 Lux
      Wavelength455-457.5nm
      Output Voltage12V
      Output Power8-10W
      Working Distance35-110mm
      MaterialAluminum Alloy
      DiameterInner Diameter 40mm, Outer Diameter 106mm, Height 19mm
      Stand ParameterFocusCoarse Focus
      Base Size330*300mm
      Height318mm
      ModelNameSpecification
      C-Mount0.5x (Standard)0.3-2.5X(0.6-5.0X zoom body+0.5X C mount),standard Specification
      0.3x (Optional)0.18-1.5X(0.6-5.0X zoom body+0.3X C mount)
      1.0x (Optional)0.6-5X (0.6-5.0X zoom body+1.0X C mount)
