A12.1030-B Laboratory Binocular Compound Light Microscope 100x

Ask Lasest Price
Brand Name :	OPTO-EDU
Model Number :	A12.1030-B
Certification :	CE, Rohs
Price :	FOB $1~1000, Depend on Order Quantity
Payment Terms :	Western Union, T/T Paypal
Supply Ability :	5000 pcs/ Month
Delivery Time :	5~20 Days

Add to Cart

Product Details
Company Profile

A12.1030-B Laboratory Binocular Compound Light Microscope 100x

A12.1030
Laboratory Microscope, Coded Nosepiece & LCD

● Brand New 2022 Compact High Level School Biological Microscope
● Coded Nosepiece & LCD Screen For Magnification & Brightness Display
● Brightness Memory, Color Temperature Adjust, Auto Power Off (ECO)
● PL10x/20mm Eyepiece, NIS Series Infinity Plan Objective 4x10x40x100x,
● N .A.1.25 Abbe Condenser With Color Objective Position Scales

A12.1030 is the latest biological microscope for high-level schools to be launched in 2022. It has a compact and stable structure. The four hole coded nosepiece, together with the base LCD screen, can provide such advanced functions as magnification display, brightness memory, auto power off (ECO).

A12.1030's high-quality NIS series flat field achromatic objective lens and 20mm wide field objective lens can provide high-definition true color microscopic imaging. In addition to binocular and trinocular, there is also an integrated digital head, which is especially suitable for the use of micro digital interactive classrooms. It is the best choice for schools to upgrade microscopes!

Wide Field Of View 20mm
High eyepoint wide field eyepiece EW10x/20mm supplied 20% more view range than normal WF10x/18mm, with both eyepiece tube diopter adjustable +/-5°makes everybody watch clearly & comfortable.

NIS Series Plan Achromatic Objective
NIS series plan achromatic objective provide excellent chromatic aberration correction capabilities and flatness of field of view. High numerical aperture and long working distance, High imaging definition and wide- range application. Restore the true color and realize accurate observation for samples.

Condenser
N.A.1.25 Abbe Condenser With Color Objective Position Scales

No Rack Fillet Working Stage
Rectangular Mechanical Stage 180x130mm, With Specimen Holder, With Vernier Calibration, Moving Range 74x30mm

Smart LCD & Coded Nosepiece
A12.1030 has coded nosepiece, work with smart LCD, user can adjust & show magnification, light source brightness and color temperature, further more, user can lock the certain brightness for each objective, or set Auto Power Off countdown timer from 5 minutes to 8 hours (Advanced ECO).

Comfortable And Safe Focus Knob
Low position focus knob design, equipped with a stopper that can be used to set the upper limit of the stage height, the stage stops at the set height even when the focus knob is turned, thereby eliminating the risk of over-focusing and breaking the slides or damaging the objectives.

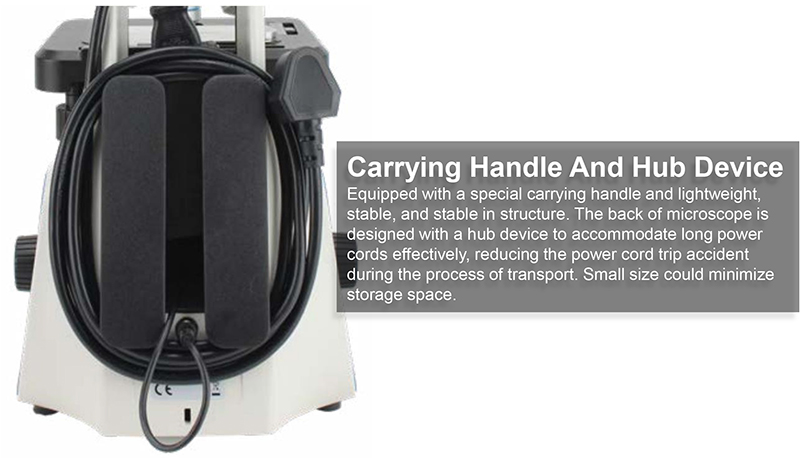

Carrying Handle And Hub Device
Equipped with a special carrying handle and lightweight, stable, and stable in structure. The back of microscope is designed with a hub device to accommodate long power cords effectively, reducing the power cord trip accident during the process of transport. Small size could minimize storage space.

A12.1030 Biological Microscope		A12.1030	A12.1030	A31.1030	Cata. No.
A12.1030 Biological Microscope		-B	-T	A31.1030	Cata. No.
Head	Seidentopf Binocular Head,	●
	30° Inclined, 360°Rotatable, Interpupillary Distance 47-78mm, Dual Diopter Adjustable	●
	Seidentopf Trinocular Head,		●
	30°Inclined, 360°Rotatable, Interpupillary Distance 47-78mm, Dual Diopter Adjustable, Splitting Ratio of Eyepiece/Camera E:100/P0, 0/100		●
	8.0M Digital Camera Built-in Binocular Head,			●
	30° Inclined, 360°Rotatable, Interpupillary Distance 47-78mm, Dual Diopter Adjustable, Splitting Ratio of Eyepiece/Camera E:100/P0, 0/100			●
Eyepiece	Plan Eyepiece EW10x/20mm	●	●	●	A51.1002-1020
	Plan Eyepiece WF15x/16mm	O	O	O	A51.1002-1516
	Plan Eyepiece WF20x/9.5mm	O	O	O	A51.1002-20
Nosepiece	Coded Quadruple Nosepiece, Support Objective Display, Brightness Memory Function	●	●	●
Objective	Infinity Plan NIS45 Objectives, Anti-Fungus Treatment
	4x, NA 0.1, WD: 28mm	●	●	●	A52.1030-4
	10x, NA 0.25, WD: 7.4mm	●	●	●	A52.1030-10
	20x, NA 0.40, WD: 6.2mm	O	O	O	A52.1030-20
	40x, NA 0.65, WD: 0.7mm	●	●	●	A52.1030-40
	60x, NA 0.80, WD: 0.14mm	O	O	O	A52.1030-60
	100x, NA 1.25, WD: 0.14mm, Spring, Oil	●	●	●	A52.1030-100
Working Stage	Rectangular Mechanical Stage 180x130mm, With Specimen Holder, With Vernier Calibration, Moving Range 74x30mm	●	●	●
Focusing	Coaxial Coarse & Fine Adjustment, Tension Adjustable, Upper Limit Ring, Coarse Stroke 37.7mm Per Rotation, Fine Division 0.002mm, Fine Stroke 0.2mm Per Rotation, Coarse Focusing Range 25mm	●	●	●
Condenser	Abbe NA1.25, With Colorful Remark For Correct Iris Diaphragm of Each Objective	●	●	●
Light Source	Built-in 3W LED Illumination, Brightness Adjustable	●	●	●
Smart LCD Screen	LCD Screen In Front Of Base, Working With Coded Nosepiece, Supply Advanced Function:	●	●	●
	•Real Time Objective & Brightness Display,
	•Brightness Memory,
	•Color Temperature Adjust,
	•Auto Power Off (ECO)
ECO	Auto Power Off Countdown Timer From 5 Minutes to 8 Hours (Advanced ECO).	●	●	●
Adapter	0.5x C-Mount		●
Size	220(W)x290(D)x472(H), mm	●	●	●

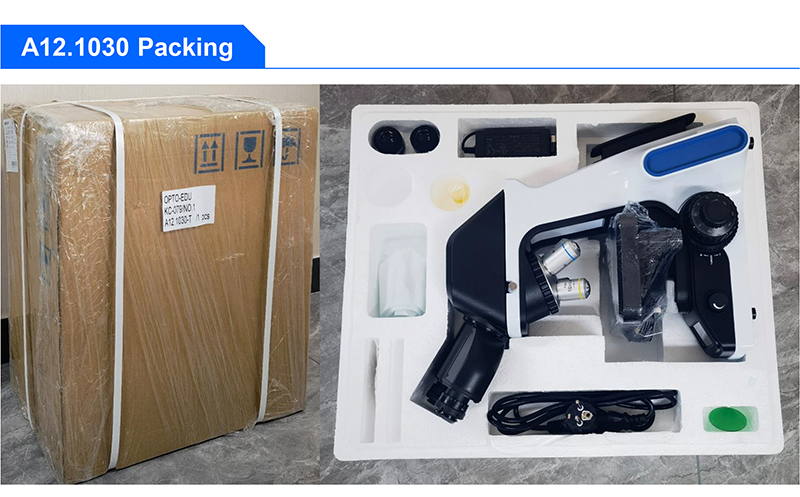

Packing	470320590mm, G.W.12.1Kg, N.W.8Kg	●	●	●
Note: "●"In Table Is Standard Outfits
