    A21.1611 OPTO EDU 2D / 3d Video Microscope Auto Rotate Zoom Dual Light

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A21.1611
    Certification : CE,
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    A21.1611 OPTO EDU 2D / 3d Video Microscope Auto Rotate Zoom Dual Light

    2D/3D Auto Rotate Zoom Video Microscope, Dual Light

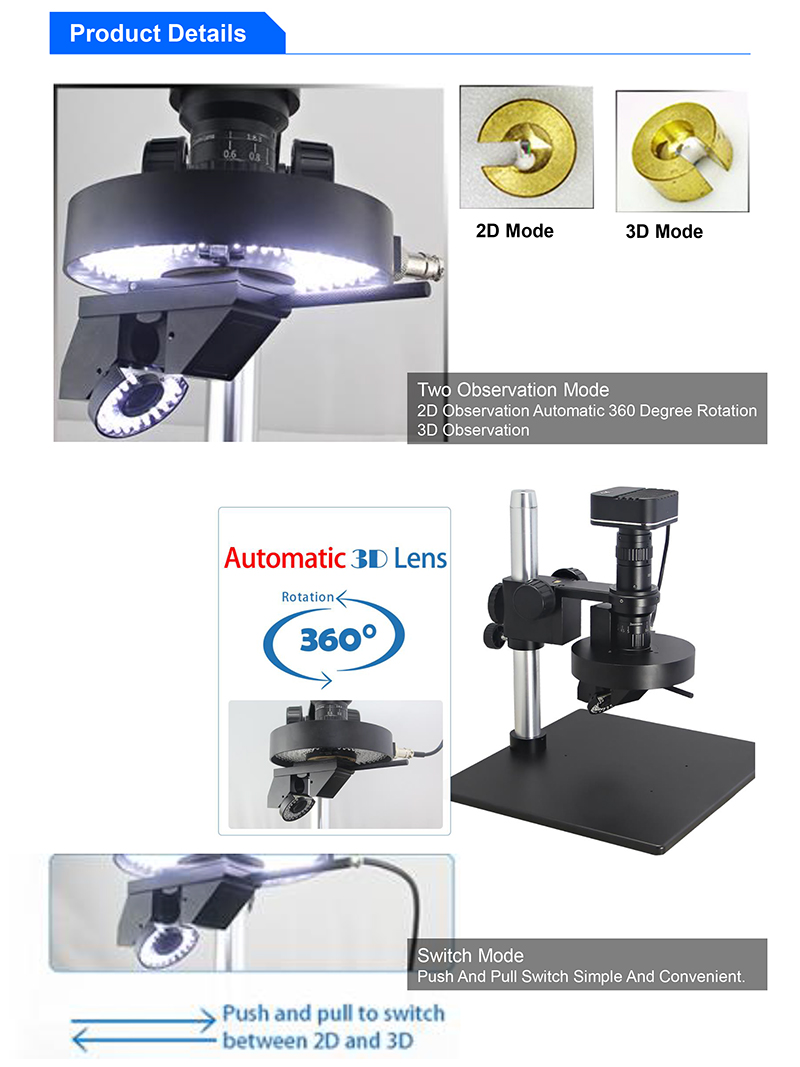

    • 45° Lens+LED Light, 3D 360° Auto Rotate Control By HDMI Camera Mouse
    • Main Body Optical Zoom Lens 0.6x-5.0x, With 8.0M 60fps HDMI Camera
    • Totatl Magnification 14x-120x (15.6" LCD), View Field 25.6x14.4-3.0*1.7mm
    • Dual Light Included: Main Light 276 LEDs, Oblique Light 31 LEDs Attached To 45° Lens Rotate Togehter
    • Widely Used For SMT, PCB, BGA Surface Board Assembly Industry
    A21.1611 OPTO EDU 2D / 3d Video Microscope Auto Rotate Zoom Dual Light

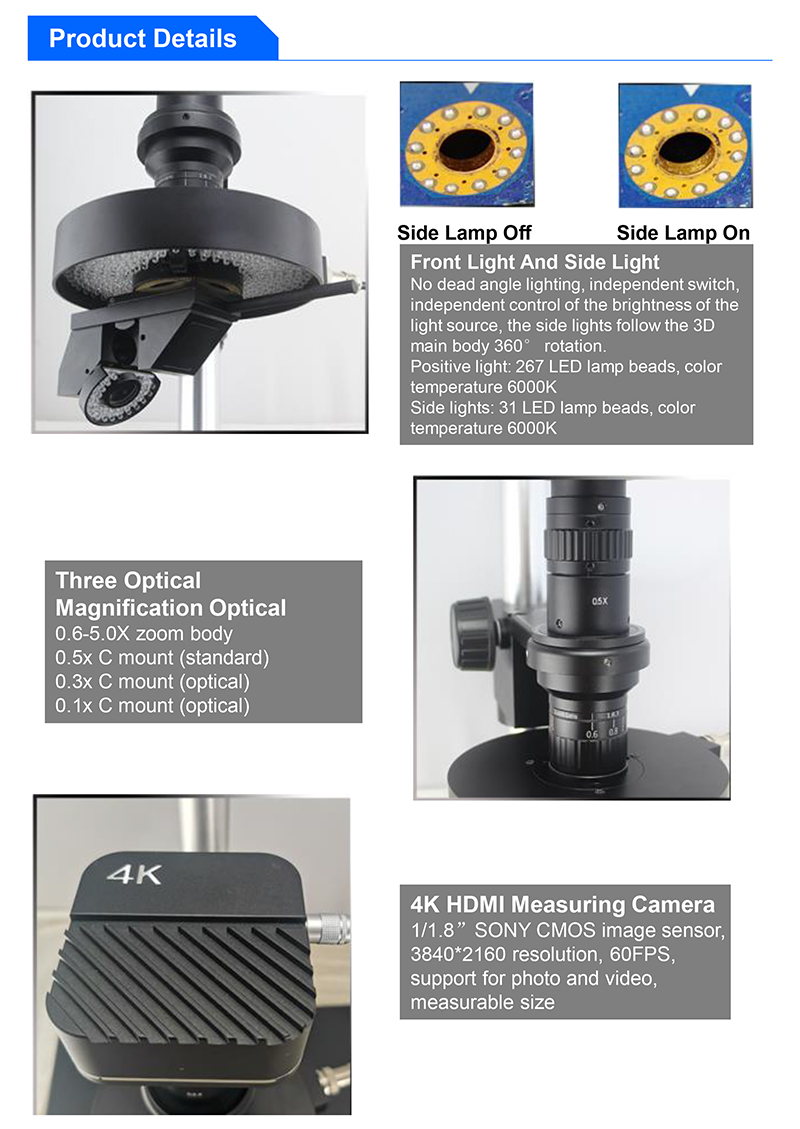

    Front Light And Side Light
    No dead angle lighting, independent switch, independent control of the brightness of the light source, the side lights follow the 3D main body 360° rotation.Positive light: 267 LED lamp beads, color temperature 6000K Side lights: 31 LED lamp beads, color temperature 6000K.
    A21.1611 OPTO EDU 2D / 3d Video Microscope Auto Rotate Zoom Dual Light
    A21.1611 OPTO EDU 2D / 3d Video Microscope Auto Rotate Zoom Dual Light
    A21.1611 OPTO EDU 2D / 3d Video Microscope Auto Rotate Zoom Dual Light
    A21.1611 OPTO EDU 2D / 3d Video Microscope Auto Rotate Zoom Dual Light
    A21.1611 OPTO EDU 2D / 3d Video Microscope Auto Rotate Zoom Dual Light
    A21.1611 OPTO EDU 2D / 3d Video Microscope Auto Rotate Zoom Dual Light
    A21.1611 OPTO EDU 2D / 3d Video Microscope Auto Rotate Zoom Dual Light
    A21.1611 Automatic 360 Degree Rotation 3D Microscope(Controlled By Camera)
    Lens ParameterOptical Magnification0.6-5.0X zoom body with 0.5X C mount
    Total Magnification14-120X (based on 15.6 inch 4K monitor)
    Working Distance2D:86mm 3D:50mm
    Ratio1:8.3
    Field Of View25.6x14.4-3.0*1.7mm
    Lens MountStandard C mount
    Camera ParameterImage Sensor1/1.8”SONY CMOS
    Resolution3840x2160
    Pixel Size2.0μm x 2.0μm

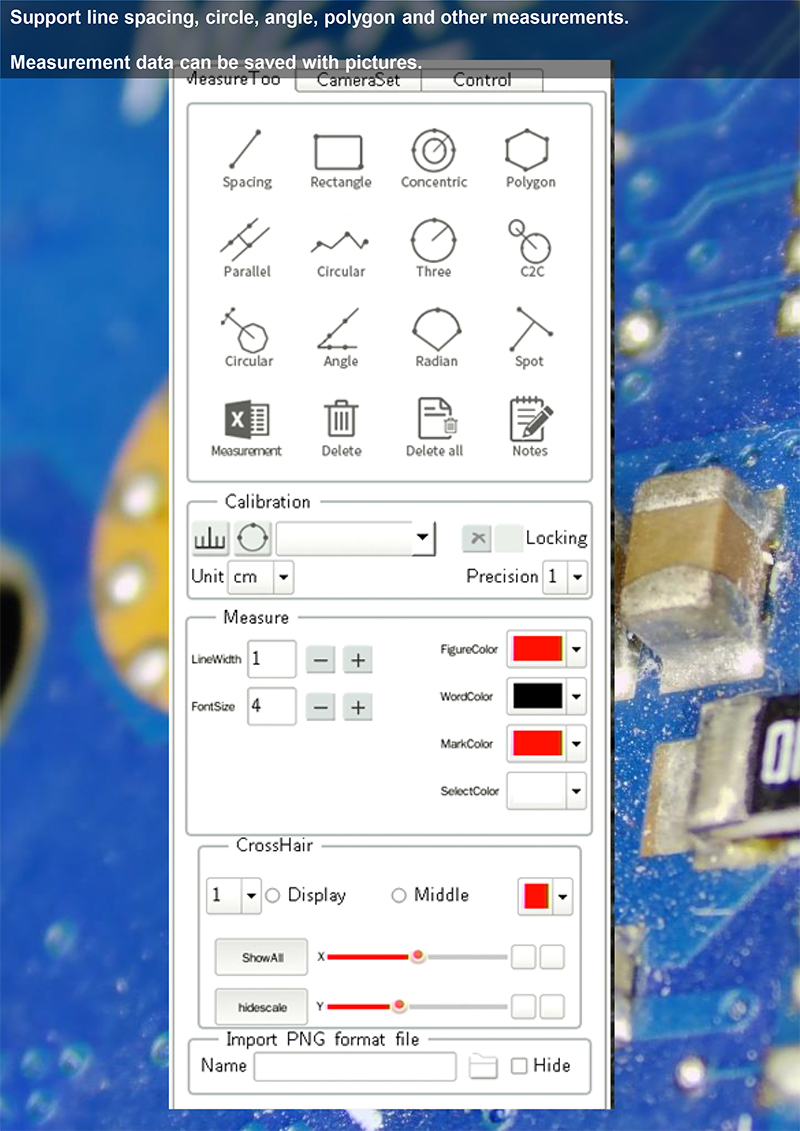

    Memory FunctionSupport Measuring Of Line, Angle, Circle, Radian, Rectangle, Polygon etc., Precision Reaches The Level Of Micron.
    OutputHDMI outpu
    Light Source ParameterFront light267 PCS LED,Color Temperature 6000K,Brightness 0-100% Adjustable
    Side light31 PCS LED, Color Temperature 6000K,Brightness 0-100% Adjustable
    Stand ParameterFocusCoarse Focus
    Base Size330*300mm
    Height318mm
    A21.1611 OPTO EDU 2D / 3d Video Microscope Auto Rotate Zoom Dual Light
