    Scanning Electron Opto Edu Microscope A63.7001 SE+BSE 150000x

    Ask Lasest Price
    Brand Name : OPTO-EDU
    Model Number : A63.7001
    Certification : CE, Rohs
    Price : FOB $1~100000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    Scanning Electron Opto Edu Microscope A63.7001 SE+BSE 150000x

    Tungsten Filament Scanning Electron Microscope, SE+BSE, 150000x

    • 150000x Magnification With Detector SE+BSE+CCD, Optional EDS
    • Standard X/Y Motorized Working Stage, Optional Five Axes X/Y/Z/R/T
    • Built-in Condenser No Need Manual Adjust Aperture (LaB6 Optional)
    • High Vaccum System With Mechanical Rotary Pump To Get Vaccum In <2 Minutes
    • One Key Auto Focus, Auto Brightness & Contrast Adjust, No Need Shock Absorbing Table
    Scanning Electron Opto Edu Microscope A63.7001 SE+BSE 150000x

    Scanning Electron Opto Edu Microscope A63.7001 SE+BSE 150000x
    Scanning Electron Opto Edu Microscope A63.7001 SE+BSE 150000x
    Scanning Electron Opto Edu Microscope A63.7001 SE+BSE 150000x
    Scanning Electron Opto Edu Microscope A63.7001 SE+BSE 150000x
    Scanning Electron Opto Edu Microscope A63.7001 SE+BSE 150000x
    Scanning Electron Opto Edu Microscope A63.7001 SE+BSE 150000x
    Scanning Electron Opto Edu Microscope A63.7001 SE+BSE 150000x
    Scanning Electron Opto Edu Microscope A63.7001 SE+BSE 150000x
    Scanning Electron Opto Edu Microscope A63.7001 SE+BSE 150000x

    Scanning Electron Opto Edu Microscope A63.7001 SE+BSE 150000x
    Scanning Electron Opto Edu Microscope A63.7001 SE+BSE 150000x

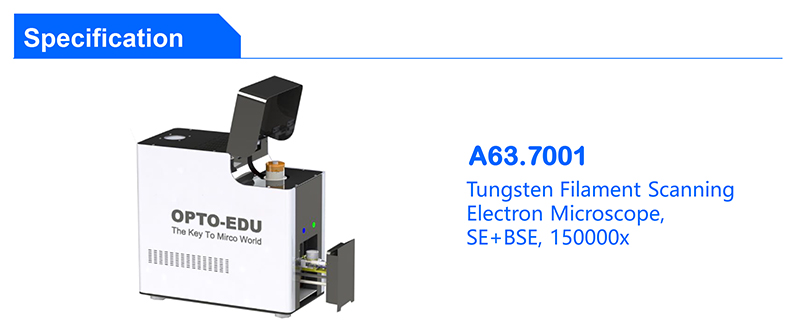

    A63.7001 Tungsten Filament Scanning Electron Microscope, SE+BSE, 150000x
    Resolution6nm@30KV(SE)
    Magnification150000x
    Electron GunPre-Centered Tungsten Filament Cartridge
    VoltageAccelerating Voltage 1~15KV, Continuous Adjustable, Adjust Step 1KV
    DetectorStandard: SE, BSE, CCD
    Optional: EDS
    Vacuum SystemFull Auto Control High Vaccum System, Vaccuming Time <2 Minutes
    Specimen StageStandard XY Auto Stage, Travel Range 30x30mm,
    Optional 5 Axes Stage
    Max SpecimenФ50 x H35mm
    Working Distance5-35mm
    CondenserBuilt-in Condenser No Need Manual Adjust Aperture (LaB6 Optional)
    Image SystemSE, BSE, BSE+SE(Mix)
    Scan Mode:
    1. Video Mode: 512x512 Pixels, No Need Small Window Scan
    2. Quick Mode: Scan Time <3s, 512x512 Pixels,
    3. Slow Mode: Scan Time <40s, 2048x2048 Pixels,
    Image File Format: BMP, TIFF, JPG, PNG
    NavigationOptical CCD Navigation (Not Electrical Image Navigation)
    Auto FunctionOne Key Auto Focus, Auto Brightness & Contrast Adjust
    Computer & SoftwarePC Work Station Win 10 System, With Professional Image Analysis Software To Fully Control Whole SEM Microscope Operation, Computer Specification No Less Than Inter I5 3.2GHz, 4G Memory, 24" IPS LCD Monitor, 500G Hard Disk, Mouse, Keyboard
    Working Condtion220V/50Hz 1KW, No Need Shock Absorbing Table
    Dimension
    Microscope Body 283*553*505mm

    Mechanical Pump 340*160*140mm

    Optional Accessories
    A50.7002EDS Energy Dispersive X-Ray Spectrometer
    A50.7011Ion Sputtering Coater
