Opto Edu M12.5850 Biological Motorized Microscope Bf Xyz

MAXCOPE 3D Full Auto Biological Microscope
The new M12.5850 Research-grade Biological Microscope has upgraded to XY motorized working stage model, combined with the powerful Maxscope 2D/3D software, which integrates a number of firsts. From appearance to performance, it closely follows the international leading design trend. MAXCOPE will continue to provide customers with complete 3D industrial inspection solutions.

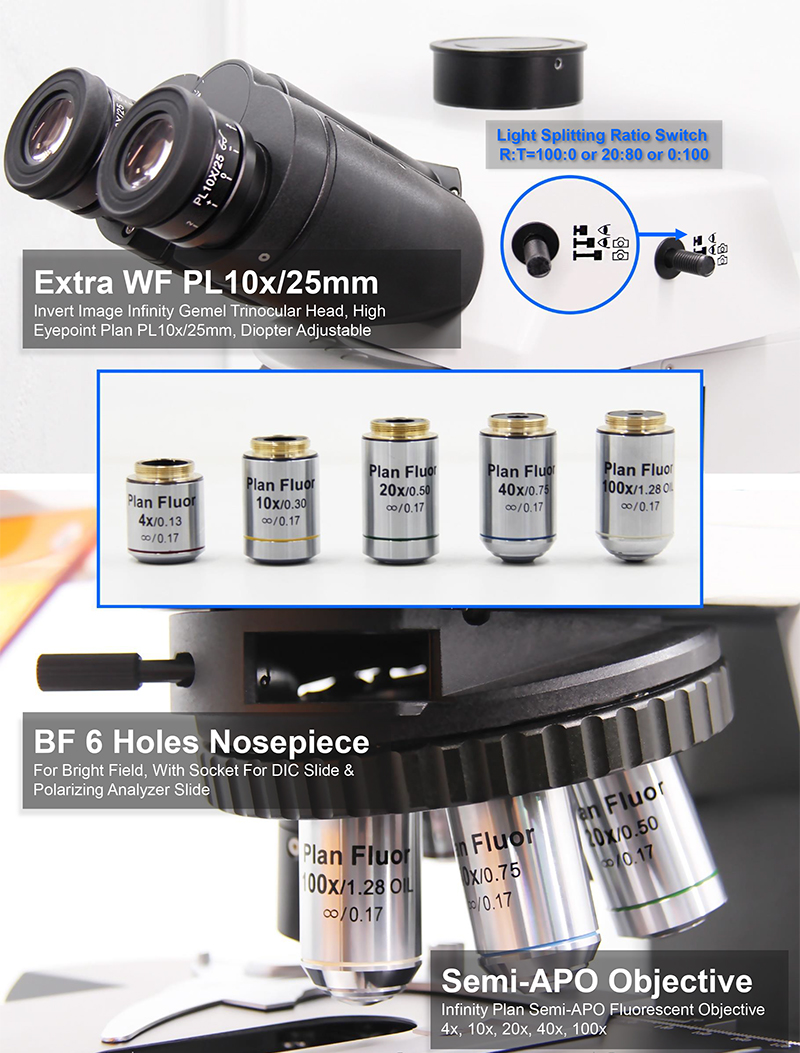

Infinity Plan Semi-APO 4x10x20x40x100x Objectives With 6 Holes Motor Nosepiece
X/Y/Z Motorized Stage Large Moving Range 100x100mm Resolution 0.05um
Full Auto 2D Scan Image Stitching With Quick & Precise Mode
Upgradeable to 2D Pro & 3D Version Software Enable 3D Image Stitching & Measuring
USB3.0 20M Cooling Fluorescent Digital Camera With Computer Pre Installed Software

Motorized Nosepiece
Optional motorized nosepiece models, you can select different objective lenses in the software, and switch the magnification with one key

Stitching Optimize
The built-in advanced algorithm can intelligently optimize and correct the grid phenomenon and shadow phenomenon caused by lens aberration, uneven lighting and other factors when scanning and stitching, so that the stitched image will be one high-definition, no offset, no grid, no shadow.

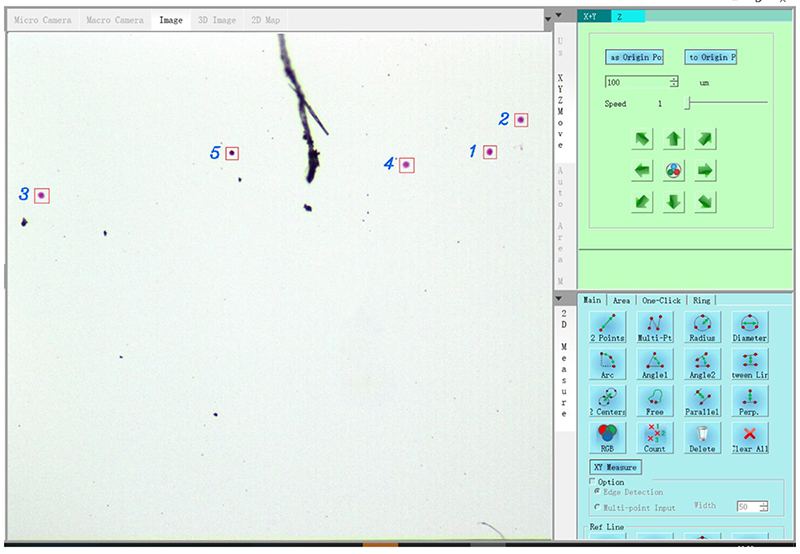

One Click Auto Measurement
Multiple measurement items can be saved as templates, software intelligently matches similar shapes, removes redundant targets or separates overlapping targets, automatically performs unified measurement, counting and analysis for multiple targets by one click

Item	M12.5850 3D Full Auto SDF Biological Microscope	M12.5850	M16.5850	Cata. No.
Item	M16.5850 3D Full Auto SDF Fluorescent Microscope	M12.5850	M16.5850	Cata. No.
Optical System	Infinity Optical System, BF Bright Field	●	●
	Semi-APO, Semi Apochromatic	●	●
	APO, Apochromatic	○	○
	DF, Dark Field	○	○
	PL, Polarzing	○	○
	PH, Phase Contrast	○	○
	DIC, Different Interference Contrast	○	○
	FL, Fluorescent	○	○
Head	30° Inclined Erect Image Infinity Gemel Trinocular Head, Interpupillary Distance 50~76mm, Light Spiltting Ratio Switch E100:P0/E0:P100,	○	○	A53.0913-T30E
	30° Inclined, Invert Image Infinity Gemel Trinocular Head, Interpupillary Distance 50~76mm; Light Splitting Ratio Switch R:T=100:0 or 20:80 or 0:100	●	●	A53.0913-T30
	5-35° Tiltable, Inverted Image, Infinity Gemel Trinocular Head, Interpupillary Distance 50~76mm; Light Splitting Ratio 50:50 or 100:0 or 0:100	○	○	A53.0913-T535
Adapter	0.5x C-Mount, For 1/2"CCD, Focus Adjustable	●	●	A55.0930-05
	0.35x C-Mount, For 1/2"CCD, Focus Adjustable	○	○	A55.0930-35
	0.65x C-Mount, For 1/2"CCD, Focus Adjustable	○	○	A55.0930-65
	1.0x C-Mount, For 1"CCD, Focus Adjustable	○	○	A55.0930-10
Digital Camera	USB3.0 CMOS Cooling Digital Camera, For Fluorescent Imaging, GS Shutter, 20M, 1” CMOS, 30@1824x1216, Semi-Conductor Cooling Range -42°C, Anti-Frog, One Hour Exporsure, C-Mount	●	●	A59.2225-20MPA
Eyepiece	High Eyepoint Plan PL10x/25mm, Diopter Adjustable	●●	●●	A51.0904-1025T
	High Eyepoint Plan PL10x/26.5mm, Diopter Adjustable	○	○	A51.0904-10265T
	High Eyepoint Plan PL10x/25mm, Diopter Adjustable, With Reticle	○	○	A51.0905-1025T
	High Eyepoint Plan PL10x/26.5mm, Diopter Adjustable, With Reticle	○	○	A51.0905-10265T
Nosepiece	BF 6 Holes, With Socket For DIC Slide & Polaring Analyzer Slide, Coded & Motorized Control by Software	●	●	A54.0930-R6
Objective	Infinity Plan Semi-APO Fluorescent Objective
	Semi-APO Fluorescent 4x/0.13, W.D.=16.43mm	●	●	A5F.0950-4
	Semi-APO Fluorescent 10x/0.3, W.D.=8.13mm	●	●	A5F.0950-10
	Semi-APO Fluorescent 20x/0.5, W.D.=2.03mm	●	●	A5F.0950-20
	Semi-APO Fluorescent 40x/0.75, W.D.=0.74mm	●	●	A5F.095040
	Semi-APO Fluorescent 100x/1.3, W.D.=0.18mm	●	●	A5F.0950-100
	Infinty Plan APO Flourscent Objective
	APO Fluorescent 2x/0.08, WD=6.2mm	○	○	A5F.0951-2
	APO Fluorescent 4x/0.13, WD=16.6mm	○	○	A5F.0951-4
	APO Fluorescent 10x/0.40, WD=2.1mm	○	○	A5F.0951-10
	APO Fluorescent 20x/0.75, WD=0.6mm	○	○	A5F.0951-20
	APO Fluorescent 40x/0.95, WD=0.15mm	○	○	A5F.0951-40
	APO Fluorescent 60x/0.90, WD=0.26mm	○	○	A5F.0951-60
	APO Fluorescent 100x/1.35, WD=0.13mm	○	○	A5F.0951-100
	Centering Objective For Fluorescent	○	●	A5F.0930-1
Focusing	Low-Position Coaxial Coarse & Fine Adjustment, Coarse Adjustment Distance: 25mm; Fine Precision: 0.001Mm. With Coarse Adjustment Stop And Tightness Adjustment.	●	●
Main Body	Transmitted Biological Main Body,	●
	Digital Dimming System With Light Indicator, Brightness Set & Reset Function, With ECO Function	●
	Reflected &Transmitted Fluorescent Main Body,		●
	Digital Dimming System With Light Indicator, Brightness Set & Reset Function, With ECO Function		●
Transmit	12V100W Halogen Lamp House, Pre-Centered	●	●	A56.0915-LH
Light	12V100W Halogen Bulb (Philps 7724)	●	●	A56.0923-12100
	Swing-out Type Achromatic Condenser, N.A.0.9/0.25	●	●	A56.0934-R
	Built-In Transmit Filters LBD/ND6/ND25	●	●
Reflect Epi	Full Set, 6 Holes Reflect Epi-Fluroescent Illumation, With Iris Diaphragm, With Aperture Diaphragm, With Filter Slot, With Polarizing Analyizer Slot, With Protect Barrier, With Fluroescent Shutter		●	A5F.0906
Fluorescent Light	--100W Mercury Light Box, Center Adjustable
	--Digital Power Supply 90~240V
	--HBO 100W Mercury Bulb OSRAM
	--Attenuation Filter ND50
	--Fluorescent Filter B,G,UV
	--Fluorescent Filter V			A5F.0906-V
Power	Built-In 100-240V Wide Voltage Transformer	●	●
Other	Allen Key M4	●	●
Universal Condenser For Dark Field, Polarizing, Phase Contrast, DIC View
Universal Condenser	Universal Condenser, Disc With 8 Holes For Function DF, PL, PH, DIC	○	○	A56.0960
	--3 Small Holes For Phase Contrast Rings A5C.0960, PH Objectives A5C.0961
	--3 Big Holes Only For DIC Rings A5M.0960
	--2 Big Holes Center Adjustable, For Dark Field Ring A5D.0960 or DIC Ring A5M.0960
	--Polarizier Lens Included In Socket Under Universal Condenser
	--Need to Select N.A.0.9 Condenser Lens As Standard
	N.A.0.9 Condenser Lens, Standard Selection, For Objective 10x20x40x60x100x	○	○	A56.0960-09
	Screw On Universal Condenser Disc	○	○	A56.0960-09
	N.A.0.2 Condenser Lens, Optional Selection, For Objective 4x	○	○	A56.0960-02
	Screw On Universal Condenser Disc	○	○	A56.0960-02
	N.A.1.4 Condenser Lens, Optional Selection, For Objective 20x40x60x100x	○	○	A56.0960-14
	Screw On Universal Condenser Disc	○	○	A56.0960-14
Dark Field	Dark Field Ring, Dry Type N.A.0.9, For Objective 10x,20x	○	○	A5D.0960-D
Dark Field	Dark Field Ring, Immersion Oil Type N.A.1.4, For Objective 40x,60x	○	○	A5D.0960-I
DIC	Transmission DIC Slide, Insert To DIC Socket On Nosepiece	○	○	A5M.0960
	Transmission DIC Ring 10x	○	○	A5M.0960-10
	Transmission DIC Ring 20x	○	○	A5M.0960-20
	Transmission DIC Ring 40x/60x	○	○	A5M.0960-4060
Phase Contrast	Infinity Plan Apochromatic Positive Phase Contrast Objective	○	○
APO Objective	APO PH 4x/0.16, WD=12.8m	○	○	A5C.0950-4
	APO PH 10x/0.40, WD=2.5mm	○	○	A5C.0950-10
	APO PH 20x/0.75, WD=0.6mm	○	○	A5C.0950-20
	APO PH 40x/0.95, WD=0.15m	○	○	A5C.0950-40
	APO PH 60x/0.90, WD=0.26mm	○	○	A5C.0950-60
	APO PH 100x/1.35, WD=0.13mm	○	○	A5C.0950-100
Polarizing	Polarizier Lens Included In Plug-in Socket Under Universal Condenser	○	○
Polarizing	Analyzer Slide, Insert To Analyzer Socket On Nosepiece	○	○	A5P.0960
Upgrade Series Model
Metallurgical	Upgrade to M13.5850 3D Full Auto SDF DIC Metallurgical Microscope, APO			M13.5850
Remark: '●' Means Standard Outfit, '○' Means Optional

Motorized Working Stage, Computer & Software
Motorized Working Stage	XYZ Motorized Working Stage, 2-Phase Stepping Motor, High Precision Module, Aluminum Alloy Material, Surface Anodized, Anti-Corrosion And Scartch-Resistant	●	A54.5831
XY Moving	110x110mm
Z Moving	20mm
Resolution	<0.05um
Max. Speed	50mm/s
Repeatability	≤20um
Max. Load	16kg
Weight	4.8kg
Computer	PC i5 16G 256G+1T, 1G Graphic Card, 24"LCD	●
Maxcope Software	2D Standard Version, Detail See Software Table	●	A30.5801
	2D Advanced Version, Detail See Software Table	○	A30.5802
	3D Professional Version, Detail See Software Table	○	A30.5803
	Customrized Function, Detail See Software Table	○	A30.5804
