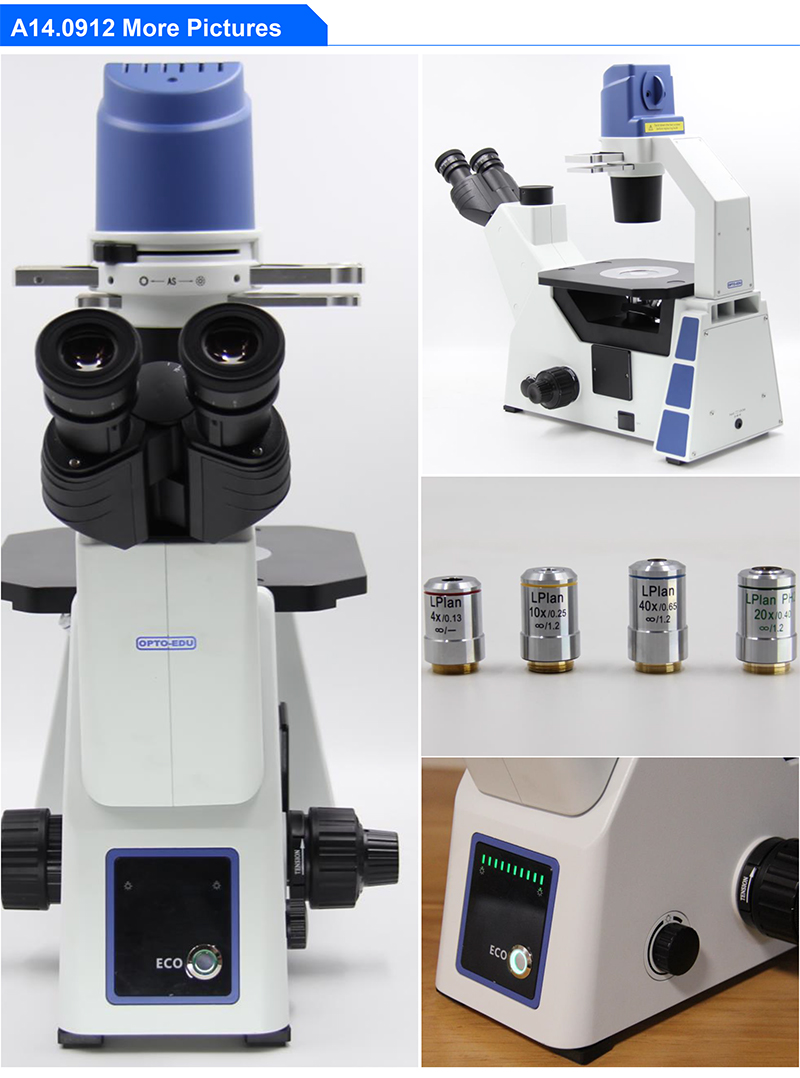

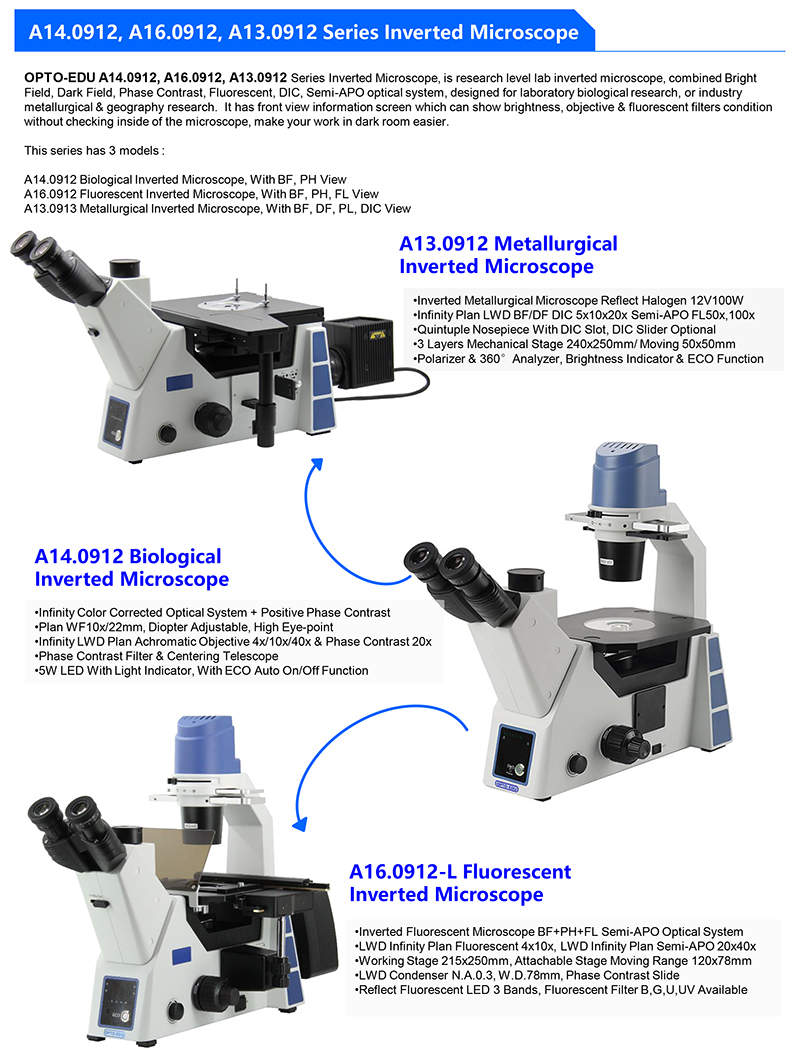

A14.0912 Biological, A16.0912-L Fluorescent, A13.0912 Metallurgical
Series Inverted Microscope | A14.0912
Biological | A16.0912-L
Fluorescent | A13.0912
Metallurgical | Cata. No. |
| Observation Method | Bright Field | ● | ● | ● | |
| Phase Contrast | ● | ● | - | |
| Fluorescent | - | ● | - | |
| Dark Field ( With BF/DF Shifter) | - | - | ● | |
| Polarizing | - | - | ● | |
| DIC | - | - | ● | |
| Head | Trinocular Head, 45° Inclined, 360° Rotatable, IPD 50-75mm,
Light Split Ratio 50:50 | ● | - | - | |
Trinocular Head, 45° Inclined, 360° Rotatable, IPD 50-75mm,
Light Split Ratio 100:0/0:100 Switchable | - | ● | ● | |
| Eyepiece | Wide Field Plan PL10x/22mm, High Point, Diopter Adjustable | ● | ● | ● | A51.0904-1022T |
| Wide Field Plan PL10x/22mm, High Point, Diopter Adjustable With
Reticle | ○ | ○ | ○ | A51.0904-1022R |
| Wide Field Plan PL15x/16mm, High Point, Diopter Adjustable | ○ | ○ | ○ | A51.0904-1516T |
| Nosepiece | Quintuple | ● | ● | | |
| Coded BD Quintuple With DIC Slot, Show Objective On Front Panel | - | - | ● | |
| Objective | Infinity LWD Plan Achromatic 4x/0.10, W.D.22mm, Cover Glass 1.2mm | ● | ○ | - | A5M.0935-4 |
| Infinity LWD Plan Achromatic 10x/0.25, W.D.7.94mm, Cover Glass
1.2mm | ● | ○ | - | A5M.0935-10 |
| Infinity LWD Plan Achromatic 20x/0.50, W.D.7.66mm, Cover Glass
1.2mm | ○ | ○ | - | A5M.0935-20 |
| Infinity LWD Plan Achromatic 40x/0.60, W.D.3.71mm, Cover Glass
1.2mm | ● | ○ | - | A5M.0935-40 |
| Infinity LWD Plan Achromatic 60x/0.70, W.D.2.50mm, Cover Glass
1.2mm | ○ | ○ | - | A5M.0935-60 |
| Infinity LWD Positive Phase Contrast 4x/0.13 WD=10.75mm | ○ | ○ | - | A5C.0938-4 |
| Infinity LWD Positive Phase Contrast 10x/0.25 WD=7.45mm | ○ | ○ | - | A5C.0938-10 |
| Infinity LWD Positive Phase Contrast 20x/0.40 WD=6.92mm | ● | ○ | - | A5C.0938-20 |
| Infinity LWD Positive Phase Contrast 40x/0.65 WD=2.74mm | ○ | ○ | - | A5C.0938-40 |
| Infinity LWD Plan Fluorescent LWDPL4x/0.13, W.D.18.52mm | - | ● | - | A5F.0932-4 |
| Infinity LWD Plan Fluorescent LWDPL10x/0.3, W.D.7.11mm | - | ● | - | A5F.0932-10 |
| Infinity LWD Plan Fluorescent LWDPL20x/0.45, W.D.5.91mm | - | ○ | - | A5F.0932-20 |
| Infinity LWD Plan Fluorescent LWDPL40x/0.65, W.D.1.61mm | - | ○ | - | A5F.0932-40 |
| Infinity LWD Plan Fluorescent LWDPL60X/0.75, W.D.1.04mm | - | ○ | - | A5F.0932-60 |
Infinity LWD Plan Semi-APO Phase Contrast & Fluorescent
LWDPL20x/0.45 W.D.5.91mm | - | ● | - | A5F.0933-20 |
Infinity LWD Plan Semi-APO Phase Contrast & Fluorescent
LWDPL40x/0.65 W.D.1.61mm | - | ● | - | A5F.0933-40 |
| Infinity LWD BD DIC Plan Metallurgical DIC-5x/0.15 W.D.11mm | - | - | ● | A5M.0939-5 |
| Infinity LWD BD DIC Plan Metallurgical DIC-10x/0.3 W.D.9.5mm | - | - | ● | A5M.0939-10 |
| Infinity LWD BD DIC Plan Metallurgical DIC-20x/0.45 W.D.3.4mm | - | - | ● | A5M.0939-20 |
| Infinity LWD BD Semi-APO Plan Metallurgical FL50x/0.55 W.D.7.5mm | - | - | ● | A5M.0940-50 |
| Infinity LWD BD Semi-APO Plan Metallurgical FL100x/0.8 W.D.2.1mm | - | - | ○ | A5M.0940-100 |
| Focusing | Coaxial Coarse & Fine Focusing, With Tension Adjustment Ring,
Coarse Focusing Range 9mm, Up 6.5mm + Down 2.5mm, Fine Focusing
Precision 0.002mm | ● | ● | ● | |
| Working Stage | Three-Layer Mechanical Stage, Size 240x250mm, Moving Range 50x50mm,
Bothway Linear Guide Rail, Right Hand Controls, Low Position | - | - | ● | |
| Fixed Working Stage, Size 215x250mm | ● | ● | - | |
| Attachable Mechanical Stage, Moving Range 120(X)x78(Y)mm | ○ | ● | - | A54.0945-02 |
| Stage Extension Plate | ○ | ● | - | A54.0945-E1 |
| Glass Plate With Round Hole | ● | ● | - | A54.0945-GP |
| Metal Round Plate, Hole Dia.25mm | - | - | ● | A54.0945-M1 |
| Metal Round Plate, Hole Dia.12mm | - | - | ○ | A54.0945-M2 |
| Metal Plate With Kidney Hole | ● | ● | - | A54.0945-M3 |
| Petri Dish Holder, Hole Dia.35mm | ● | ● | - | A54.0945-H1 |
| Slides Holder, Hole Dia.54mm + 26.5x76.5mm | ○ | ● | - | A54.0945-H2 |
| Teraseki Holder, Hole Dia.65mm + 56x81.5mm | ○ | ● | - | A54.0945-H3 |
| Condenser | LWD Condenser N.A. 0.30, W.D. 72mm, Dismountable, With Phase
Contrast Slot | ● | ● | - | |
| Phase Contrast | Centre-Adjustable Phase Contrast Slide Plate, For 4x10+20x40x
Objectives | ● | ● | - | |
| Centering Telescop Dia.30mm | ● | ● | - | |
| Polarzing | Polarizer & 360° Analyzer | - | - | ● | |
| DIC | DIC Slider | - | - | ○ | A5M.0955 |

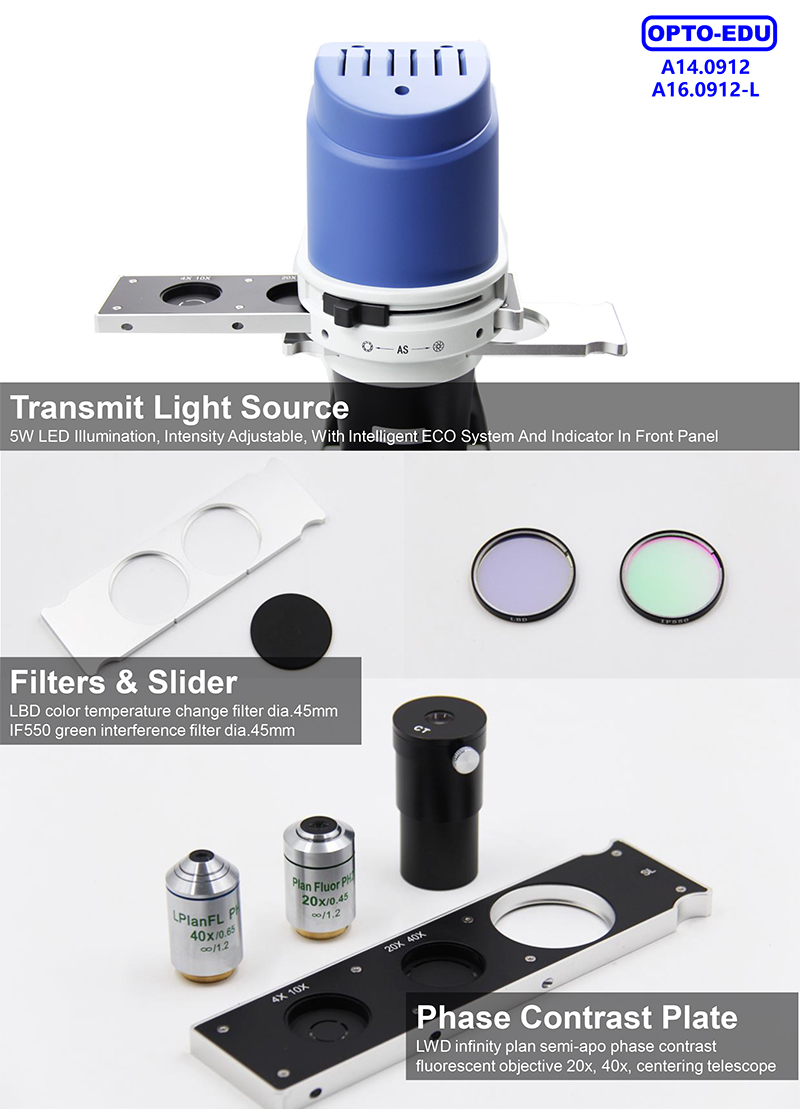

| Transmit Light Source | 5W LED Illumination, Intensity Adjustable | ● | ● | - | |
| LBD Color Temperature Change Filter Dia.45mm | ● | ● | - | |
| IF550 Green Interference Filter Dia.45mm | ● | ● | - | |
| Reflect Light | 12V100W Halogen Light Source, Brightness Adjustable | - | - | ● | |
| Reflect Fluorescent Light Source | LED Fluorescent Lamp House, 4 Bands LED Switching By Servo Motor,
Built-in LEDs For Fluorescent Filter 385nm, 470nm, 560nm. | - | ● | - | |

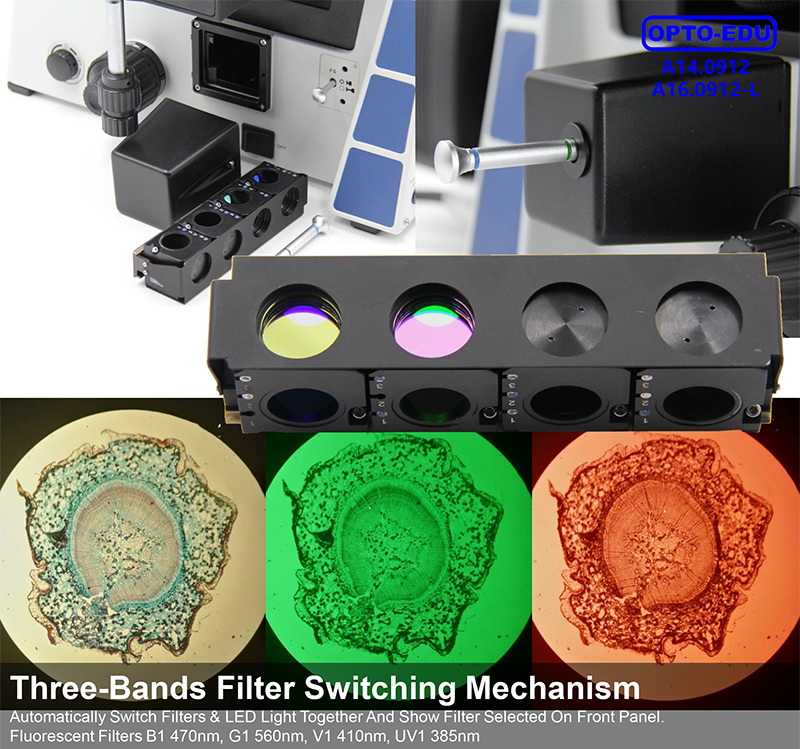

| 3 Bands Fluorescent Filter Switching Mechanism, Automatically
Switch Filters & LED Light Together And Show Fluorescent Filter On
Front Panel | - | ● | - | |
| Fluorescent Filter B1 470nm | - | ● | - | A5F.0924-B1 |
| Fluorescent Filter G1 560nm | - | ● | - | A5F.0924-G1 |
| Fluorescent Filter V1 410nm | - | ○ | - | A5F.0924-V1 |
| Fluorescent Filter UV1 385nm | - | ○ | - | A5F.0924-UV1 |
| Main Body | Reflect and Transmit Frame Body | ● | ● | - | |
| Reflect Frame Body | - | - | ● | |
| Front Panel | ECO Auto On/Off Function Switch | ● | ● | ● | |
| Light Indicator | ● | ● | ● | |
| Fluorescent Band Indicator | - | ● | - | |
| Objective Indicator, Work With Coded Nosepiece | - | - | ● | |
| Power Supply | External Wide Voltage Transformer, Input 100-240V | ● | ● | ● | |
| Camera Adapter | C-Mount 0.35x | ○ | ○ | ○ | A55.0934-35 |
| C-Mount 0.65x | ○ | ○ | ○ | A55.0934-65 |
| C-Mount 0.5x | ○ | ○ | ○ | A55.0934-05 |
| C-Mount 1.0x | ○ | ○ | ○ | A55.0934-10 |
| Packing | Foam+Carton, 1pc/Carton, 68*67*47cm, G.W.21Kgs | ● | - | - | |
| Foam+Carton, 1pc/Carton, 74*67*57cm, G.W.24Kgs | - | ● | - | |
| | Foam+Carton, 1pc/Carton, 49*51*73cm, G.W.22Kgs | - | - | ● | |
| Note:"●"In Table Is Standard Outfits,"○" Is Optional Accessories
"-" Is Unavailable |
