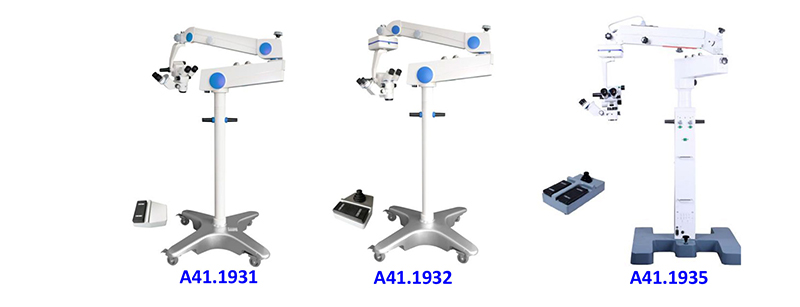

| A41.1931, A41.1932, A41.1935 Surgical Operation Microscope |
| A41.1931 Operating Microscope, is Best Choice for Ophthalmology Operation. It has two heads both inclined 45°, using fiber-optic cable for
coaxial illumination up to 60000 lux, manual 3 steps zoom body,
total magnification 6x,10x,16x, standard objective F=200mm,
optional objectives F=175mm, 250mm, 300mm, 350mm, 400mm, 450mm.
Featured with 2 functions foot switch to control motorized Z focus,
it is widely used in hospital for Ophthalmology. |
| A41.1932 is upgraded version, with 6 functions foot switch to control
motorized X/Y move, Z focus. |
| A41.1935 is the highest model in this series, with motorized zoom 4.5x~27.3x
objective, dual fiber halogen fiber light 100000 lux, 8 functions
foot switch to control motorized X/Y move, Z focus & Zoom. |

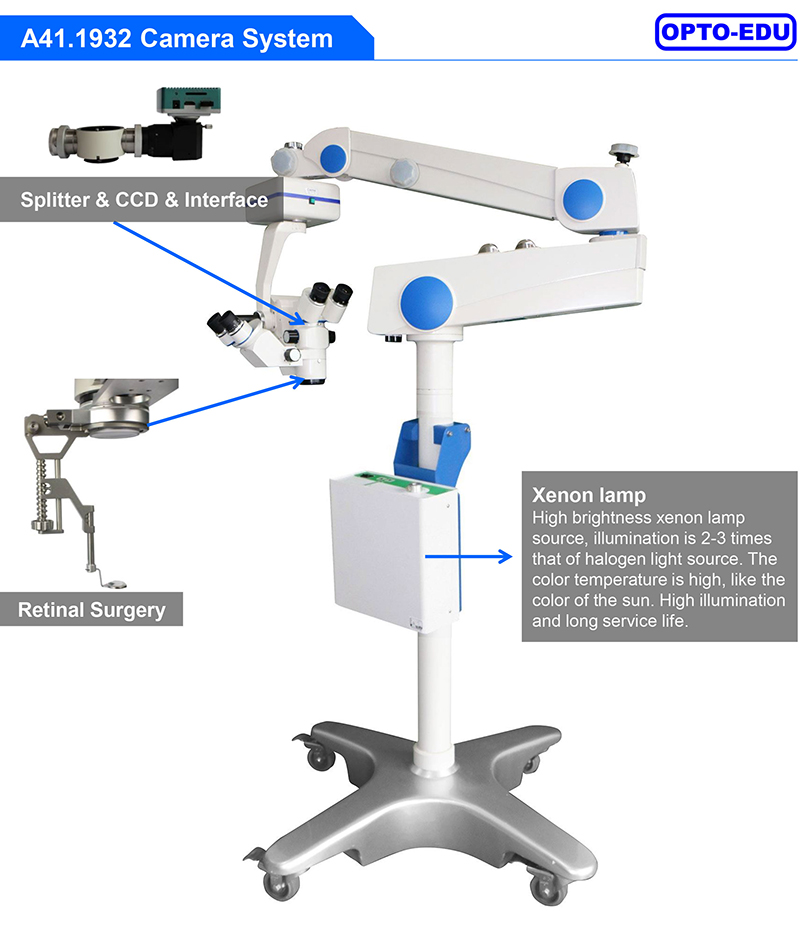

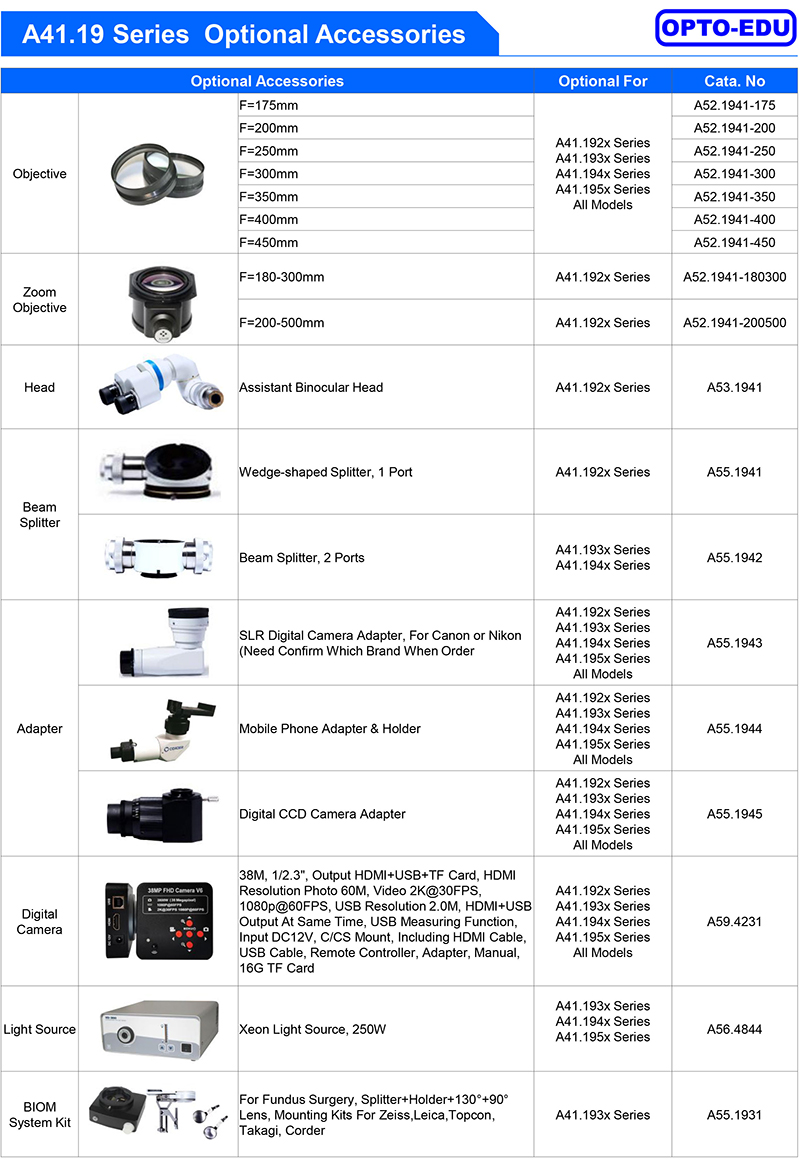

| All 3 models can upgrade with optional beam splitter, SLR camera
adapter, phone holder, CCD adapter for digital camera, for sharing
real time image to LCD monitor, mobile phone or computer. |
| Features: |
| --Dual Head 90° Opposite, With Red Reflection & Macular Protector,
For Ophthalmology |

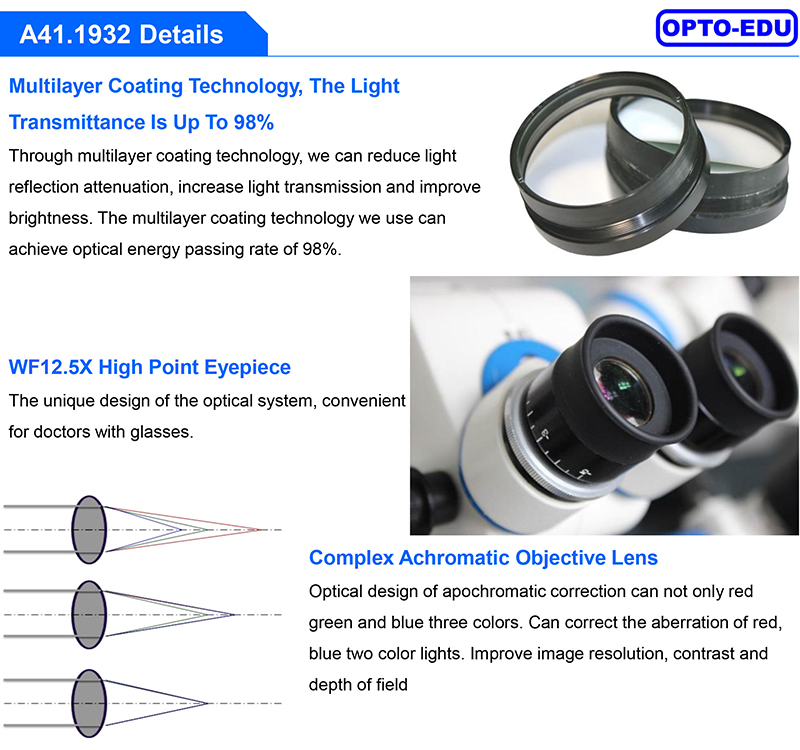

| --Eyepiece 12.5x, 3 Steps Manual Zoom 6x10x16x, or Continuous Zoom
4.5x~27.3x |
| --Objective F=200mm, 2nd Objective F=125mm, Halogen Cold Light, Max
Brightness 60000 Lux to 100000 Lux |
| --2 Functions, 6 Functions, 8 Functions Foot Switch, Control X/Y
Movie, Z Focus, Zoom |
| --Four Wheels Stand Swing Angle of Carry Arm 0~300°, Height From
Objective to Floor 800mm< span=""> |
| | A41.1931 | A41.1932 | A41.1935 |
| Main Usage | With Red Reflection & Macular Protector, For Ophthalmology |
| Eyepiece | WF12.5x |
| Head | Dual Heads For Two People Operation, Opposite In 90°, |
| Interpupillary Distance 55~75mm, Both Left & Right Eyetube Diopter
Adjustable ±6D |
| Main Head | Inclined 45° | Inclined 45° | Inclined 30°~90° |
| Magnification | 3 Steps 6x, 10x, 16x | 3 Steps 6x, 10x, 16x | 4.5x~27.3x Continuous Zoom |
| View Field | Dia.34mm, 20mm, 13mm | Dia.34mm, 20mm, 13mm | Dia.44~7.7mm |
| Zoom Body | 1:6 Motorized Continuous Zoom, Parallel Light System |
| Assistant Head | Inclined 45° |
| Magnification | 3 Steps 6x, 10x, 16x | 3 Steps 6x, 10x, 16x | 3 Steps 6.5x, 10.8x, 17.3x |
| View Field | Dia.34mm, 20mm, 13mm | Dia.34mm, 20mm, 13mm | Dia.30.5mm, 18.3mm, 11.4mm |
| Main Objective | F=200mm, Optional F=175mm, 250mm, 300mm, 350mm, 400mm, 450mm |
| Assistant Obj. | F=125mm |
| Focus | Motorized Focus, Range +/-50mm, Speed 33s/Full Distance |
| Control | 2 Functions Foot Switch, | 6 Functions Foot Switch, | 8 Functions Foot Switch, |
| Control Z Focus | Control X/Y Move, Z Focus | Control X/Y Move, Z Focus, Zoom |
| Stand | Four Wheels Moving Stand |
| --Max Extended Length 1100mm |
| --Max Rotatable Swing Angle of Arm 0~300° |
| --Distance Between Objective And Ground Surface 800mm~1250mm |
| Illumination | Optical Fiber Coaxial Halogen Cold Light, | Dual Optical Fiber Coaxial Halogen Cold Light, |
| Light Spot Dia.50mm, Intensity 60000 Lux. | Light Spot Dia.50mm, Intensity 100000 Lux. |
| Packing | 3 Cartons Total G.W 104Kg, Volume 0.3462CBM | 4 Cartons Total G.W 165Kg Volume 0.45CBM |
| Head: 595×460×230(mm)/14kg | Head:595×460×230(mm)/14KG |
| Body: 1180*535*230 (mm)/45kg | Body:890×650×265(mm)/41KG |
| Stand:775*775*230(mm)/45kg | Control:1025×260×300(mm)/32KG |
| | Stand:890×865×200(mm)/78KG |
