A12.0933 Opto Edu Trinocular Biological Microscope Lcd LED Laboratory ECO

Ask Lasest Price
Brand Name :	OPTO-EDU
Model Number :	A12.0933
Certification :	CE, Rohs
Price :	FOB $1~1000, Depend on Order Quantity
Payment Terms :	T/T, West Union, Paypal
Supply Ability :	5000 pcs/ Month
Delivery Time :	5~20 Days

Add to Cart

Product Details
Company Profile

A12.0933 Opto Edu Trinocular Biological Microscope Lcd LED Laboratory ECO

A12.0933 Opto Edu Trinocular Biological Microscope Lcd LED Laboratory ECO

A12.0933 Series Laboratory Microscope		A12.0933	A12.0933	A12.0933
A12.0933 Series Laboratory Microscope		A12.0933	-B	-T
Head	Binocular, 30° Inclined, Eyepiece Tube 360° Rotatable, Eyepoint Height Adjustable 375-428.5mm, IPD Adjustable 48-76mm		●
Head	Trinocular, 30° Inclined, Eyepiece Tube 360° Rotatable, Eyepoint Height Adjustable 375-428.5mm, IPD Adjustable 48-76mm, Light Split E50:P50	●		●
Eyepiece	High Eye Point PL10x/20mm,	○	○	○	A51.0904-1020T
	Diopter Adjustable, Dia.30mm	○	○	○	A51.0904-1020T
	High Eye Point PL10x/20mm,	○	○	○	A51.0905-1020RT
	Diopter Adjustable, Dia.30mm, With Reticle	○	○	○	A51.0905-1020RT
	High Eye Point PL10x/22mm,	●	●	●	A51.0904-1022T
	Diopter Adjustable, Dia.30mm	●	●	●	A51.0904-1022T
	High Eye Point PL10x/22mm,	○	○	○	A51.0905-1022RT
	Diopter Adjustable, Dia.30mm, With Reticle	○	○	○	A51.0905-1022RT
	High Eye Point PL10x/22mm,	○	○	○	A51.0905-1022GT
	Diopter Adjustable, Dia.30mm, With Grid	○	○	○	A51.0905-1022GT
Nosepiece	Backward 5 Holes Nosepiece		●	●
Nosepiece	Backward 5 Holes Coded Nosepiece	●
Infinity Plan Achromatic Objective	OIPN 2X/NA0.06 WD=5.00mm,	○	○	○	A52.0906-2
	Including Field Complement Frosted Glass	○	○	○	A52.0906-2
	OIPN 4X/NA0.1 WD=15.00mm	●	●	●	A52.0906-4
	OIPN 10X/NA0.25 WD=10.8mm	●	●	●	A52.0906-10
	OIPN 20X/NA0.40 WD=1.50mm	○	○	○	A52.0906-20
	OIPN 40X/NA0.65 WD=0.80mm, Spring	●	●	●	A52.0906-40
	OIPN 60X/NA0.85 WD=0.30mm, Spring	○	○	○	A52.0906-60
	OIPN 100X/NA1.25 WD=0.21mm, Spring, Oil	●	●	●	A52.0906-100
Working Stage	Double Layers Mechanical Stage, Size 210171mm,Moving Range 7851mm,Scale 0.1mm, Rackless Safety Edge, Double Slide Holder	●	●	●
Focusing	Low Position Coaxial Coarse & Fine Focusing Knob, With Tension Adjust Ring, With Safety Upper Stop Limit Ring, Coarse Focusing Range 27mm, Fine Focusing Scale 0.002mm	●	●	●
Main Body	Wide Range Power Supply 100-240V, High Brightness 3W LED, Cold Light Color Temperature 4750-5500K, Brightness Adjustable, With Type-C Port Support Power Supply From USB Power Bank, With ECO Function		●	●
Main Body	Wide Range Power Supply 100-240V, High Brightness 3W LED, With LCD Screen On Stand, Color Temperature Adjustable 3000-7000K, Magnification Display, Brightness Memory, ECO Function Time Setup	●
Condenser	Kohler Condenser NA1.25, PH/DF Slide Slot, Iris Diaphragm, Pre-Centered.	●	●	●
Dark Field	Dark Field Slide, For 4x-40x Objective	○	○	○	A5D.0933
Phase Contrast	Phase Contrast Slide, For 10x, 40x Objective	○	○	○	A5C.0913-1040
	Phase Contrast Slide, For 20x, 100x Objective	○	○	○	A5C.0913-20100
	Centering Telescope, Dia.30mm	○	○	○	A5C.0910-30
Phase Contrast Objective	Infinity Plan Phase Contrast Objective 10X/NA0.25 WD=10.8mm	○	○	○	A5C.0937-10
	Infinity Plan Phase Contrast Objective 20X/NA0.40 WD=1.50mm	○	○	○	A5C.0937-20
	Infinity Plan Phase Contrast Objective 40X/NA0.65 WD=0.80mm	○	○	○	A5C.0937-40
	Infinity Plan Phase Contrast Objective 100X/NA1.25 WD=0.18mm,Oil	○	○	○	A5C.0937-100
Polarizing	Polarizer & Analyzer	○	○	○	A5P.0915
Fluorescent	LED Fluorescent Module	○	○	○	A5F.0915
Adapter	1.0x C-Mount, Focus Adjustable	○	○	○	A5C.0931-10
	0.35x C-Mount, Focus Adjustable	○	○	○	A5C.0931-35
	0.5x C-Mount, Focus Adjustable	○	○	○	A5C.0931-05
	0.65x C-Mount, Focus Adjustable	○	○	○	A5C.0931-65
Package & Accessory	Inner Hexagon Spanner M4 (L Type)	●	●	●
	Dust Cover	●	●	●
	Cleaning Paper	●	●	●
	Instruction Manual	●	●	●
	Pearl Sponge Inside, Master Carton	●	●	●

A12.0933 Biological Microscope
● Brand New 2022 Laboratory Level Biological Microscope With Coded Nosepiece & LCD Screen On Stand
● LCD Screen Can Show Brightness, Magnification & Color Temperature 3000-7000K Adjustable
● Brightness Memory Function, Auto Power Off Function, ECO Time Adjustable From 15 to 60 Minutes
● WF10x/22mm Diopter Adjustable Eyepiece, Infinity Plan Achromatic Objective 2x4x10x20x40x60x100x Optional
● Large Size 210x171 Mechanical Working Stage, Support USB Power Bank Supply For Outdoor Use
● Upgradeable to All Observation as Bright Field, Dark Field and Phase Contrast, Polarizing, and Fluorescent View

Butterfly Rotatable Eyepiece Tube
A12.0933 viewing head has eyepiece tube which can rotate 360° to change eye point height and interpupillary distance, for different height of the operator to provide a more flexible and comfortable experience.

Super Wide Field 22mm
● A12.0933 biological microscope can achieve a wide field of view range of 22mm under 10X eyepiece, which is more efficient and perfect for observation.
● Professional high eyepoint and wide field plan eyepiece can effectively correct edge distortion and chromatic aberration.

Coded Nosepiece
A12.0933 can be equipped with coded nosepiece, is able to remember the illumination brightness of each objective. Users can freely adjust the light source brightness of each objective and the system automatically remembers, not only to improve efficiency, but also to reduce visual fatigue.

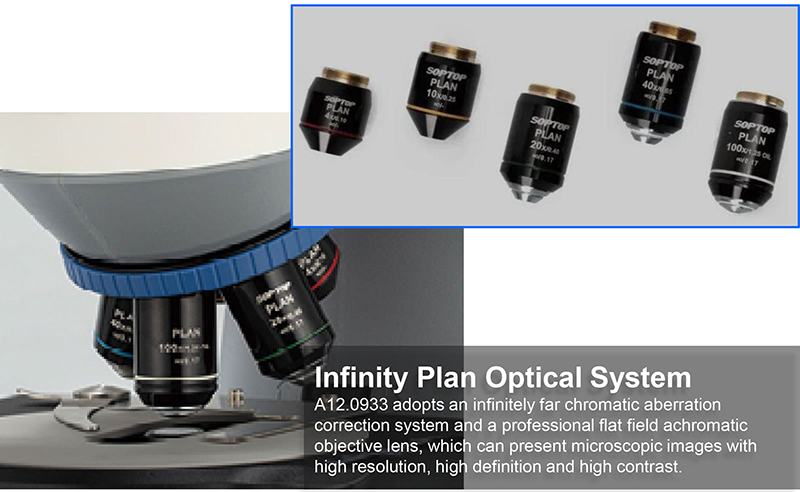

Infinity Plan Optical System
A12.0933 adopts an infinitely far chromatic aberration correction system and a professional flat field achromatic objective lens, which can present microscopic images with high resolution, high definition and high contrast.

Super Large Ceramic Rackless Stage
Double-layer mechanical stage, large 210*171mm arc shape, no angular design; the stage surface adopts ceramic paint process, high hardness, corrosion resistance; Damping-type double clips can be placed two slices at the same time, for inspection and comparative analysis.

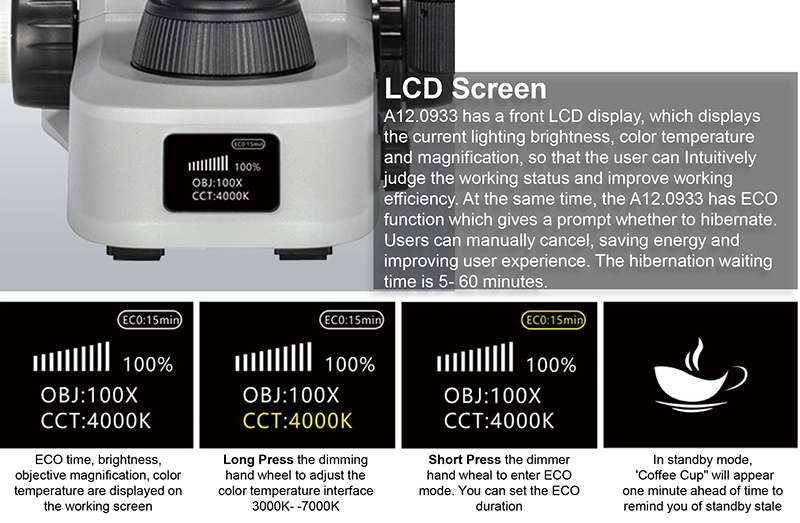

LCD Screen
A12.0933 has a front LCD display, which displays the current lighting brightness, color temperature and magnification, so that the user can Intuitively judge the working status and improve working efficiency. At the same time, the A12.0933 has ECO function which gives a prompt whether to hibernate. Users can manually cancel, saving energy and improving user experience. The hibernation waiting time is 5- 60 minutes.

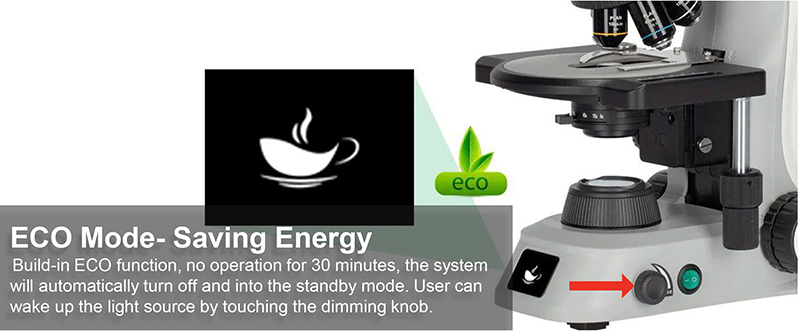

ECO Mode- Saving Energy
Build-in ECO function, no operation for 30 minutes, the system will automatically turn off and into the standby mode. User can wake up the light source by touching the dimming knob.

Type-C & USB Power Supply
The body is equipped with a Type-c interface, which allows the microscope to use a portable battery as a power source. The microscope thus frees itself from dependence on power outlets, enabling easily use outdoors or in power outages. The body comes with a standard USB port, that also allows the microscope to charge a phone or tablet.

Online Guide
Scan QR code, easy access to online video instruction and operations guide so as to enhance students' independent learning skills.

User-friendly Design Increase Comfort And Safety
● A12.0933 is equipped with a secure handle for moving;
● Fully concealed locking design eliminates all sharp edges;
● Low hand coarse and fine coaxial focus
system is ergonomically designed to give the user maximum comfort;
● There is a storage device at the back of the body to ensure the cleanliness,,saving storage space and improving portability.

Bright Field Observation
The professional plan achromatic objective, with the use of the Kohler illumination system, adjusts the image to the best condition by adjusting the aperture diaphragm and the field diaphragm. High- resolution, high-contrast microscopic images can be obtained whether at low or high magnification.

Dark Field Observation
Insert the dark field kit into the socket of the condenser and push the dark field diaphragm into the optical path to achieve simple dark field observation. Without replacing the special dark field condenser, dark field observation can be performed on any magnification objective in the range of 4X- 40X, which can be used to observe protozoa, bacterial flagella, spirochetes and other substances.
