    A16.2605 BGUV Inverted Fluorescence Microscope WF10X/22mm Diopter Adjustable

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A16.2605
    Certification : CE, Rohs
    Price : Negotiation
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

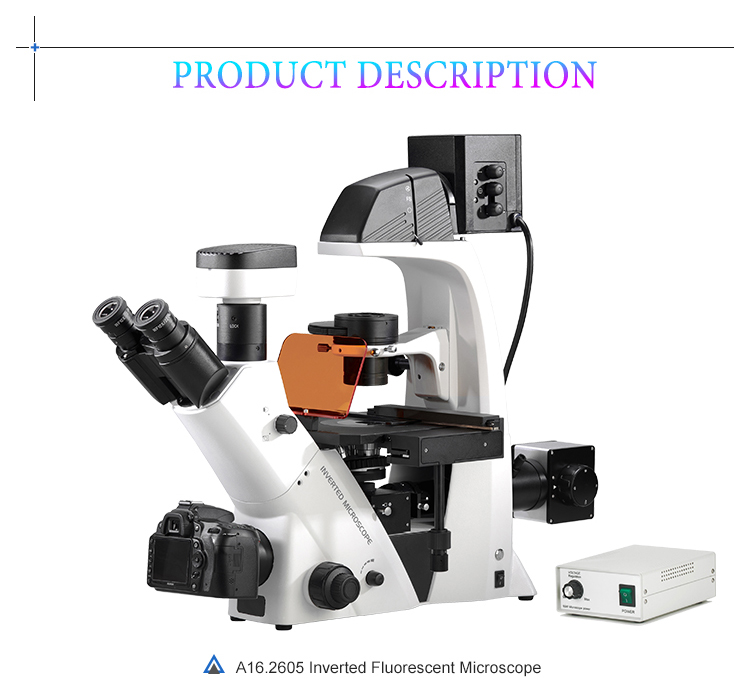

    A16.2605 BGUV Inverted Fluorescence Microscope WF10X/22mm Diopter Adjustable

    • Brand-new development for life science research
    • Both light ports for digital camera and SLR photography, available for observing with digital camera and SLR photography at the same time
    • IOS Infinity optical system, perfect for cell observation and culture

    --Automatic infrared induction for power on-off.

    Power off upon user leaving 10 minutes, and power on upon user approaching.

    --Special light port for SLR digital camera, 7°inclined up to be more convenient to observe the image of the SLR camera

    --12V/50W Kohler illumination makes the field more even and brighter.

    --4-hole rotating disc phase contrast condenser for standard to change bright field and phase contrast fast


    A16.2605 Inverted Fluorescent Microscope Specification
    EyepieceWF10X/22mm Diopter Adjustable
    Centering Telescope
    ObjectivesLWD Infinity Plan Objectives
    LPL 4X/0.11 W.D.=12.1mm

    LWD Infinity Plan Phase Contrast Objectives
    LPL PhP 10×/0.25 W.D.=8.3mm
    LPL PhP 20×/0.40 W.D.=7.2mm
    LPL PhP 40×/0.60 W.D.=3.4mm
    Annular Spot10×/20×/ 40×
    Seidentopf Trinocular HeadInclined 45°, Interpupilary Distance: 48-76mm
    Light Distribution (both): 100: 0 (100% For Eyepiece)
    80:20 (80% For Trinocular Head, And 20% For Eyepiece)
    Digital Photography C-mount100% Light For Photography Port
    (One C-mount For CANON Or NIKON SLR Digital Photography Camera)
    NosepieceQuintuple
    Mechanical StageStage Size: X×Y 210×241mm, Round Slide Size:φ110mm,
    Attached Mechanical Stage(Available For 96 Holes Plate, Moving Range X×Y:128×80mm.)
    Culture Dish Holder54mm
    Condenser4-hole Rotating Disc Phase Contrast Condenser
    N.A.0.4 W.D.45mm
    It Can Be Up-down Adjusting
    Koehler Illumination12V/50W Halogen, Input Voltage:100V~240V
    FilterBlue
    Green
    Epi Fluorescence IlluminationEpi Fluorescence Media Unit , Field Diaphragm,Center Adjustable.
    100W Mercury Lamp
    5WLED
    B, G, V, UV Fluorescence Filters Can Be Chosen
    Digital Mercury Lamp Power Box (For 100W Mercury Or 5WLED) (Input Voltage:100V~240V)
    Optional Accessories
    LWD Infinity Plan ObjectivesLPL 10X/0.25 W.D.=8.3mm
    LPL 20X/0.40 W.D.=7.2mm
    LPL 40X/0.60 W.D.=3.4mm
    LWD Infinity Plan Phase Contrast ObjectivesLPL PhP 4×/0.10 W.D.=9.2mm
    Annular Spot
    Culture Dish Holder65mm
    35mm
    Holder For Blood Cell Counter
    Koehler Illumination5WLED,Input Voltage:100V~240V
    Auto Power On-off SystemPower Off Automatically Upon User Leaving 10 Minutes, Power On Automatically Upon User Approaching
    FilterAmber
    Grey
    C-mount1×C-Mount (Better For Digital Photograph).
    0.5X C-Mount (Focus Adjustable, Better For Digital Camera)
    0.75X C-Mount (Focus Adjustable, Better For Digital Camera)
