    HD 9.7 Inch 5.0MP Digital LCD Microscope Binocular A33.1502 1000X Digital Display

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A33.1502
    Certification : CE, Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    HD 9.7 Inch 5.0MP Digital LCD Microscope Binocular A33.1502 1000X Digital Display

    profissional HD 9.7 Inch 5.0MP Resolution Video Android Digital Display LCD Microscope Binocular A33.1502

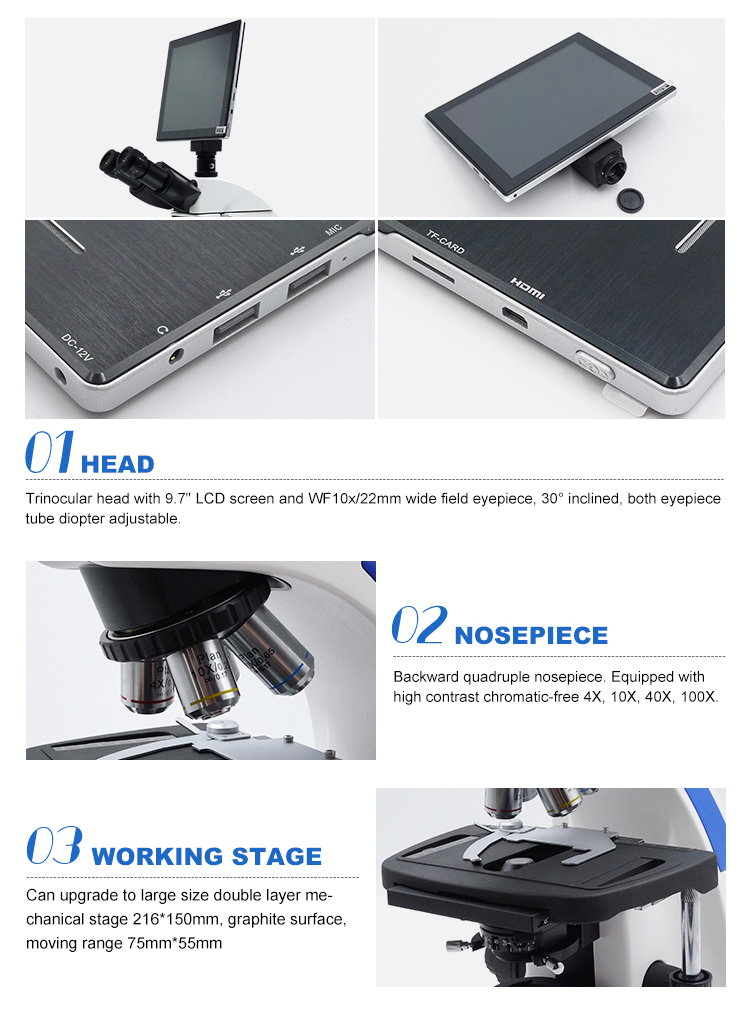

    --Infinity Optical System

    --9.7" LCD Screen With High Resolution
    --Binocular And Trinocular Head Available, Interpupillary Distance 48~75mm
    --Eyepiece Diopter Adjustable
    --Wide Field Eyepiece WF10X/F.N.22mm
    --Infinite High Contrast Chromatic-free Full Plan Objectives
    --Double Layer Mechanical Graphite 143*132mm, Graphite Surface, Moving Range75mmx55mm
    --External Illumination, 3W/LED



    A33.1502 is a type of professional LCD biological microscope for laboratory or hospital, equipped with 9.7" LCD high resolution screen, provides excellent optical performance. Because of the streamline figure and pastel color, it has more beautiful appearance. With the large size double layer mechanical stage, it can provides the more comfortable operation and operational room.

    Specification

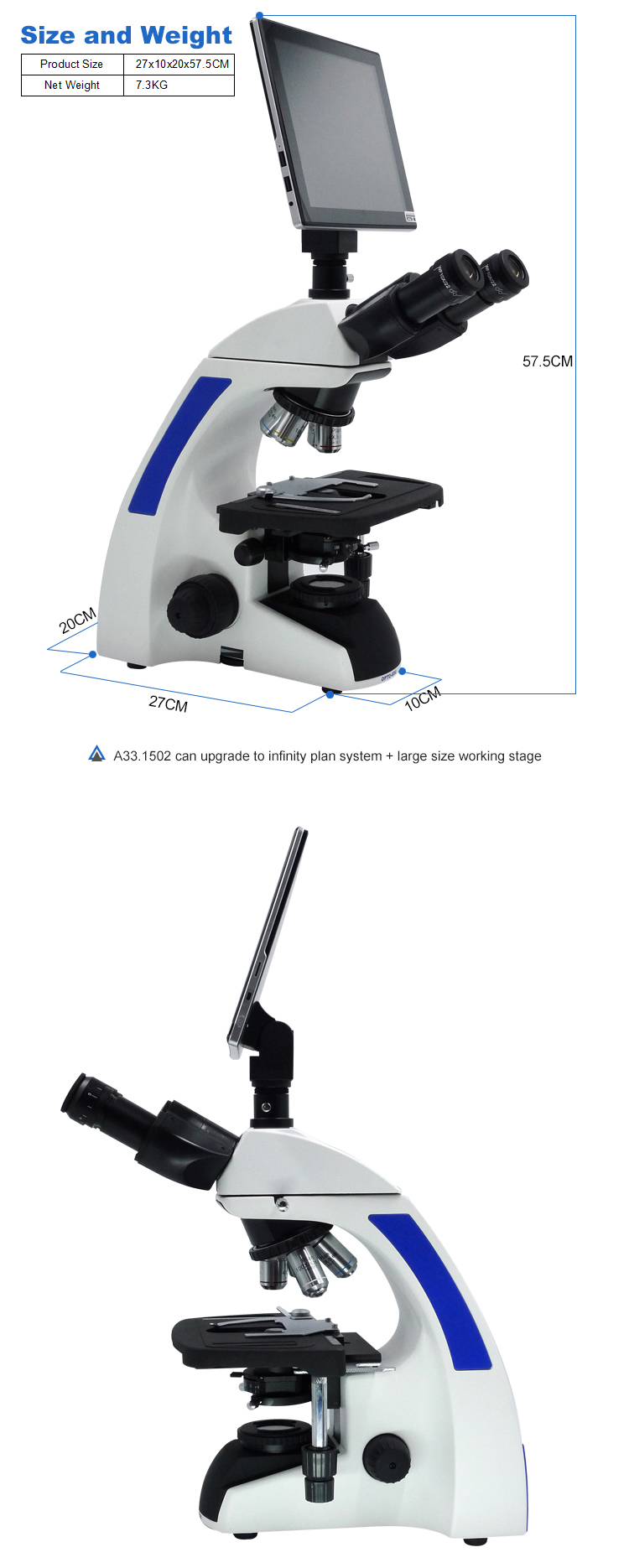

    A33.1502 9.7" LCD Biological Microscope
    Head9.7" HD Diagonal IPS LCD, Backlight Screen, Resolution 1024*768
    Five Point Touch Screen, With Hardware Power Switch
    Trinocular head,30° inclined, interpupillary distance 48-75mm, Both Eyepiece Tube Diopter Adjustable
    EyepieceWF10x/20mm,
    ObjectiveHigh Contrast Chromatic-free 4X,10X,40X,100X
    Focus SystemCoaxial Coarse and Fine Adjustment, Fine Division0.002mm, Coarse Stroke 37.7mm/Rotation, Moving Range 24mm
    NosepieceQuadruple, reversed type with positive click stops
    StageLarge Size Double Layer Mechanical Stage 142x132mm , Graphite Surface, Moving Range75mmx50mm
    CondenserAbbe Condensor NA1.25
    FilterBlue filter Φ 38, (not available for led illumination)
    Light SourceExternal Illumination, 3W/LED
    Adapter
    C-Mount 1.0x
    Packing Size370x320x510mm
    G.W.8.5kgs
    Specification
    Specification of Pad
    CPU1.6GHz Four Core ARM Mali-400 MP GPU
    Support OpenGL ES 1.1/2.0 And OpenVG 1.1
    Support Full HD 1080p
    Support Android 4.2 System
    RAM2GB, Support DDR3, DDR2, LPDDR2
    Data StorageSD Card Slot, Support Max 32GB C10 High Speed SD Card
    Data InterfaceHDMI, Mini USB2.0, USB 2.0
    Operation SystemAndroid 4.2 System, Multi Language
    SoftwareYX Camera Installed,
    --Can Adjust Real Time Image
    --Can Measure Length, Area, Angle, Count
    --Can Take Picture, Record Video
    YX Image Installed
    --Grey, Contrast, Brightness Adjust
    --Binary Image For Granular Count

    Both Software Chinese/English Version, With Instruction Manual Installed
    ButtonPower Switch
    WIFISupport WIFI, Support Bluetooth
    PowerExternal Power Adaptor, Wide Voltage AC 100~240V, DC 5V/2A
    Power Mode : Normal, Sleep, Power Off
    Product SizePad 17.5*22.5*2.0cm
    Package SizePacking Box 10*24*29cm, 1 pc/Box
    Click to See More Details of A59.3520 9.7" LCD Pad Digital Camera
    Optional Accessories
    EyepieceWF16x/15mm
    WF20x/12MM
    NosepieceBackward Quintuple Nosepiece
    Adapter0.5x C-Mount


    LCD digital microscope is based on biological microscope, which widely used to observe biological slices, biological cells, bacteria and living tissue culture, fluid precipitation observation and research, while observing other transparent or translucent objects and powder, fine particles and other objects. It is not only clear but also convenient to observe.
