    4.5 - 6nm High Magnification Scanning Microscope Electron Surface Topography Eco Sem

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A63.7062
    Certification : CE,
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    4.5 - 6nm High Magnification Scanning Microscope Electron Surface Topography Eco Sem

    4.5 - 6nm High Magnification Scanning Electron Microscope Surface Topography Eco SEM


    Scanning electron microscopy (sem) is suitable for the observation of the surface topography of metals, ceramics, semiconductors, minerals, biology, polymers, composites and nano-scale one-dimensional, two-dimensional and three-dimensional materials (secondary electron image, backscattered electron image).It can be used to analyze the point, line and surface components of microregion.It is widely used in petroleum, geology, mineral field, electronics, semiconductor field, medicine, biology field, chemical industry, polymer material field, criminal investigation of public security, agriculture, forestry and other fields.


    Product Description

    A63.7062 Eco Tungsten Filament SEM
    Resolution4.5nm@30KV(SE); 6nm@30KV(BSE)
    MagnificationNegative Magnification: 15x~250000x; Screen Magnification: 30x~500000x
    Electron GunTungsten Heated Cathode-Pre Centered Tungsten Filament Carteidge
    Accelerating Voltage0~30KV
    Lens SystemThree-level Electromagnetic Lens (Tapered Lens)
    Objective ApertureMolybdenum Aperture Adjustable Outside Vacuum System
    Specimen StageFive Axes Stage
    Travel RangeX(Auto)0~50mm
    Y(Auto)0~50mm
    Z(Manual)0~25mm
    R(Manual)360º
    T(Manual)-5º~90º
    Max Specimen Diameter150mm
    DetectorHigh Vacuum Secondary Electron Detector (With Detector Protection)
    ModificationStage Upgrade;EBL;STM;AFM;Heating Stage;Cryo Stage;Tensile Stage;Micro-nano Manipulator;SEM+Coating Machine;SEM+Laser
    AccessoriesCCD,LaB6,X-Ray Detector(EDS),EBSD,CL,WDS,Coating Machine
    Vacuum SystemTurbo Molecular Pumps;Rotation Pump
    Electron Beam Current10pAt~0.1μA
    PCCustomized Dell Work Station

    Product Display

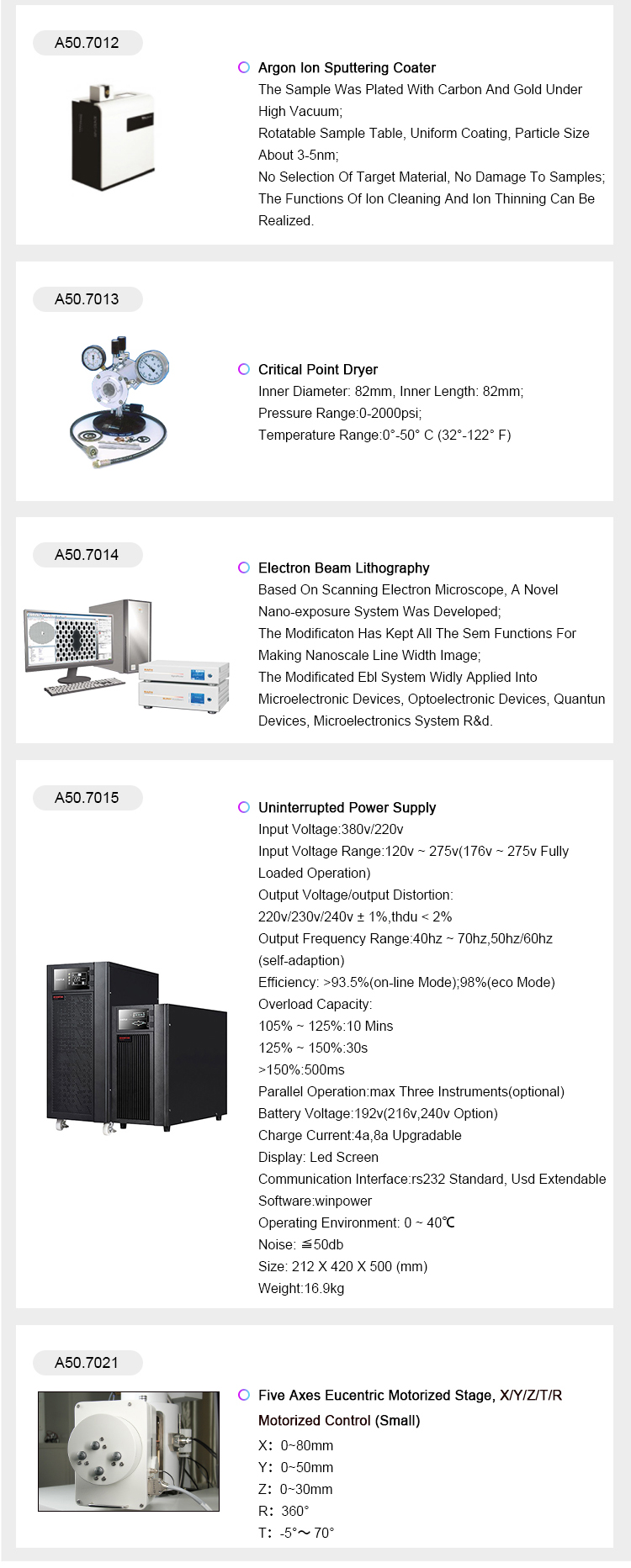

    Optional Accessories




    A63.7061_13.jpg 4.5 - 6nm High Magnification Scanning Microscope Electron Surface Topography Eco SemA63.7061_15.jpg

    Company Information

    OPTO-EDU is one of the top professional supplier for microscope from China, we focus in microscope & educational field for more than 20 years. As the top recommended seller for microsocpe on alibaba, we have full types microscopes, including biological microscope, stereo microscope, metallurgical microscope, inverted microscope, fluorescent microscope, polarizing microscope, phase contrast microscope, dark field microscope, multi-viewing microscope, DIC microscope, AFM/STM/SPM microscope, zoom microscope, gem microscope, digital micoscope, LCD microscope, comparison microscope, forensic microscope, and all kinds of microscope accessories. Our customer comes from more than 104 countries, such as United States, Britain, Russia, Canada, Germany, Denmark, Poland, Sweden, U.A.E., Qatar, Saudi Arabia, Egypt, Mexico, Argentina, Chile, Brazil, Korea, Thailand, India, Indonsia, Philliphine and so on. We have been working tirelessly to supply China's nice quality production to the world market!
