    Digital Microscope Eyepiece Ccd Camera 720HD 5MP Measurement With Electronic USB

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A59.4904
    Certification : CE, Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    Digital Microscope Eyepiece Ccd Camera 720HD 5MP Measurement With Electronic USB

    OPTO-EDU A59.4904 720HD 5MP digital microscope ccd camera with USB

    A59.4904 microscope camera (industrial camera) is playing a more and more important role in educational, medical, scientific and research and other fields besides common application in industry. For example, in scientific and research field, it is used to record motion change of objects; in sports field, it is used to analyze athlete’s technical features by high-speed photography and record athlete’s motion locus; in military field, it is used to examine arms performance and analyze ballistic curve.

    measurement microscope camera

    Camera Parameter

    Hardware Configuration
    imaging sensorColorful
    scan patternsScan line by line
    The maximum resolution2592 x 1944(5,038,848 pixels)
    Sensor Optical Format1/2.5“ (5.70mm(H) x 4.28mm(V), Diagonal 7.13mm)
    Pixel Size2.2μm x 2.2μm
    Dynamic Range70.1dB
    ADC12-bit, 8-Bit R.G.B to PC
    SNR(Signal Noise Ratio)38.1dB
    Spectral Characteristics380-650nm
    Preview modes

    10FPS@2592x1944,

    15FPS@1920x1080, 1600x1200

    40FPS@1280x960, 1280x720, 1024x768, 800x600, 640x480

    Binning Modes1 x 1, 2 x 2
    Exposure Capability3.9ms - 320ms, automatic and manual
    White Balanceautomatic and manual
    Software InterfaceDirectShow
    Capture modes


    Resolution:2592x1944, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480

    Format:JPG,BMP,PNG,TIFF,PDF

    Video

    Resolution:1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480

    Format:MJPG format AVI file

    Software Environment
    Operation systemMicrosoft® Windows® XP / 7 / 8 /8.1/10(32 & 64 bit)

    Computer Configuration


    CPU: equal or more than the second generation Intel core 2.8GHz
    memory:2G or more
    USB port:USB2.0 high speed port or compatible port
    displayer:suggest 17 inches or larger
    Operating Environment
    operating temperature0℃~ 40℃
    storage temperature-20℃~ 60℃
    operating Humidity30~80%RH
    Storage Humidity10~60%RH

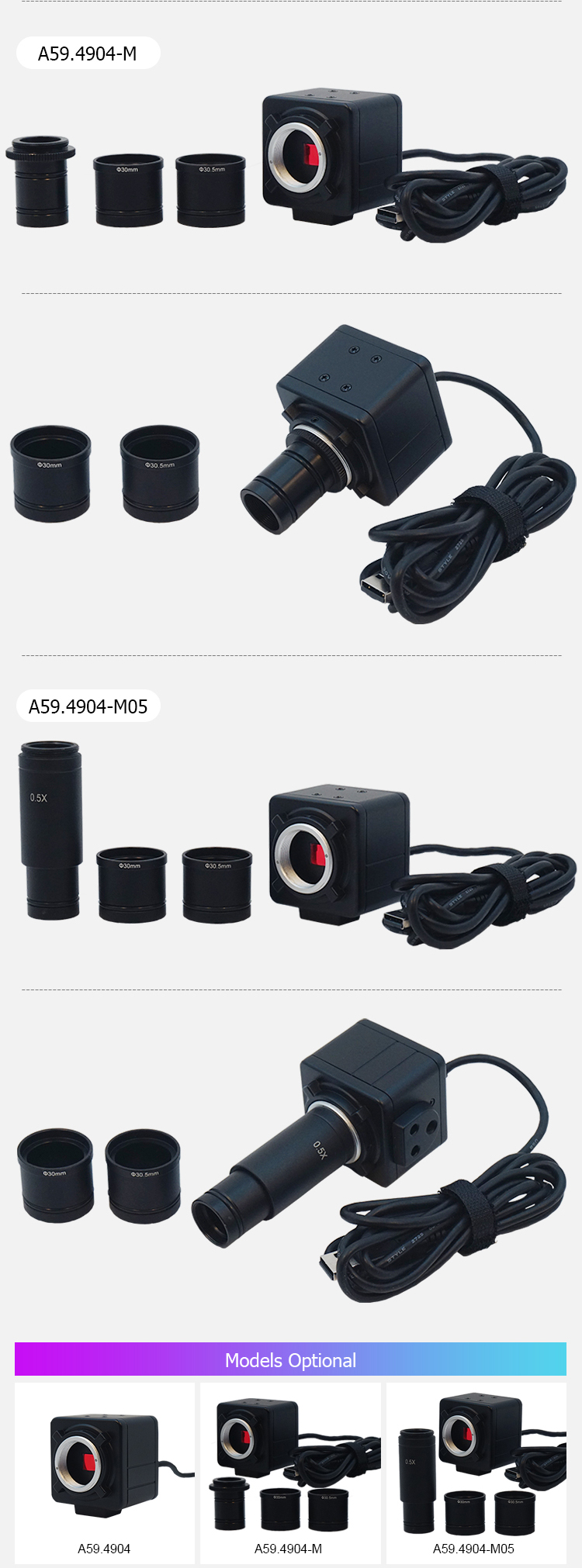

    Camera Display

    measurement microscope cameraA59_04.jpg

    Camera Feature

    measurement microscope camera

    1.A59.4904 microscope camera makes simultaneous observation for several users come true. MC500 provides shooting, recording and storage function. It can store the observed images into computer, measurement and statistics and raise the usage connotation of traditional optical equipment

    2. A59.4904 microscope camera has strong compatibility and can be changed according to different purposes. All microscopes with optical interface of international standard size (for example, caliber 23.2mm microscope) can connect with it. Also, the specially configured 30mm and 30.5mm adapter rings solve your worries. Applicable schemes are offered for your choice.,

    3.Another advantage of A59.4904 is that it is a piece of relative independent equipment with more flexibility and operability. It can not only be combined with various microscopes but also with a series of visual machine lens. When you use your visual machine with A59.4904, your machine will become more powerful instantly. A59.4904 will never let your machine leave behind and it can also raise operation rate and reduce your expenditure.

    Drawing Display

    measurement microscope camera

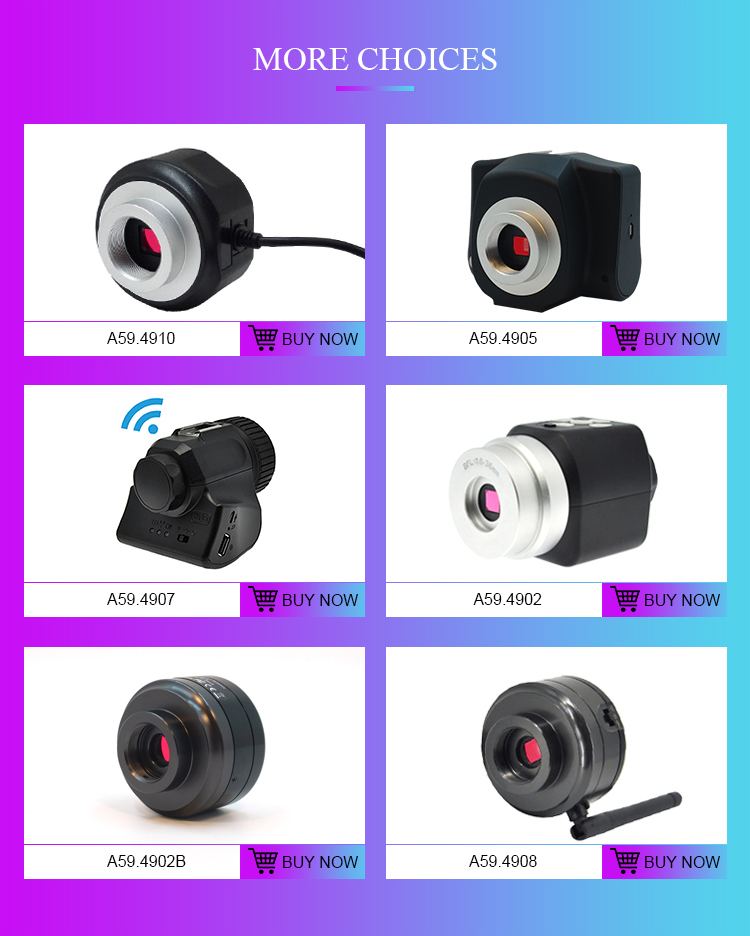

    More Choices

    Digital Microscope Eyepiece Ccd Camera 720HD 5MP Measurement With Electronic USB

    Application & Cases

    measurement microscope camera

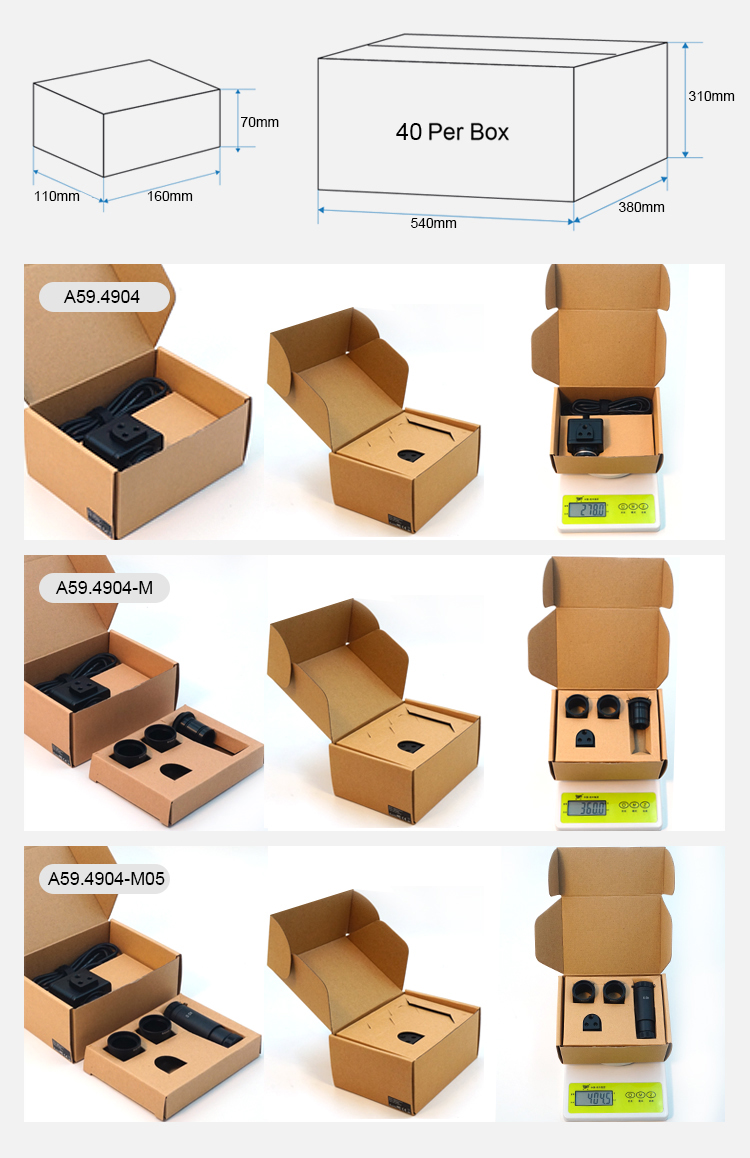

    Packing & Delivery

    Packing : Compact Design Box and Strong Master Carton

    Shipping Time : 1-5 Days From Stock
