    HD 1080p Microscope Accessories Dual LED Mini Digital Microscope 60 Fps USB 2.0 1/3“ CMOS Sensor

    OPTO- EDU A34.4931 dual LED mini digital microscope


    A34.4931 mini digital microscope is a kind of portable and practical mini digital microscope. Its cost-effective is fine with the following performance.

    1.Manual Focus Knob on Top of Microscope Extended Working Distance Largely

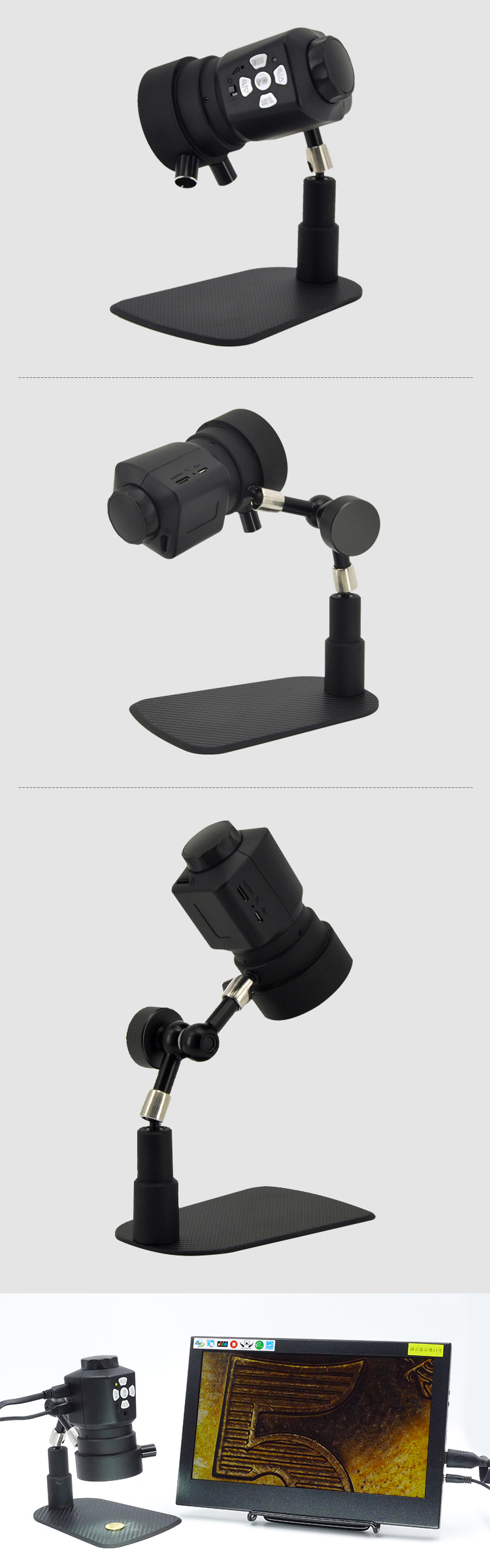

    2.Newly Designed One-Stop Knob Boom Stand to Adjust Position Freely

    3.Dual Output: HD 1080p 60 fps & USB 2.0 with Professional Software

    4.Multi Modes Provided on Exposure and White Balance

    5.User Defined Crop Selected Cross Line

    6.TF Card Slot Maximum Support 64G

    7.Coaxial and Diffuse Light Sources for Showing Details

    8.Height and Directions Are Adjustable

    9.Packet-size and Light-weight

    10.Free-installation Plug and Play


    Camera Parameter

    Hardware Configuration
    Imaging SensorAptina AR0330 CMOS Sensor
    Scan ModeScan line by line
    The maximum resolution
    Sensor Optical Format1/3“ (5.07mm(H) x 3.38mm(V), Diagonal 6.09mm)
    Pixel Size2.2μm x 2.2μm
    Dynamic Range69.5dB
    SNR(Signal Noise Ratio)39dB
    Spectral Characteristics380-650nm
    HD Output Resolution1920x1080i60, 1920x1080P30, 1280x720P60, 640x480P60
    Exposure CapabilityReal-time auto, Single auto, Manual adjustment
    White BalanceReal-time auto, Single auto, Manual adjust R G B separately
    Software InterfaceDirect Show
    Capture Models


    Resolution: 22304x1536, 2034x1296, 1920x1080, 1280x720, 800x480

    Format: JPG

    Video

    Resolution: 1280x720@30FPS, 800x480@30FPS

    Format: MOV

    Record RouteThe local and TF card(Maximum support 64G)
    Optical Parameters
    Working Distance (mm)30~145 Adjustable
    Field of View(mm)0.8~3
    Observation Range(mm)5x2.8~27x15.1
    Comprehensive Resolution(when display on 21 inch 16:9 screen)17~93 continuous zoom
    Software Environment
    HD ModeDisplayer: Recommend 16:9, at least 1080P HD displayer
    Power supply: DC5.0V power adapter(Maximum current 1A)
    Operating Environment
    Operating Temperature0℃~ 40℃
    Storage Temperature-20℃~ 60℃
    Operating Humidity30~60%RH
    Storage Humidity10~80%RH

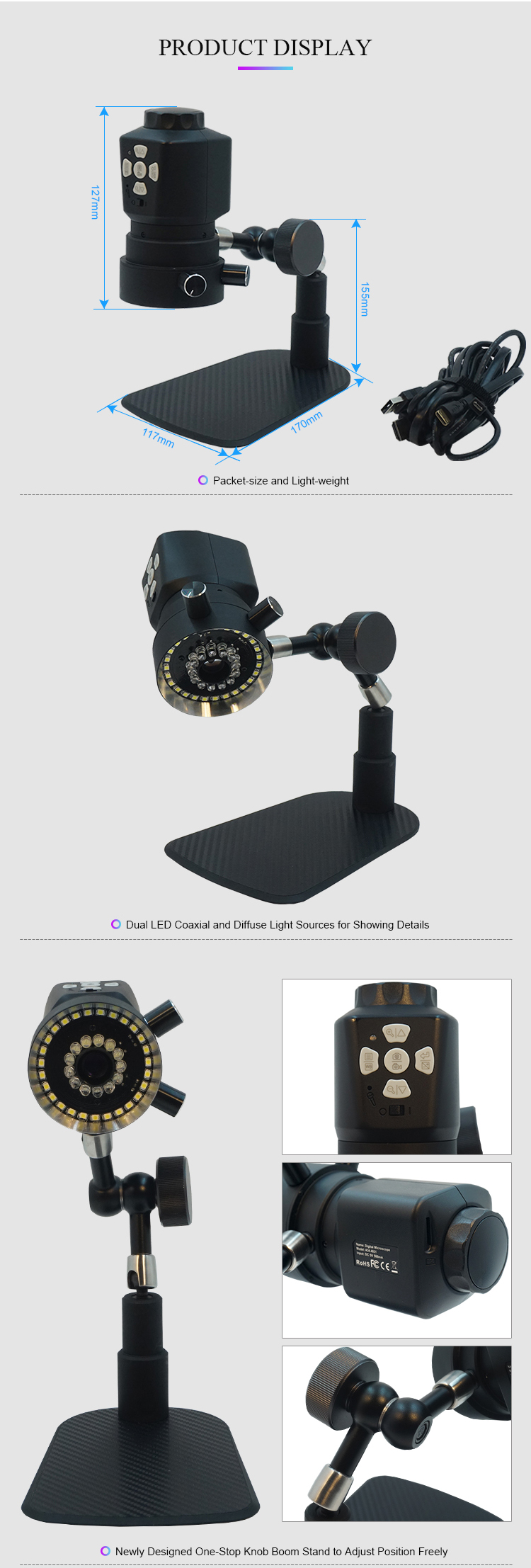

    Product Display



    Camera Feature

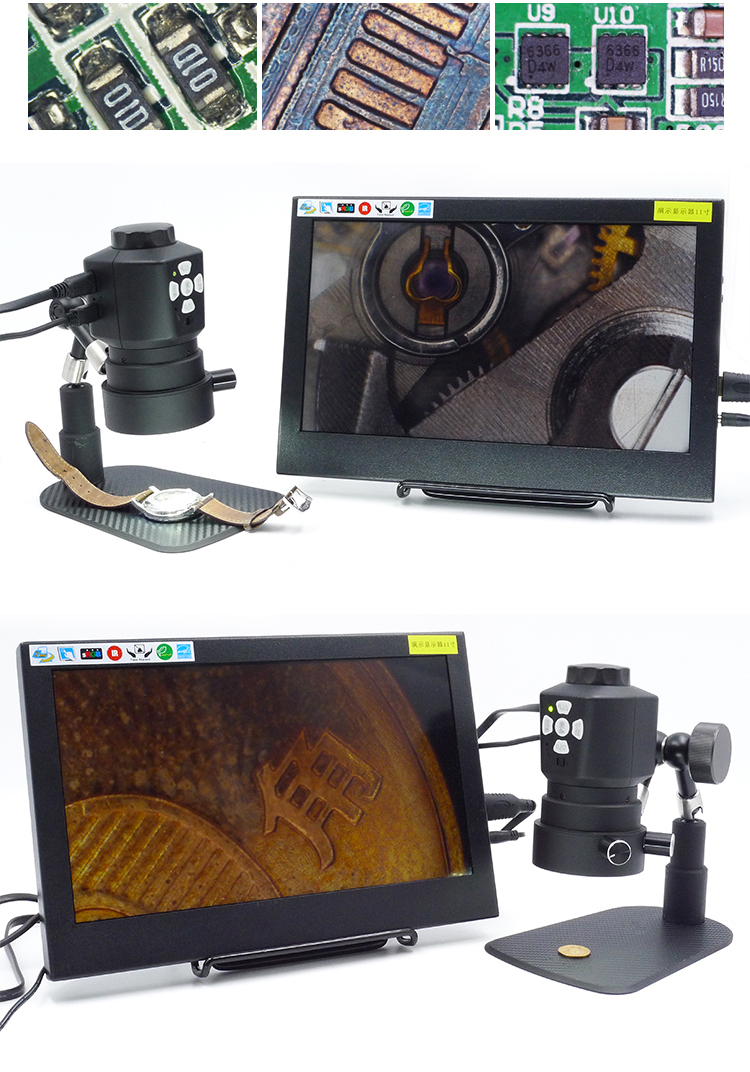

    Application & Case

    Without relying on extra collecting device, digital Microscope adopts HD digital output interface, directly and quickly realizing connecting other devices on product line through HD interface to achieve real-time image with high definition and color rendition, which largely improve the flexibility of the microscope observation. Digital Zoom is quickly and manually for 1.0x, 2.0x, 3.0x, 4.0x. Digital Microscope is especially applicable for defect detecting, guide, calibration of fiber fineness detection,electronic equipment, LCD, LED, etc. Digital Microscope simplifies the monitoring of manufacturing technique, easily reduces workload and raises work efficiency.


    Packing & Delivery

    Packing : Compact Design Box and Strong Master Carton

    Shipping Time : 1-5 Days From Stock


    About Us

    OPTO-EDU is one of the top professional supplier for microscope from China, we focus in microscope & educational field for more than 20 years. As the top recommended seller for microsc0pe on alibaba, we have full types microscopes, including biological microscope, stereo microscope Metallurgical microscope, inverted microscope, fluorescent microscope, polarized microscope, phase contrast microscope, dark field microscope, multi-viewing microscope, DIC microscope, AFM/STM/SPM microscope, zoom microscope, gem microscope, digital microscope, LCD microscope, comparison microscope Forensic microscope, and all kinds of microscope accessories.

    Our customer comes from more than 104 countries, such as United States, Britain, Russia, Canada, Germany, Denmark, Poland, Sweden, UAE, Qatar, Saudi Arabia, Egypt, Mexico, Argentina, Chile, Brazil, Korea, Thailand, India , Indonesia, Philippines, and so on. We have been working tirelessly to supply China's nice quality production to the world market!
