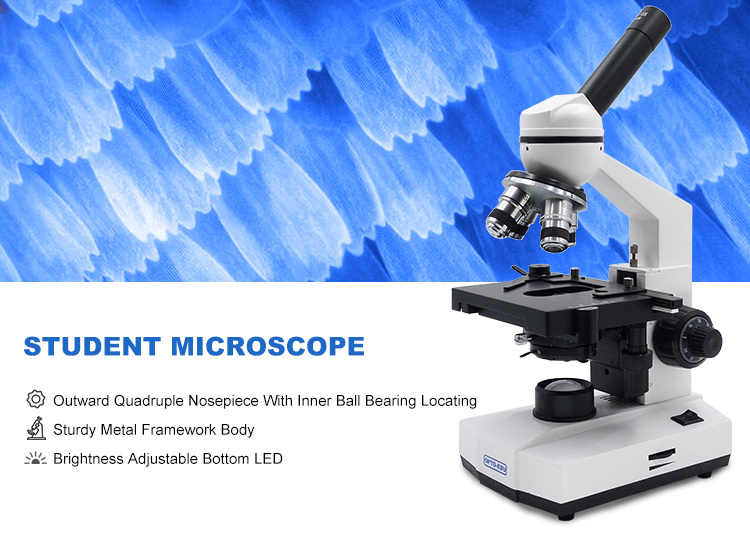

OPTO-EDU A11.1521-M Economical Monocular Biological Student
Microscope
A11.1521 is a kind of professional student microscope, monocular
head, binocular head and trinocular head are available. The left
eyepiece tube of binocular head and trinocular head can adjust
diopter. Bottom LED is brightness adjustable. Achromatic 4x, 10x,
40x(s), 100x(s, oil) objective enable utmost 1000X optical
magnification, which can clearly observe biological slices,
biological cells, bacteria and living tissue culture etc.


Biological microscope is a kind of precision optical instrument
used to observe biological slices, biological cells, bacteria and
living tissue culture, liquid precipitation, etc., and other
transparent or translucent objects as well as powders, fine
particles and the like. The biological microscope is used for
observation of microorganisms, cells, bacteria, tissue culture,
suspensions, sediments, etc. by medical and health units,
universities, and research institutes, and can continuously observe
the process of cell and bacteria in the culture solution to
multiply and divide. Wait. It is widely used in the fields of
cytology, parasitology, oncology, immunology, genetic engineering,
industrial microbiology, and botany. Its optical technical
parameters include: numerical aperture, resolution, magnification,
depth of focus, field of view width, coverage difference, working
distance and so on. These parameters are not all higher, the
better, they are mutually connected and mutually constrained. In
practical applications, the relationship between parameters should
be coordinated according to the purpose and actual situation of the
microscopic examination on the basis of ensuring the resolution.
Parameter
A11.1521 Biological Microscope | M | B | T |
Head | Monocular Head, 45° Inclined, 360° Rotatable | o | | |
Binocular Head, 30° Inclined, 360° Rotatable, Interpupillary
54-75mm, Left Eyepiece Tube Diopter Adjustable | | o | |
Trinocular Head, 30° Inclined, 360° Rotatable, Interpupillary
54-75mm, Left Eyepiece Tube Diopter Adjustable | | | o |
Eyepiece | WF10x/16mm |
Nosepiece | Quadruple Nosepiece, Outward, Ball Bearing Inner Locating |
Objective | Achromatic 4x, 10x, 40x(s), 100x(s, oil) |
Working Stage | Double Layer Mechanical Stage 110x125mm, Moving Range 18x65mm |
Focusing | Coaxial Coarse & Fine Focus Knob, Coarse Focusing Range 28mm |
Condenser | Abbe Condenser N.A.1.25, Iris Diaphragm, With Filter Holder |
Light Source | LED, Brightness Adjustable |
A11.1521 Laboratory Biological Microscope Optional Accessories |
Eyepiece | WF16x | A51.1503-16 |
Product Application
Student microscope is designed for tertiary institutions and
primary and secondary schools, which convenient to observe
biological slices, biological cells, bacteria and living tissue
culture, fluid precipitation observation and research. It is widely
used in teaching demonstration, biochemical experiments, clinical
research etc.

Packaging & Shipping

Package | 2 Sets/Carton, 45x27x41CM |
Gross Weight | 7.5KG |
Packing | Polyfoam Protection And Strong Carton |
Shipping Time | 5~20 Days After Receive The Deposit |
