    HDMI Digital Eyepiece Microscope Camera A59.4910

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A59.4910
    Certification : CE, Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    HDMI Digital Eyepiece Microscope Camera A59.4910

    ccd camera for microscope

    OPTO-EDU A59.4910 5mp Digital Eyepiece Camera For Microscope With Electronic Usb


    --A closed structure with color filter built-in, preventing dust from CMOS sensor.

    --Designed with commonly used tripod mount 1/4-20A for widely use.

    --Reliable electrionic double plates design to resolve over heat problem after long working time.

    --5V DC power supply from USB port no need additional power adatper.

    --3 Years Quality Warranty!


    Our Strength

    25+ Yeas Professional Experience Know Microscopes Best
    150+ Microscope & Accessory Manufacturers From China
    200+ Hot Sale & Newest Update Micrscope Model Every Month
    720+ Customers From All Over World Keep Rising
    1200+ Microscope Models To Creat One-Stop Purchase Platform
    OPTO-EDU As Famous Brand For Microscope In China & USA
    Top Seller For Microscope on Alibaba Recommand To 99% User
    Most Professional Sale Team Supply Best Microscope Solution

    Product Parameter

    A59.4910 Hardware Configuration
    Image SensorColor
    ExposeRolling Shutter
    Maximum Resolution2592x1944(5,038,848 Pixels)
    Sensor Optical Format1/2.5" (5.70mm(H) x 4.28mm(V), Diagonal 7.13mm)
    Pixel Size2.2μm x 2.2μm(BSI)
    Dynamic Range74.3 dB Linear, More Than 96 dB (Interleaved)
    SNRmax40dB
    Spectral Charatristics380-650nm
    Exposure Capability3.9ms-320ms, Automatic And Manual
    White BalanceAutomatic And Manual
    Preview Modes30FPS @2592X1944,
    30FPS @1920X1080
    30FPS @800X600, 640X480
    Record FormatSnapshot
    Picture Format: JPG, BMP, PNG, TIFF, PDF
    Resolution: 2592x1944, 1920x1080, 800x600, 640x480
    Record
    Video Format: MJPG Format AVI File
    Resolution: 1920x1080, 800x600, 640x480
    Softwware Environment
    Windows System DemandMicrosoft®Windows® XP/7/8/8.1/10 (32&64 Bit)
    CPU: Equal Or More Than The Second Generation Intel Core 2.8GHz
    Memory: 2G Or More
    USB Port: USB 2.0 High Speed Port Or Compatible Port
    Displayer: Suggest 17 Inches Or Larger
    Operating Environment
    Operating Temperature0℃-40℃
    Storage Temperature-20℃-60℃
    Operating Humidity30-80%RH
    Storage Humidity10-60%RH
    Power SupplyDirecct-Current 5V, Supply By USB Port
    ccd camera for microscope

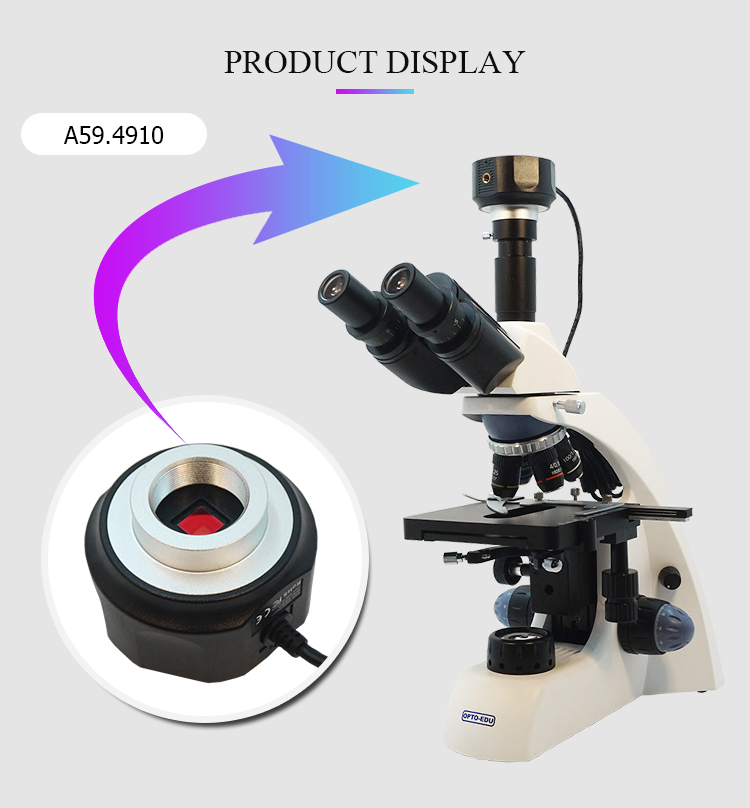

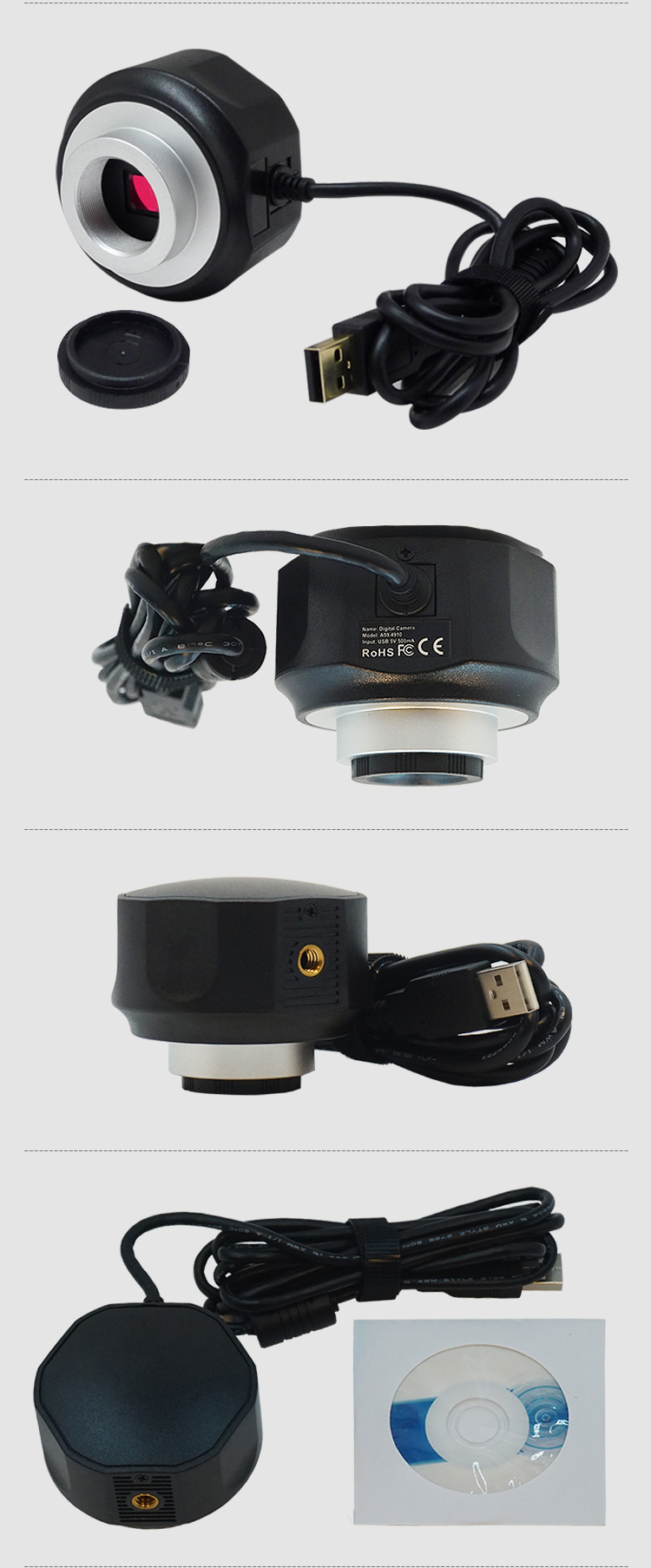

    Product Display

    ccd camera for microscopeA59.4910()6_04.jpgA59.4910()6_05.jpg


    Product Feature

    ccd camera for microscope


    Drawing Display



    Application & Cases

    A59.4910 Microscope Camera can be connected to any biological microscopes, stereo microscopes, metallographic microscopes, etc. It has advantages of high frame rate, very nice color performance, clear image, convenient storage, widely used in industrial inspection, teaching research, clinical test, material analysis, machine vision, etc.

    ccd camera for microscope

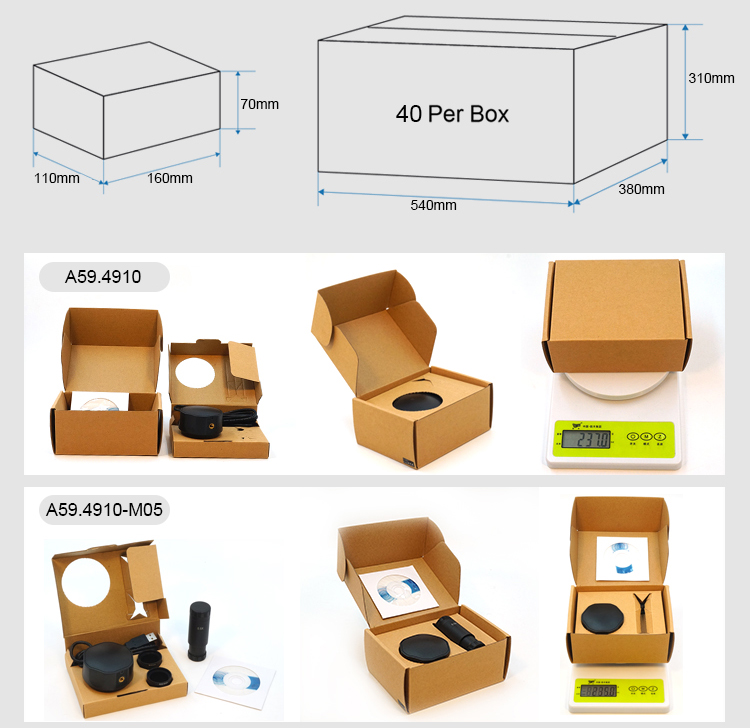

    Packing & Delivery

    Packing : Compact Design Box and Strong Master Carton

    Shipping Time : 1-5 Days From Stock

    G.W: A59.4910 0.24Kgs/Unit, 11.5Kgs/Carton

    A59.4910-M05 0.33Kgs/Unit, 16.0Kgs/Carton
