    Trinocular Polarizing Light Microscope

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A15.2603-B
    Certification : CE, Rohs
    Price : Negotiation
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    Trinocular Polarizing Light Microscope

    Trinocular Polarizing Light Microscope
    Trinocular Polarizing Light Microscope
    Trinocular Polarizing Light Microscope
    Seidentopf Head
    Inclined 30°,Rotatable 360°, Interpupillary Distance 48-75mm, High Eyepoint Eyepiece, Which Is Convenient For People With Different Sitting Height;
    The Integrated Design Of The Eyepiece Lens Barrel, Avoids The Loss And Contamination Of The Eyepiece And Enhances The Integrated Performance Of The Microscope
    Trinocular Polarizing Light Microscope

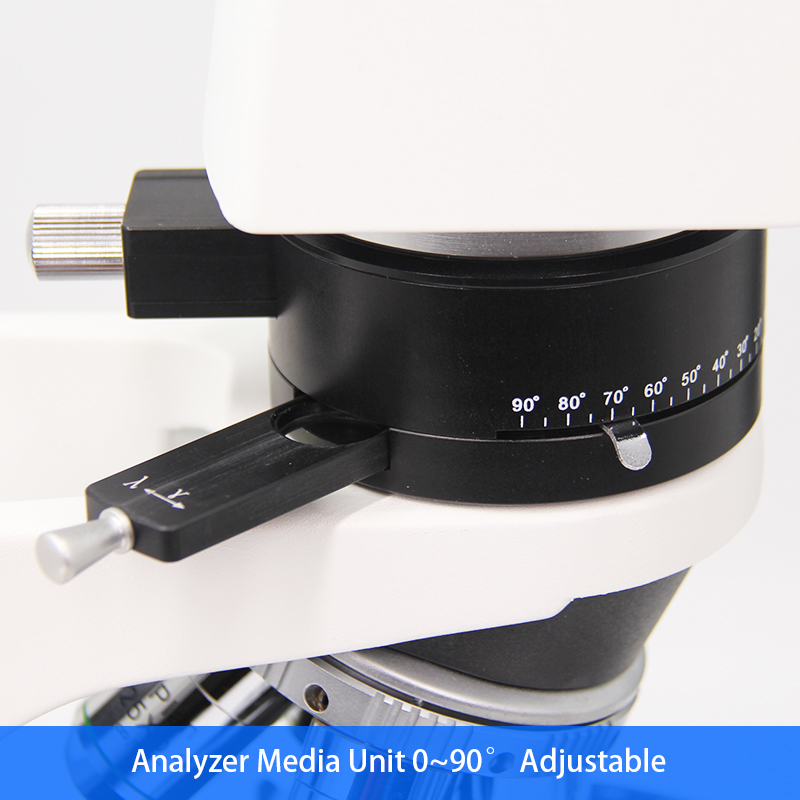

    Polarizing Unit
    Analyzer Media Unit 0~90° Adjustable, Between Head And Body
    With Compensator Slide, Quartz Wedge Slide, Polarizer Lens
    Trinocular Polarizing Light Microscope
    Quadruple, Backward
    4 Sets Objective Available: Achromatic, Plan, Infinity E-Plan, Infinity Plan
    Trinocular Polarizing Light Microscope
    Double Slide Holder Working Stage
    Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm
    Trinocular Polarizing Light Microscope
    Condenser & Light Source
    Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down, With Filter Holder
    3W-LED Illumination Systems


    ItemsA15.2603 Transmit Polarizing Microscope SpecificationABCata. No.
    HeadSeidentopf Binocular Head Inclined 30°, Eyetube Rotatable 360°, Interpupilary Distance 48-75mmA53.2621-B
    Seidentopf Trinocular Head Inclined 30°, Eyetube Rotatable 360°, Interpupilary Distance 48-75mm, , Light Split Fixed P20:E80A53.2621-T
    EyepieceWF10x/20mm, High Eyepoint,A51.2602-1018
    WF10x/20mm, With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter AdjustableA51.2605-1018D
    NosepieceQuadruple, BackwardA54.2610-N08
    Non-Stress Infinity Plan ObjectivePLAN 4x/0.10, W.D.=12.1mmA5P.2630-4
    PLAN 10x/0.25,W.D.=4.64mmA5P.2630-10
    PLAN 20x/0.40(S),W.D.=2.41mmA5P.2630-20
    PLAN 40x/0.66(S),W.D.=0.65mmA5P.2630-40
    PLAN 60x/0.80(S),W.D.=0.33mmA5P.2630-60
    PLAN 100x/1.25(S,Oil),W.D.=0.12mmA5P.2630-100
    Working StageRound Stage Diameter Φ142mm, Rotatable 360°, Division 1', Vernier Division 6', Can Be Locked, Center AdjustableA54.2602-S03
    Attachable Mechanical Stage For Polaring Microscope, Moving Range 40x40mmA5P.2616
    Attachable Mechanical Stage For Polaring Microscope, Moving Range 30x45mm, Lecia Type, Avoid Hitting Objective LensA5P.2616-LK
    CondenserNon-Stress Abbe N.A.1.25, Iris Diaphragm, Center Adjustable With Polarizer Lens In BottomA56.2614-P6
    Polarizing UnitAnalyzer Media Unit 0~90° Adjustable, Between Head And Body,
    With Built-in Betrand Lens, Removeable Out of Optical Path For Single Polarizing Observe
    A5P.2621-S
    Compensator Slide, 3 Holes, With λ Slip (First Class Red) + 1/4λ Slip.A5P.2613-22a
    Quartz Wedge Slide (I-IV Class)A5P.2615-17
    Polarizer Lens, Bulit-in Bottom Part Of Condenser, Removeable Out of Optical PathA5P.2610-S
    Transmit Illumination5W LED Lamp
    Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
    A56.2651-5W
    6V/30W Halogen LampA56.2613-6V30W
    FilterDia.45mm, Blue (Built in)A56.2616-45B
    Dia.45mm, GreenA56.2616-45G
    Dia.45mm, YellowA56.2616-45A
    Dia.45mm, NeutralA56.2616-45N
    AdapterC-Mount 0.5x, Focus AdjustableA55.2601-05
    C-Mount 0.75x, Focus AdjustableA55.2601-75
    C-Mount1.0x, Focus AdjustableA55.2601-10
    Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mmA55.2610
    PackageCarton Size 570×275×450mm, 1 Unit/Ctn
    WeightGross Weight: 8.6 kgs, Net Weight: 7.5 kgs
    Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
