    8x Eye Surgery Microscope A41.1903 50mm - 80mm Interpupillary Distance

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A41.1903
    Certification : CE,
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    8x Eye Surgery Microscope A41.1903 50mm - 80mm Interpupillary Distance

    8x Eye Surgery Microscope A41.1903 50mm - 80mm Interpupillary Distance
    8x Eye Surgery Microscope A41.1903 50mm - 80mm Interpupillary Distance
    8x Eye Surgery Microscope A41.1903 50mm - 80mm Interpupillary Distance
    A41.1903
    Operating Microscopes, is the basic economical high quality model with best cost performance.

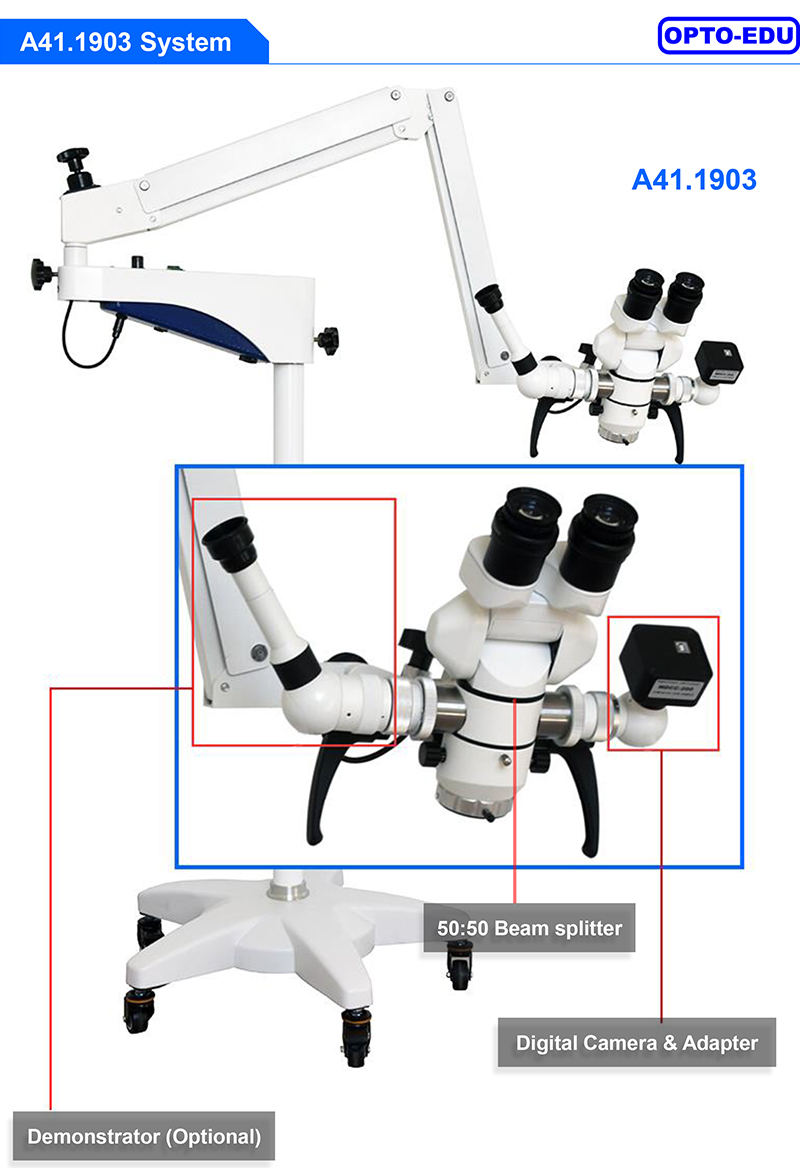

    It use fiber-optic cable for coaxial illumination, with 3 steps zoom body, has total magnification 2.3x~12x, featured with flexible handling, easy operation, optional beam splitter C-Mount to connect digital camera & computer!

    It is widely used in hospital for ENT (ear-nose-throat), dental, ophthalmology, gynecology, surgery, orthopedics and etc.
    8x Eye Surgery Microscope A41.1903 50mm - 80mm Interpupillary Distance
    8x Eye Surgery Microscope A41.1903 50mm - 80mm Interpupillary Distance
    8x Eye Surgery Microscope A41.1903 50mm - 80mm Interpupillary Distance

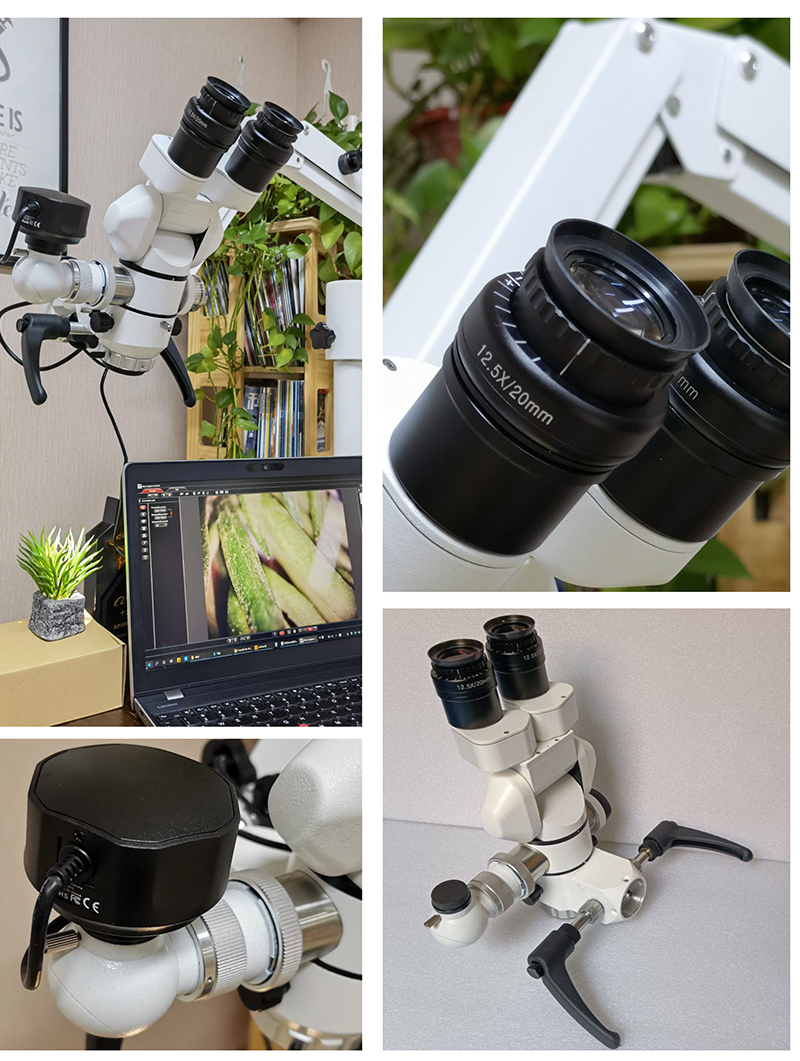

    Universal Adjusting Head
    Tilting 0~180° 8x binocular head, interpupillary distance 50~80mm adjustable, Large adjustable space, convenient for operators
    8x Eye Surgery Microscope A41.1903 50mm - 80mm Interpupillary Distance
    Long Arm Support, Easy To Control
    2-Part arm with universal joints, counterweight adjustable and lockable, convenient operation and improved surgical quality
    8x Eye Surgery Microscope A41.1903 50mm - 80mm Interpupillary Distance
    A41.1903Series Operation Microscope Optical Characteristics
    EyepieceWF12.5x/20mm
    Focal Length (mm)F=200mmF=250mmF=300mm (Optional)F=400mm (Optional)
    Zoom Body1.6x1.0x0.6x1.6x1.0x0.6x1.6x1.0x0.6x1.6x1.0x0.6x
    Total Magnification16x10x6.0x12.8x8.0x4.8x10.7x6.7x4.0x8.0x5.0x3.0x
    Linear Field (mm)15.024.040.019.030.050.023.037.060.030.048.080.0
    Diameter of Spot (mm)57.0071.0086.00113.00
    Exit Pupil Distance (mm)20.00
    EyepieceWF10x/23mm
    Focal Length (mm)F=200mmF=250mmF=300mm (Optional)F=400mm (Optional)
    Zoom Body1.6x1.0x0.6x1.6x1.0x0.6x1.6x1.0x0.6x1.6x1.0x0.6x
    Total Magnification12.8x8.0x4.8x10.2x6.4x3.8x8.5x5.3x3.2x6.4x4.0x2.4x
    Linear Field (mm)16.026.543.020.033.053.024.539.564.532.052.585.5
    Diameter of Spot (mm)57.0071.0086.00113.00
    Exit Pupil Distance (mm)25.00
    8x Eye Surgery Microscope A41.1903 50mm - 80mm Interpupillary Distance
    Objective Lenses For Different Operation
    Multiple focal length objective lens selection, meeting the application of multiple operation needs.
    8x Eye Surgery Microscope A41.1903 50mm - 80mm Interpupillary Distance
    Step Zoom Body 0.6x, 1x, 1.6x
    Good depth of field and binocular fusion, which can meet various surgical needs
    8x Eye Surgery Microscope A41.1903 50mm - 80mm Interpupillary Distance

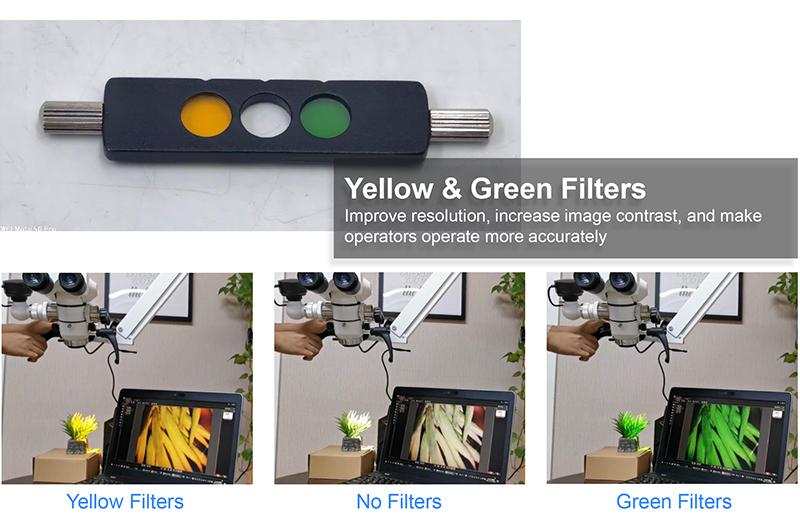

    Yellow & Green Filters
    Improve resolution, increase image contrast, and make operators operate more accurately
    8x Eye Surgery Microscope A41.1903 50mm - 80mm Interpupillary Distance
    10W LED Optical Fiber For Coaxial Illumination
    Sufficient brightness, uniform illumination and adjustable brightness ensure imaging quality and avoid patient injury
    8x Eye Surgery Microscope A41.1903 50mm - 80mm Interpupillary Distance
    Floor-Standing, Easy To Move
    2-Part Column + Five Star Base With Caster
    8x Eye Surgery Microscope A41.1903 50mm - 80mm Interpupillary Distance

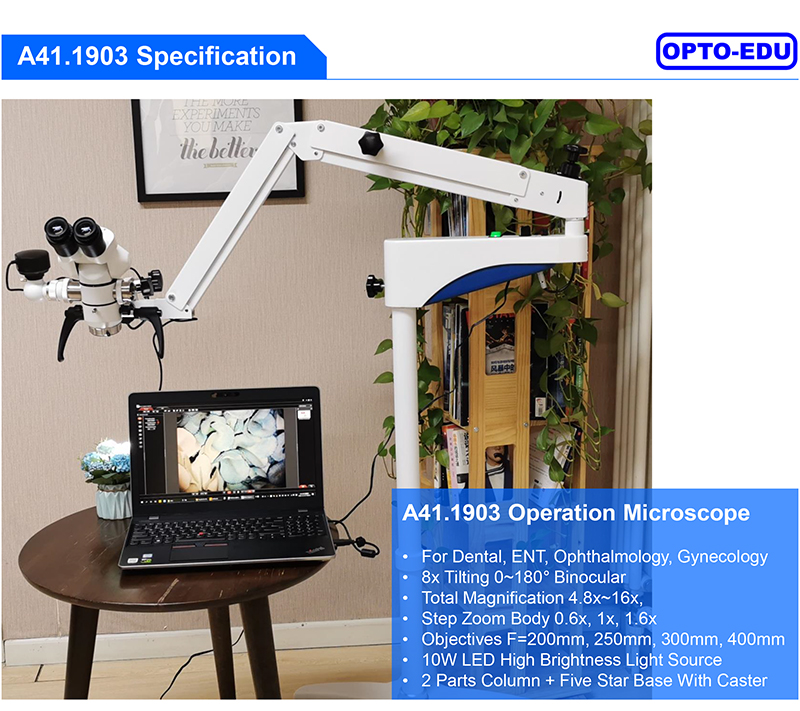

    ModelA41.1903 Operation Microscope
    Binocular HeadTilting 0~180°
    Main UsageDental, ENT, Ophthalmology, Gynecology
    Total MagnificationWith Objective F=200mm: 6.0x, 10x, 16x
    With Objective F=250mm: 4.8x, 8.0x, 12.8x
    Total Magnification (Optional)With Objective F=300mm: 4.0x, 6.7x, 10.7x
    With Objective F=400mm: 3.0x, 5.0x, 8.0x
    EyepieceWF12.5x/20mm
    Head Magnification8x
    Interpupillary Distance50~80mm Adjustable
    DiopterBoth Left & Right Eyetube Diopter Adjustable ±7D
    Zoom Body3 Steps Zoom: 0.6x,1.0x,1.6x
    ObjectiveF=200mm For Ear, Nose, Ophthalmology
    F=250mm For Dental
    Objective (Optional)F=300mm For Ear, Nose
    F=400mm For Throat
    FocusingFine Focusing Range 10mm
    FilterGreen, Yellow Filters Built-in
    Balancing Arm2-Part Arm With Universal Joints, Counterweight Adjustable And Lockable
    Stand2-Part Column + Five Star Base With Caster
    Illumination SystemCoaxial Illumination, 10W LED, Brightness Adjustable, >40000 Lux
    Power SupplyWide Range AC100~240V, DC12V 3A, 36W
