    Stereo Electron Measurement 0.7-4.5x Zoom LED LCD Digital Microscope

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A36.3601
    Certification : CE,
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    Stereo Electron Measurement 0.7-4.5x Zoom LED LCD Digital Microscope

    Stereo Electron Measurement 0.7-4.5x Zoom LED LCD Digital Microscope
    Stereo Electron Measurement 0.7-4.5x Zoom LED LCD Digital Microscope
    Stereo Electron Measurement 0.7-4.5x Zoom LED LCD Digital Microscope

    A36.3601 LCD stereo microscope

    The A36.3601 series integrated zoom optical module with high definition camera. It can be conveniently used in a narrow and small space. According to ergonomic principles, its internal optical corner design and angle adjustment of the display screen, allow the operator to look at the display in a flat view. Through the HDMI HD interface, it can connect to another display simultaneously.

    Stereo Electron Measurement 0.7-4.5x Zoom LED LCD Digital Microscope
    Stereo Electron Measurement 0.7-4.5x Zoom LED LCD Digital Microscope

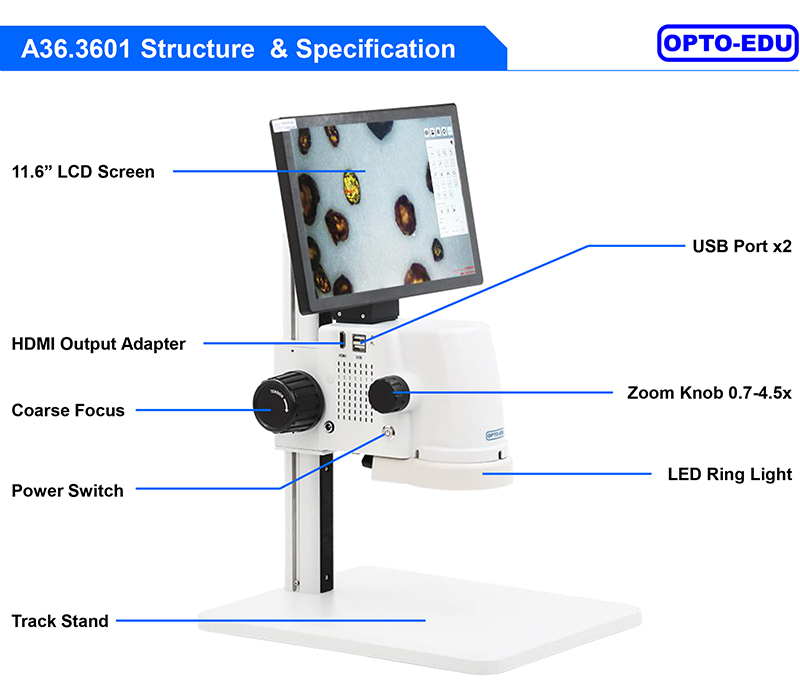

    A36.3601 LCD Digital Stereo Microscope Specification
    Magnification17X-110X
    Objectives0.75X-4.5X stereo zoom, zoom ratio 6.4:1
    Display11.6Inch, 1920H*1080V, IPS screen, detachable
    Imaging sensor1/2.8Inch SONY CMOS
    Real-time image frame rate60fps@1920*1080
    Photograph5 Mega-pixel
    Recording45fps@1920*1080
    Output InterfaceHDMI
    Input InterfaceDouble USB2.0
    Camera ParametersExposure, White-balance, Gain, Gamma, Brightness, Contrast, Hue, Saturation, Gray
    OSD OperationMouse
    Storage FunctionSnap, Record, USB Storage
    MeasurementPoint,Line,Parallel lines,Broken lines,Angle,Diameter circle,Radius circle,Three-point circle,Distance from circle to line,Concentric circles,Double circle,Vertical line,Arbitrary line,Polygon,Arc,Mark,Screenshot,Table data export,Calibration,Parameter Settings
    Other FunctionsFlip horizontally, Flip vertically, Freeze
    Scale Ruler3 kinds, customizable colors, line widths, display switches
    Grid Lines8 group, customizable colors, line widths, display switches
    LanguagesSimplified Chinese,Traditional Chinese,English,French,Russian,Japanese,Italian,German
    Auxiliary Lens0.5x
    2.0x
    Light Source56-LED ring light, brightness adjustable
    BaseVarious bases are available according to customers' requirements
    Stereo Electron Measurement 0.7-4.5x Zoom LED LCD Digital Microscope
    Stereo Electron Measurement 0.7-4.5x Zoom LED LCD Digital Microscope
    Stereo Electron Measurement 0.7-4.5x Zoom LED LCD Digital Microscope
    A36.3601 LCD Digital Stereo Microscope Optical Data Sheet
    ObjectiveStandardAuxiliary 0.5XAuxiliary 2X
    W,D.100mm165mm30mm
    11.6‘’MagView FieldMagView FieldMagView Field
    17.2x-110.5x18.5x10.5-2.8x1.58.6x-55.2x37.5x21-5.5x3.034.4x-221x9.5x5.5-1.5x0.7
