OPTO-EDU A18.1829 Motorized Digital Forensic Comparison Microscope
| A18.1829 Motorized Digital Forensic Comparison Microscope,With
Motorized Working Table |
| Magnification | 2x~240x |
| Head | 0-45° Titable Bionocular Head, Interpupilary Distance 48~75mm,
Diopter +/-5 Adjustable |
| Eyepiece | WF10x/22mm, High Eyepoint |
| WF20x/12mm, High Eyepoint |
| Nosepiece | 6 Hole Click Stop Nosepiece |
| Objective | LWD Infinity Plan Achromatic Objective 0.5x, 1x, 1.5x, 2x, 4x,6x |
| Auxiliary Lens 0.4x, 2.0x |
| Working Distance | 101mm |
| View Field | Dia. 2.3~62mm |

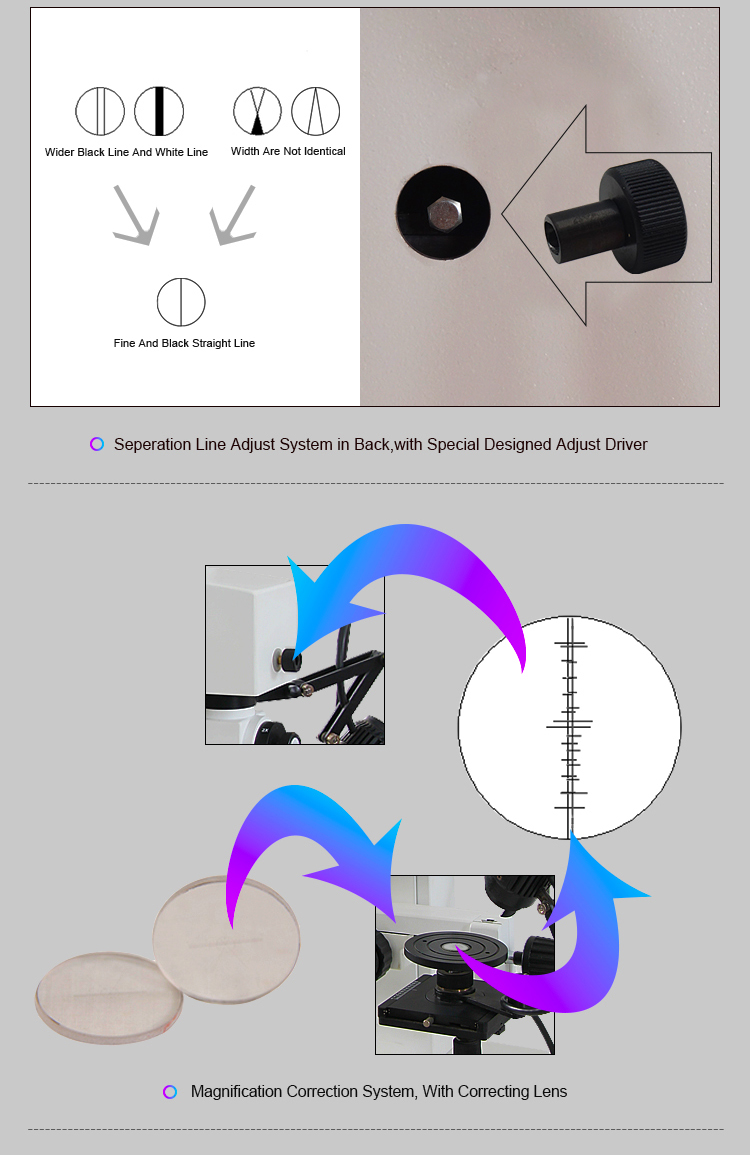

| Magnification Correcting | Magnification Correction System, With Correcting Lens |
| Separation Line Adjusting | Seperation Line Adjust System In Back, With Special Designed Adjust
Driver |
| Working Stage | Square Manual Working Stage 90*90mm, Moving Range 54*54*54mm |
| Round Titable Working Stage Dia. 90mm, 0-45° Inclined, 360°
Rotatable |
| Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm |
| Light Source | 12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable,2pcs |
| 5W LED Cold Light, High Brightness, Brightness Adjustable,2pcs |
| Coaxial Light Lens, To Observe In Deep Hole, Or Smooth Object
Surface,2pcs |

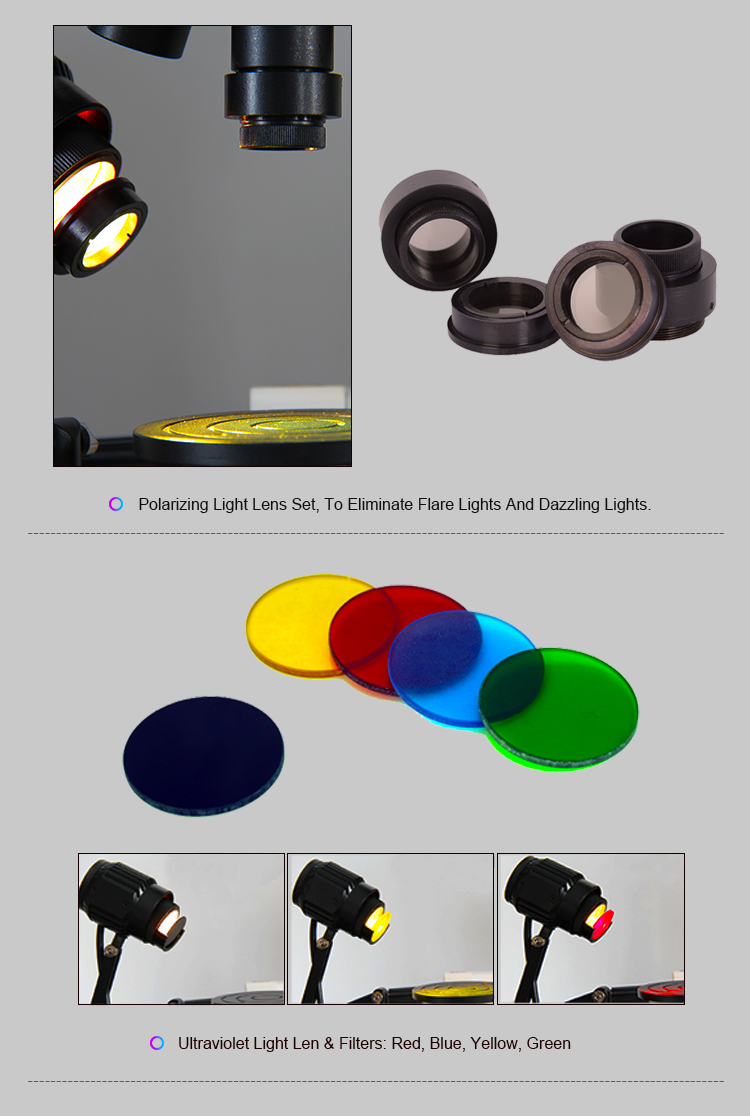

| Polarizing Light Lens, To Eliminate Flare Lights And Dazzling
Lights,2pcs |
| Transmit Bottom Light (Built-in Working Stage) |
| Ultraviolet Light Lens,2pcs |
| Filters: Red, Blue, Yellow, Green,2pcs Each Color |
| Adapter | 0.5x CCD Adapter For Digital Camera,1pc |
| Front View Photo Adapter 2.5X For SLR Digital Camera (Nikon And
Canon) |
| CCD Camera | Built-in 3.0M High Resolution Color CCD Camera,USB 2.0
Output,2048*1536 Pixels,Pixel Size 3.2*3.2μm |
| Software | Incl. Laptop |
| Professional Forensic Image Analysis Software |
| Motorized/Manual Viewfield Changeover Full /Split /Overlapping
Image |
| Motorized/Manual Control Working Stage X/Y/Z 3D Movement |
| Motorized/Manual Control Round Working Stage Rotation +/- Direction |
| Motorized/Manual Control To Change Objective Magnification |
| Power | 80~240V Wide Range Voltage |
| Bullet Holder | Standard Bullet Holder 2 Sets,Bullet Holder Set for all kinds of
Bullet, Cartridge and other Objects |
| Dimension | Instrument Size 40*60*72cm |
|
| Optional Accessories |
| Light Source | 150W Cold Light Source, With Optical Fiber & Light Collector | A56.1821 |
| Bullet Holder | Motorized Bullet Holder 1 Set | A54.1813 |
| Objective | Eyepiece 10X | Eyepiece 20X | Photograpging
& Video System | Working Distance |
Mag./Viewfield
φ22mm | Mag./Viewfield
φ12mm |
| 1X/0.03 | 10X/φ22 | 20X/φ12 | Measure
According to
Monitor & Digital
Camera | 102mm |
| 1.5X/0.04 | 15X/φ15 | 30X/φ8 |
| 2X/0.05 | 20X/φ11 | 40X/φ6 |
| 4X/0.072 | 40X/φ5.5 | 80X/φ3 |
| 6X/0.075 | 60X/φ3.7 | 120X/φ2 |
| 0.5X/0.02 | 5X/φ44 | 10X/φ24 | 138mm |
A18.1829 Motorized Digital Forensic Comparison Microscope, newly
developed in 2013, is suitable to be used for forensic science
laboratory research work, for compare all kinds of bullets,
cartidge cases, cutting objects, paper documents and etc. It can be
fully controled by manual or computer software. Built-in high
resolution digital color camera can output realtime image and video
to computer, With full comparison system function, and with steady
quality at very competitive price, it is your best choice!
OPTO-EDU is one of the top professional supplier for microscope
from China, we focus in microscope & educational field for more
than 20 years. As the top recommended seller for microsocpe on
alibaba, we have full types microscopes, including biological
microscope, stereo microscope Metallurgical microscope, inverted
microscope, fluorescent microscope, polarized microscope, phase
contrast microscope, dark field microscope, multi-viewing
microscope, DIC microscope, AFM/STM/SPM microscope, zoom
microscope, gem microscope, digital micoscope, LCD microscope,
comparison microscope Forensic microscope, and all kinds of
microscope accessories.
Our customer comes from more than 104 countries, such as United
States, Britain, Russia, Canada, Germany, Denmark, Poland, Sweden,
UAE, Qatar, Saudi Arabia, Egypt, Mexico, Argentina, Chile, Brazil,
Korea, Thailand, India , Indonsia, Philliphine and so on. We have
been working tirelessly to supply China's nice quality production
to the world market!
