Mechanical Binocular Biological Microscope OPTO-EDU A11.1535-B LED Double Layer

    Buy cheap Mechanical Binocular Biological Microscope OPTO-EDU A11.1535-B LED Double Layer from wholesalers

    Buy cheap Mechanical Binocular Biological Microscope OPTO-EDU A11.1535-B LED Double Layer from wholesalers
    • Buy cheap Mechanical Binocular Biological Microscope OPTO-EDU A11.1535-B LED Double Layer from wholesalers
    • Buy cheap Mechanical Binocular Biological Microscope OPTO-EDU A11.1535-B LED Double Layer from wholesalers
    • Buy cheap Mechanical Binocular Biological Microscope OPTO-EDU A11.1535-B LED Double Layer from wholesalers
    • Buy cheap Mechanical Binocular Biological Microscope OPTO-EDU A11.1535-B LED Double Layer from wholesalers

    Mechanical Binocular Biological Microscope OPTO-EDU A11.1535-B LED Double Layer

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A11.1535
    Certification : CE, Rohs
    Price : Negotiation
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    Mechanical Binocular Biological Microscope OPTO-EDU A11.1535-B LED Double Layer

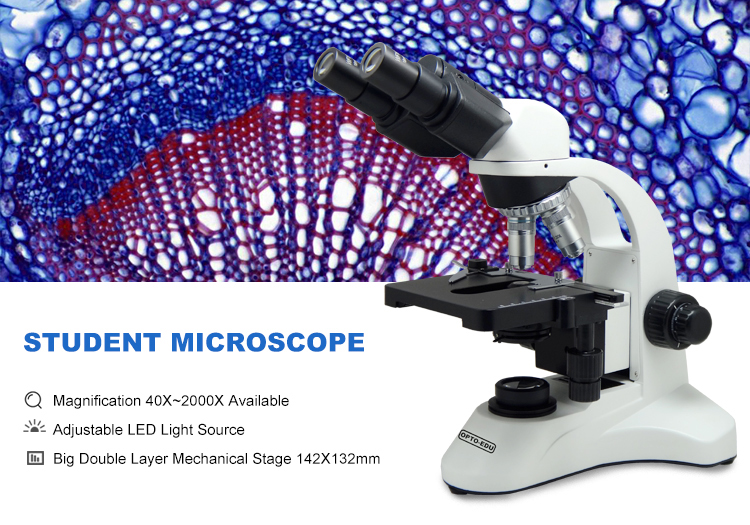

    OPTO-EDU A11.1535-B LED double layer mechanical binocular biological microscope

    A11.1535 is a very good choice for student, especially appreciated when budget is limited. All models are equipped with an integrated X-Y mechanical stage are supplied with an Abbe N.A. 1.25 condenser. Optional WF10X, WF16X, WF20X eyepiece enable utmost 2000X optical magnification, which can clearly observe biological slices, biological cells, bacteria and living tissue culture etc. And the curved handle is portable for users.



    A11.1535_02

    Parameter

    A11.1535 Student Microscope
    ModelVMBT
    HeadTeaching HeadMonocular HeadBinocular HeadTrinocular Head
    Inclined at 30º, Interpupillary 48-75mm, Left Eye Tube Diopter Adjustable+/-5°
    EyepieceWF10X/18mm
    NosepieceQuadruple Nosepiece
    ObjectiveAchromatic Objectives 4x, 10x, 40x, 100x
    CondenserAbbe Condenser NA1.25 with Diaphragm, with Filter Holder
    FocusingCoaxial Coarse and Fine Adjustments, Moving Range 22mm
    Working StageDouble Layer Mechanical Rectangular Stage 142X132mm, Moving Range 75X55mm
    Light Source1W LED, Brightness Adjustable
    Adapter1.0x C-MountN/AN/A1.0x C-Mount
    Product Display
    A11.1535-T Trinocular Head Student MicroscopeA11.1535-M Monocular Head Student Microscope
    A11.1535-B Binocular Head Student MicroscopeA11.1535-V Teaching Head Student Microscope

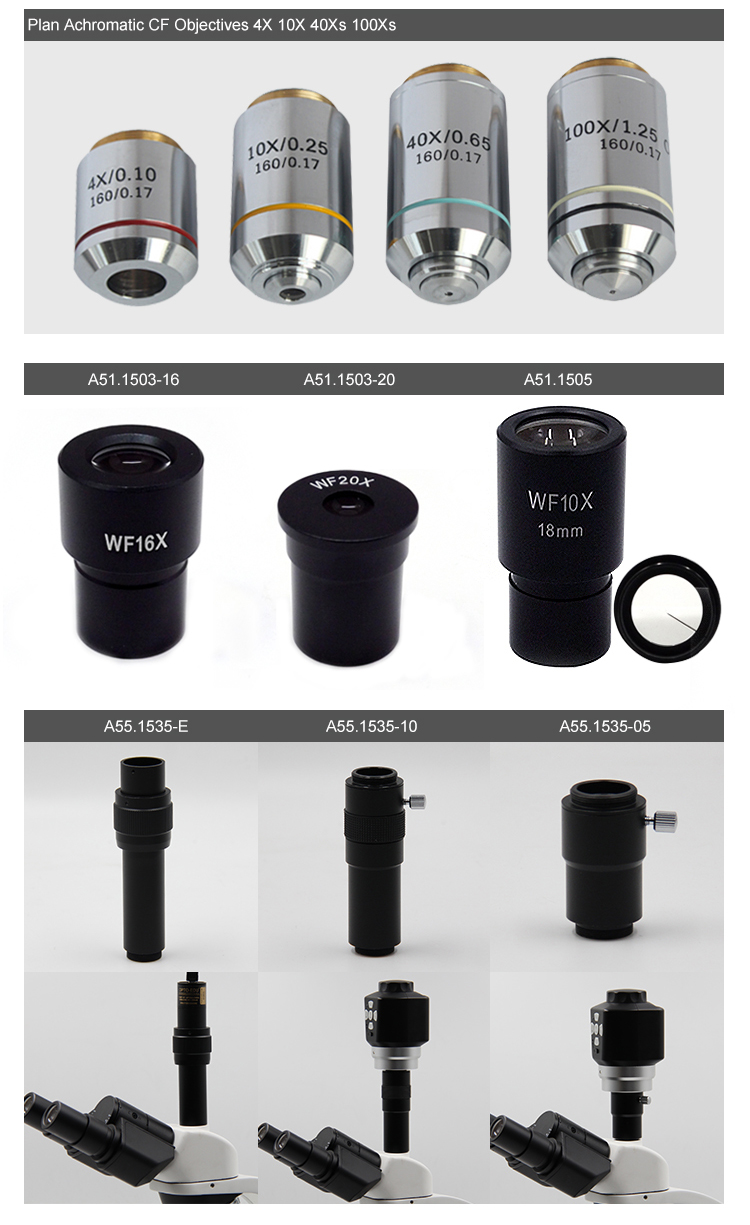

    Optional Accessories
    EyepieceWF16X/13mmA51.1503-16
    WF20X/11mmA51.1503-20
    WF10X/18mm Pointer EyepieceA51.1505
    ObjectiveAchromatic Objectives 20xA52.1505-20
    Achromatic Objectives 60xA52.1505-60
    Plan Achromatic Objectives 4x, 10x, 40xs, 100xs(oil)A52.1510

    Light


    6V/20W Halogm Lamp, Brightness AdjustableA56.1504
    Upgrade to 3W LED, Brightness AdjustableA56.1510
    CCD AdapterEyepiece Tube AdapterA55.1535-E
    0.5xA55.1535-05


    Product Details

    A11.1535_02

    Related Products


    Product Application

    Student microscope is designed for tertiary institutions and primary and secondary schools, which convenient to observe biological slices, biological cells, bacteria and living tissue culture, fluid precipitation observation and research. It is widely used in teaching demonstration, biochemical experiments, clinical research ect.


    Packaging & Shipping


    Company Information


    OPTO-EDU, as one of the most professional manufacturer and supplier of microscope in China, our sub-brand CNOPTEC series high end biological, laboratory, polarizing, metallurgical, fluorescene microscopes, CNCOMPARISON series forensic microscope, A63 series SEM microscope, and .49 series digital camera, LCD camera are very popular in the world market.
