LCD 1080P Digital Microscope

Ask Lasest Price
Brand Name :	CNOEC, OPTO-EDU
Model Number :	A36.4952
Certification :	CE, Rohs
Price :	FOB $1~1000, Depend on Order Quantity
Payment Terms :	T/T, West Union, Paypal
Supply Ability :	5000 pcs/ Month
Delivery Time :	5~20 Days

Add to Cart

Product Details
Company Profile

LCD 1080P Digital Microscope

OPTO- EDU A36.4952 Mini Digital LCD HD Scanning Electron Microscope With Best Price

A36.4952 combined the traditional optical and eletronic video technology , completely solves the disadvantage of the traditional microscope, which is easy to cause human fatigue when observed for a long time.A36.4962 integrates magnification imaging ,monitor and LED lights into one. It is designed for fast and efficient observation of details

Product Parameter

A36.4952 HD Digital Microscope
Hardware Configuration
Image Sensor	Aptina AR0330 CMOS Sensor
Expose Mode	Rolling Shutter
Maximum Resolution	3.5M 2304*1536 (3,538,944 Pixels)
Sensor Optical Format	1/3'' (5.07mm(H)*3.38mm(V), Diagonal 6.09mm)
Pixel Size	2.2μm*2.2μm
Dynamic Range	69.5dB
SNR(Signal Noise Ratio)	39dB
Spectral Characteristics	380-650nm
Exposure Capability	Real-time auto, Single auto, Manual Adjustment
White Balance	Real-time Auto, Single Auto, Manual Adjust R G B separately
Display (preview ) Resolution	HD:19201080i60, 19201080P30, 1280720P60, 640480P60(Auto fit by monitor )
Record Format	Snapshot Picture Format: JPG Resolution: HD: 23041536, 23041296, 19201080, 1280720, 800480 Record* Video Format: MOV Resolution: HD: 1280720@30FPS, 800480@30FPS
Record Route	HD: TF card (Maximum support 64G)
Power Supply	Power adapter: Input:AC 100~240V/50~60Hz;DC 12V/5A/60W
Power Supply	Monitor: USB-A-Output:DC5V/2A×3

Lens Specifications
Total Magnification	8.8x~480x (including digital magnification)
Optical Magnification	0.7×~5× Optical Zoom Lens
Optical Resolution(um)	When in 0.7× 16.78um	When in 3× 6.10um
	When in 1× 11.18um	When in 4× 4.79um
	When in 2× 8.39um	When in 5× 4.79um

Monitor Parameters
Size	12.5”
Type	a-Si TFT-LCD/IPS
Resolution	1920×1080
Color Display	16.7M
Brightness	300 Nit
Contrast	800:1
Visible Angle	170° horizontal&vertical

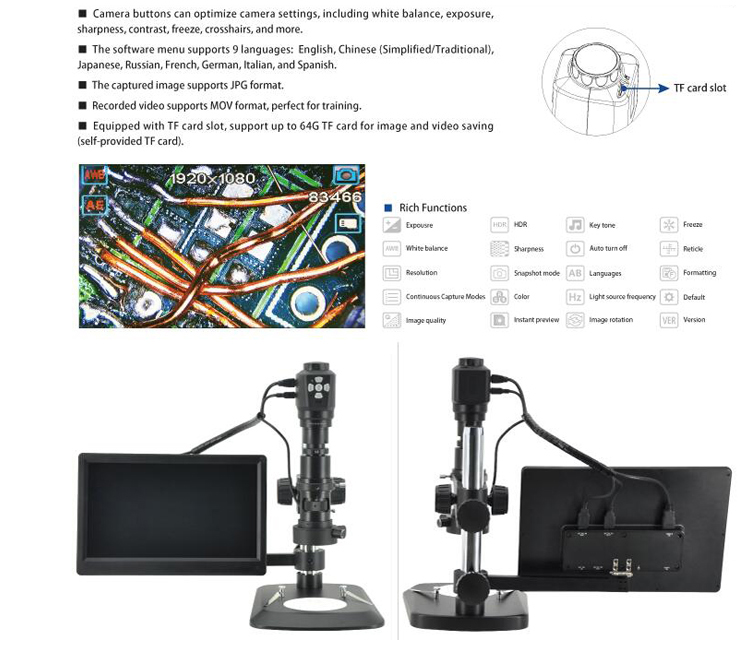

Product Display

mini LCD microscope

1. It has unique manual focus knob on top pf camera helps you to product the sharpest image within the working distance (0mm~232.5mm) when the observation object size changed from small to large. Avoid tedious adjustment work and directly change the working distance through eye-height adjustment ring and expand the original magnification ratio of the microscope .

mini LCD microscope

2. With the factory integrated 3.5MP 1080i 60fps digital camera and HD lens

3. Easy to realize continuous zoom to overall magnification of 8.8X~480X (based on 12.5’ monitor)

4. A36.4952 is equipped with the external coaxial light, which can uniformly illuminate the surface of the plane and the shiny surface , and enhance the features of marking , recessing or embossing. It can highlight the uneven surface of the object, overcome the interference caused by the reflection of the surface , and improve the microscope reproducibility.

5. Outstanding ergonomics design with 360° universal shaft bracket, to hover randomly. It is flexible and easy to use, convenient for operator to view from different angles. Free up the operator’s head and body , the work efficiency can be improved and fatigue can be reduced effectively .

6. Integrated solution -one device can achieve multiple function of low magnification tasks; Equipped with all-in-one 12.5’ monitor, when needed, operator can fine-tune screen angle to look up ( max 90 °) or look down (max 24°)

7.Simple ,easy to use image and video capture software is included as standard to allow you to use it instantly .

Drawing Display

Application

More Choice

LCD 1080P Digital Microscope

Packing & Delivery

About Us

OPTO-EDU is one of the top professional supplier for microscope from China, we focus in microscope & educational field for more than 20 years. As the top recommended seller for microsc0pe on alibaba, we have full types microscopes, including biological microscope, stereo microscope Metallurgical microscope, inverted microscope, fluorescent microscope, polarized microscope, phase contrast microscope, dark field microscope, multi-viewing microscope, DIC microscope, AFM/STM/SPM microscope, zoom microscope, gem microscope, digital microscope, LCD microscope, comparison microscope Forensic microscope, and all kinds of microscope accessories.

Our customer comes from more than 104 countries, such as United States, Britain, Russia, Canada, Germany, Denmark, Poland, Sweden, UAE, Qatar, Saudi Arabia, Egypt, Mexico, Argentina, Chile, Brazil, Korea, Thailand, India , Indonesia, Philippines, and so on. We have been working tirelessly to supply China's nice quality production to the world market!
