    Quadruple Nosepiece A12.0736 Olympus Biological Microscope UIS2 Infintiry Optical System

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A12.0736
    Certification : CE, Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    Quadruple Nosepiece A12.0736 Olympus Biological Microscope UIS2 Infintiry Optical System


    Quadruple Nosepiece A12.0736 Olympus Biological Microscope UIS2 Infintiry Optical System

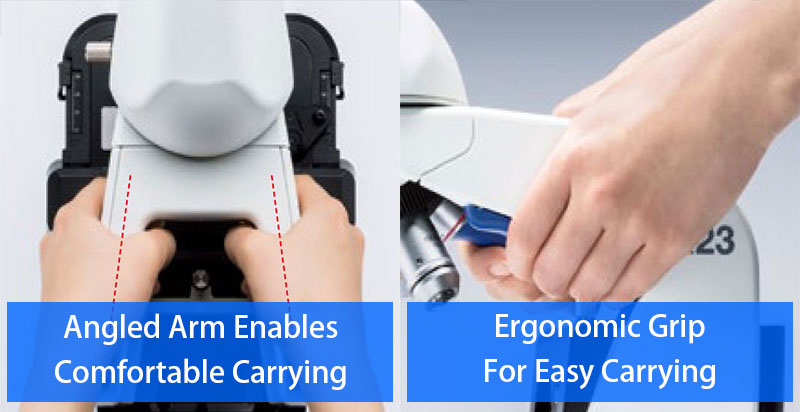

    • Ergonomic grips add safety when retrieving the microscope from high places.
    • Colored grips indicate the appropriate places to hold the microscope.
    • Smooth, rounded design eliminates sharp edges.
    • The CX23 microscope is one of the lightest in its class, with a total weight of approx. 5.9 kg (13.01 lbs).

    Quadruple Nosepiece A12.0736 Olympus Biological Microscope UIS2 Infintiry Optical System
    • The arm is angled to keep users’ wrists in a comfortable, neutral position.
    Quadruple Nosepiece A12.0736 Olympus Biological Microscope UIS2 Infintiry Optical System

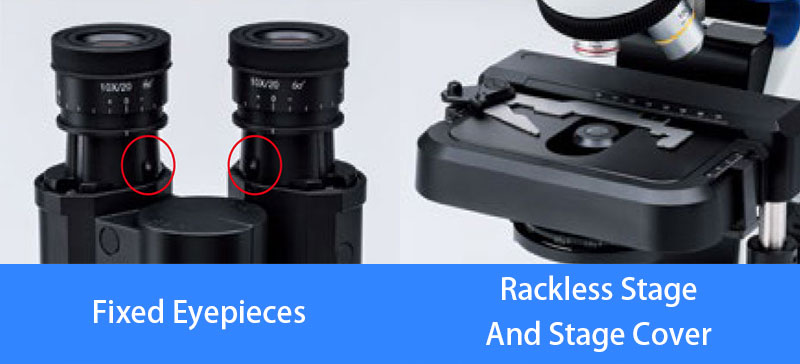

    • The eyepiece can be fixed in place to help prevent damage or loss during transport.
    • A rackless stage and stage cover enable safety and stability during long periods of use.

    Quadruple Nosepiece A12.0736 Olympus Biological Microscope UIS2 Infintiry Optical System

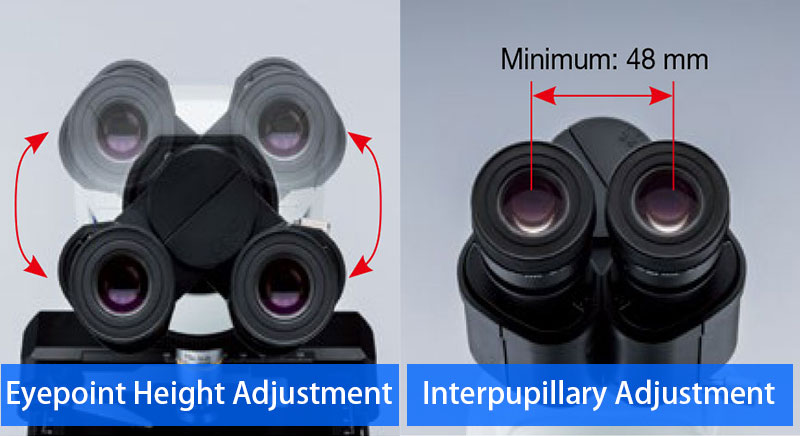

    • Interpupillary adjustments, ranging from 48 to 75 mm (1.9 to 3 in.), enables individual users to set it to their needs.
    • Eyepoint adjustments accommodate the user’s height and provide greater comfort.
    • Left and right diopter adjustments enable optimal focus for each eye.

    Quadruple Nosepiece A12.0736 Olympus Biological Microscope UIS2 Infintiry Optical System

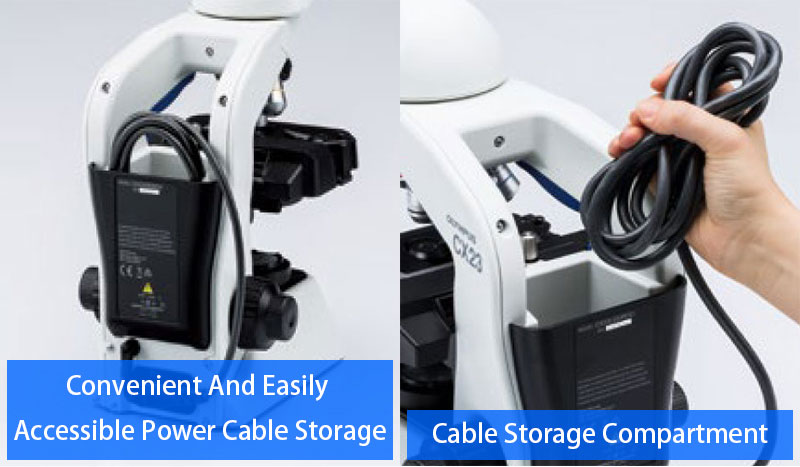

    • A storage compartment on the back of the CX23 microscope makes it easy to stow the power cable after use.
    Quadruple Nosepiece A12.0736 Olympus Biological Microscope UIS2 Infintiry Optical System
    • A locking pin keeps the observation tube in place.
    • When the CX23 microscope needs to be left unattended, a built-in security slot enables the attachment of an anti-theft cable.


    Quadruple Nosepiece A12.0736 Olympus Biological Microscope UIS2 Infintiry Optical System
    • An inward-facing rotating nosepiece facilitates a larger working area above the stage, enabling easier operation and specimen exchange
    or making it easier to apply oil to immersion objectives.
    • The CX23 microscope features plan achromat objectives that preserve outstanding image flatness throughout the field of view.
    • Objectives with long working distances provide clearance for thick samples and slides.
    • Bring specimens into focus quickly by using the coaxial knobs for fine or coarse adjustments.
    The microscope is built for durability and precise control, whether accessed from the left or right side.
    • A torque release function helps prevent damage if excess force is applied to the coarse focusing knob or stage knob.
    • The energy-saving LED light source provides a long operation lifetime of 20,000 hours.
    • Daylight balanced LED illumination preserves the vivid colors on HE-stained samples.

    Quadruple Nosepiece A12.0736 Olympus Biological Microscope UIS2 Infintiry Optical System
    • The focus lock helps prevent the objectives from damaging the specimen.
    Quadruple Nosepiece A12.0736 Olympus Biological Microscope UIS2 Infintiry Optical System

    • Field number (FN) of 20 provides a wide field of view.
    Quadruple Nosepiece A12.0736 Olympus Biological Microscope UIS2 Infintiry Optical System
    • Protect your investment with an optional custom designed wooden case.
    Quadruple Nosepiece A12.0736 Olympus Biological Microscope UIS2 Infintiry Optical System
    Quadruple Nosepiece A12.0736 Olympus Biological Microscope UIS2 Infintiry Optical System
    Quadruple Nosepiece A12.0736 Olympus Biological Microscope UIS2 Infintiry Optical System
    A12.0736 Olympus Biological Microscope, Cx23-B-T
    BodyAluminum Die-cast Metal Frame, Protective Plastic Covering
    Optical SystemInfinity Optical System
    Illumination SystemBuilt-in Transmited Illumination System
    Led Power Consumption: 0.5 W (Nominal Value)
    Focusing• Stage Height Movement • Coarse Movement Stroke: 15 Mm (0.6 In.) • Coarse Adjustment Limit Stopper
    • Torque Adjustment For Coarse Adjustment Knob • Fine Focus Knob (minimum Adjutsment Gradations: 2.5 μm)
    Revolving NosepieceFixed Quadruple Nosepiece With Inward Tilt
    StageWire Movement Mechanical Fixed Stage
    • Size (w x D): 174 mm × 89 mm (6.9 In. x 3.5 In.) • Traveling Range (x x Y): 76 mm × 30 mm (3 In. x 1.2 In.)
    • Specimen Holder • Specimen Position Scale
    Observation TubeTypeBinocular Anti-fungalTrinocular Anti-fungal
    Eyepiece (Anti-fungal)10x Field Number (fn): 20
    15x Eyepiece (fn): 12 (Optional)
    Tube Inclination30°
    Light Path SelectorNoneEyepiece/Camera Port = 100/0 Or 0/100
    Interpupillary Distance Adjusting Range48 – 75 Mm (1.9 In.–3 In.)
    Eyepoint Adjustment370.0 – 432.9 Mm (14.6 In.–17 In.)
    Condenser• Abbe Condenser NA 1.25 With Oil Immersion • Built-in Aperture Iris Diaphragm
    ObjectivesPlan Achromat, Anti-fungal
    4x NA 0.1
    W.D. 8.0 mm
    10x NA 0.25
    W.D. 27.8 mm
    20x NA 0.4
    W.D. 2.5 mm (optional)
    40x NA 0.65
    W.D. 0.6 mm
    100xoil NA 1.25
    W.D. 0.13 mm (cx23ledrfs1 Built-in, Cx23ledrfs2/rtfs2 Optional)
    Optional AccessoriesReflection Mirror (ch20-mm), Eyepiece Micrometer
    Dust Cover, Darkfield Stop (ch2-ds+ch2-fh)
    Field Diaphragm (cx23-fs)*
    Dedicated Wooden Case (ch20-wb2)
    Reflection Mirror (ch20-mm), Eyepiece Micrometer
    Dust Cover, Darkfield Filter (ch2-ds)

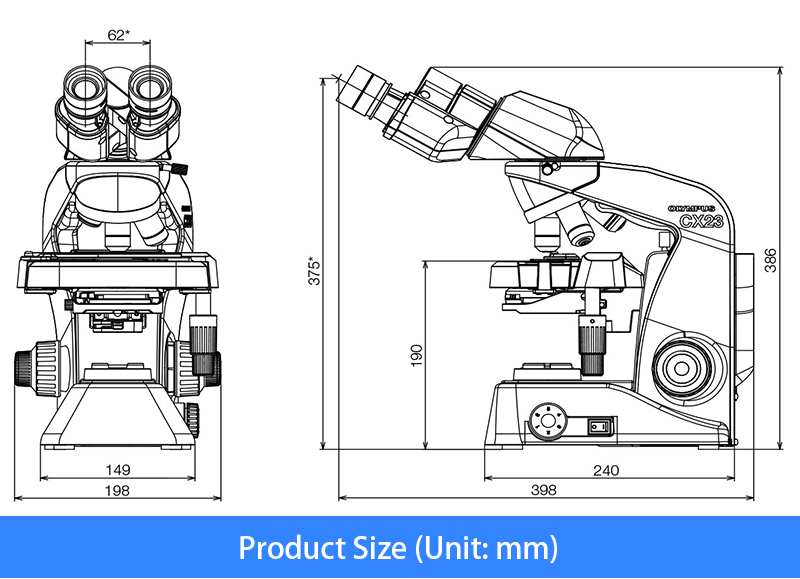

    Dimensions (w x D x H)198 mm x 398 mm x 386 mm (7.8 In. x 15.7 In. x 15.2 In.)198 mm x 398 mm x 430 mm (7.8 In. x 15.7 In. x 17 In.)
    WeightApproximately 5.9 Kg (13 Lb)Approximately 6.5 Kg (14.3 Lb)
    Rated Voltage/Electric CurrentAc 100 – 240 V 50/60 Hz 0.4 A
    Power ConsumptionLess Than 2 W
