A59.4902 Usb Microscope Camera

Ask Lasest Price
Brand Name :	CNOEC, OPTO-EDU
Model Number :	A59.4902
Certification :	CE, Rohs
Price :	FOB $1~1000, Depend on Order Quantity
Payment Terms :	T/T, West Union, Paypal
Supply Ability :	5000 pcs/ Month
Delivery Time :	5~20 Days

Add to Cart

Product Details
Company Profile

A59.4902 Usb Microscope Camera

OPTO-EDU A59.4902 3.5 Mega Pixel Digital Camera for Microscope with Rohs FCC CE certificate

A59.4902 digital eyepiece, combines USB and HD output, with professional imaging software, high quality 3.5M pixel HD color image sensor, it is ideal tool to show real time micro image on your HD monitor or PC, easily capture image, record, and manage the pictures.

Product Parameter

Hardware Configuration
Imaging Sensor	Aptina AR0330 CMOS Sensor
Scan Mode	Scan line by line
The maximum resolution	2304 x 1535(3,538,944 pixels)
Sensor Optical Format	1/3“ (5.07mm(H) x 3.38mm(V), Diagonal 6.09mm)
Pixel Size	2.2μm x 2.2μm
Dynamic Range	69.5dB
ADC	12-bit, 8-Bit R.G.B to PC
SNR(Signal Noise Ratio)	39dB
Spectral Characteristics	380-650nm
Video Mode Resolution	1080P@30FPS, 720P@30FPS,WVGA@30FPS
Snapshot Mode Resolution	2304x1536, 2304x1296, 1920x1080, 1280x720, 800x480
Exposure Capability	Real-time auto, Single auto, Manual adjustment
White Balance	Real-time auto, Single auto, Manual adjustment
Capture Modes	Picture Resolution: 1920x1080, 1280x720, 800x480 Format: JPG Video Resolution: 2304x1536, 2304x1296, 1080P@30FPS, 720P@30FPS, WVGA@30FPS Format: MOV
Record Route	The local and TF card
Interface Parameter
Camera Interface	C mount thread (1“x1/32) BFL: 11.6-36mm
Wired Picture Interface	HD Model: Mini HD
	USB Model: Micro USB
Charger Interface	Micro USB, DC5.0V 2A
Software Environment
Operation System	Microsoft®Windows®XP/7/8/8.1/10(32&64 bit)
Computer Configuration	CPU: equal or more than the second generation Intel core 2.8GHz
	Memory: 2G or more
	USB port: USB2.0 high speed port or compatible port
	Displayer: Suggest 17 inches or larger
Operating Environment
Operating Temperature	0℃~ 40℃
Storage Temperature	-20℃~ 60℃
Operating Humidity	30~60%RH
Storage Humidity	10~80%RH


Product Dispaly

Camera Feature

1. Large depth of field, wide field of view, long operation distance.
2. Manual focusing knob can focus quickly and easily in long range.
3. Dual output HD & USB to support photograph/record and real time storage of SD card image, with USB 3.5M, HD 1080p/30fps.
4. Adopt advanced HDR image processing technique under HD mode to largely reduce light reflection of the observation object surface.
5. High quality USB 2.0 & HD cable support plug & play for high speed data transfer
6.Professional analysis software support OEM different language version.9. Dynamic and still annotations, powerful measure functions for choice in (PC)
7. 2 split and 4 split screen to compare and analysis different images at same time in (PC)

8. Fix-time continuous capture photo function to track the whole changing process of observe things (PC)
9. Rotate picture with any angle when preview, no need to move the objective (PC)
10. Creative image manager to store, search, view user's image freely.
11. All hardware support hot plug/unplug without stopping software work (PC).
12. TF Card Slot support maximum 64G for local image & video recording, (TF card not include)
13.Fit all microscopes with standard C-Mount, and adapter for microscope eyetube 23.2mm/30mm/30.5mm

Manual Focus Knob

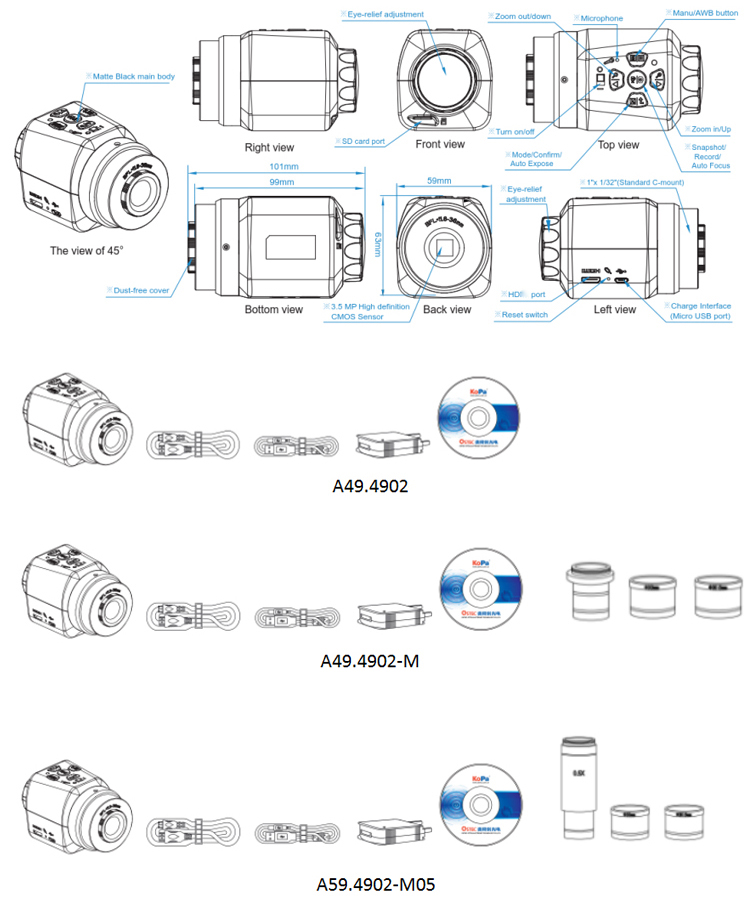

Drawing Display

Application

More Choices

A59.4902 Usb Microscope Camera

Packing and Shipping

Packing : Compact Design Box and Strong Master Carton

Shipping Time : 1-5 Days From Stock
