    OPTO-EDU A36.1309 Digital LCD Microscope With 8.0" High Resolution LCD Screen

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A36.1309
    Certification : CE, Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    OPTO-EDU A36.1309 Digital LCD Microscope With 8.0" High Resolution LCD Screen

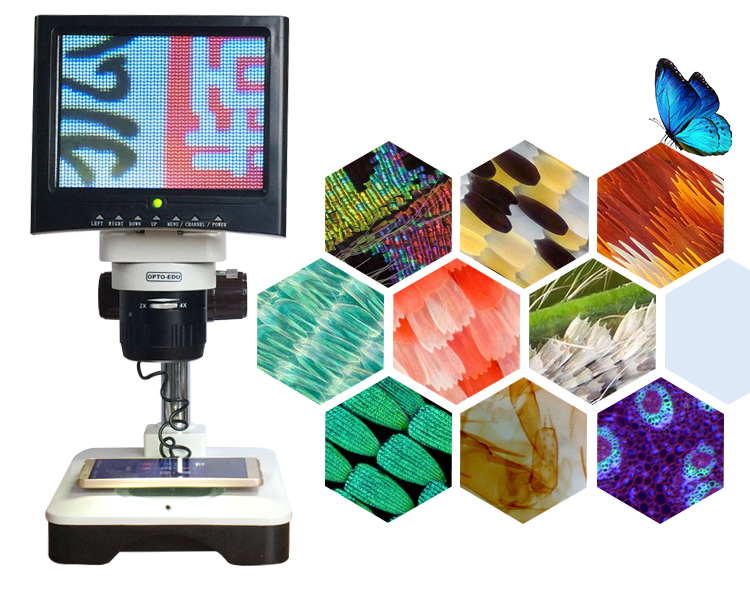

    OPTO-EDU A36.1309 Hot Sale LCD Digital Stereo Microscope with 8.0" High Resolution LCD Screen and Built-in Digital Camera


    A36.1309 is newly designed LCD stereo microscope with 8.0" high resolution LCD screen and built-in digital camera. It also featured with built-in up coaxial LED light source. With all-in-one design, you can view details of objective easily with no need to connect other accessories. Stereo microscope is also known as dissecting microscope, it is widely used in biology, medicine, agriculture, forestry, industry and marine life etc. A36.1309 has top and bottom light source, up coaxial LED inside the objective, and the bottom light can adjust brightness. Its body is not huge, the pole stand is convenient for users.




    Parameter

    A36.1309 8“ LCD Pad Camera Specification
    LCD8" High Resolution LCD, Color
    Pixel Space Between0.213mm
    Visual Angle170/170(H/V)
    Horizontal30-61KHz
    Vertical60-75Hz
    Color16,777,216 colors
    Highest Mode1024X768@75Hz
    Sync.Video SignalH/V Separate, TTL, P or N.0.7Vp-p@75ohm
    Color SystemPAL/NTSC4.43/NTSC3.58/SECAM
    Sound SystemBG/DK/I/M
    Video Input1.0Vp-p@75ohm
    Audio Input500mVrms
    Power SupplyDC12V
    Power Consumption9W
    Energy-Saving<1.0W

    CCD Camera Specification
    Device Dimension1/3”
    Horizontal Resolution700 TV Lines
    Pixels976(H)X582(V)
    Scanning System525lines, 60Frames/sec
    Back Light CompensationAuto
    Signal-To-NoiseMore Than 46db
    Gamma Characteristics0.45
    Minimum Illumination3.1ux
    Input Voltage12V DC (9V-14V)
    Power ConsumptionLess Than 1.85W

    Microscope Specification
    Objective2x/4x, Zoom Knob On Body
    Working Distance100mm
    StageØ95mm, 1 Pc Frosted Glass Stage(For Bottom Illumination)
    FocusCoarse Focusing, Focusing Range 70mm
    StandPole Stand, Base Size 25x21x5cm, Height 31cm
    IlluminationUp Coaxial LED, Bottom 1W LED Lamp (Brightness Adjustable), Up Oblique LED Optional
    Power Supply110~240V Wide Range Power Supply
    Product Display


    Product Details


    Related Products


    Product Application

    Stereo microscope, also known as "solid microscope" or "operation and dissecting microscope", is a kind of stereoscopic microscope. LCD stereo microscope is widely used in materials such as macroscopic surface observation, failure analysis, fracture analysis and other industries field. As a kind of visual equipment with three-dimensional, it plays an important role in biology, medicine, agriculture, forestry, industrial and marine biological industry. The LCD camera make observation more convenient and efficient.A36_12.jpg

    Packaging & Shipping


    Package1 Sets/Carton, 42X31X50CM
    Gross Weight5KG
    PackingPolyfoam Protection And Strong Carton
    Shipping Time5~20 Days After Receive The Deposit
