    10x Eyepiece Handheld Metallurgical Optical Microscope 20x Measuring Reading Microscope


    10x Eyepiece Handheld Metallurgical Optical Microscope A13.2502-B 20x Measuring Reading Microscope


    Features:
    A13.2502 Portable Measuring Microscope, is designed to quickly measuring the diameter of power particle, hardness test spot diameter or thickness of coating layer. It is with compact and simple design but very useful for outdoor work with LED light and small size. It can be used for biology medicine agriculture and industry area widely. It is the ideal instrument in medical treatment, teaching demonstration and scientific research.

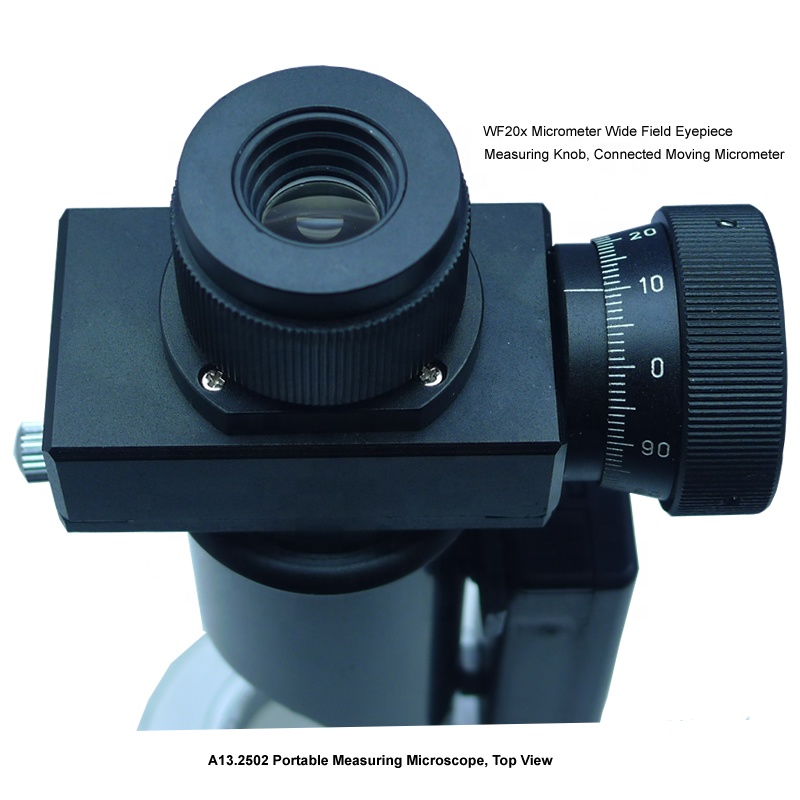

    --WF20x or WF10x Wide Field Micrometer Eyepiece
    --Fixed Micrometer With Main Scale In Eyepiece : 0~8mm
    --Moving Micrometer With Corss & Double Lines, Moved By Measuring Knob
    --Measuring Range 4mm, Division 0.01mm/0.005mm
    Detail Specification:
    Print Price information
    A13.2502A13.2502-B
    Total Magnification20x20x
    Wide Field EyepieceWF20xWF10x
    Objective1x2x
    Measuring KnobDivision 0.01mmDivision 0.005mm
    Eyepiece Micrometer--Fixed Micrometer With Main Scale In Eyepiece : 0~8mm
    --Moving Micrometer With Corss & Double Lines, Moved By Measuring Knob
    Measuring Range4mm
    Measuring Precision+/- 0.01mm
    FunctionMeasuring Diameter Of Power Particle
    Measuring Hardness Test Spot Diameter
    Measuring Thickness Of Coating Layer
    Measuring All Kinds Of Lenght On Surface...
    Theory

    As Structure Picture shown, there are 2 micrometers in the microscope:
    --Fixed Micrometer With Main Scale In Eyepiece : 0~8mm
    --Moving Micrometer With Corss & Double Lines, Moved By Measuring Knob

    The Fixed Micrometer has a main scale 0~8mm length, which is used to fix the measurement position. When you turn the Measuring Knob, it will move the Moving Micrometer and show its moving distance on the knob by 0.01mm division. Keep record of its moving distance, it will be the length you need to measure.

    Operation ManualMeasuring Diameter Of Power Particle (See Picture)
    1. Put the microscope on the surface of objects, turn on the LED light.
    2, Adjust eyepiece (2) to see both micrometer clearly in view field.
    3. Adjust focusing ring (7) to see objects clearly in view field.
    4. Fix the focusing by screw (9).
    5. Turn Measuring Knob to move the micrometer, until the cross center locate on left side of the particle. Read out the main scale as 5 and measuring knob scale as 0.36 (a). (Left Picture)
    6. Turn Measuring Knob to move the micrometer, locate the cross center on right side of the particle. Read out the main scale as 4 and measuring knob scale as 0.51 (b). (Right Picture)
    7. Moving distance (Y) is the difference between (a) and (b) divided by objective magnification (X) : Y=(b-a)/X.
    8. Measured Diameter = Moving Distance = (5.36mm-4.51mm)/1X=0.85mm
