    Epi Illumination Handheld Digital Microscope 12V / 50W Halogen DIC Push / Pull Slids

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A13.0207-DIC
    Certification : CE, Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    Epi Illumination Handheld Digital Microscope 12V / 50W Halogen DIC Push / Pull Slids

    Epi Illumination Handheld Digital Microscope 12V / 50W Halogen DIC Push / Pull Slids


    A13.0207-DIC Differential Interference Contrast Microscope is suitable to observe many different kinds of object. It is equipped with transmitted illuminator and reflected DIC system, infinity plan achromatic objectives with long working distance, wide-field eyepieces and polarizer device. It provides clear and 3D image, beautiful sculpt, convenient control, etc. It is the ideal instruments in research work in biology, metallography, mineralogy, precision engineering, electronics, etc. Features

    --DIC, Bright Field/Dark Field, Polarizing Observation Available
    --Excellent UIS optical system can obtain excellent optical performance.
    --Compact and steady main frame body is embodiment for the shock resistance.
    --The large-mobile range mechanical stage is adapted to observation big size specimen or quick check.
    --Modularization function design so that update system expediently
    --Ideal ergonomic design is adopted in this unit and have easier operation and wider space

    A13.0207-DIC
    A13.0207-BDDIC
    Head
    Trinocular Head, 30° Inclined, Interpupillary Distance 53~75mm
    Eyepiece
    WF10x/22mm Plan Eyepiece
    NosepieceBackward Quintuple Nosepiece, Ball Bearing Inner Locating
    ObjectiveInfinity LWD Plan Achromatic Coverless
    PL5x/0.12, W.D.26.1mm
    PL10x/0.25, W.D. 20.2mm
    PL20x/0.40, W.D.8.8mm
    PL50x/0.70, W.D. 3.68mm (S)
    PL80x/0.80, W.D.1.28mm (S,O)
    BD Infinity LWD Plan Achromatic Coverless
    PL5x/0.12, W.D.29.7mm
    PL10x/0.25, W.D. 9.3mm
    PL20x/0.40, W.D.7.23mm
    PL50x/0.70, W.D. 2.50mm (S)
    PL80x/0.80, W.D.1.25mm (S,O) (Optional)
    Working StageLarge Mechanical Stage 280*270mm, Moving Range 204*204mm
    FocusingCoaxial Coarse & Fine Focus Knob, With Tension Adjustable And Limit Stopper, Minimum Division 0.8um
    PolarizingPolarizer Enable 360° Rotate ANd Switched In/Out
    Analyzer Can Be Switched In/Out
    Light Source12V50W Halogen Lamp, Brightness Adjustable
    DICDIC Push/Pull Slids, DIC Objetives 5x,10x,20x

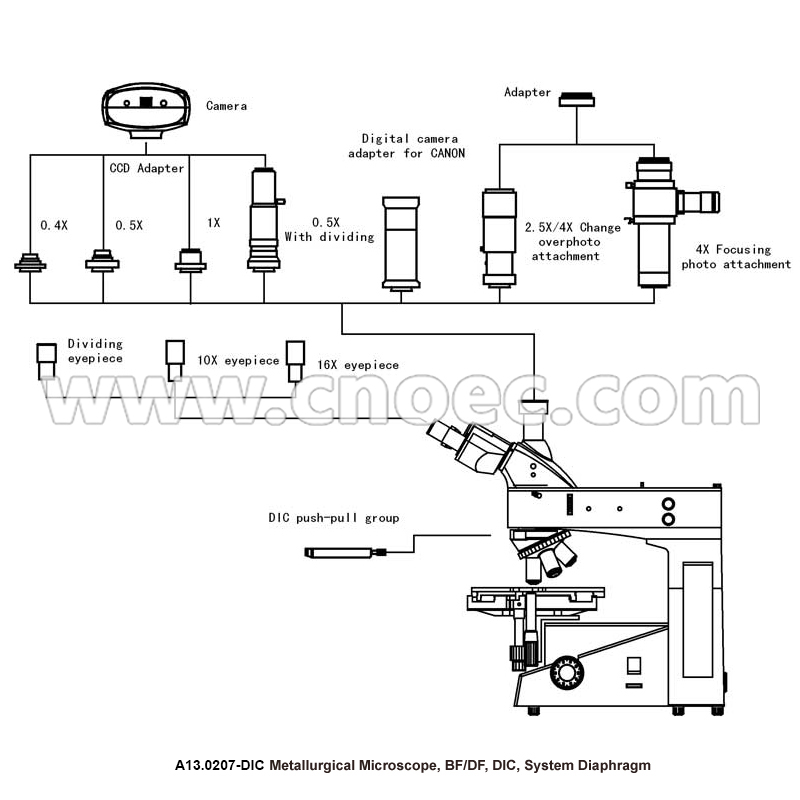

    A13.0207-DIC Metallurgical Microscope Optional Accessories
    EyepieceWF10x/22mm Dividing EyepieceA51.0205-G10B
    Retical Eyepiece, WF10x/20mm, Micrometer Div 0.1mmA51.0205-10
    Infinity LWD Plan Achromatic Coverless ObjectivePL40x/0.6, W.D.3.98mmA5M.0235-40
    PL60x/0.75, W.D.1.22mmA5M.0235-60
    PL100x/0.85, W.D.0.4mm, DryA5M.0235-100
    Working StageLarge Mechanical Stage 250*230mm, Moving Range 154*154mmA54.0205-18
    AdapterCCD Adapter 0.5xA55.0202-04
    CCD Adapter 1.0xA55.0202-02
    CCD Adapter 0.5x With Dividing 0.1mm/DivvA55.0202-03
    Digital SLR Camera Adapter for Canon EF SeriesA55.0204-02
