    Binocular Trinocular Upright Metallurgical Microscope A13.2603 A13.2605

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A13.2603
    Certification : CE|Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    Binocular Trinocular Upright Metallurgical Microscope A13.2603 A13.2605

    Binocular Trinocular Upright Metallurgical Microscope A13.2603 A13.2605


    A13.2603 Metallurgical Microscope
    --Infinity Plan Optical System
    -- LWD Infinity Plan Objective (no cover glass)
    --Reflecting light, 6V 20W halogen lamp,brightness control
    --Five-hole filter unit (blue, green, amber, grey, empty)


    A13.2603-A-B

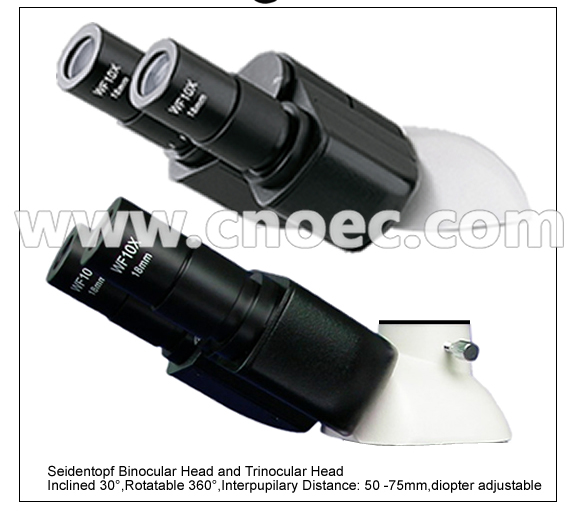

    HeadBinocularTrinocular
    Seidentopf Head, Inclined 30°, Rotatable 360°, Interpupilary Distance 48-75mm, Left Eyepiece Tube Diopter Adjustable +/-5°, Trinocular Head Light Split 0:100/20:80.
    EyepieceWF10x/18mm, 1 pc
    WF10x/18mm, With Micrometer 0.1mm Div, 1 pc
    NosepieceQuadruple
    ObjectiveLong Working Distance Infinity Plan Objective (no cover glass)
    LPL 5x/0.13, W.D.=24.23mm
    LPL 10x/0.25, W.D.=18.48mm
    LPL 50x/0.7,W.D.=1.95mm
    StageMechanical Stage Size 200X140mm, 76mmX52mm
    CondenserAbbe N.A.1.25,With iris Diaphragm
    FocusingCoaxial Coarse and Fine Focusing Knob, Coarse Focusing Range 25mm, Fine Focusing Scale 2um, With Tension Adjustment
    IlluminationReflect Light Source 12V20W Halogen Lamp
    With Five Holes Filter Disc (Blue, Green, Amber, Grey, Empty)
    Power110V~240V Wide Range Voltage
    Packing1pc/carton, size 57*31*41cm, Weight 9/7 Kgs

    A13.2603 Metallurgical Microscope Optional Accessories
    LWD Infinity Plan Objective (no cover glass)LPL 20X/0.40(S) W.D.=8.35mmA5M.2633-20
    LPL 40X/0.66(S) W.D.=0.65mmA5M.2633-40
    LPL 80X/0.8(S) W.D.=0.85mmA5M.2633-80
    LPL 100X/0.9(S) W.D.=1.00mmA5M.2633-100
    PolarizingPolarizer & AnalyzerA5P.2601-B
    Adapter1.0x C-mountA55.2601-B10
    0.5x C-mount (Focus adjustable)A55.2601-B05
