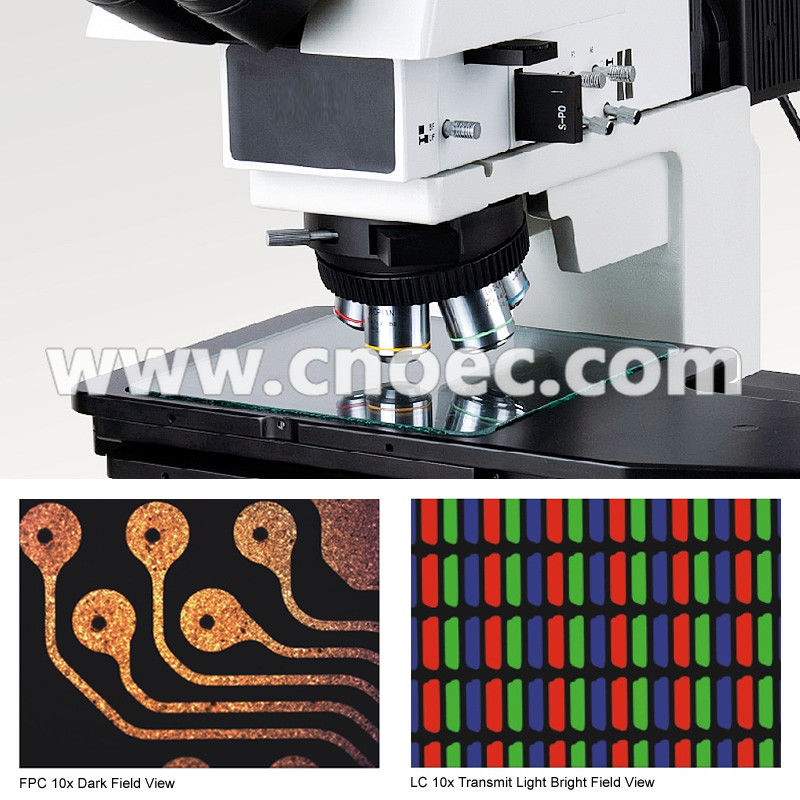

A13.0900 DIC Metallurgical Microscope | A
| B |
Optical System | Bright Field/Oblique Light, Polarizig, DIC | o |
|
Bright Field/Oblique Light, Polarizig, DIC , Transmit Light |
| o |
Head | 30° Inclinded Trinocular, Spiltting Ratio 100:0 or 50:50 |
Eyepiece | High Eyepoint Plan PL10x/22mm |
Objective | Long Working Distance Infinity Plan Metallurgical
DIC Achromatic | LMPL5X/0.15 WD10.8MM |
LMPL10X/0.3 WD10MM |
LMPL20X/0.45 WD4MM |
Long Working Distance Infinity Plan Metallurgical
Semi-APO | LMPL50X/0.55 WD7.8MM |
Nosepiece | Intilted, Quintuple, With DIC Slot |
Stage | 4" Double Layer Mechanical Stage, Moving Range 105*105mm, with Metal Flat Stage, Right Hand Position, XY Moving Hand Wheel, with Stage Adaptor | o |
|
4" Double Layer Mechanical Stage, Moving Range 105*105mm, with Glass Stage, Right Hand Position, XY Moving Hand Wheel, with Stage Adaptor |
| o |
Focusing | Coaxial Coarse & Fine Focusing, Coarse Focus Range 33mm, Fine Focusing Precision 0.001mm,With Coarse Adjustment Stop and Tightness Adjustment |

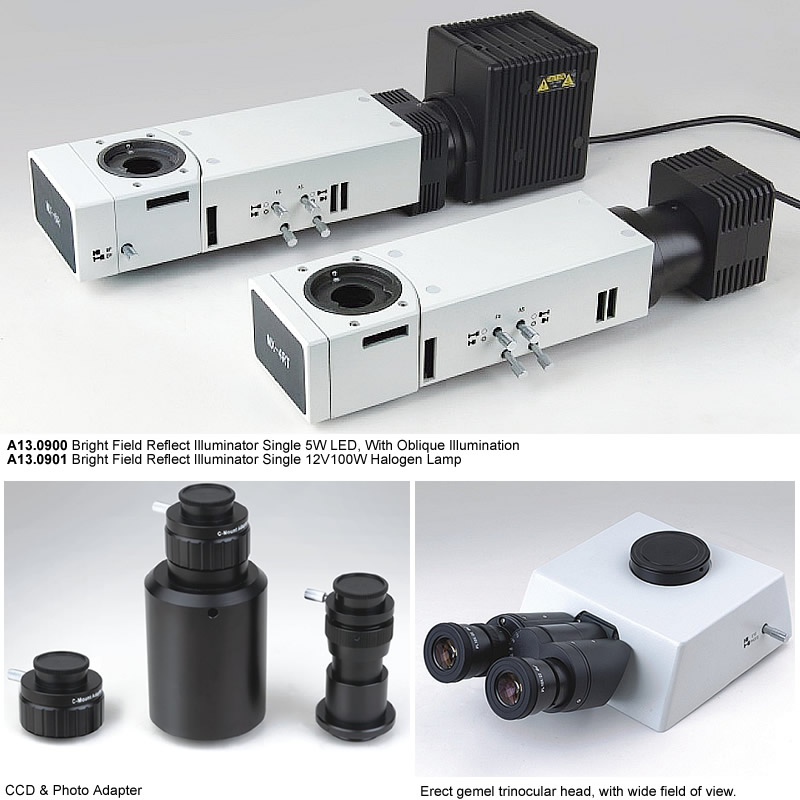

Illumination | Reflect Illumination, With Iris Field Diaphragm and Aperture
Diaphragm, Central Adjustable, with Filter SLot and Polarizing Slot, With
Oblique Illumination Switch. Single High Power 5W LED, White, Brightness
Adjustable |
Transmitted Illumination, SIngle High Power 5W LED, White
Brightness Adjustable, N.A.0.5 Condenser, with Iris Diaphragm |
| o |
Power | 90-240V Wide Voltage, One Way Power Output | o |
|
90-240V Wide Voltage, Double Way Power Output |
| o |
A13.0900 DIC Metallurgical Microscope Optional Accessories |
Eyepiece | High Eyepoint Plan PL15x/16mm PL15x16 | A51.0903-1516 |
High Eyepoint Plan PL10x/22mm, with Cross PL10x22r, | A51.0905-1022R |
High Eyepoint Plan PL10x/22mm, Diopter Adjustable, PL10x22T | A51.0904-1022T |
Objective | Long Working Distance Infinity Plan Metallurgical Semi- APOLMPL100X/0.8 WD2.1MM | A5M.0938-100 |
DIC | DIC Attachment Set | A5M.0950 |
Filter | Interface Filter For Reflect illumination | Blue, <480nm | A5M.0951-B |
Green, 520~570nm | A5M.0951-G |
Red, 630~750nm | A5M.0951-R |
Netural, for White Balance | A5M.0951-LBD |
Other | Specimen Presser | A5M.0920 |
Polarizing | Fixed Polarizer Flashboard, Dia.30mm | A5P.0920-RP |
360° Rotatable Analyser Flashboard | A5P.0920-TA |
Fixed Analyser Flashboard,Dia.30mm | A5P.0920-RA |
Adapter | 0.5x C-Mount, for 1/2" CCD, Focus Adjustable | A55.0928-50 |
1.0x C-Mount, Focus Adjustable | A55.0928-10 |
Digital Camera Adapter with Photo Eyepiece | A55.0910 |
