    WF10X Eyepiece Binocular Student Optical Microscope ABBE NA1.25 Condenser

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A13.2603
    Certification : CE, Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    WF10X Eyepiece Binocular Student Optical Microscope ABBE NA1.25 Condenser

    Binocular Optical School Student Microscope Monocular Trinocular Educational Gift

    WF10X Eyepiece Binocular Student Optical Microscope ABBE NA1.25 Condenser
    WF10X Eyepiece Binocular Student Optical Microscope ABBE NA1.25 Condenser

    WF10X Eyepiece Binocular Student Optical Microscope ABBE NA1.25 Condenser
    WF10X Eyepiece Binocular Student Optical Microscope ABBE NA1.25 Condenser

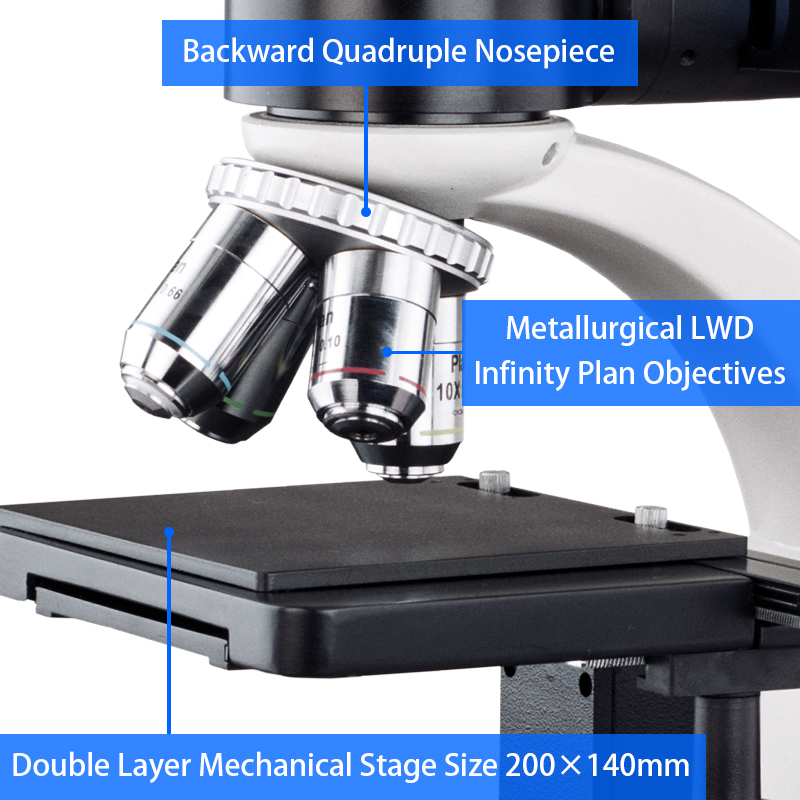

    Objective & Working Stage
    Backward Quadruple Nosepiece With Metallurgical LWD Infinity Plan Objectives
    Double Layer Mechanical Stage Size 200×140mm, Travel Range 76×52mm


    WF10X Eyepiece Binocular Student Optical Microscope ABBE NA1.25 Condenser
    WF10X Eyepiece Binocular Student Optical Microscope ABBE NA1.25 Condenser

    WF10X Eyepiece Binocular Student Optical Microscope ABBE NA1.25 Condenser
    WF10X Eyepiece Binocular Student Optical Microscope ABBE NA1.25 Condenser

    ItemsA13.2603 Metallurgical Microscope SpecificationBTCata. No.
    HeadSeidentopf Binocular Head Inclined 30°, Eyetube Rotatable 360°, Interpupilary Distance 48-75mm A53.2601-B
    Seidentopf Trinocular Head Inclined 30°, Eyetube Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed P20/E80 A53.2601-T
    EyepieceWF10x/18mm, High Eyepoint,A51.2602-1018
    WF10x/18mm, With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter AdjustableA51.2605-1018D
    NosepieceQuadruple, BackwardA54.2610-N03
    Metallurgical LWD Infinity Plan ObjectivesLPL 5x/0.13, W.D.=16.04mmA5M.2633-5
    LPL10x/0.25, W.D.=18.48mmA5M.263310
    LPL 20x/0.40, W.D.=8.35mmA5M.2633-20
    LPL 50x/0.70, W.D.=1.95mmA5M.2633-50
    LPL 80x/0.80, W.D.=0.85mmA5M.2633-80
    LPL 100x/0.90(Dry), W.D.=1.00mmA5M.2633-100
    Working StageDouble Layer Mechanical Stage Size 200×140mm, Travel Range 76×52mmA54.2601-S03T
    FocusingCoaxial Coarse And Fine Focusing Knobs,
    Travel Range: 22mm, Scale: 2µm

    IlluminationReflect Light Source, 5W LED Lamp, With Five Holes Filter Disc (Blue, Green, Amber, Grey, Empty)A56.2613-12V20W
    Power SupplyPowered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
    PolarizingAnalyzer + PolarizerA5P.2603-BS
    AdapterC-Mount 0.5x, Focus AdjustableA55.2601-B05
    C-Mount1.0x, Focus AdjustableA55.2601-B10
    PackageCarton Size 565*310*410mm, 1 Unit/Ctn
    WeightGross Weight 9.0kgs, Net Weigth 6.0kgs
    Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
