OPTO-EDU A23.2604 Zoom Stereo Microscope 0.68~4.7x 1:6.8 Binocular Up/Down 3W LED

0.68~4.7x Zoom Lens, High Zoom Ratio 1:6.8, Outstanding Ergonomic Design
Total Magnification Up To 3.4x~188x (View Field 67.65~1.38mm) With Optional Eyepiece & Lens
Binocular & Trinocular Head 35° Viewing Angle Large View WF10x/23mm Eyepiece
Zoom Knob With Magnifying Stop Pin Enable User To Limit Zoom Range As Need Easily
Large Track Stand 33x30cm High Stability, Reflect & Transmit 3W LED Light Available

Eyepiece
Eyepiece tube Dia.30mm, High eyepoint, diopter adjustable
OPTO-EDU A23.2604 Zoom Stereo Microscope 0.68~4.7x 1:6.8 Binocular Up/Down 3W LED
Zoom Lens

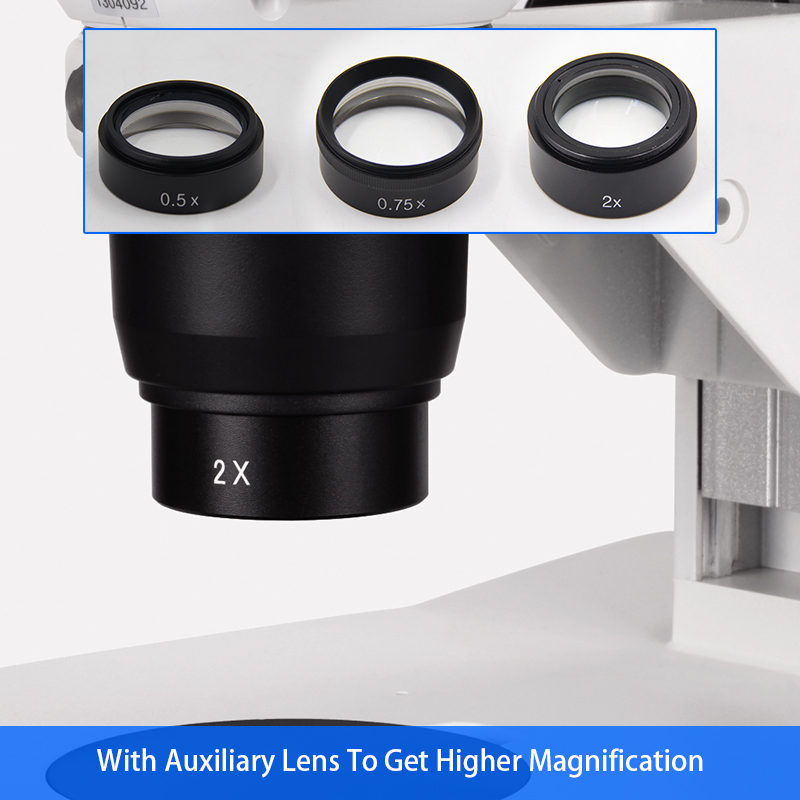

With auxiliary 0.5x/0.75x/2.0x lens to get higher magnification

A23.2603 Zoom Lens 0.7x~4.5x, Zoom Ratio 1:6.5 Technical Data
Auxiliary Lens		0.5x	0.75x	1x (Standard)	2.0x
Working Distance		184mm	128 mm	108mm	40mm
Eyepieces 10x/22mm	Magnification	3.5x~22.5x	5.25x~33.75x	7x~45x	14x~90x
Eyepieces 10x/22mm	View Field (mm)	62.86~9.78	41.91~6.52	31.43~4.89	15.72~2.45
Eyepieces 15x/16mm	Magnification	5.25x~33.75x	7.87x~50.63x	10.5x~67.5x	21x~135x
Eyepieces 15x/16mm	View Field (mm)	48.57~7.56	32.38~5.04	24.29~3.78	12.14~1.89
Eyepieces 20x/12mm	Magnification	7x~45x	10.5x~67.5x	14x~90x	28x~180x
Eyepieces 20x/12mm	View Field (mm)	37.14~5.78	24.76~3.85	18.57~2.89	9.29~1.44
A23.2604 Zoom Lens 0.68x~4.7x, Zoom Ratio 1:6.8 Technical Data
Auxiliary Lens		0.5x	0.75x	1x (Standard)	2.0x
Working Distance		184mm	128 mm	108mm	40mm
Eyepieces 10x/23mm	Magnification	3.4x~23.5x	5.1x~35.3x	6.8x~47x	13.6x~94x
Eyepieces 10x/23mm	View Field (mm)	67.65~9.75	45.1~6.52	33.82~4.89	16.91~2.45
Eyepieces 15x/16mm	Magnification	5.1x~35.3x	7.65x~52.9x	10.2x~70.5x	20.4x~141x
Eyepieces 15x/16mm	View Field (mm)	50.0~7.23	33.33~4.82	25.0~3.62	12.5~1.81
Eyepieces 20x/12mm	Magnification	6.8x~47x	10.2x~70.5x	13.6x~94x	27.2x~188x
Eyepieces 20x/12mm	View Field (mm)	38.24~5.53	25.49~3.69	19.12~2.77	9.56~1.38
A23.2605 Zoom Lens 0.65x~5.3x, Zoom Ratio 1:8.1 Technical Data
Auxiliary Lens		0.5x	0.75x	1x (Standard)	2.0x
Working Distance		184mm	128 mm	108mm	40mm
Eyepieces 10x/24mm	Magnification	3.25x~26.5x	4.88x~39.75x	6.5x~53x	13x~106x
Eyepieces 10x/24mm	View Field (mm)	73.85~9.06	49.18~6.04	36.92~4.53	18.46~2.27
Eyepieces 15x/16mm	Magnification	4.88x~39.75x	7.32x~59.63x	9.75x~79.5x	19.5x~159x
Eyepieces 15x/16mm	View Field (mm)	52.25~6.42	34.84~4.28	26.15~3.21	13.08~1.6
Eyepieces 20x/12mm	Magnification	6.5x~53x	9.75x~79.5x	13x~106x	26x~212x
Eyepieces 20x/12mm	View Field (mm)	40~4.91	26.67~3.27	20~2.45	10~1.23

Trinocular Inclined 35°, Light Split Switch E100:P0/E0:P100
Rotating switching to video output and input, 100% light distribution
OPTO-EDU A23.2604 Zoom Stereo Microscope 0.68~4.7x 1:6.8 Binocular Up/Down 3W LED

Zoom Knob
Zoom knob with magnifying stop pin, User can limit the zoom range as per self-choice
OPTO-EDU A23.2604 Zoom Stereo Microscope 0.68~4.7x 1:6.8 Binocular Up/Down 3W LED

Up/Bottom 3W LED
Powered By Safety Low Voltage Charger
Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use

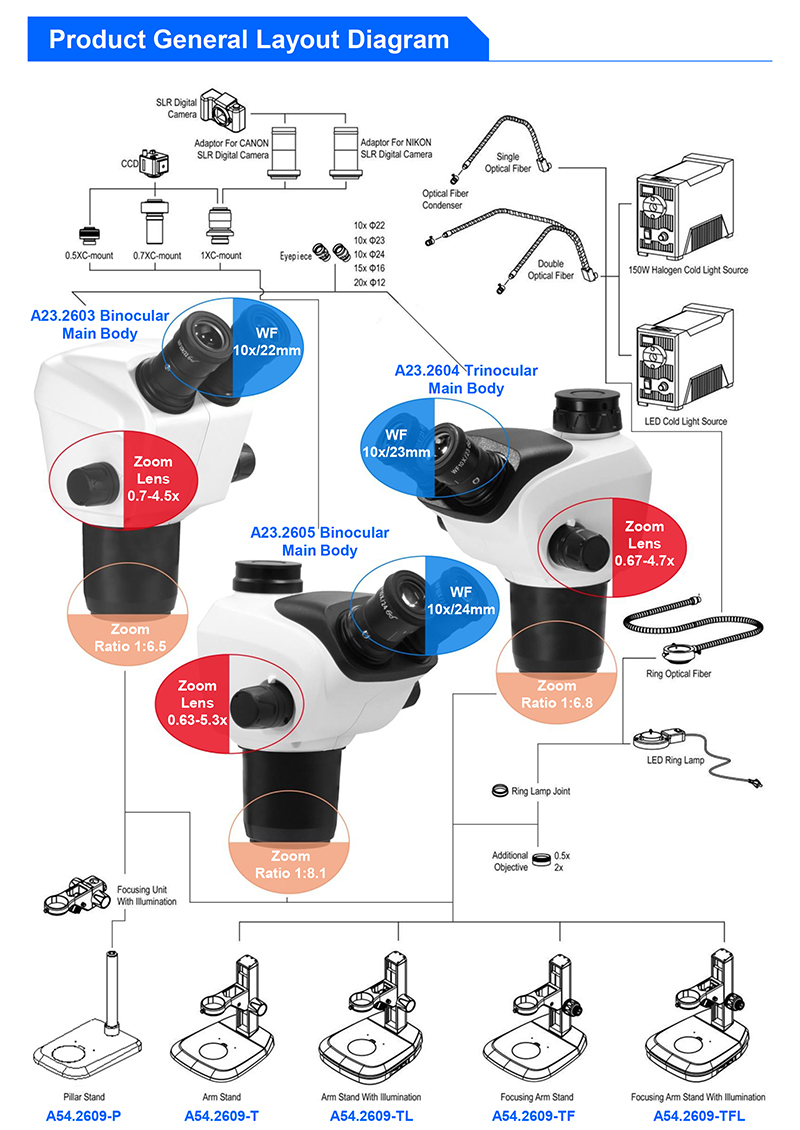

Items

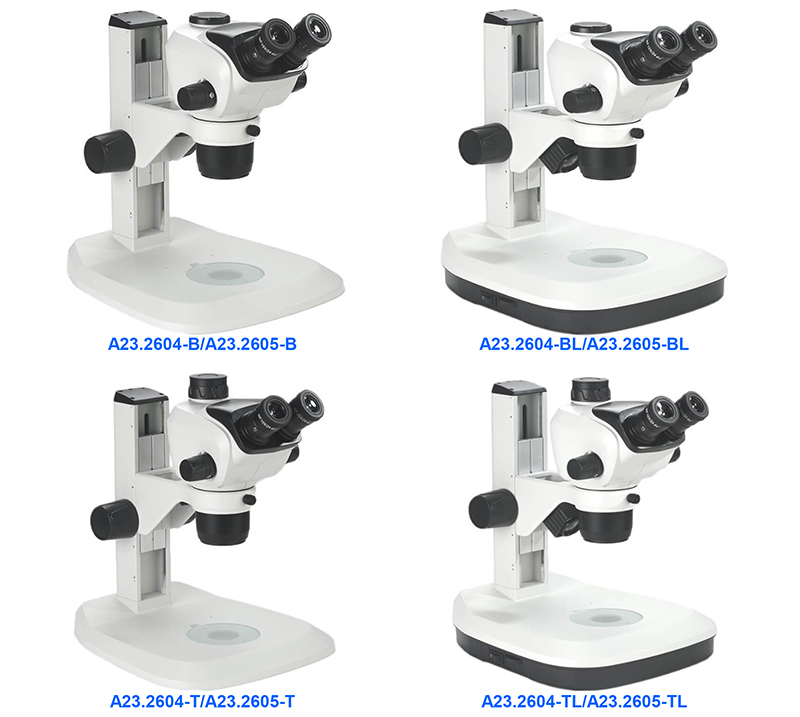

A23.26 Series Zoom Stereo Microscope

A23.2603

A23.2604

A23.2605

Cata. No.

Head

Seidentopf Head, Interpupilary Distance 50-75mm

Binocular Head Inclined 40°

●

Binocular Head Inclined 35°

●

Trinocular Inclined 35°, Light Split Switch E100:P0/E0:P100

●

Trinocular Upgrade To Light Split Fixed E50:P50

○

A53.2650-E50P50

Eyepiece

Eyepiece Tube Dia.30mm, High Eyepoint, Diopter Adjustable

●

WF10x/22mm, Pair

●

A51.2621-1022

WF10x/23mm, Pair

●

A51.2621-1023

WF10x/24mm, Pair

●

A51.2621-1024

Zoom Lens

0.7x~4.5x, Zoom Ratio 1:6.5

●

0.68~4.7x, Zoom Ratio 1:6.8

●

0.65~5.3x, Zoom Ratio 1:8.1

●

Zoom Knob

With Magnifying Stop Pin

●

Magnification

7.0x~45x, Up to 3.5x~180x By Optional Auxiliary Lens

●

6.8x~47x, Up to 3.4x~188x By Optional Auxiliary Lens

●

6.5x~53x, Up to 3.25x~212x By Optional Auxiliary Lens

●

W.D.

Working Distance 108mm, With Standard 1x Lens

●

A54.2601-S04

Stand

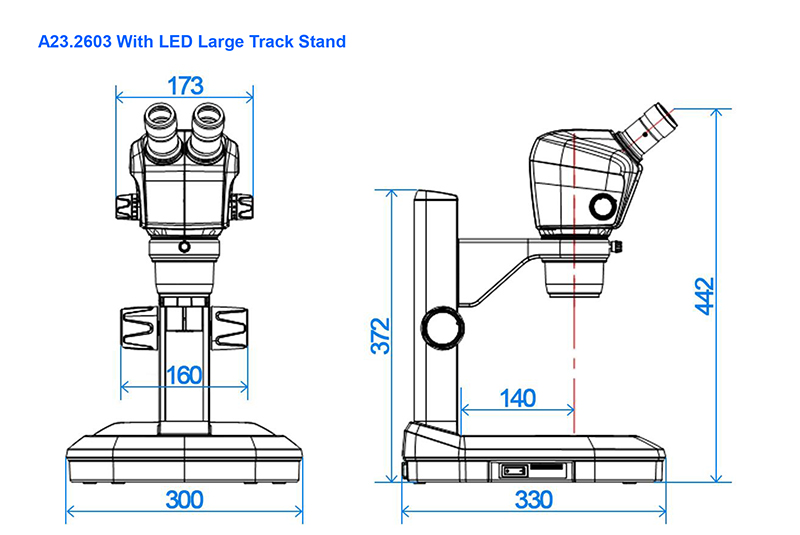

Large Track Stand, Base Size 33x30cm,
Track Stand Focusing Range 80mm
No Light Source

●

A54.2609-T

Large Track Stand, Base Size 33x30cm,
Track Stand Focusing Range 80mm
Up/Bottom 3W LED, Power By Safety Low Voltage Charger

●

A54.2609-TL

Package

Carton Size 480×370×475mm, 1 Unit/Ctn

Weight

Gross Weight: 8 kgs, Net Weight: 6.5 kgs

Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories

Items

Zoom Stereo Microscope Optional Accessories

Cata. No.

Eyepiece

WF15X/16mm, Dia.30mm, High Eyepoint, Diopter Adjustable

A51.2621-1516

WF20X/12mm, Dia.30mm, High Eyepoint, Diopter Adjustable

A51.2621-2012

Auxiliary Lens

0.5x, W.D.189mm

A52.2621-05

0.75x, W.D.128mm

A52.2621-75

2.0x, W.D.36mm

A52.2621-20

Stand

Small Pole Stand, Base Size 300x220cm, No Light, Pole Stand Focusing Range 115mm

A54.2609-P

Large Track Stand, Coaxial Coarse/Fine Focus, Base Size 330x300cm, No Light, Track Stand Focusing Range 80mm

A54.2609-TF

Large Track Stand, Coaxial Coarse/Fine Focus, Base 330x300cm, 3W LED Up/Bottom Light, Track Stand Focusing Range 80mm

A54.2609-TFL

CCD Adapter

1.0x, Focus Adjustable

A55.2601-SZ10

0.7x, Focus Adjustable

A55.2601-SZ07

0.5x, Focus Adjustable

A55.2601-SZ05

Polarizing

Polarizer + Analyzer, For Stereo Microscope

A5P.2604

Connect Ring

LED Light Connect Ring

A56.2602-R

Working Stage

XY Travel Range 75x56mm, Stage Size 180x155x27mm, Glass Size 116x96mm, Min Scale 0.1mm, Diameter Φ95 for Connecting stand base: 95mm

A54.1632

Micrometer

10 Kinds Of Regular Eyepiece Micrometer Model

A58.2002

Light Source

LED Ring Light, 56 LEDs, 4.5W, AC 100~240V, Inner Dia. 58mm

A56.2103-A

LED Cold Light, 10W-30W

A56.2617

Halogen Cold Light Source, 150W

A56.2618
