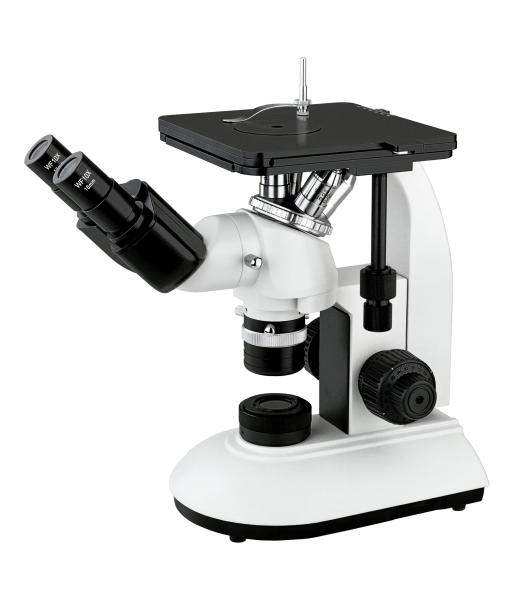

Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece

    Buy cheap Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece from wholesalers

    Buy cheap Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece from wholesalers
    • Buy cheap Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece from wholesalers
    • Buy cheap Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece from wholesalers
    • Buy cheap Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece from wholesalers
    • Buy cheap Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece from wholesalers

    Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A13.2602
    Certification : CE, Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece

    optical inverted china price of laboratory all kinds of used metallurgical microscope

    Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece
    Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece

    Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece

    A13.2602-A Monocular Head
    Monocular Head Inclined 45°, Rotatable 360°

    Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece

    A13.2602-B Seidentopf Binocular Head
    Inclined 45°, Rotatable 360°, Interpupillary Distance 48-75mm

    Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece

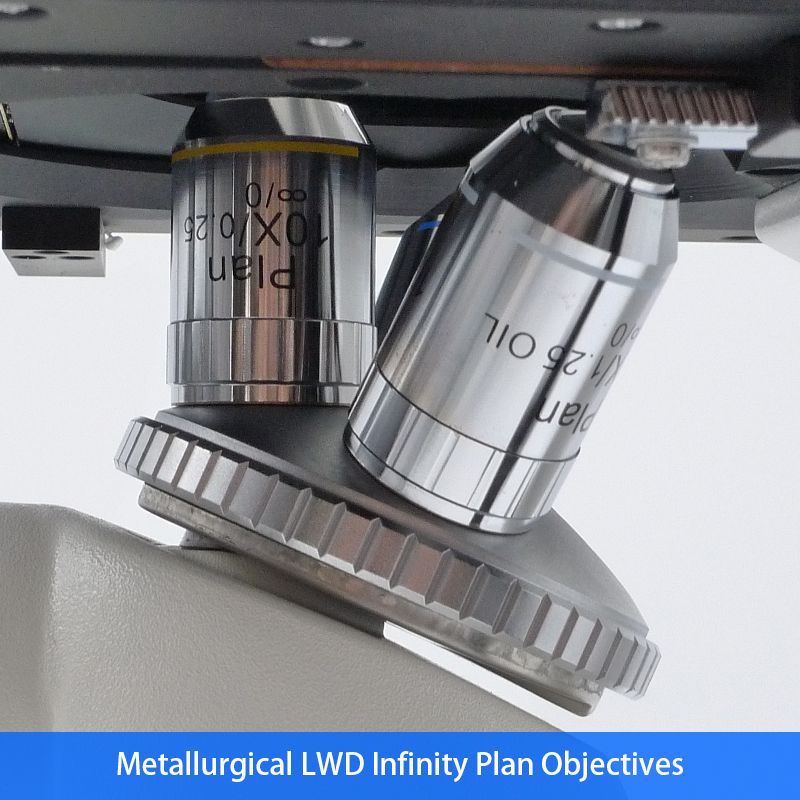

    Nosepiece & Objective
    Quadruple Nosepiece; Metallurgical LWD Infinity Plan Objectives: 5x, 10x, 50x

    Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece

    Light Source
    3W LED Standard Lamp; 12V 20W Halogen Lamp Optional

    Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece

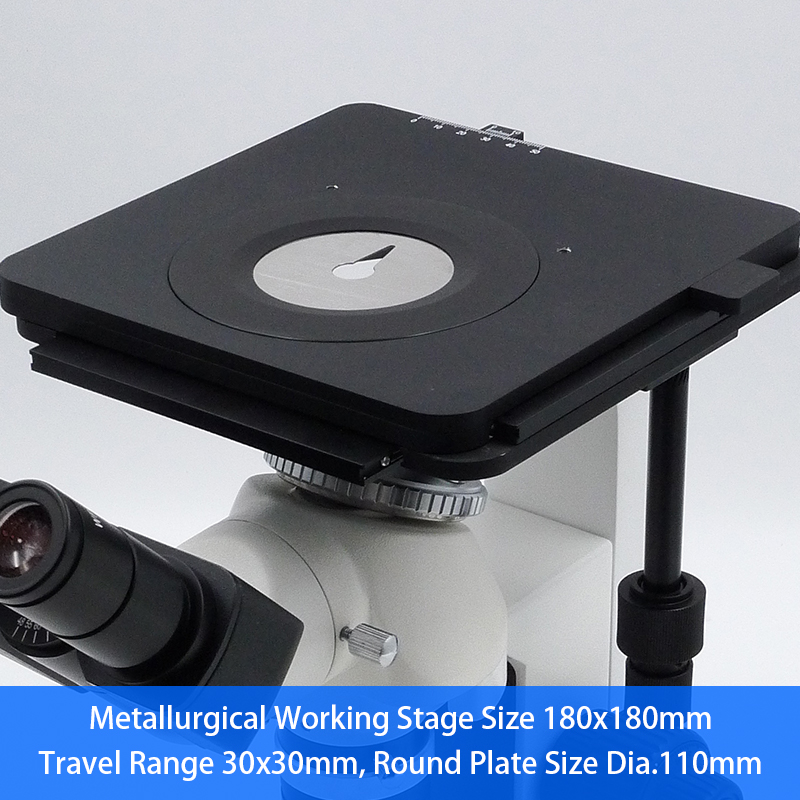

    Working Stage
    Stage Size 180x180mm, Travel Range 30x30mm, Round Plate Size Dia.110mm

    Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece

    Powered By Safety Low Voltage Charger
    Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use

    ItemsA13.2602 Inverted Metallurgical Microscope Specification-A-BCata. No.
    HeadMonocular Head Inclined 45°, Rotatable 360° A53.2631-M
    Seidentopf Binocular Head Inclined 45°, Rotatable 360°, Interpupillary Distance 48-75mm A53.2631-B
    EyepieceWF10x/18mm●●A51.2602-1018
    WF10x/18mm With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter AdjustableA51.2605-1018D
    NosepieceQuadrupleA54.2610-N704R
    Metallurgical LWD Infinity Plan ObjectivesLPL 5x/0.13, W.D.=16.04mmA5M.2633-5
    LPL10x/0.25, W.D.=18.48mmA5M.263310
    LPL 20x/0.40, W.D.=8.35mmA5M.2633-20
    LPL 50x/0.70, W.D.=1.95mmA5M.2633-50
    LPL 80x/0.80, W.D.=0.85mmA5M.2633-80
    LPL 100x/0.90(Dry), W.D.=1.00mmA5M.2633-100
    Working StageStage Size 180x180mm, Travel Range 30x30mm, Round Plate Size Dia.110mmA54.2601-MP100
    Round Plate With Oval HoleA54.2601-MD400
    Light Source3W LED Lamp,
    Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
    A56.2612-3W
    12V 20W Halogen Lamp, Wide Voltage: 100V-240VA56.2650-20W
    FilterBlue, Dia.32mmA56.2616-32B
    Green, Dia.32mmA56.2616-32G
    Grey, Dia.32mmA56.2616-32N
    MicrometerDivision 0.01mmA58.2001-901
    PackageCarton Size 437*268*522mm, 1 Unit/Ctn
    WeightGross Weight 8.0kgs, Net Weight 7.0kgs
    Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
