    Optical Laboratory Inverted Microscope

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A14.2603-TR
    Certification : CE, Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    Optical Laboratory Inverted Microscope

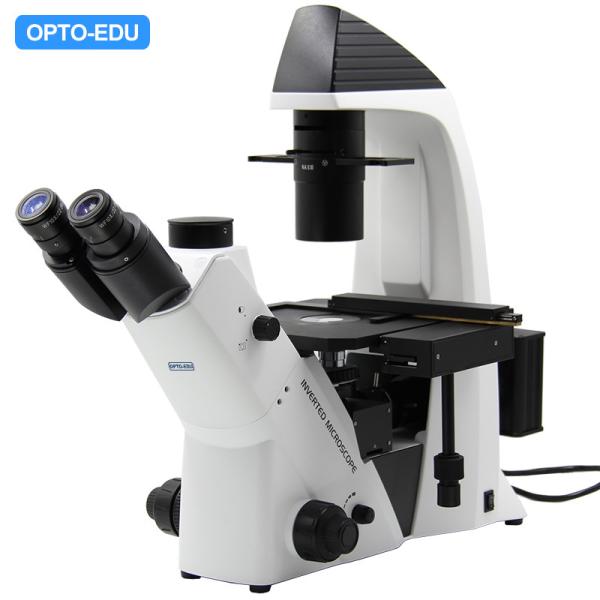

    OPTO-EDU A14.2603-TR 100-400x Optical Trinocular Lab Biological Inverted Microscope


    A14.2603-TR Inverted Biological Microscope is a kind of microscope whose objective is under the stage. The special design is for observing and operating specimen more convenient, especially for specimen of height. It’s stage is mechanical stage, size 210x241mm, the round slide size is dia.118mm, with attachable mechanical stage for 96 holes plate, moving range 128x80mm. The illumination is transmit light, Koehler illumination halogen 6V30W.


    A14.2603-TR Inverted Microscope Specification
    HeadSeidentopf Trinocular Head, Inclined 45°, Interpupilary Distance 48~76mm Light Split (Both) 100:0 and 80:20
    EyepieceWF10x/22mm, Diopter Adjustable
    NosepieceLarge Diameter Quintuple
    ObjectiveLWD Infinity Plan Objective:
    LPL10x/0.25 WD=8.3mm
    LPL20x/0.40 WD=7.2mm
    LPL40x/0.60 WD=3.4mm

    LWD Infinity Plan Phase Contrast Objective:
    20x/0.40 WD=7.2mm

    Infinity LWD Plan Objective (no cover glass):
    LPL10x/0.25, W.D.=14.48mm
    LPL40x/0.13, W.D.=3.90mm
    Focus SystemLow Position, Coaxial Coarse & Fine Focusing System, Coarse Stroke 42mm /Rotation, Fine Stroke 0.2mm /Rotataion, Minimum Reading 2μm
    StageMechanical Stage Size 210x241mm, Round Slide Size Dia.118mm, With Attachable Mechanical Stage For 96 Holes Plate, Moving Range 128x80mm, With Culture Dish Holder 54mm, Knob Can Be Changed By Left Or Right
    CondenserLong Working Distance, N.A.0.3, Working Distance 72mm (With Condenser),195mm (Without Condenser For Extra High Culture Dish), Quickly Detachable
    Phase ContrastPhase Contrast Annular Plate For 20x/40x
    FilterBlue, Green
    Light SourceTransmit Light, 5W LED
    CondenserLWD N.A.0.3
    Power SupplyWide Range Voltage 110~240V
    FluorescenceUpgrade To A16.2613 Fluorescent Microscope by:
    --Epi Fluorescence Unit, Field Diaphragm, Center Adjustable
    --100W Mercury Lamp
    --Digital Mercury Lamp Power Box, Input Voltage:100~240V
    --Fluorescent Filter B, G
    A5F.2601-A


    Optional Accessories
    EyepieceWF15x/16mmA51.2621-15A
    10x Reticle Eyepiece (0.1mm)A51.2605-10
    ObjectiveInfinity LWD Plan Objective LPL4x/0.11, WD=12.1mmA52.2609-4A
    Infinity Plan Phase Contrast Objective 10x/0.25 W.D.=8.3 mmA5C.2630-10A
    Infinity Plan Phase Contrast Objective 40x/0.60 W.D.=3.4 mmA5C.2630-40A
    Infinity LWD Plan Objective (no cover glass) LPL5x/0.13, W.D.=24.23mmA5M.2633-5
    Infinity LWD Plan Objective (no cover glass) LPL20x/0.40, W.D.=8.35mmA5M.2633-20
    Infinity LWD Plan Objective (no cover glass) LPL50x/0.70(S), W.D.=1.95mmA5M.2633-50
    Infinity LWD Plan Objective (no cover glass) LPL80x/0.80(S), W.D.=0.85mmA5M.2633-80
    Infinity LWD Plan Objective (no cover glass) LPL100x/0.90(S), W.D.=1.00mmA5M.2633-100
    Phase ContrastCentering TelescopeA5C.2610-B
    Phase Contrast Annular Plate For 10xA5C.2611-10
    FilterAmberA56.2616-A
    GreyA56.2616-N
    Culture Dish Holder65mmA54.2606-65
    35mmA54.2606-35
    AdapterC-Mount Adapter 0.5x (Focus Adjustable)A55.2601-05A
    C-Mount Adapter 1.0xA55.2601-10


    Inverted microscope is particularly suitable for living cells and tissues, fluids, sediments and other microscopic research. It is the ideal instrument for biology, cytology, oncology, genetics, immunology and other research work. Inverted microscope is widely used in scientific research, universities, medical, epidemic prevention and agriculture and animal husbandry and other departments.
