OPTO-EDU A14.2605 Kohler Illumination Trinocular Inverted Biological Microscope
| A14.2605 Inverted Biological Microscope Specification | |
| Eyepiece | WF10X/22mm Diopter Adjustable |
| Centering Telescope | |
| Objectives | LWD Infinity Plan Objectives LPL 4X/0.11 W.D.=12.1mm LWD Infinity Plan Phase Contrast Objectives LPL PhP 10×/0.25 W.D.=8.3mm LPL PhP 20×/0.40 W.D.=7.2mm LPL PhP 40×/0.60 W.D.=3.4mm |
| Annular Spot | 10×/20×/ 40× |
| Seidentopf Trinocular Head | Inclined 45°, Interpupilary Distance: 48-76mm |
| Light Distribution (Both): 100: 0 (100% For Eyepiece) | |
| 80:20 (80% For Trinocular Head, And 20% For Eyepiece) | |
| Digital Photography C-mount | 100% Light For Photography Port |
| (One C-mount For CANON Or NIKON SLR Digital Photography Camera) | |
| Nosepiece | Quintuple |
| Mechanical Stage | Stage Size: X×Y 210×241mm, Round Slide Size:φ110mm, |
| Attached Mechanical Stage(Available For 96 Holes Plate, Moving Range X×Y:128×80mm.) | |
| Culture Dish Holder | 54mm |
| Condenser | 4-hole Rotating Disc Phase Contrast Condenser |
| N.A.0.4 W.D.45mm | |
| It Can Be Up-down Adjusting | |
| Koehler Illumination | 12V/50W Halogen, Input Voltage:100V~240V |
| Filter | Blue |
| Green | |
| Optional Accessories | |
| LWD Infinity Plan Objectives | LPL 10X/0.25 W.D.=8.3mm |
| LPL 20X/0.40 W.D.=7.2mm | |
| LPL 40X/0.60 W.D.=3.4mm | |
| LWD Infinity Plan Phase Contrast Objectives | LPL PhP 4×/0.10 W.D.=9.2mm |
| Annular Spot | 4× |
| Culture Dish Holder | 65mm |
| 35mm | |
| Holder For Blood Cell Counter | |
| Koehler Illumination | 5WLED,Input Voltage:100V~240V |

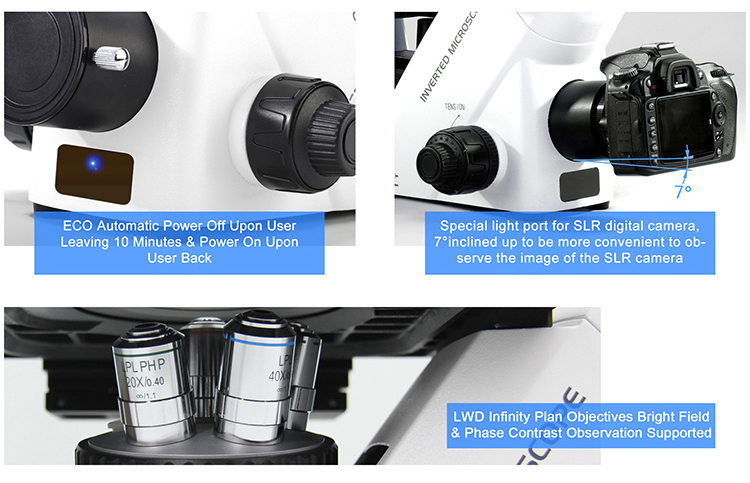

| Auto Power On-off System | Power Off Automatically Upon User Leaving 10 Minutes, Power On Automatically Upon User Approaching |
| Filter | Amber |
| Grey | |
| C-mount | 1×C-Mount (Better For Digital Photograph). |
| 0.5X C-Mount (Focus Adjustable, Better For Digital Camera) | |
| 0.75X C-Mount (Focus Adjustable, Better For Digital Camera) | |

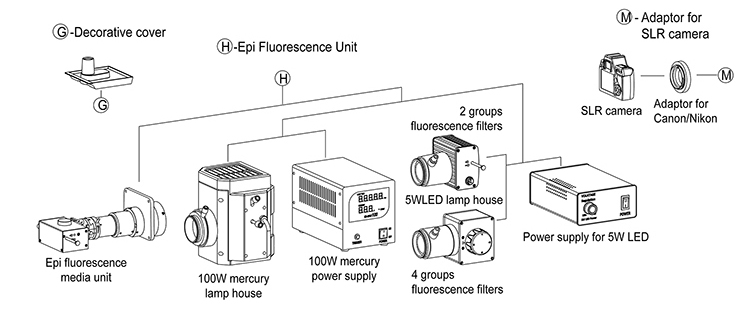

| Epi Fluorescence Illumination | Epi Fluorescence Media Unit , Field Diaphragm,Center Adjustable. |
| 100W Mercury Lamp | |
| 5WLED | |
| B, G, V, UV Fluorescence Filters Can Be Chosen | |
| Digital Mercury Lamp Power Box (For 100W Mercury Or 5WLED) (Input
Voltage:100V~240V) | |






|
