    Polarizing Microscope Transmitting Light

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A15.2601
    Certification : CE, Rohs
    Price : Negotiation
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    Polarizing Microscope Transmitting Light

    Polarizing Microscope Transmitting Light
    Polarizing Microscope Transmitting Light
    Polarizing Microscope Transmitting Light
    Polarizing Microscope Transmitting Light
    Retical Eyepiece WF10x/20mm, Dia.30mm With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable
    Joint Move Design: Specially For Polarizing Microscope, To Keep Right Side Eyepiece's Cross In View Field Keep Vertical Direction Even When Eyepiece Tube Turned.
    Polarizing Microscope Transmitting Light

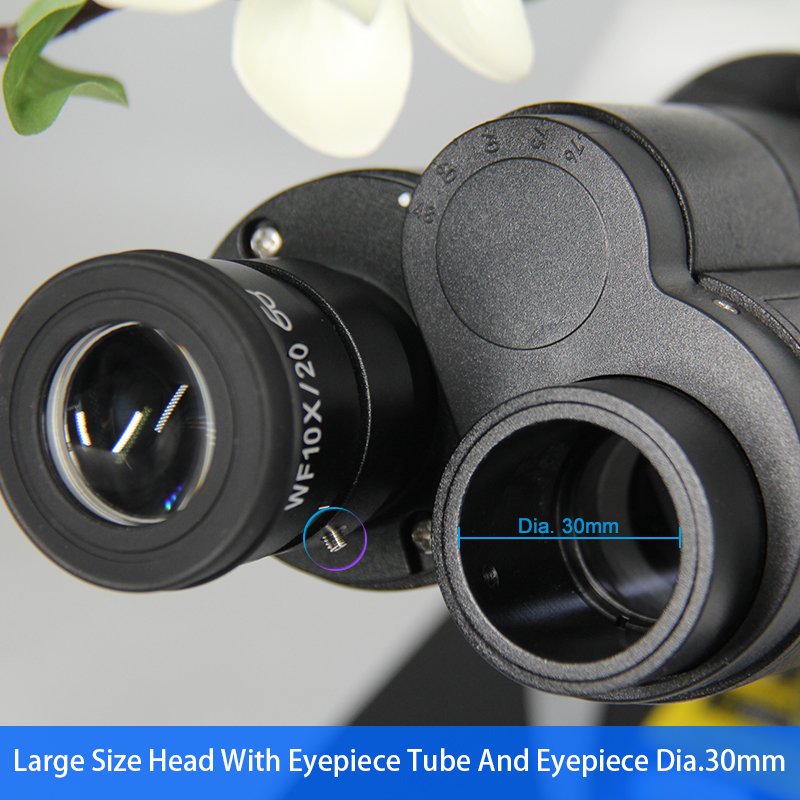

    Super Wide Field Eyepiece SWF10x/22mm, Eyepiece Dia.30mm Diopter Adjustable
    The Eyepiece Tube Has Fix Screw
    To Prevent Eyepiece Falling Damage During Move
    Polarizing Microscope Transmitting Light
    Trinocular Head Light Split Optional Between Switch E100:P0/E0:P100 & Fixed E80:P20
    In Fixed Light Split, Eyepiece 80% : Photo 20% User Can View Image At Same Time In Both Path
    In Switch Light Split, Eyepiece 100%:Photo 0% / Eyepiece 0%:Photo 100%, Camera Can Have 100% Light For Photo Capture.

    Polarizing Microscope Transmitting Light
    Analyzer Rotatable 360°, Module Type, Can Be Locked
    With Bertrand Lens Built-in Focus Adjustable, With Compensator Slide, Quartz Wedge Slide Slot
    Polarizing Microscope Transmitting Light
    Large Size High Precision Centering Quintuple Nosepiece, Non-Stress Infinity Plan Objective (Transmitting) 4x,10x,20x,40x Available
    Remark: The Yellow Mark On Nosepiece Is Standard Position For 10x Objective, The Rest Objectives Should Be Mounted From High To Low Power In Clockwise Direction, As Above Picture Shown.
    Polarizing Microscope Transmitting Light
    Rotatable 360°, Division 1', Vernier, Division 6', Can Be Locked
    Polarizing Microscope Transmitting Light

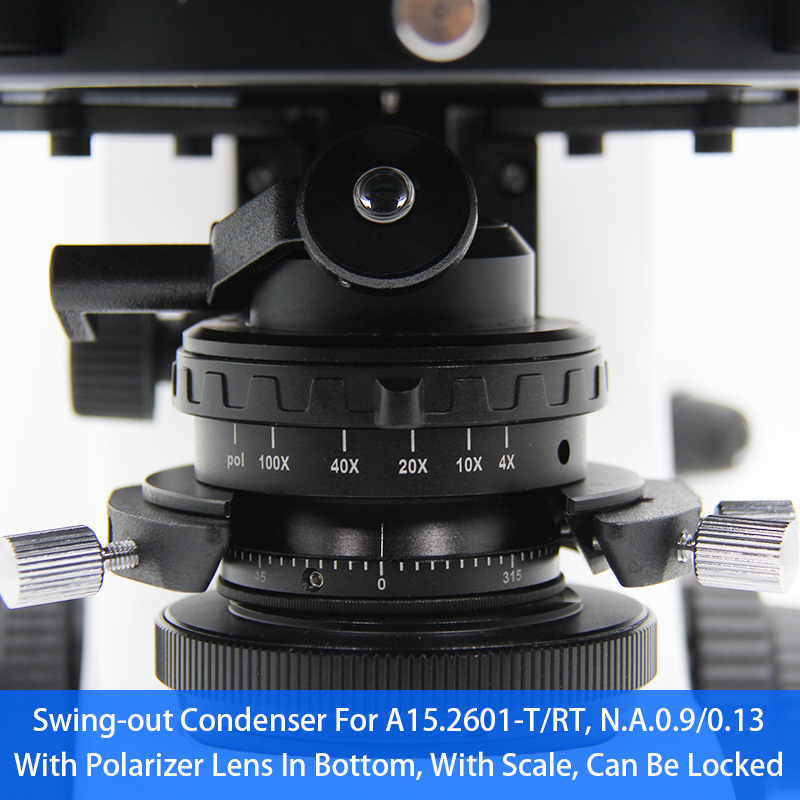

    Swing-out Condenser, N.A.0.9/0.13, With Polarizer For A15.2601-T&RT
    Lens In Bottom, With Scale, Can Be Locked.
    Swing The Lens In To Get Excellent Image When Using High Power Objective To Make Observation.

    Polarizing Microscope Transmitting Light
    3W LED Koehler Illumination, Field Diaphragm
    Powered By Safety Low Voltage Charger
    Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use

    Items A15.2601 Series Polarzing Microscope A15.2601-T
    Transmit
    A15.2601-R
    Reflect
    A15.2601-RT
    Trans&Reflect
    Cata. No.
    TB TT RB RT RTB RTT
    Head Professional Polarizing Seidentopf Binocular Head, Inclined 30°, Rotatable 360°, Interpupilary Distance 48-76mm, Eyepiece Tube Dia.30mm,
    Joint Move Design: Speically For Polarzing Microscope, To Keep Right Side Eyepiece's Cross In View Field Keep Vertical Direction Even When Eyepiece Tube Turned
          A53.2625-B
    Professional Polarizing Seidentopf Trinocular Head, Inclined 30°, Rotatable 360°, Interpupilary Distance 48-76mm,
    Light Split Switch E100:P0/E20:P80, Eyepiece Tube Dia.30mm
    Joint Move Design: Speically For Polarzing Microscope, To Keep Right Side Eyepiece's Cross In View Field Keep Vertical Direction Even When Eyepiece Tube Turned
          A53.2625-T
    Eyepiece WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable         A51.2621-1022
    WF10x/22mm, Dia.30mm, With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable, With Position Pin For Joint Move         A51.2622-1022P
    WF10x/20mm, Dia.30mm, High Eyepoint, Diopter Adjustable     A51.2621-1020
    WF10x/20mm, Dia.30mm, With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable, With Position Pin For Joint Move     A51.2622-1020P
    Nosepiece Quintuple, Center Adjustable A54.2610-N02
    Non-Stress

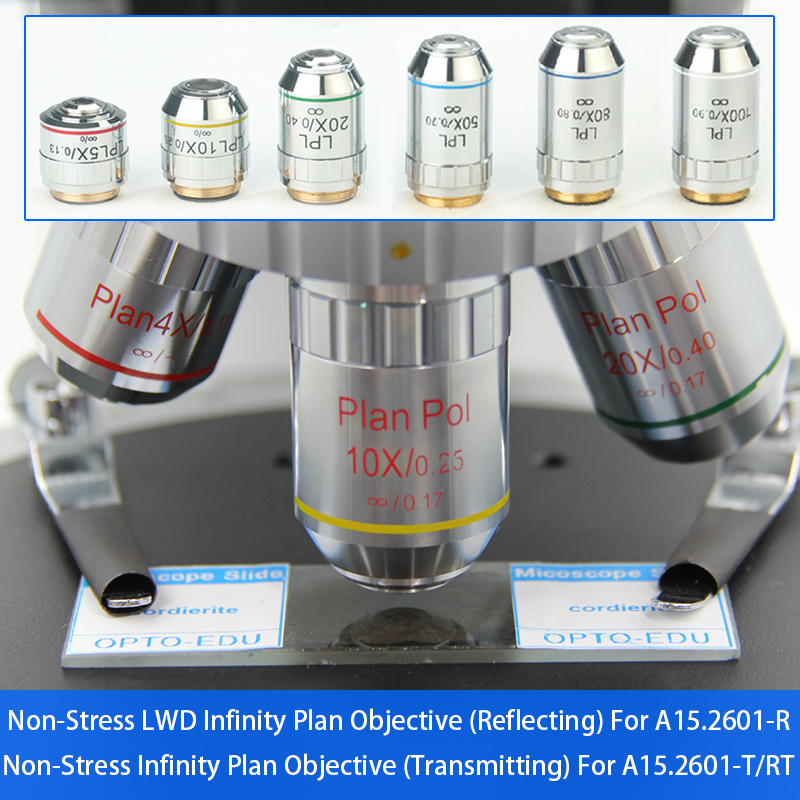

    Infinity Plan Objective
    (Transmitting)
    PLAN 4x/0.10, W.D.=12.1mm     A5P.2630-4
    PLAN 10x/0.25, W.D.=4.64mm     A5P.2630-10
    PLAN 20x/0.40(S), W.D.=2.41mm     A5P.2630-20
    PLAN 40x/0.66(S), W.D.=0.65mm     A5P.2630-40
    PLAN 60x/0.8(S), W.D.=0.33mm             A5P.2630-60
    PLAN 100x/1.25(S,Oil), W.D.=0.12mm             A5P.2630-100
    Non-Stress
    LWD Infinity
    Plan Objective
    (Reflecting)
    LPL5x/0.13, W.D.=16.04mm     A5M.2633-5
    LPL10x/0.25 W.D.=18.48mm     A5M.2633-10
    LPL20x/0.40 W.D.=8.35mm     A5M.2633-20
    LPL50x/0.70(S) W.D.=1.95mm     A5M.2633-50
    LPL100x/0.90(S,Dry) W.D.=1.10mm     A5M.2633-100

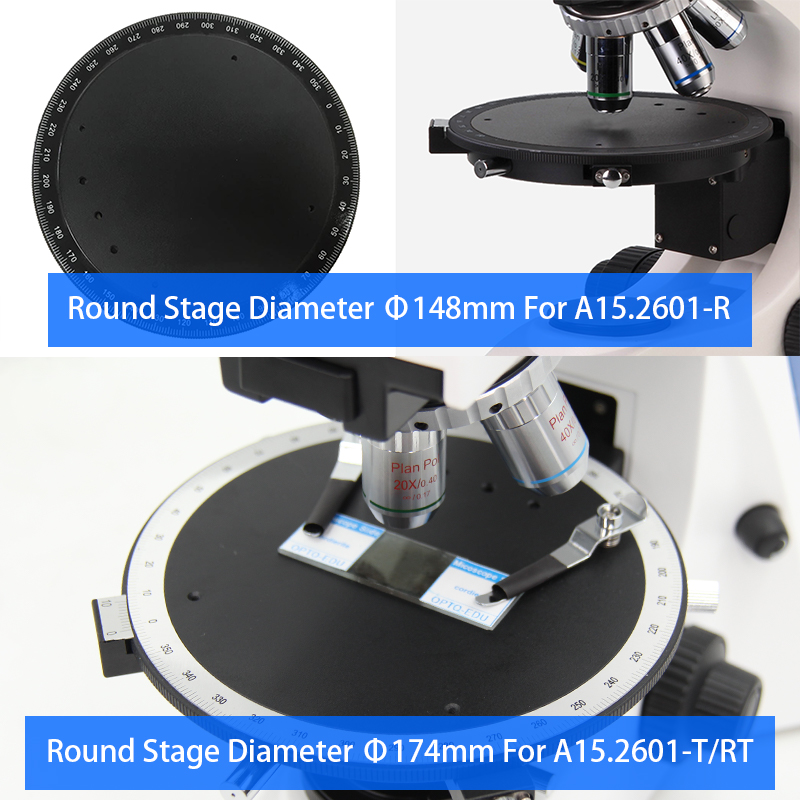

    Working Stage Round Stage Diameter Φ174mm, For Transmit Light,
    Rotatable 360°, Division 1', Vernier Division 6', Can Be Locked
    A54.2602-S06
    Round Stage Diameter Φ148mm, For Reflect Light,
    Rotatable 360°, Division 1', Vernier Division 6', Can Be Locked
            A54.2602-S06a
    Attachable Mechanical Stage For Polaring Microscope, Moving Range 40x40mm A5P.2616
    Attachable Mechanical Stage For Polaring Microscope, Moving Range 30x45mm, Lecia Type, Avoid Hitting Objective Lens A5P.2616-LK
    Condenser Swing Out Condnser, N.A.0.9/0.13, With Polarizer Lens In Bottom, With Scale, Can Be Locked     A56.2614-C10
    Polarizing Unit Analyzer Media Unit, Between Head And Body,
    Analyzer 0~360° Adjustable, Can Be Locked,
    With Betrand Lens Built-in Focus Adjustable,
    A5P.2621-BK
    Compensator Slide, With λ Slip (First Class Red) A5P.2614-16a
    Compensator Slide, With λ/4 Slip A5P.2614-15a
    Quartz Wedge Slide (I-IV Class) A5P.2615-17
    Quartz Wedge Slide (0-IV Class) Long Type A5P.2615-17a
    Polarizer Lens, Bulit-in Bottom Part Of Condenser A5P.2610-BK
    Focusing Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 22mm, Fine Focusing Div. 0.002mm
    Illumination Transmit Light 5W LED
    Koehler Illumination, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
        A56.2612-5W
    Transmit Light 6V30W Halogen
    Koehler Illumination, Wide Voltage 100V~240V
        A56.2613-30W
    Reflect Light 5W LED
    Koehler Illumination, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
        A56.2612-5W
    Reflect Light 12V50W Halogen
    Koehler Illumination, Wide Voltage 100V~240V
        A56.2613-50W
    Field Diaphragm For Kohler Illumnation A56.2615-BK
    Power ECO, Auto Power Off System.
    Power Off Automatically Upon User Leaving 10 Minutes,
    Power On Automatically Upon User Approaching Detected,
    This Function Can Be Shut Down Manually
        A56.2660
    Filter Dia.45mm, Blue A56.2616-45B
    Dia.45mm, Green A56.2616-45G
    Dia.45mm, Yellow A56.2616-45A
    Adapter C-Mount 0.5x, Focus Adjustable       A55.2601-05
    C-Mount 0.75x, Focus Adjustable       A55.2601-75
    C-Mount 1.0x, Focus Adjustable       A55.2601-10
    Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm       A55.2610
    Package & Weight Carton Size 520×470×285mm, 1 Unit/Ctn, Gross Weight: 12.5 kgs, Net Weight: 10.0 kgs A15.2601-TB,TT
    Carton Size 520×470×430mm, 1 Unit/Ctn, Gross Weight: 16.0 kgs, Net Weight: 12.5 kgs A15.2601-RB,RT
    Carton Size 520×470×430mm, 1 Unit/Ctn, Gross Weight: 15.0 kgs, Net Weight: 11.5 kgs A15.2601-RTB,RTT
    Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories
